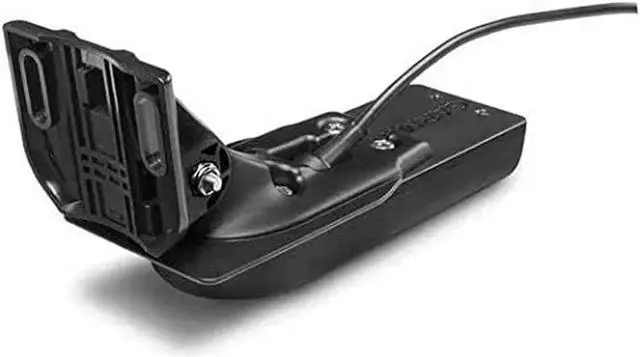

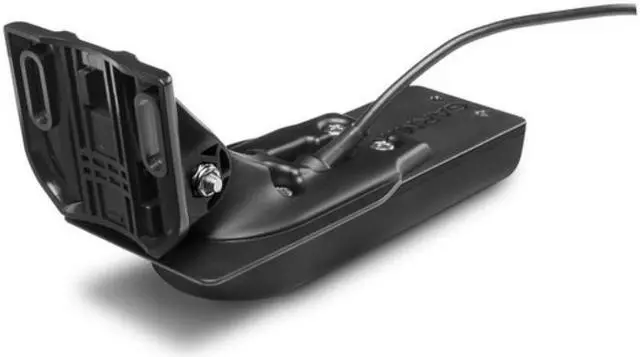

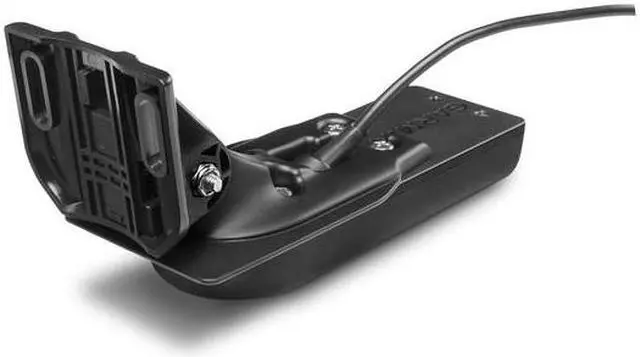

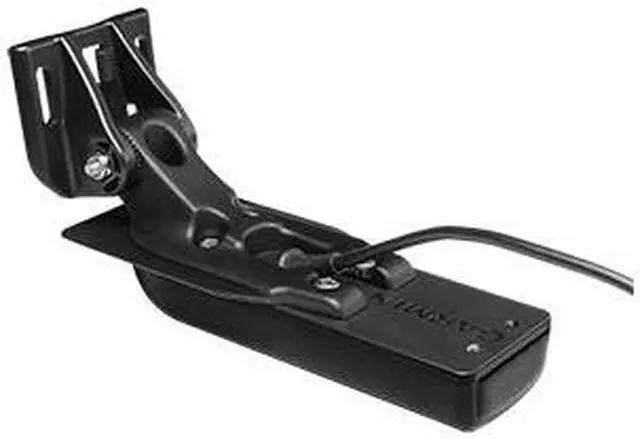

Garmin 010-12908-00 GT24UHD-TM Transducer

Garmin GT24UHD-TM

Brand New
Includes One Year Warranty
Product # 010-12908-00



The Garmin GT24UHD-TM Transducer is a 8-pin, all-in-one transducer with the highest resolution ClearV? scanning and amazingly clear high wide CHIRP traditional sonar. The transducer provides incredibly detailed images of structure and fish up to 200 ft below the boat with 800 kHz ClearV? sonar imaging. Similarly, with the high wide CHIRP traditional sonar, user gets clear target separation and definition. The transducer provides both transom as well as trolling motor mounting options and includes the necessary installation hardware.


GT24UHD-TM Transducer Features:



8-pin Transducer
Traditional CHIRP Frequency 150-240 kHz
UHD ClearV? Frequency 800 kHz
- CHIRP Range 760-880 kHz
Beamwidth:
- Traditional CHIRP: 16° - 24°, Adjustable in 1° Steps
- UHD ClearV?: 0.94 ° x 60°
Maximum Depth:
- 800Ft (Traditional CHIRP)
- 200Ft (UHD ClearV? )
Provides 2 Remarkable View
- High Wide Traditional CHIRP: Remarkably Clear Target Separation & Definition
- Ultra High-Definition ClearV?: Highest Resolution Images of Fish & Structures
Depth & Temperature Sensor
Supported Deadrise/Transom Angles: 0° - 70°
Power: 350 W
Cable Length: 20 ft.
