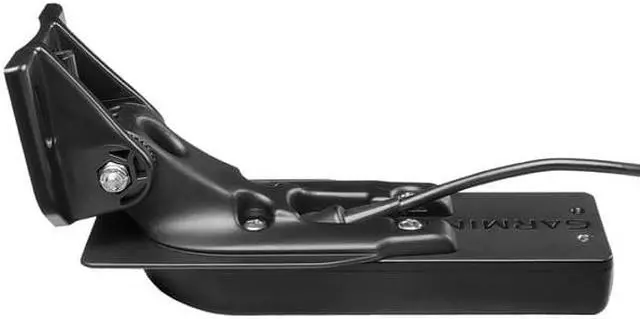

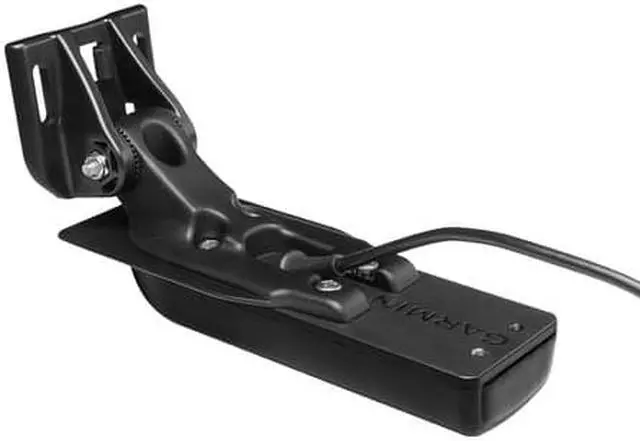

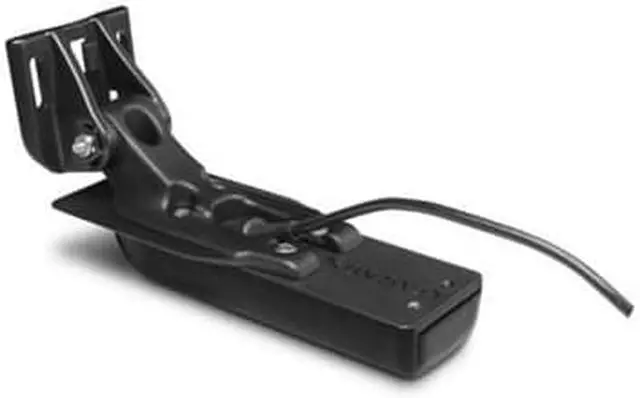

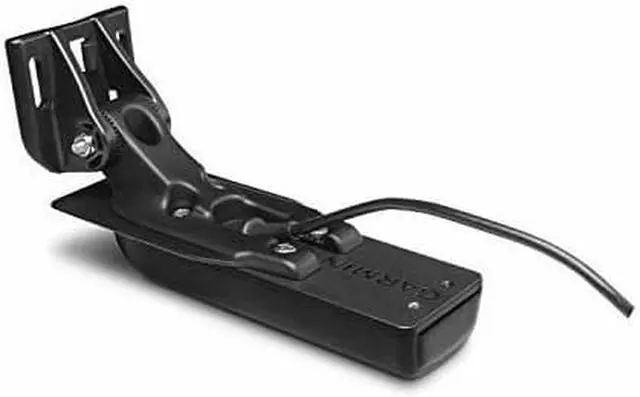

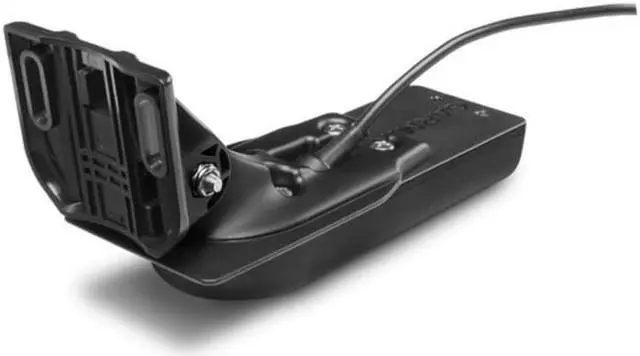

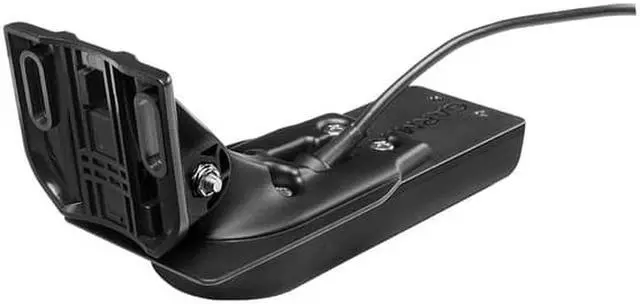

Garmin 010-12909-00 GT54UHD-TM Transducer

Garmin GT54UHD-TM

Brand New
Includes One Year Warranty
Product # 010-12909-00



The Garmin GT54UHD-TM Transducer is a 12-pin, all-in-one transducer with the highest resolution ClearV? and SideV? scanning with amazingly clear high wide CHIRP traditional sonar. The transducer provides incredibly detailed images of structure and fish up to 200 ft below the boat with ClearV? sonar imaging. Similarly, with the high wide CHIRP traditional sonar, user gets clear target separation and definition up to a depth of 800ft. UHD SideV? scanning lets the user scan for detailed images of fish and structures up to 125 ft to each side of the boat up to a maximum depth of 30ft.

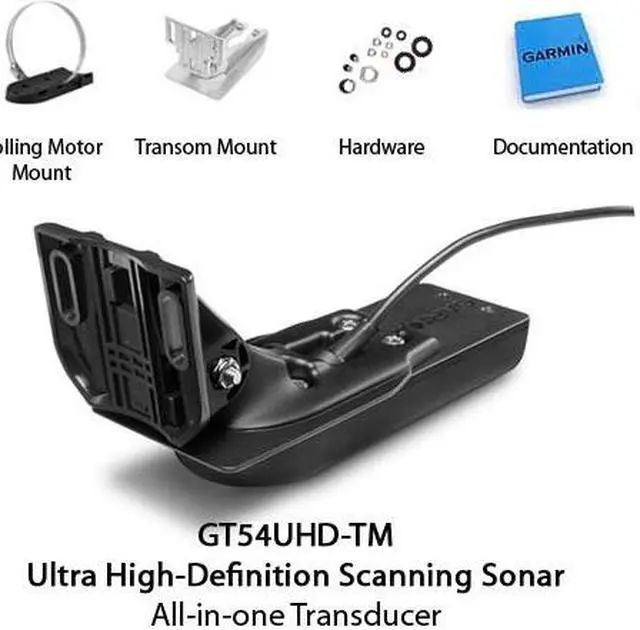

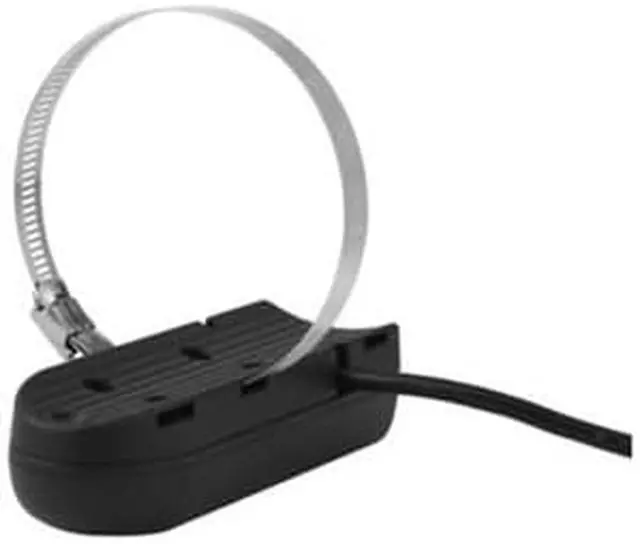

The transducer provides both transom as well as trolling motor mounting options and includes the necessary installation hardware.


GT54UHD-TM Transducer Features:



12-pin Transducer
Traditional CHIRP Frequency 150-240 kHz
UHD ClearV? Frequency 800 kHz
- CHIRP Range 760-880 kHz
SideV? Frequency 455 kHz
- CHIRP Range 425-485 kHz
UHD SideV? Frequency 1, 200 kHz
- CHIRP Range 1, 080-1, 230 kHz kHz
Beamwidth:
- Traditional CHIRP: 16° - 24°, Adjustable in 1° Steps
- UHD ClearV?: 0.94 ° x 60°
- UHD SideV?: 0.64 ° x 52°
- SideV?: 1.62 ° x 50°
Maximum Depth:
- 800Ft (Traditional CHIRP)
- 200Ft (UHD ClearV? )
- 125Ft to Each Side;
Max Depth: 30Ft (UHD SideV? )
- 500Ft to Each Side (SideV? )
Provides 3 Remarkable View
- High Wide Traditional CHIRP: Remarkably Clear Target Separation & Definition
- Ultra High-Definition ClearV?: Highest Resolution Images of Fish & Structures
- Ultra High-Definition SideV?: Detailed Images of Fish & Structure On Both Sides of the Boat
Depth & Temperature Sensor
Supported Deadrise/Transom Angles: 0° - 70°
Power: 350 W
Cable Length: 20 ft.
Compatible with all echoMAP Ultra models
