SHAESPEARE 5250 36 S/S WHIP VHF SKINNY MINI

SHAESPEARE 5250 36 S/S WHIP VHF SKINNY MINI

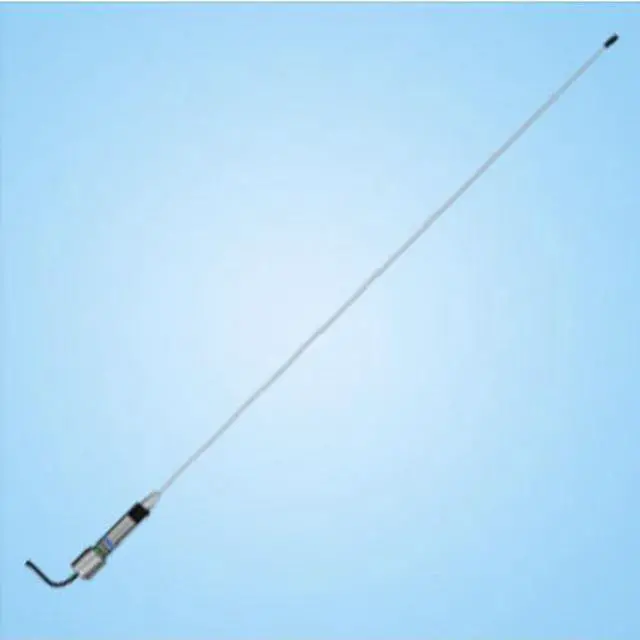

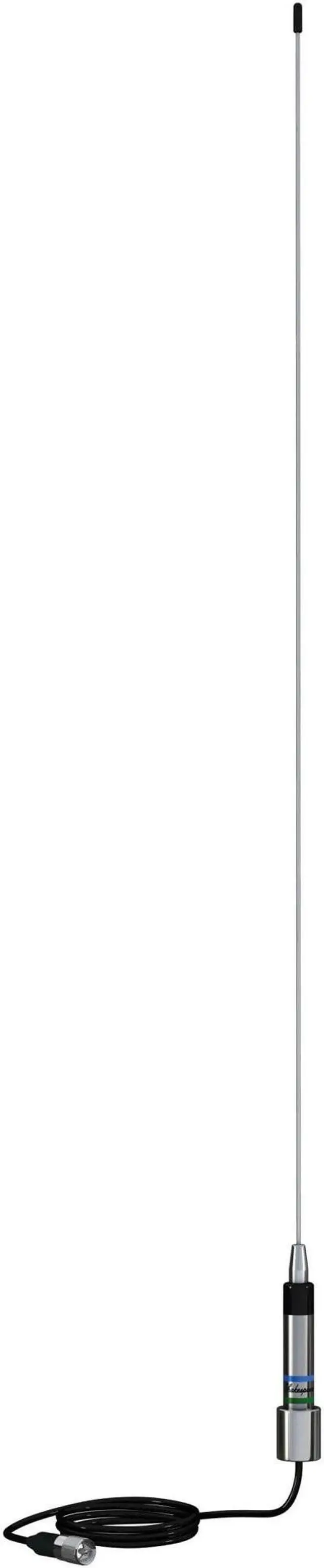

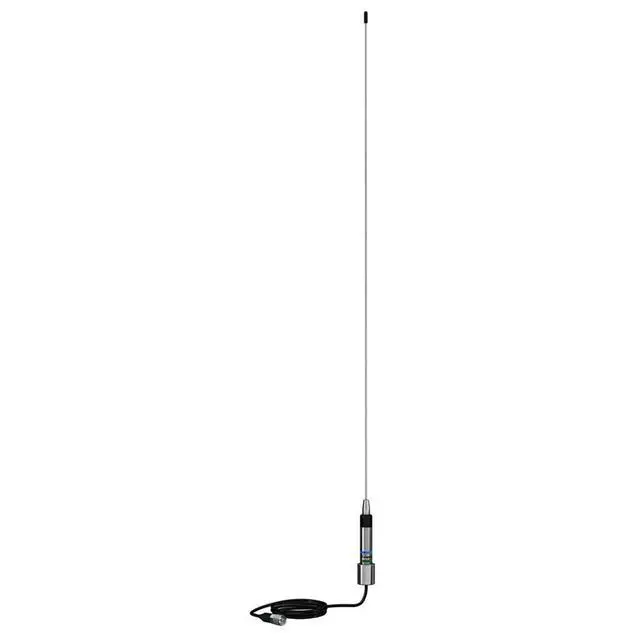

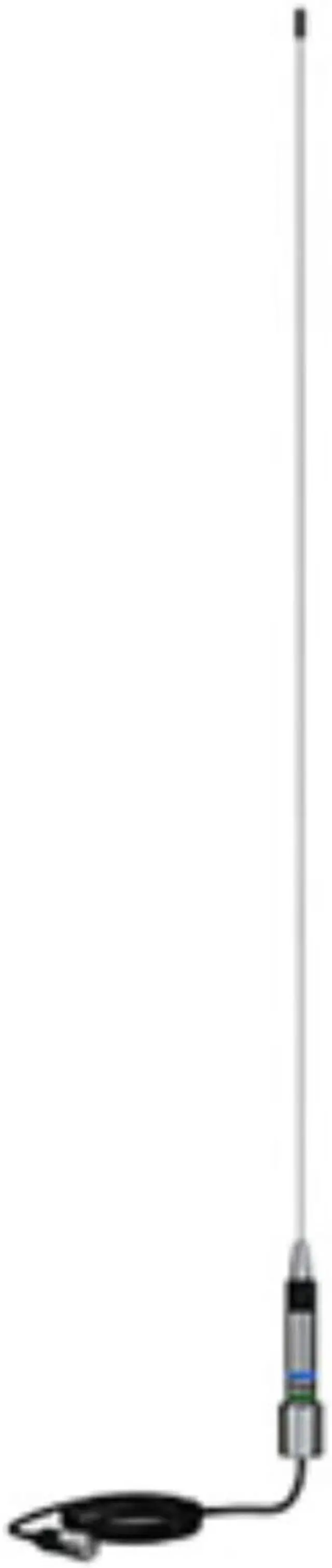

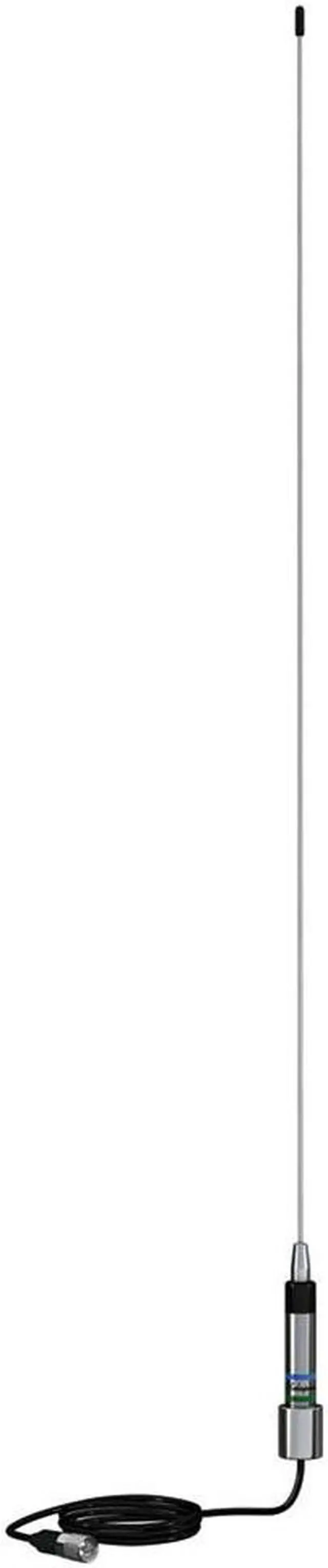

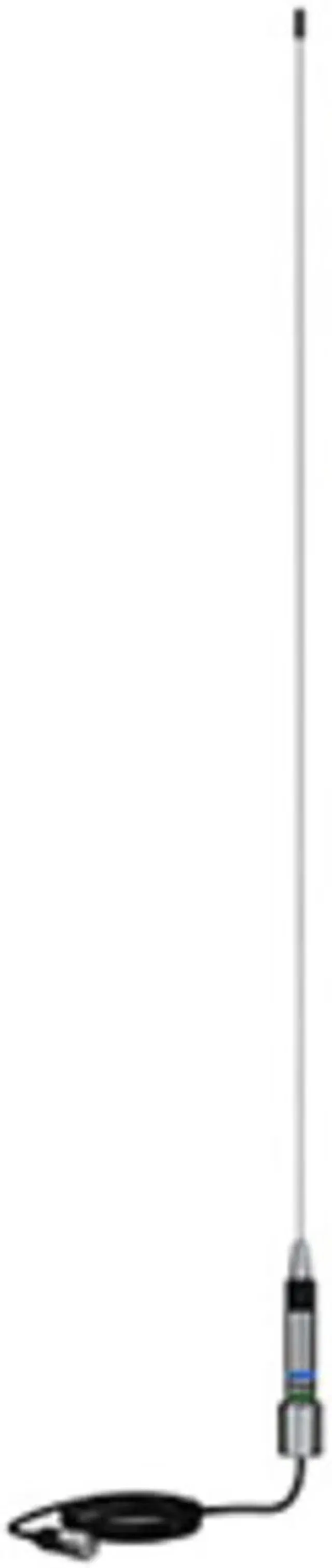

Shakespeare Style 5250 Skinny Mini 3 ft. ( 0.91 M) VHF Marine Band 3dB End-fed -wave stainless steel whip This compact, lightweight antenna is ideal for vessels where space is limited - bass boats and center console fishing vessels, for example. Its chrome plated brass canister minimizes the de-tuning associated with antennas having plastic canisters. Stainless steel whip (36) Sealed, tin-plated copper wire coil Requires mount with center hole for passage of the supplied 15' RG-58 cable. Cable and PL-259 connector included
Suggested mount: Style 4187, 5187, 4188-S or 4190 Ratchet Mount (each sold separately) PL-259 connector included One section
Suggested mount (s): 4187 4188-S Shakespeare 5250 Skinny Mini
Specifications Band: VHF Marine
Band Antenna Gain: 3dB Max.
Input Power: 50 watts
SWR: nominally
1.5: 1 at 156.8
MHz Bandwidth: 7
MHz within 2.0: 1
VSWR Coax Supplied: 15 ft of RG-58
Connector Supplied: PL-259
Polarity: Vertical
Impedance: 50
Ohms DC Ground: No DC Ground - The antenna will read open on continuity test.
Shakespeare Limited Warranty: 2 years
