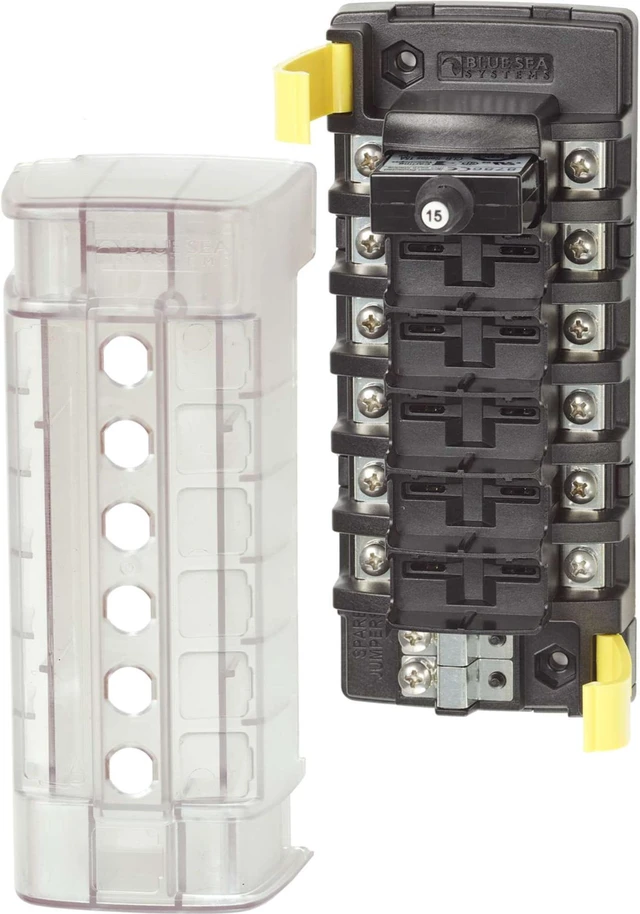

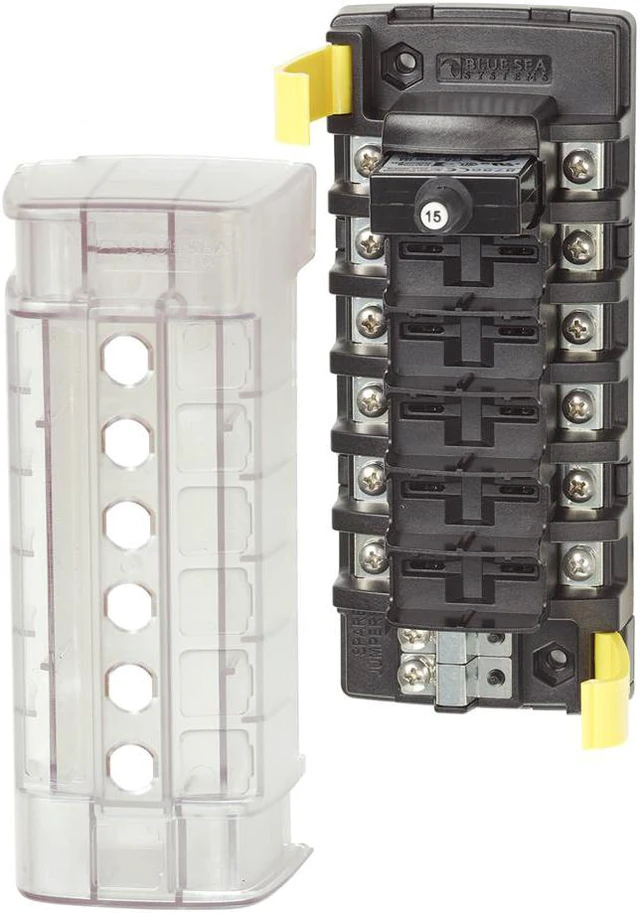

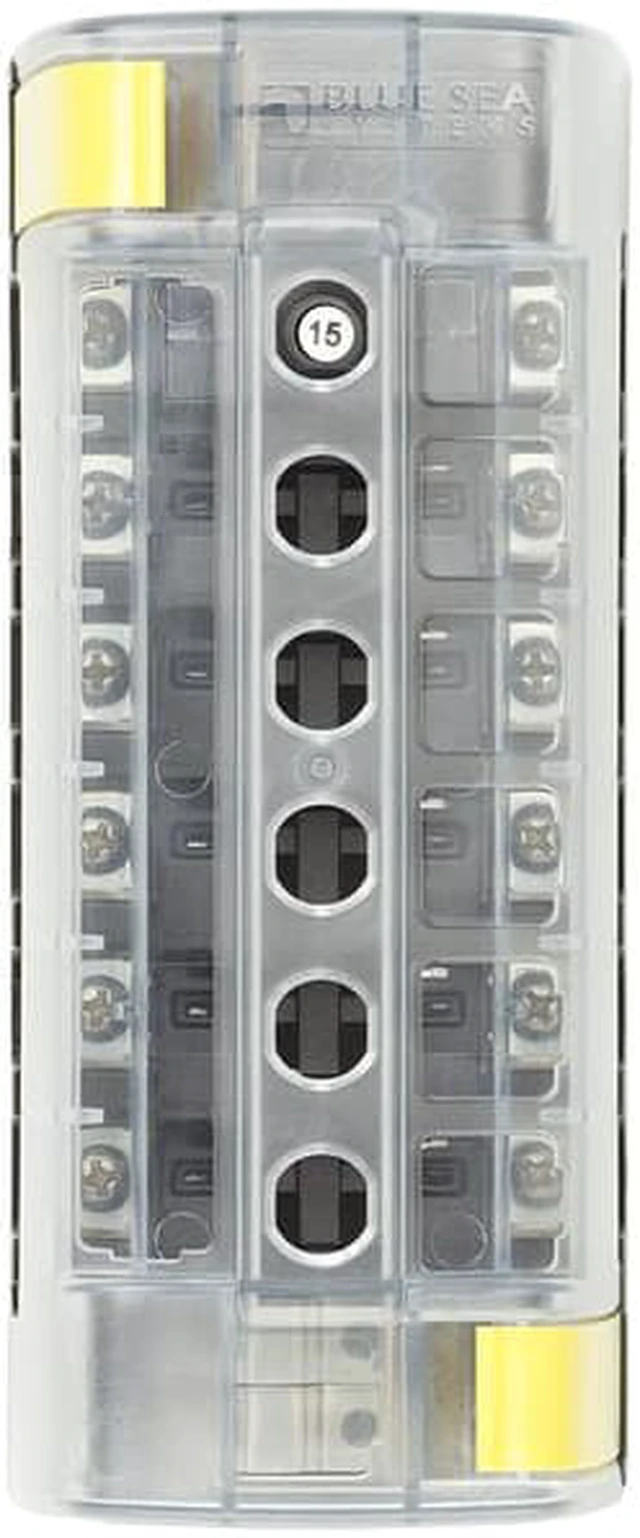

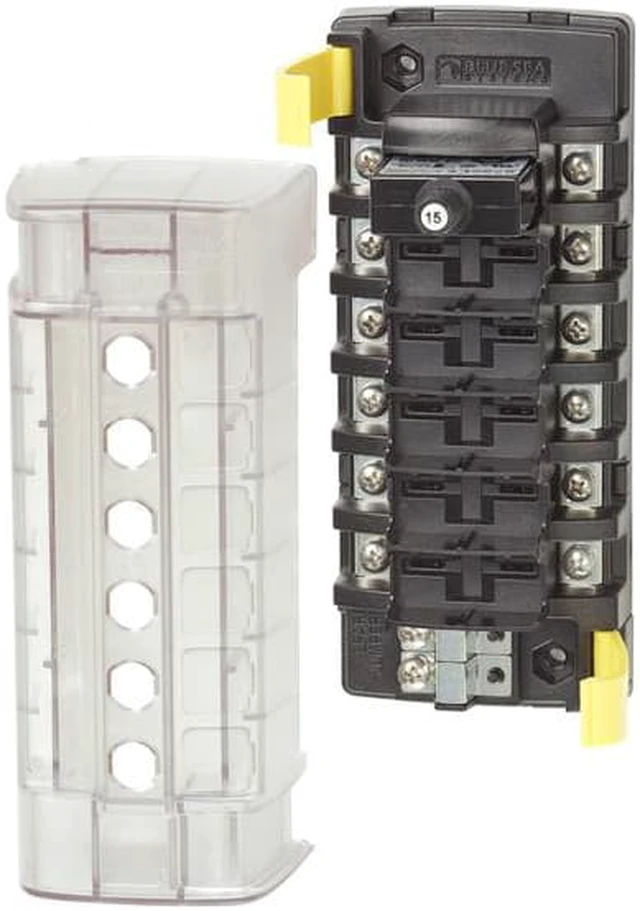

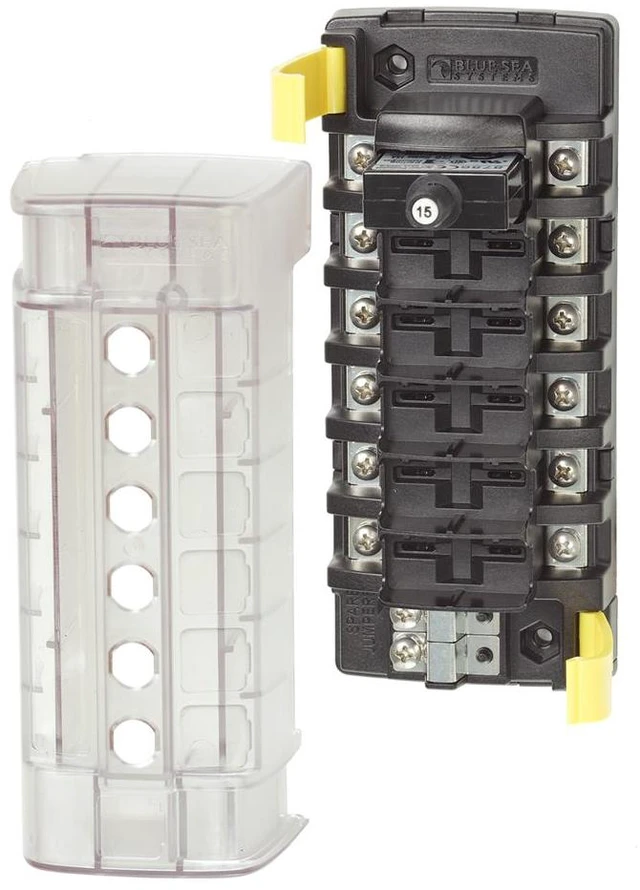

Blue Sea 5050 ST CLB Circuit Breaker Block - 6 Position
- BLUE SEA SYSTEM
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
ST CLB Circuit Breaker Block - 6 PositionFeaturesQuick connect clips allow circuit breakers to snap easily into placeTin-plated copper busses and screw terminalsClear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirementsEasy to open clip on coverBreakouts allow wire access in two directionsAccepts ring terminalsOptional push button waterproof boots or dress nuts can be installed over coverSpecifications:
Circuits: 6Maximum
Amperage: 32A (per circuit) 40A (per jumped circuit group)
Maximum Voltage: 32V
DCMounting: #8 Screw (M4) or #8
NutSource: Independent SourceMinimum
Operating Temperature: -10 CMaximum
Operating Temperature: 60
CMounting Centers: 5.63" (143 mm)
Screw Terminal Type: #8-32 Screws with
Captive Star Lock WasherHeight: 6.69"
( 169.93 mm)Weight: 0.75 lb ( 0.34 kg)
Circuits: 6Maximum
Amperage: 32A (per circuit) 40A (per jumped circuit group)
Maximum Voltage: 32V
DCMounting: #8 Screw (M4) or #8
NutSource: Independent SourceMinimum
Operating Temperature: -10 CMaximum
Operating Temperature: 60
CMounting Centers: 5.63" (143 mm)
Screw Terminal Type: #8-32 Screws with
Captive Star Lock WasherHeight: 6.69"
( 169.93 mm)Weight: 0.75 lb ( 0.34 kg)
