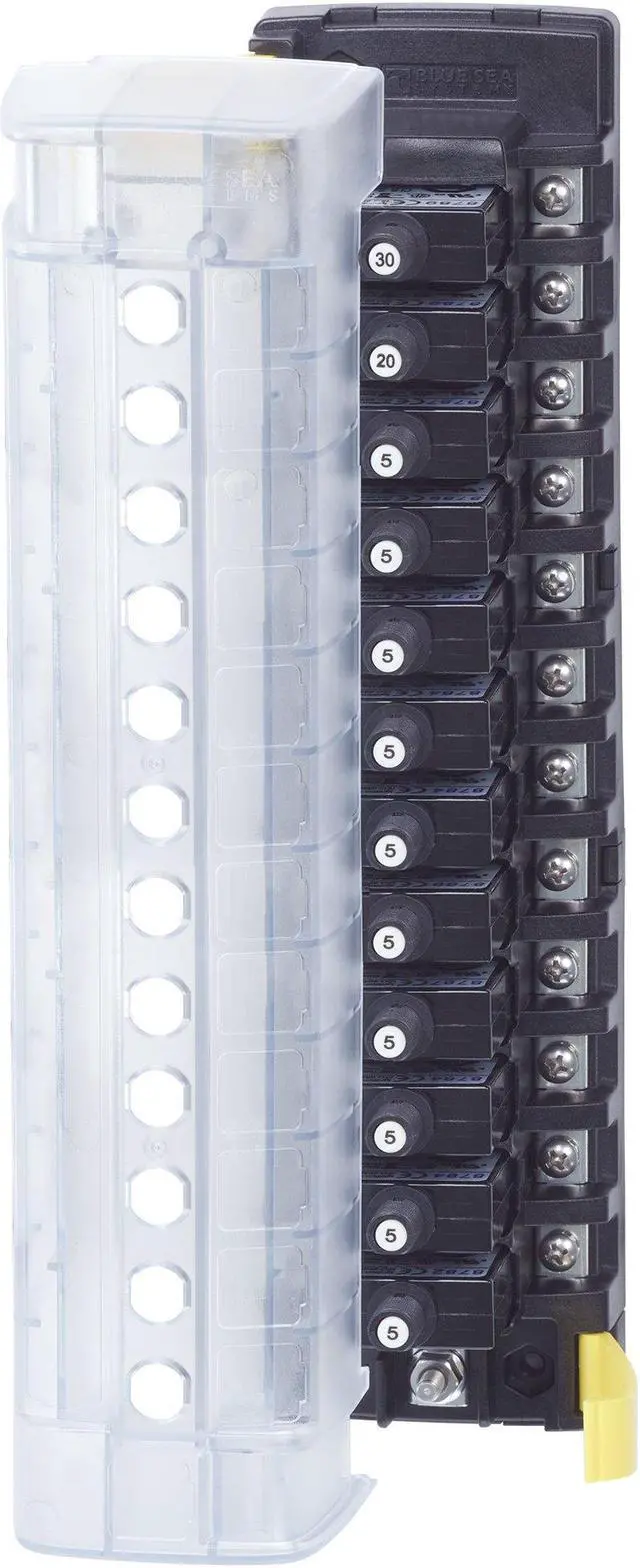

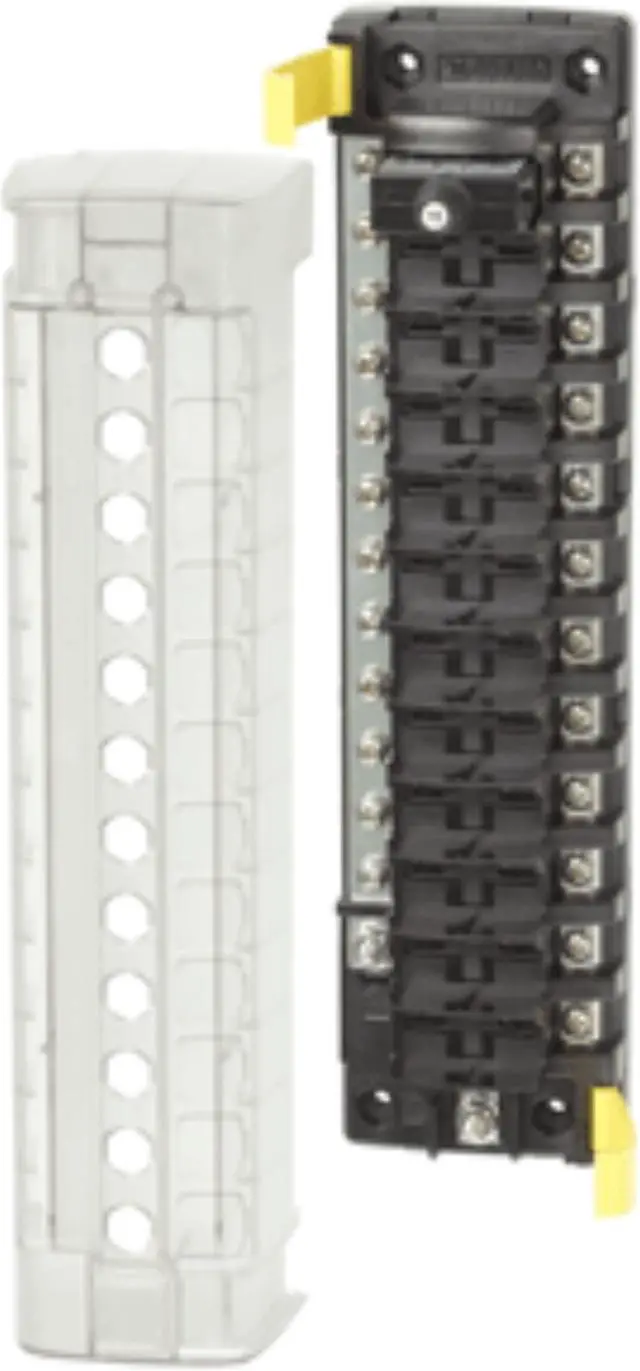

Blue Sea 5054 ST CLB Circuit Breaker Block - 12 Position w/Negative Bus
- BLUE SEA SYSTEM
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
ST CLB Circuit Breaker Block - 12 Position w/Negative Bus. Features. Quick connect clips allow circuit breakers to snap easily into place. Tin-plated copper busses and screw terminals. Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements. Easy to open clip on cover. Breakouts allow wire access in two directions. Accepts ring terminals. Optional push button waterproof boots or dress nuts can be installed over cover.
Specifications:
Circuits:
12.
Maximum Amperage: 100A (per block) 32A (per circuit).
Maximum Voltage: 32V DC.
Mounting: #8 Screw (M4) or #8 Nut.
Negative Bus: Yes.
Source: Common Source
Minimum
Operating Temperature: -10 degrees C.
Maximum Operating Temperature: 60 degrees C.
Mounting Centers: 10.13" ( 257.3 mm).
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer.
Height: 6.69" ( 169.93 mm).
Weight: 1.50 lb ( 0.68 kg)
Specifications:
Circuits:
12.
Maximum Amperage: 100A (per block) 32A (per circuit).
Maximum Voltage: 32V DC.
Mounting: #8 Screw (M4) or #8 Nut.
Negative Bus: Yes.
Source: Common Source
Minimum
Operating Temperature: -10 degrees C.
Maximum Operating Temperature: 60 degrees C.
Mounting Centers: 10.13" ( 257.3 mm).
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer.
Height: 6.69" ( 169.93 mm).
Weight: 1.50 lb ( 0.68 kg)
