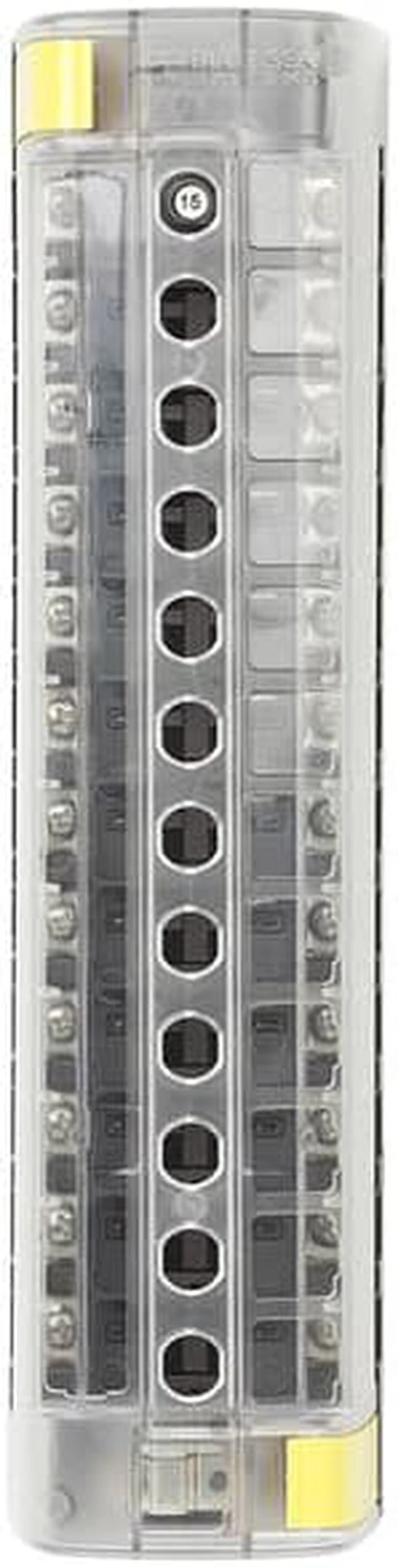

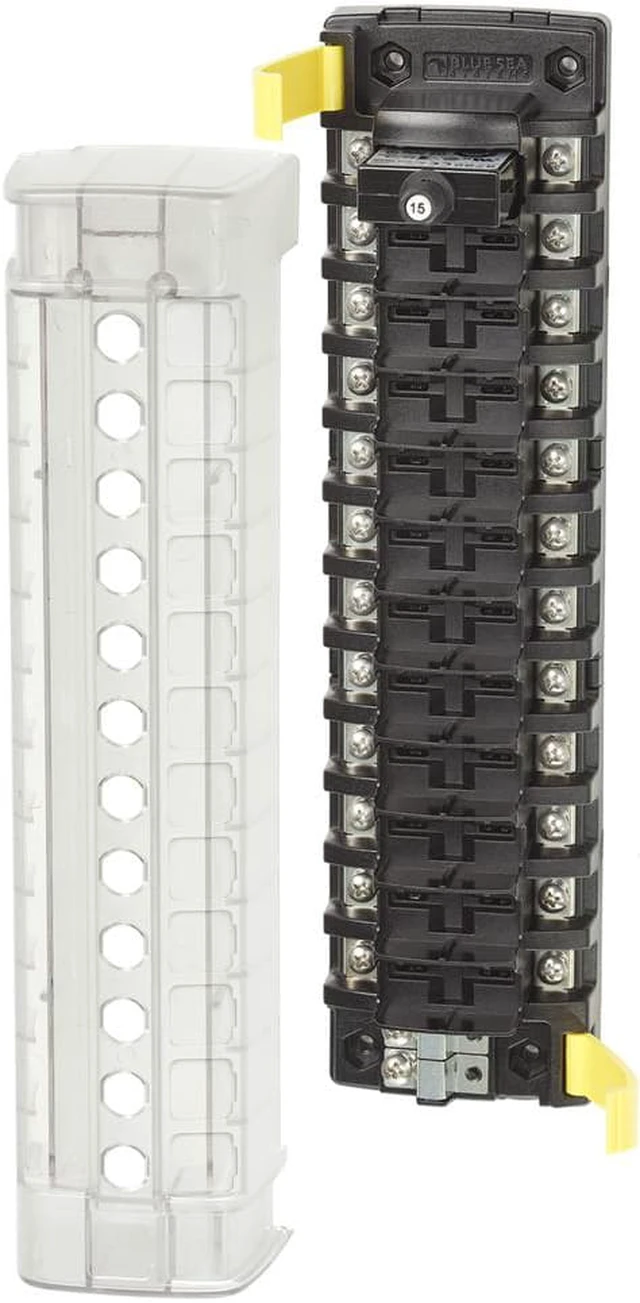

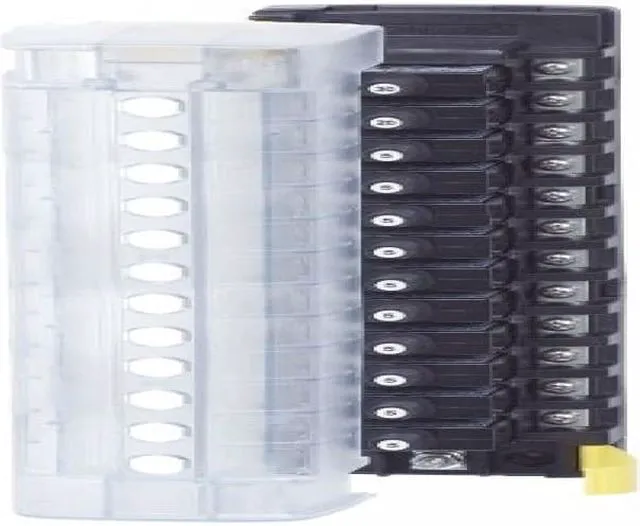

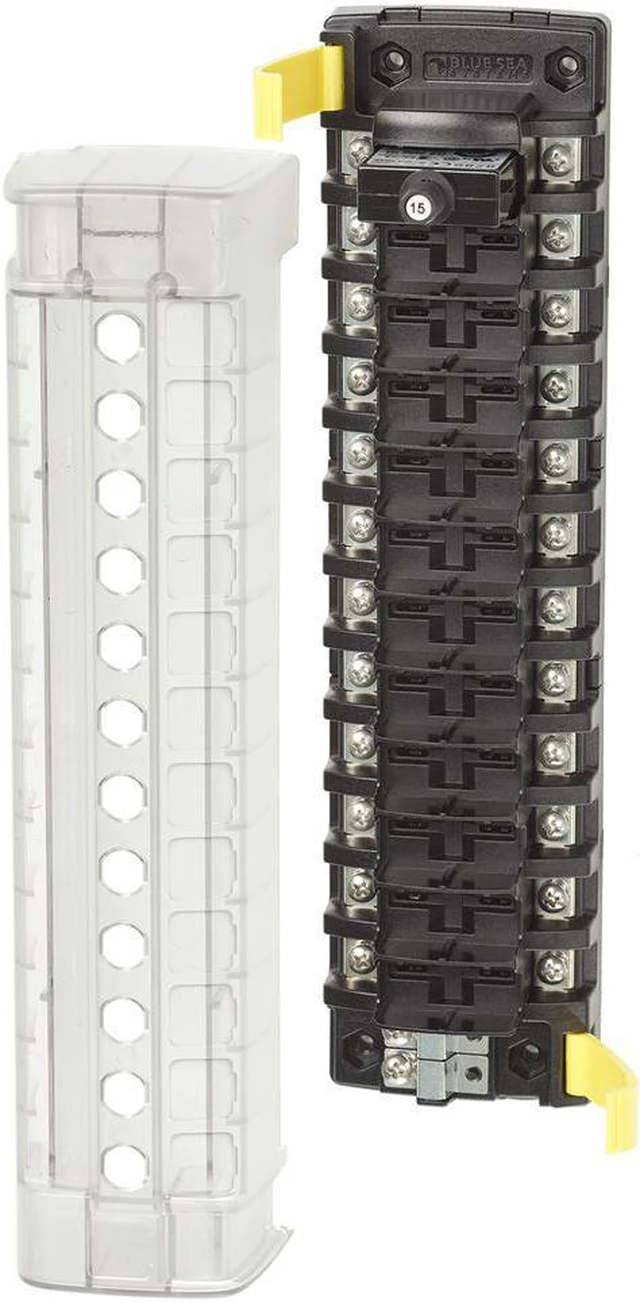

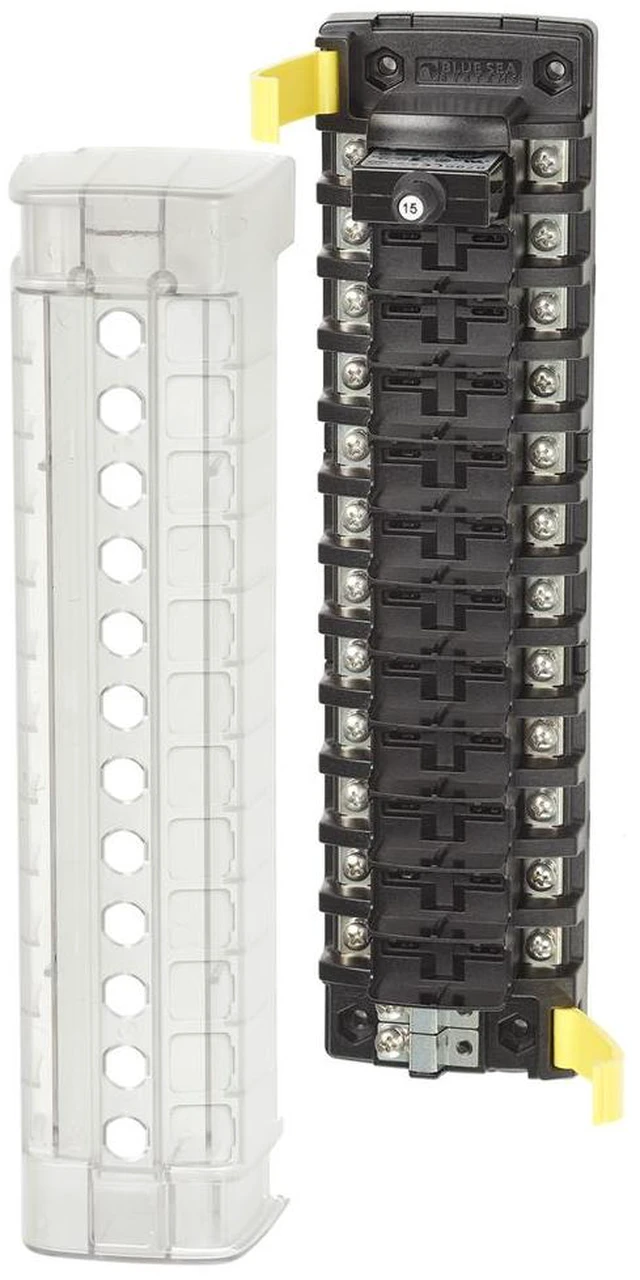

Blue Sea 5051 ST CLB Circuit Breaker Block - 12 Position
- BLUE SEA SYSTEM
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
ST CLB Circuit Breaker Block - 12 PositionFeaturesQuick connect clips allow circuit breakers to snap easily into placeTin-plated copper busses and screw terminalsClear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirementsEasy to open clip on coverBreakouts allow wire access in two directionsAccepts ring terminalsOptional push button waterproof boots or dress nuts can be installed over coverSpecifications:Circuits:12Maximum Amperage:32A (per circuit) 40A (per jumped circuit group)Maximum Voltage:32V DCMounting:#8 Screw (M4) or #8 NutSource:Independent SourceMinimum Operating Temperature:-10° CMaximum Operating Temperature:60° CMounting Centers:10.13"(257.3 mm)Screw Terminal Type:#8-32 Screws with Captive Star Lock WasherHeight:6.69"(169.93 mm)Weight:1.50lb (0.68 kg)
