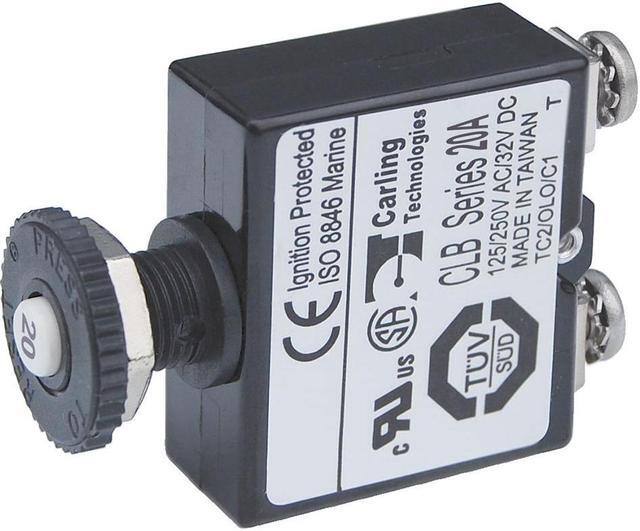

Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker - 20 Amps [2134]

Push Button Reset Only Screw Terminal Circuit Breaker - 20
AmpsFeatures: Branch circuit breakers (can also be used for 24-hour circuit protection)Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution PanelsCompact design enables high density circuit protection configurationsPush-to-reset operation"Trip Free" design cannot be held "ON" during fault current conditionIgnition protected - Safe for installation aboard gasoline powered boatsOptional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and crackingSpecifications:
Amperage: 20AMaximum
Voltage: 32V
DCMounting: Panel Mount 3/8-27 UNS
Circuit Breaker Type: Thermal trip, manual push-button reset onlyTerminal
Type: #8
ScrewInterrupt Capacity: 3000A @ 14.7V / 2500A @ 28VMinimum
Operating Temperature: -10° CMaximum
Operating Temperature: 60°
CScrew Terminal Torque: 6 in-lb ( 0.68
Nm)Weight: 0.09 lb ( 0.04 kg)
