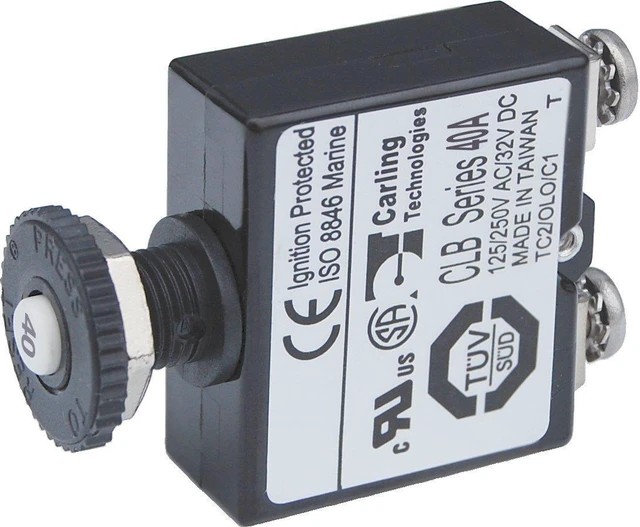

Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker - 40 Amps [2137]

Push Button Reset Only Screw Terminal Circuit Breaker - 40
Amps
Features: Branch circuit breakers (can also be used for 24-hour circuit protection)Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems Weather
Deck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
Compact design enables high density circuit protection configurations
Push-to-reset operation"Trip Free" design cannot be held "ON" during fault current condition
Ignition protected - Safe for installation aboard gasoline powered boats
Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking
Specifications:
Amperage: 40AMaximum
Voltage: 32V
DCMounting: Panel Mount 3/8-27 UNS
Circuit Breaker Type: Thermal trip, manual push-button reset only
Terminal Type: #8 Screw
Interrupt Capacity: 3000A @ 14.7V / 2500A @ 28VMinimum
Operating Temperature: -10° CMaximum
Operating Temperature: 60°
CScrew Terminal Torque: 6 in-lb ( 0.68
Nm)Weight: 0.09 lb ( 0.04 kg)
