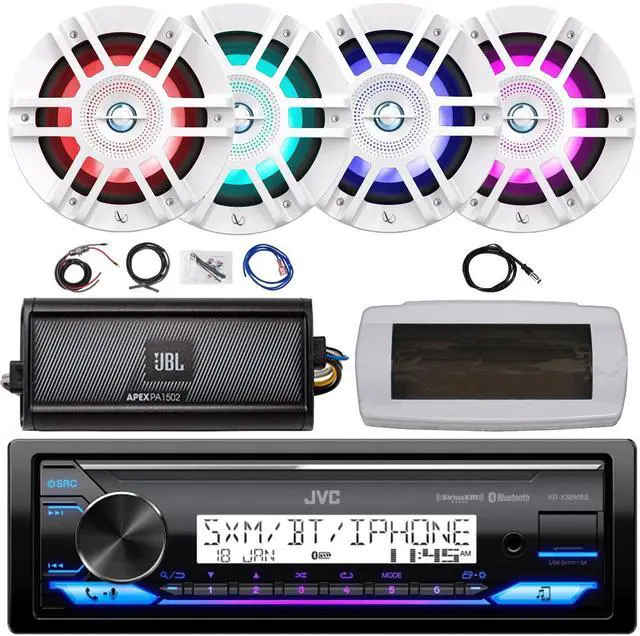

JVC KD-X38MBS Single-DIN Marine Bluetooth USB/AUX LED AM/FM SiriusXM Ready Stereo Receiver W/White Cover, 4x 6.5" 300W Max 2-Way Coaxial White Boat RGB LED Speakers, 2-Channel Amplifier W/Kit, Antenna

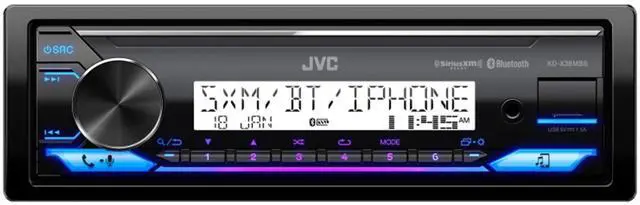

Receiver:

• AUX/USB Inputs


• MOSFET (22 watts RMS/50 peak x 4 channels)


• Backlit Display


• Conformal Coated PCB


• 13-Band EQ


• 2-Zone Variable-Color Illumination


• JVC Remote App Compatibility


• 4.0V High-Voltage 3 Pre-Outs


• Space Enhancement


• Sound Response


• Sound Lift


• Audio Streaming Control


• iPhone Bluetooth Automatic Pairing


• 2-Line VA LCD Display


• High Current 1.5A Charging


• Satellite Radio Ready


• Wired Remote Control (Optional)


• Steering Wheel Remote Control Ready


• AM/FM Tuner


• 18FM, 6AM Preset Stations


• MP3/WMA/WAV/AAC/FLAC Playback


• Bluetooth Built-In

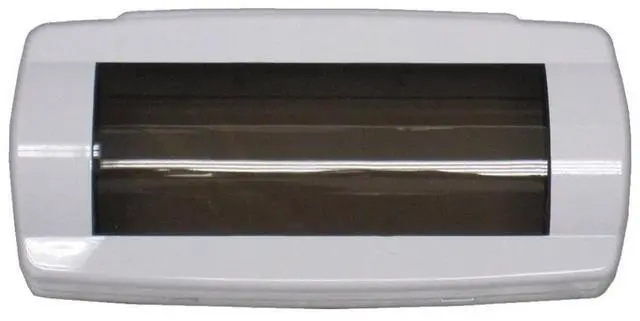

Stereo Cover:

• Fits standard DIN size shaftless stereos


• Door snaps closed securely


• Rubber gasket seals door closed so water cannot penetrate


• Heavy duty Lexan plastic cover

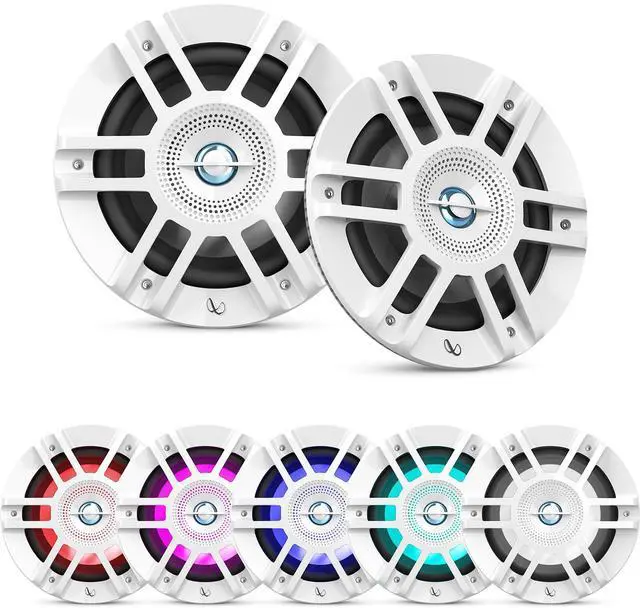

Speakers:

• Power Handling: 100 watts RMS, 300 watts peak power


• Sensitivity: 92dB at 2.83 volts


• Frequency Response: 40 - 25kHz


• Voice Coil Diameter: 1 in. (25.5mm)


• Impedance: 3 ohm impedance


• Plus One Woofer Cones


• Perimeter RGB Illumination


• One Piece Polymer Basket


• Mylar Tweeters


• Harman Standard Reliability Testing

DO NOT USE DRILLS ON THE SCREW SPEAKER TERMINALS EVER.

Loosen and Tighten BY HAND ONLY.KEY_TAB Using a Drill snaps the solder connection on the back of the terminal and the X-over (coax) Circuit board.

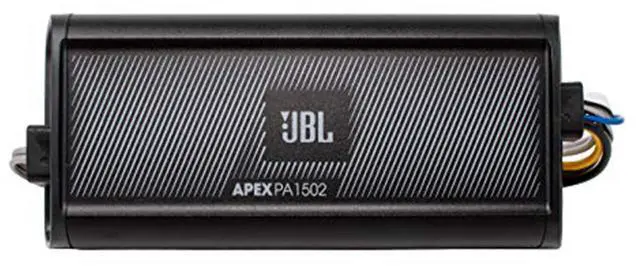

Amplifier:

• Max Power: 750W peak


• RMS Power Output @ 2Ω (full-range): 150W x 2, <1% THD+N


• RMS Power Output @ 4Ω (full-range): 100W x 2, <1% THD+N


• RMS Power Output @ 4Ω Bridged (full-range): 300W x 1, <1% THD+N


• Selectable all-/hi-/lo-pass filter: 60-, 80-, 120Hz @ 12dB/octave


• Selectable bass boost: 0-, 6-, 12dB @45Hz


• Frequency Response: 20Hz – 20kHz


• Signal-to-Noise Ratio (full-range): >75dB (ref 1W output @ 4Ω)


• Fuse rating: 25A


• Ultra-compact Aluminum Chassis


• Conformal-Coated PCB


• Big Dynamic Power


• Full-Range Outputs and Selectable


• Crossovers


• High- and low-level inputs


• Harman Standard Reliability Testing


• JBL Industrial Design

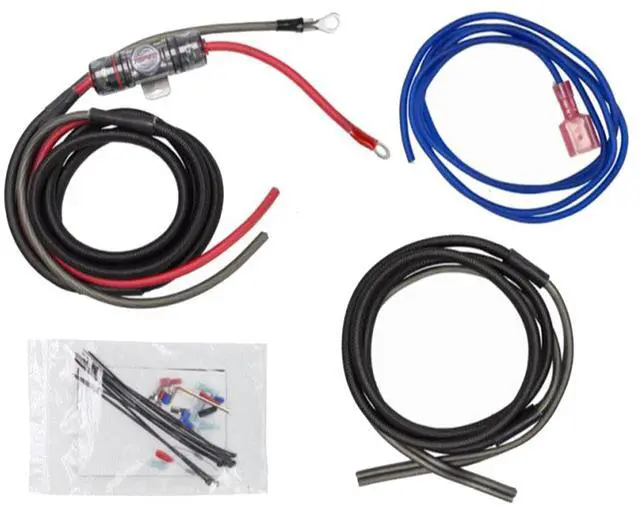

Amplifier Wiring Kit:

• Designed tor motorcycles


• 6 feet of red and black T-Spec OFC power and ground wire with a T-Spec V8MANL fuse holder and 60 amp fuse protected by a black nylon braid


• Pre-terminated ring terminals make connections to the battery simple


• Two 4 foot pieces of 16 gauge OFC speaker wire protected by black nylon mesh makes upgrading the factory speaker wires or adding new speakers a smart choice


• Upgrading Harmon Kardon System – Two 47-ohm .5 watt resistors to keep the factory radio outputs active


• All the necessary installation hardware is included along wtth a 4 × 6 inch hook and loop mounting pad for micro-amplifiers to hold the amplifier securely in place

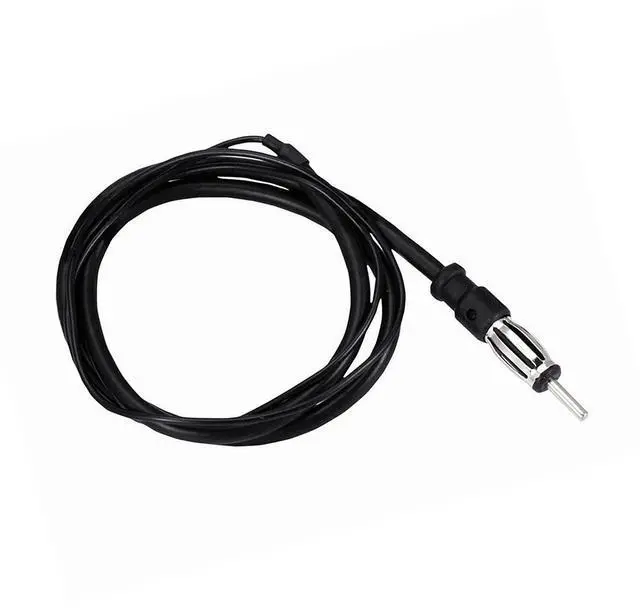

Radio Antenna:

• 22" AM/FM Marine Antenna


• Improves Radio reception
