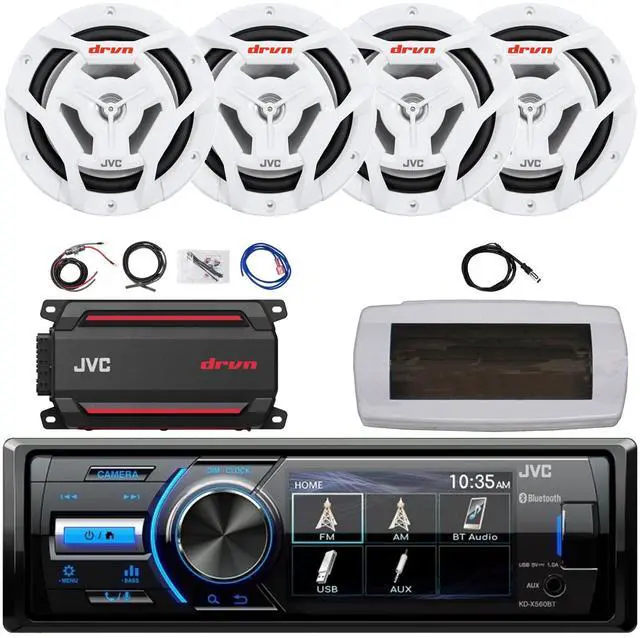

JVC KD-X560BT Single-DIN Marine Bluetooth USB/AUX MP3 AM/FM Radio Digital Media Stereo Receiver W/White Cover, 4x 6.5" 150W Max Power 2-Way Coaxial Boat Speakers, 4-Channel Amplifier W/Kit, Antenna

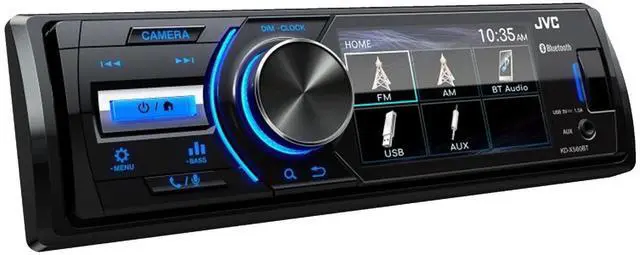

Receiver:

• Single-DIN Digital Media Receiver


• Built-In Bluetooth


• 3" Color Display


• Conformal Coated PCB


• Camera Input


• 13-band EQ (9-Preset EQ)


• AUX/USB Inputs


• Time Alignment


• Shallow Chassis


• Blue Key Color Illumination


• Multilingual Display


• MP3/WMA/WAV/AAC/FLAC/H.264/JPEG/PNG/BMP Playback


• Hands Free Call


• Android Music Playback


• iOS Compatible


• 30 Preset Stations


• Wireless Remote Control Ready (Optional)


• Maximum Power Output (Front & Rear): 45W x 4


• Full Bandwidth Power (Front & Rear): 16W x 4

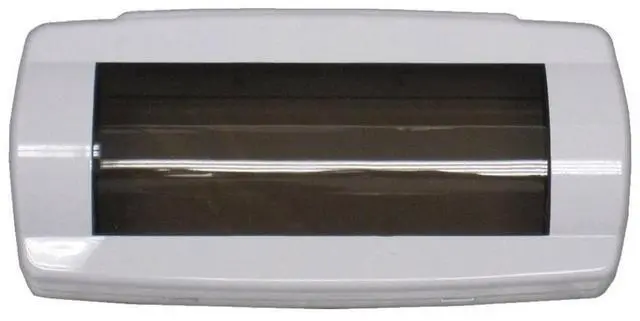

Stereo Cover:

• Fits standard DIN size shaftless stereos


• Door snaps closed securely


• Rubber gasket seals door closed so water cannot penetrate


• Heavy duty Lexan plastic cover

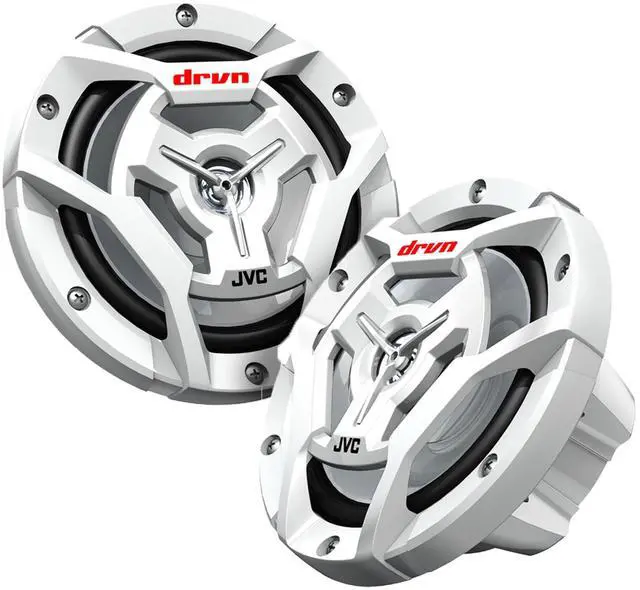

Speakers:

• 6.5" DRVN Series 2-way Coaxial Marine Speakers.


• Peak Power: 150 Watts


• RMS Power: 50 Watts


• Carbon Mica Cone Woofer, 16 cm (6-1/2'')


• Rubber Surround.


• 4 ohms impedance.


• 1" Poly-Ether Imide Balanced Dome Tweeter.


• Voice coil size and type.


• 8.1oz. Ferrite magnet motor structure.


• Sound Pressure Level: 87dB/W.m.


• Frequency Response: 60 -18,400 Hz.


• Sensitivity: 87dB.


• Mounting Depth: 61.5 mm (2-7/16")

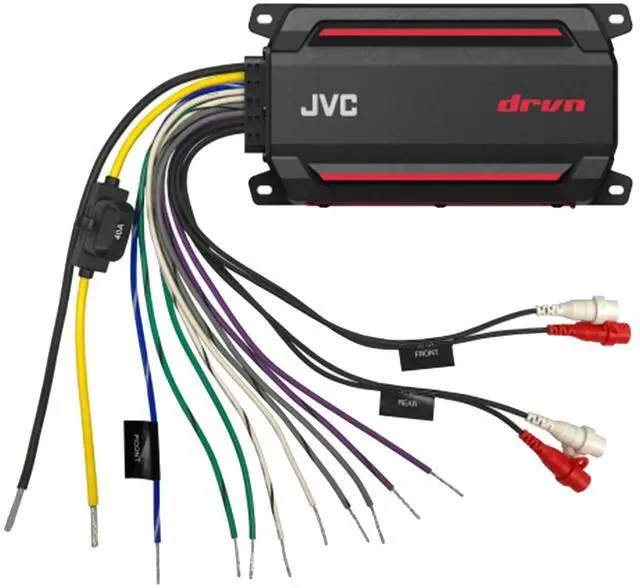

Amplifier:

• Max Power Output: 600W


• Rated Power Output @ Stereo (4Ω): 50W x 4 (20Hz–20kHz, ≤1.0% THD)


• Rated Power Output @ Stereo (2Ω): 75W x 4 (1kHz, ≤1.0% THD)


• Rated Power Output @ Bridged (4Ω): 150W x 2 (1kHz, ≤1.0% THD)


• Speaker Impedance: 4Ω (2Ω to 8Ω allowable)


• Speaker Impedance for Bridged connection: 4Ω to 8Ω allowable


• Frequency response (+0, –3dB): 10Hz–35kHz


• Input Sensitivity (RCA): 0.2V-5.0V


• Signal to noise ratio: 89dB


• Low pass filter frequency (–12dB/oct.): 50Hz–200Hz (variable)


• High pass filter frequency (–12dB/oct.): 50Hz–200Hz (variable)


• Operating voltage: 12V DC car battery


• Current consumption: 26A


• Operational temperature range: –10°C – 60°C


• Dimensions (W × H × D): 7-13/16" x 1-15/16" x 4-1/8"


• Weight: 1.6kg (3.5lbs)


• Waterproof Dustproof Vibrationproof: IP66, IP67

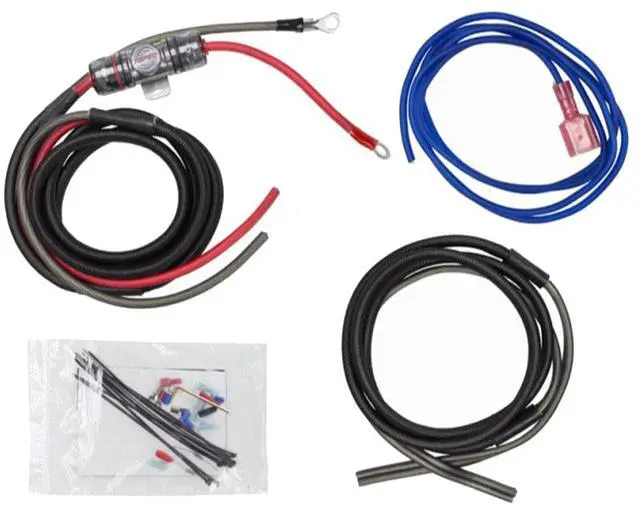

Amplifier Wiring Kit:

• Designed tor motorcycles


• 6 feet of red and black T-Spec OFC power and ground wire with a T-Spec V8MANL fuse holder and 60 amp fuse protected by a black nylon braid


• Pre-terminated ring terminals make connections to the battery simple


• Two 4 foot pieces of 16 gauge OFC speaker wire protected by black nylon mesh makes upgrading the factory speaker wires or adding new speakers a smart choice


• Upgrading Harmon Kardon System – Two 47-ohm .5 watt resistors to keep the factory radio outputs active


• All the necessary installation hardware is included along wtth a 4 × 6 inch hook and loop mounting pad for micro-amplifiers to hold the amplifier securely in place

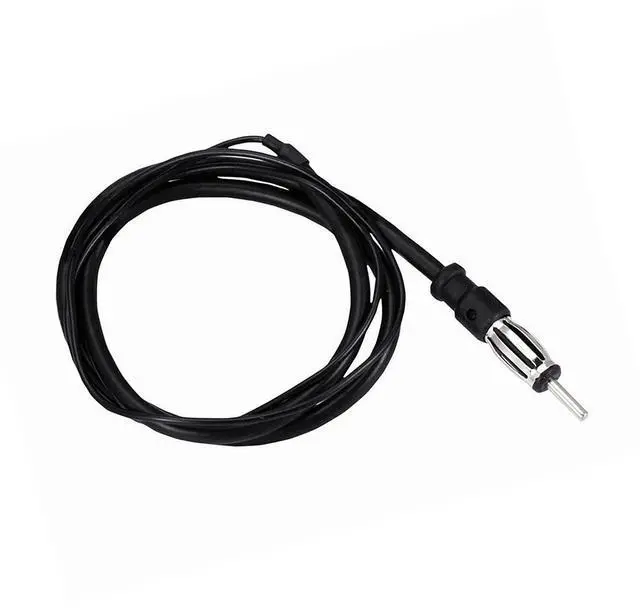

Radio Antenna:

• 22" AM/FM Marine Antenna


• Improves Radio reception
