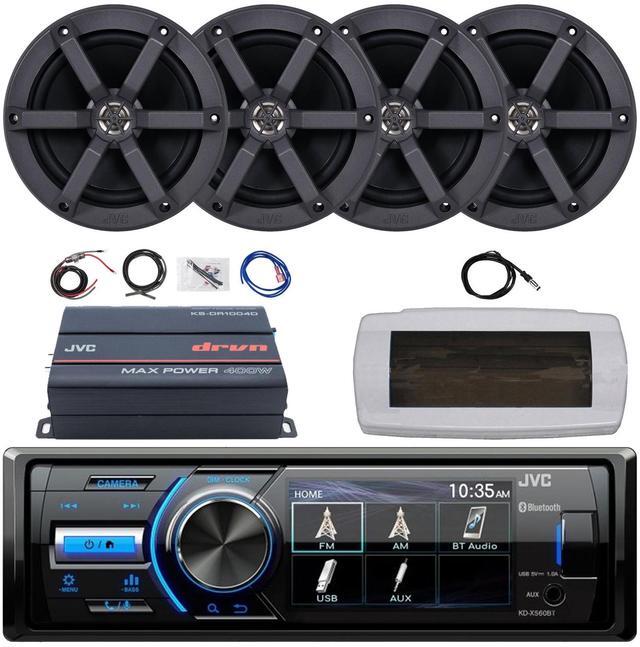

JVC KD-X560BT Single-DIN Marine Bluetooth USB/AUX MP3 AM/FM Radio Digital Media Stereo Receiver W/White Cover, 4x 6.5" 100W Max Power 2-Way Boat Speakers, 4-Channel Compact Amplifier W/Kit, Antenna

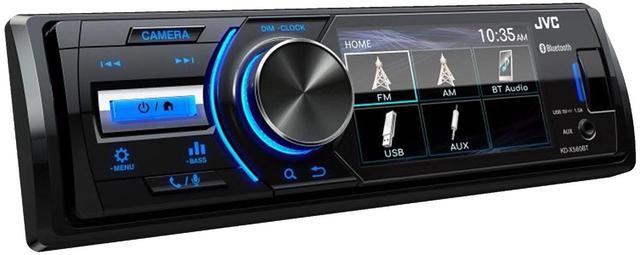

Receiver:

• Single-DIN Digital Media Receiver


• Built-In Bluetooth


• 3" Color Display


• Conformal Coated PCB


• Camera Input


• 13-band EQ (9-Preset EQ)


• AUX/USB Inputs


• Time Alignment


• Shallow Chassis


• Blue Key Color Illumination


• Multilingual Display


• MP3/WMA/WAV/AAC/FLAC/H.264/JPEG/PNG/BMP Playback


• Hands Free Call


• Android Music Playback


• iOS Compatible


• 30 Preset Stations


• Wireless Remote Control Ready (Optional)


• Maximum Power Output (Front & Rear): 45W x 4


• Full Bandwidth Power (Front & Rear): 16W x 4

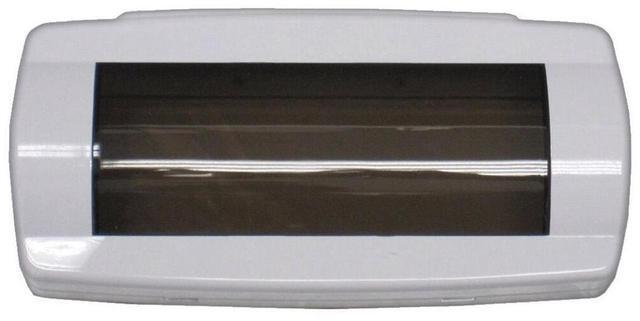

Stereo Cover:

• Fits standard DIN size shaftless stereos


• Door snaps closed securely


• Rubber gasket seals door closed so water cannot penetrate


• Heavy duty Lexan plastic cover

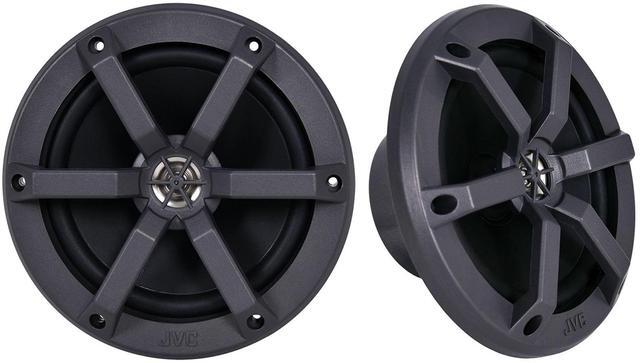

Speakers:

• 6-1/2 inch 2-Way Marine/Motorsports Speakers


• Multi-Purpose Rugged Design


• Injected Polypropylene Waterproof Woofer Cone


• Durable Rubber Surround


• 1/2“ Grille Mounted Balanced PEI Dome Tweeter


• Rugged UV Resistant ABS Integrated Grille*


• ABS Composite Speaker Basket


• EVA Foam Mounting Gasket


• Stainless Steel Mounting Hardware


• Peak Power: 100W


• RMS Power: 30W


• Sensitivity: 87dB/W @ 1m


• Frequency Response: 60Hz - 20,000Hz


• Nominal Impedance: 4 Ohms


• Hole Cutout Diameter: 5 Inches


• Mounting Depth: 2-5/16 Inches


• Integrated Grilles are Not Removable

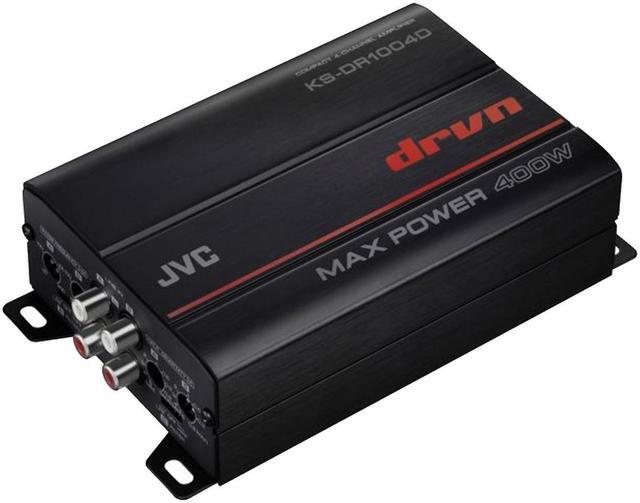

Amplifier:

• 4-Channel Marine Amplifier


• Conformal Coated Circuitry


• Circuit Separation Construction


• Large LPF Coil


• Variable High/Low-Pass Filter


• 400W Maximum Power Output


• RMS Power Output (4 ohm) [ 1% THD 14.4V]: 45W x 4 (20 - 20,000Hz)


• RMS Power Output (2 ohm) [ 1% THD 14.4V]: 45W x 4 (1,000Hz)


• RMS Power Output (Bridged 4 ohm) [ 1% THD 14.4V]: 90W x 2 (1,000Hz)


• Class D


• Signal-to-Noise Ratio (reference: 1W into 4 ohms): >82dB


• CEA-2006 Compliant


• Load Impedance Allowance: 2 - 8 Ohms


• HPF: 50Hz - 200Hz (-12dB/oct)


• LPF: 50Hz - 200Hz (-12dB/oct)


• RCA Input: Ach L/R, Bch L/R


• High Level Input (Speaker Level Input): Yes


• High Level Input Auto Power Control (Signal Sensing Turn On): Yes


• Input Sensitivity: .2 - 5V


• Dimensions (W x H x D): 5-11/16" x 1-3/4" x 3-7/8"

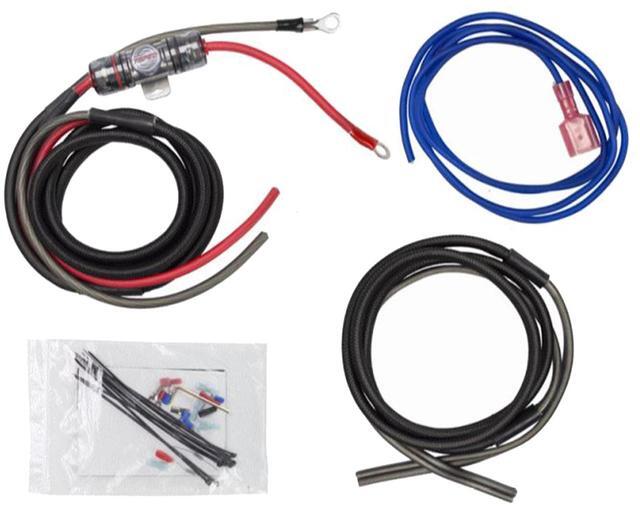

Amplifier Wiring Kit:

• Designed tor motorcycles


• 6 feet of red and black T-Spec OFC power and ground wire with a T-Spec V8MANL fuse holder and 60 amp fuse protected by a black nylon braid


• Pre-terminated ring terminals make connections to the battery simple


• Two 4 foot pieces of 16 gauge OFC speaker wire protected by black nylon mesh makes upgrading the factory speaker wires or adding new speakers a smart choice


• Upgrading Harmon Kardon System – Two 47-ohm .5 watt resistors to keep the factory radio outputs active


• All the necessary installation hardware is included along wtth a 4 × 6 inch hook and loop mounting pad for micro-amplifiers to hold the amplifier securely in place

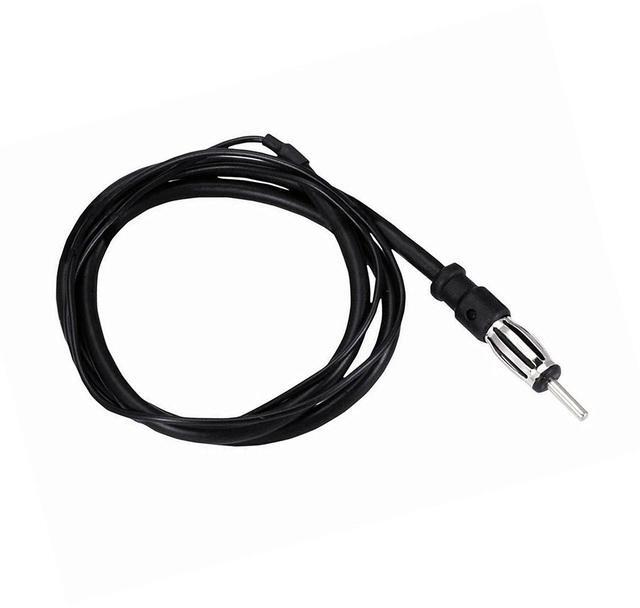

Radio Antenna:

• 22" AM/FM Marine Antenna


• Improves Radio reception
