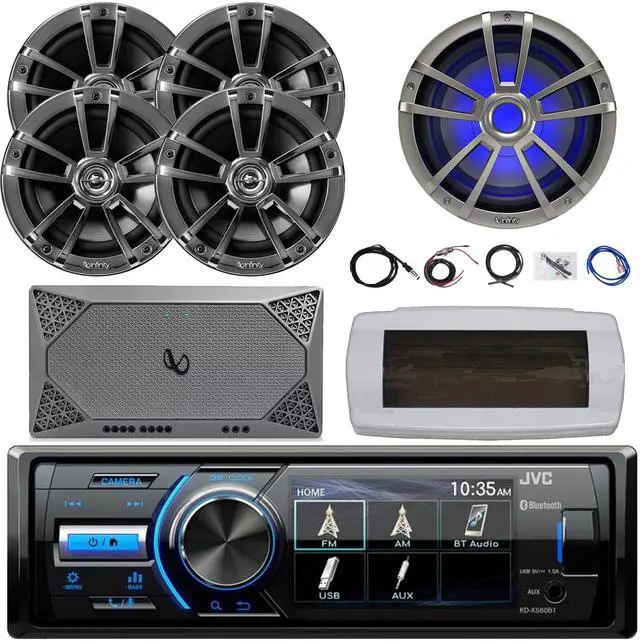

JVC KD-X560BT Single-DIN Marine Bluetooth USB/AUX MP3 AM/FM Radio Digital Media Stereo Receiver W/White Cover, 4x 6.5" 225W Max Speakers, 10" RGB LED Subwoofer, 4-Channel Amplifier W/Kit, 22" Antenna

Receiver:

• Single-DIN Digital Media Receiver


• Built-In Bluetooth


• 3" Color Display


• Conformal Coated PCB


• Camera Input


• 13-band EQ (9-Preset EQ)


• AUX/USB Inputs


• Time Alignment


• Shallow Chassis


• Blue Key Color Illumination


• Multilingual Display


• MP3/WMA/WAV/AAC/FLAC/H.264/JPEG/PNG/BMP Playback


• Hands Free Call


• Android Music Playback


• iOS Compatible


• 30 Preset Stations


• Wireless Remote Control Ready (Optional)


• Maximum Power Output (Front & Rear): 45W x 4


• Full Bandwidth Power (Front & Rear): 16W x 4

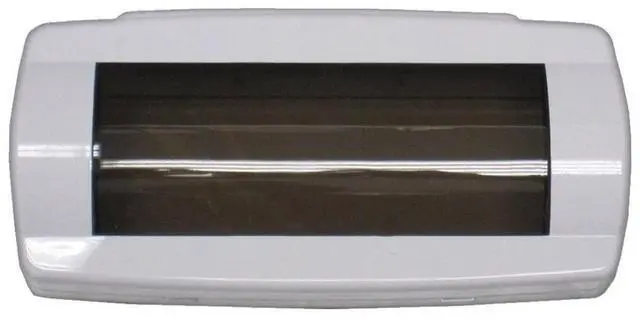

Stereo Cover:

• Fits standard DIN size shaftless stereos


• Door snaps closed securely


• Rubber gasket seals door closed so water cannot penetrate


• Heavy duty Lexan plastic cover

Speakers:KEY_TAB

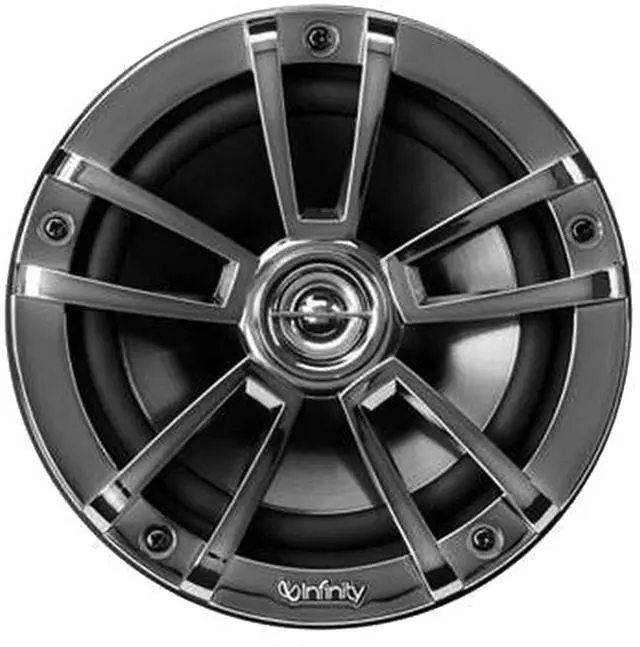

• 2-way 6-1/2" marine speaker


• Power range: 2-75 watts RMS = 225 watts peak power.


• Polypropylene woofer cone with UV-resistant rubber surround.


• Grille-mounted 1" polypropylene semi-dome tweeter.


• Cast-polymer basket.


• Frequency response: 50-20,000 Hz.


• Sensitivity: 92 dB @ 2.83V.


• Top-mount depth: 2-5/8".


• Screws and hardware not included.

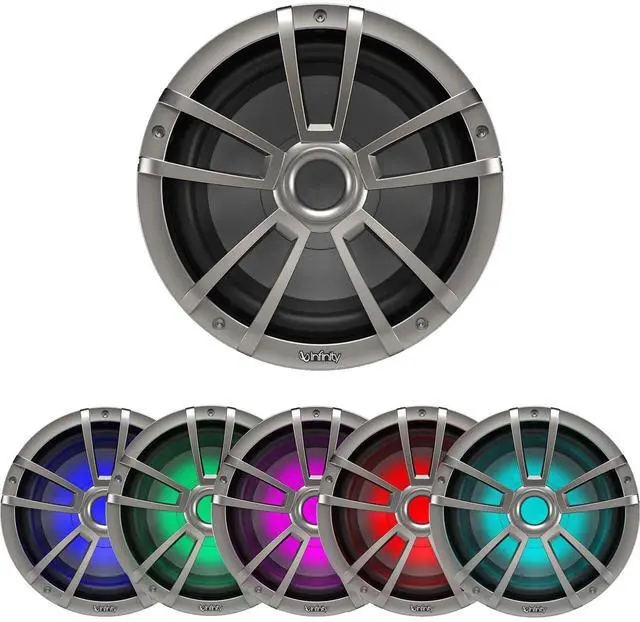

Subwoofer:

• IPx5 Marine Rating


• Cosmetic Appeal


• Outdoor Performance


• Multi-Color RGB Lighting


• Marine Design


• Bridge Mounted (Grille Mounted) Tweeters


• Balanced Dome Tweeters


• Weather-Resistant


• One-Piece Polymer Basket


• Rubber Surrounds


• Harman Standard Reliability Testing


• Individually Voiced


• Power Handling: 250W RMS, 750W peak


• Sensitivity (@ 2.83V): 89dB


• Frequency Response: 25Hz – 500Hz


• Impedance: 4 ohms

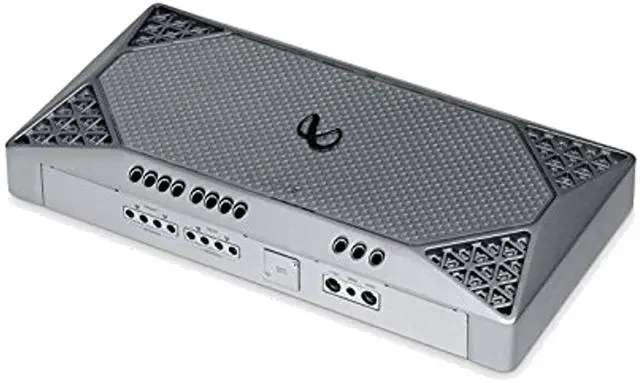

Amplifier:

• 4 Channel Marine Amplifier


• Class D Technology


• Max Power - 1000W Peak


• Power Output, 2Ω - 100W RMS x 4


• Power Output, 4Ω - 70W RMS x 4


• Power Output, 4Ω Bridged - 200W RMS x 2


• Signal-to-Noise Ratio - ≥85dB


• High and low level inputs


• Variable crossovers and bass boost

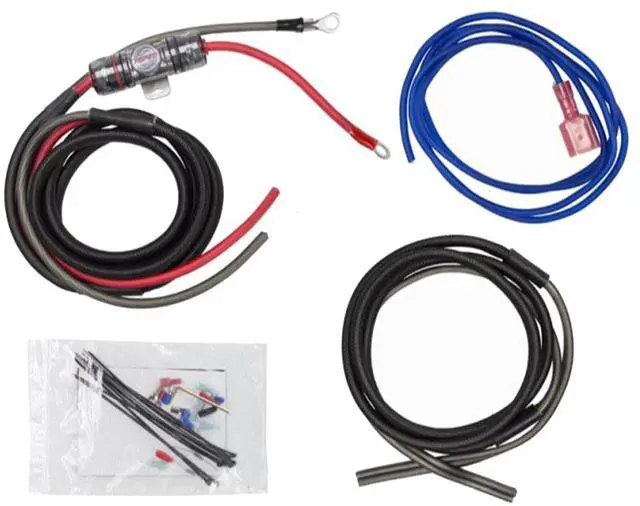

Amplifier Wiring Kit:

• Designed tor motorcycles


• 6 feet of red and black T-Spec OFC power and ground wire with a T-Spec V8MANL fuse holder and 60 amp fuse protected by a black nylon braid


• Pre-terminated ring terminals make connections to the battery simple


• Two 4 foot pieces of 16 gauge OFC speaker wire protected by black nylon mesh makes upgrading the factory speaker wires or adding new speakers a smart choice


• Upgrading Harmon Kardon System – Two 47-ohm .5 watt resistors to keep the factory radio outputs active


• All the necessary installation hardware is included along wtth a 4 × 6 inch hook and loop mounting pad for micro-amplifiers to hold the amplifier securely in place

Radio Antenna:

• 22" AM/FM Marine Antenna


• Improves Radio reception
