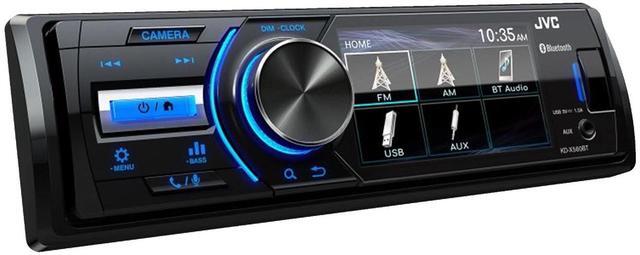

Receiver:
- Single-DIN Digital Media Receiver
- Built-In Bluetooth
- 3" Color Display
- Conformal Coated PCB
- Camera Input
- 13-band EQ (9-Preset EQ)
- AUX/USB Inputs
- Time Alignment
- Shallow Chassis
- Blue Key Color Illumination
- Multilingual Display
- MP3/WMA/WAV/AAC/FLAC/H.264/JPEG/PNG/BMP Playback
- Hands Free Call
- Android Music Playback
- iOS Compatible
- 30 Preset Stations
- Wireless Remote Control Ready (Optional)
- Maximum Power Output (Front & Rear): 45W x 4
- Full Bandwidth Power (Front & Rear): 16W x 4

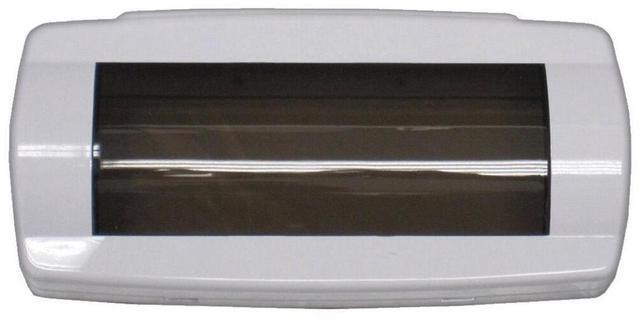

Stereo Cover:
- Fits standard DIN size shaftless stereos
- Door snaps closed securely
- Rubber gasket seals door closed so water cannot penetrate
- Heavy duty Lexan plastic cover

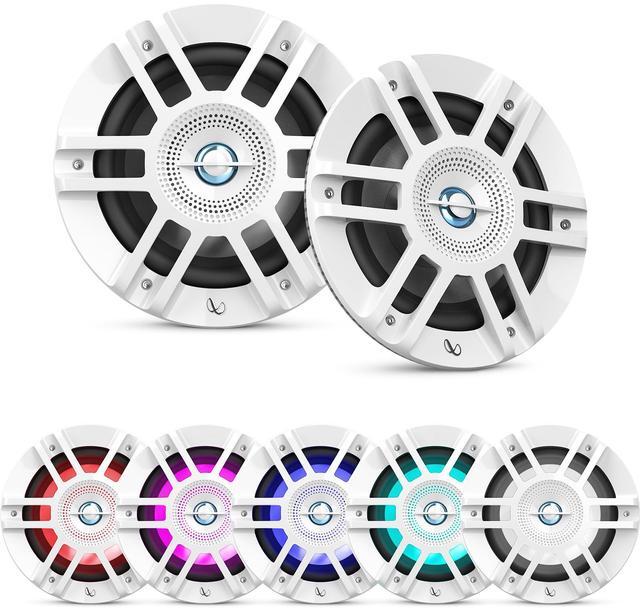

Speakers:
- Power Handling: 100 watts RMS, 300 watts peak power
- Sensitivity: 92dB at 2.83 volts
- Frequency Response: 40 - 25kHz
- Voice Coil Diameter: 1 in. (25.5mm)
- Impedance: 3 ohm impedance
- Plus One Woofer Cones
- Perimeter RGB Illumination
- One Piece Polymer Basket
- Mylar Tweeters
- Harman Standard Reliability Testing
DO NOT USE DRILLS ON THE SCREW SPEAKER TERMINALS EVER.
Loosen and Tighten BY HAND ONLY.KEY_TAB Using a Drill snaps the solder connection on the back of the terminal and the X-over (coax) Circuit board.

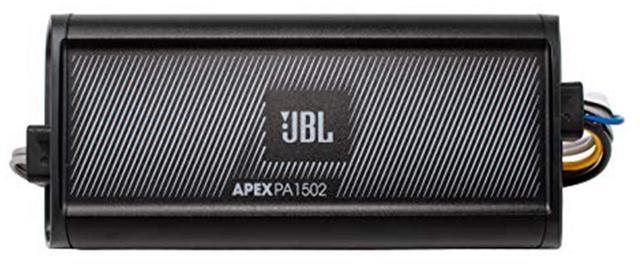

Amplifier:
- Max Power: 750W peak
- RMS Power Output @ 2Ω (full-range): 150W x 2, <1% THD+N
- RMS Power Output @ 4Ω (full-range): 100W x 2, <1% THD+N
- RMS Power Output @ 4Ω Bridged (full-range): 300W x 1, <1% THD+N
- Selectable all-/hi-/lo-pass filter: 60-, 80-, 120Hz @ 12dB/octave
- Selectable bass boost: 0-, 6-, 12dB @45Hz
- Frequency Response: 20Hz – 20kHz
- Signal-to-Noise Ratio (full-range): >75dB (ref 1W output @ 4Ω)
- Fuse rating: 25A
- Ultra-compact Aluminum Chassis
- Conformal-Coated PCB
- Big Dynamic Power
- Full-Range Outputs and Selectable
- Crossovers
- High- and low-level inputs
- Harman Standard Reliability Testing
- JBL Industrial Design

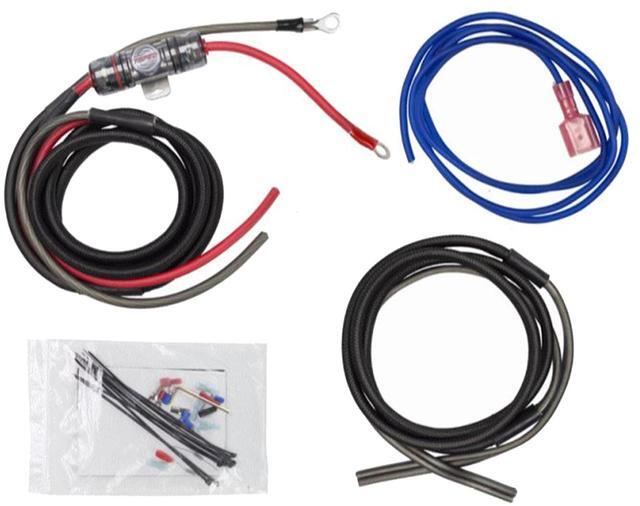

Amplifier Wiring Kit:
- Designed tor motorcycles
- 6 feet of red and black T-Spec OFC power and ground wire with a T-Spec V8MANL fuse holder and 60 amp fuse protected by a black nylon braid
- Pre-terminated ring terminals make connections to the battery simple
- Two 4 foot pieces of 16 gauge OFC speaker wire protected by black nylon mesh makes upgrading the factory speaker wires or adding new speakers a smart choice
- Upgrading Harmon Kardon System – Two 47-ohm .5 watt resistors to keep the factory radio outputs active
- All the necessary installation hardware is included along wtth a 4 × 6 inch hook and loop mounting pad for micro-amplifiers to hold the amplifier securely in place

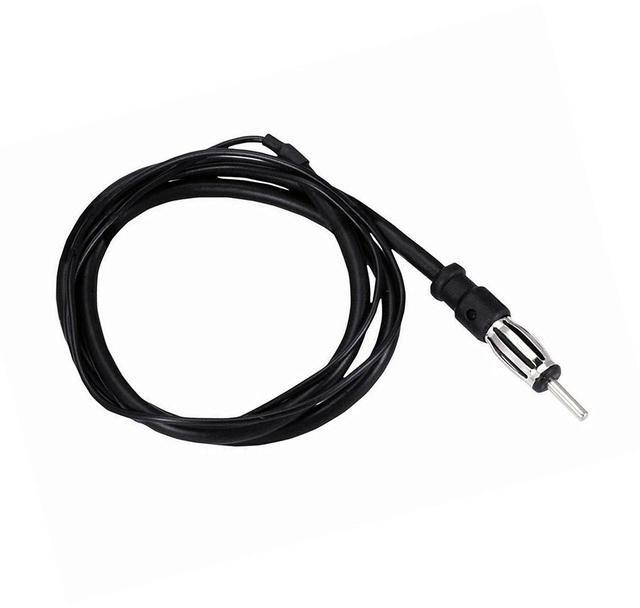

Radio Antenna:
- 22" AM/FM Marine Antenna
- Improves Radio reception
