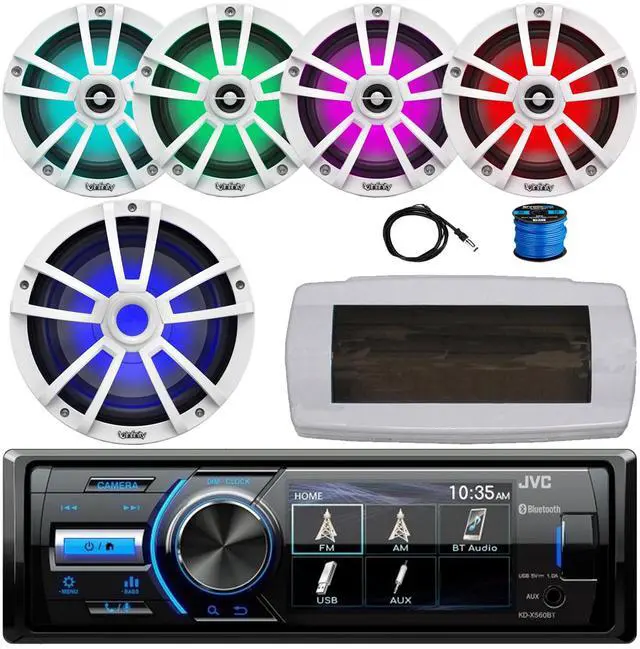

JVC KD-X560BT Single-DIN Marine Bluetooth USB/AUX MP3 AM/FM Radio Digital Media Stereo Receiver W/White Cover, 4x 6.5" 225W Max Power RGB LED White Speakers W/Wire, 10" 750W Max Subwoofer, Antenna

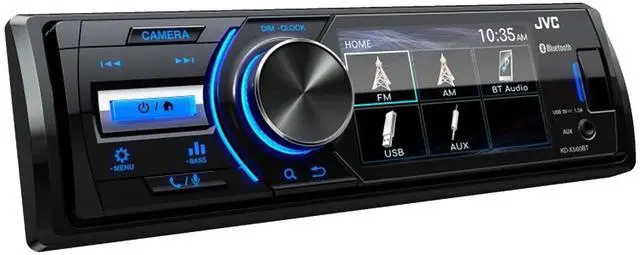

Receiver:

• Single-DIN Digital Media Receiver


• Built-In Bluetooth


• 3" Color Display


• Conformal Coated PCB


• Camera Input


• 13-band EQ (9-Preset EQ)


• AUX/USB Inputs


• Time Alignment


• Shallow Chassis


• Blue Key Color Illumination


• Multilingual Display


• MP3/WMA/WAV/AAC/FLAC/H.264/JPEG/PNG/BMP Playback


• Hands Free Call


• Android Music Playback


• iOS Compatible


• 30 Preset Stations


• Wireless Remote Control Ready (Optional)


• Maximum Power Output (Front & Rear): 45W x 4


• Full Bandwidth Power (Front & Rear): 16W x 4

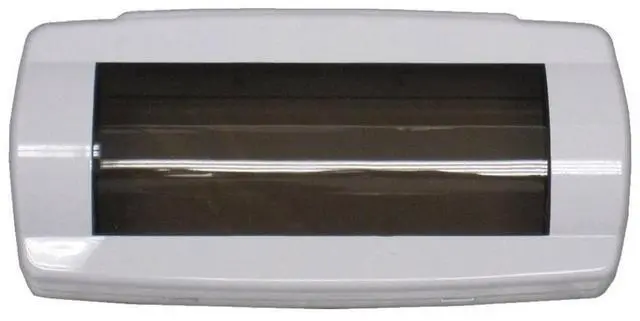

Stereo Cover:

• Fits standard DIN size shaftless stereos


• Door snaps closed securely


• Rubber gasket seals door closed so water cannot penetrate


• Heavy duty Lexan plastic cover

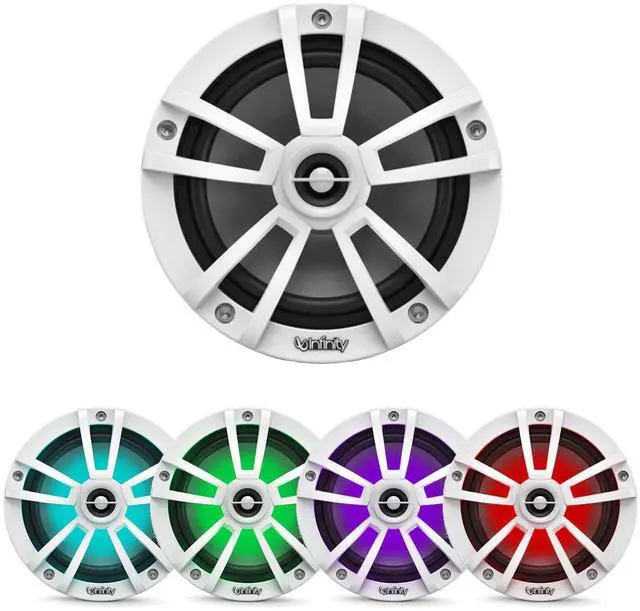

Speakers:

• 6.5" Two-Way Marine Multi-Element speaker


• Seven color multi-color RGB LED lighting


• Power Handling 75W RMS, 225W peak


• Sensitivity: 92dB


• Frequency Response: 50Hz- 20kHz


• Impedance: 4 ohms


• IPx5 Rated

Wiring Instructions

Lighting is controlled manually through hardwire connection. Remove the adapter at the end of the speakers to expose the wiring. It will include a Black, Red, Green and Blue wire. When hard wiring the RGB lighting, the black lead is +12V and the Red/Green/Blue leads are ground (-) There are seven colors available through hardwire connection, select your color of choice and proceed with wiring it.

• +12V = Black


• (-) Red = Red


• (-) Green = Green


• (-) Blue = Blue


• (-) Red + Green = Lime Green


• (-) Red + Blue = Magenta


• (-) Blue + Green = Aquamarine


• (-) Red + Blue + Green = Blue/White

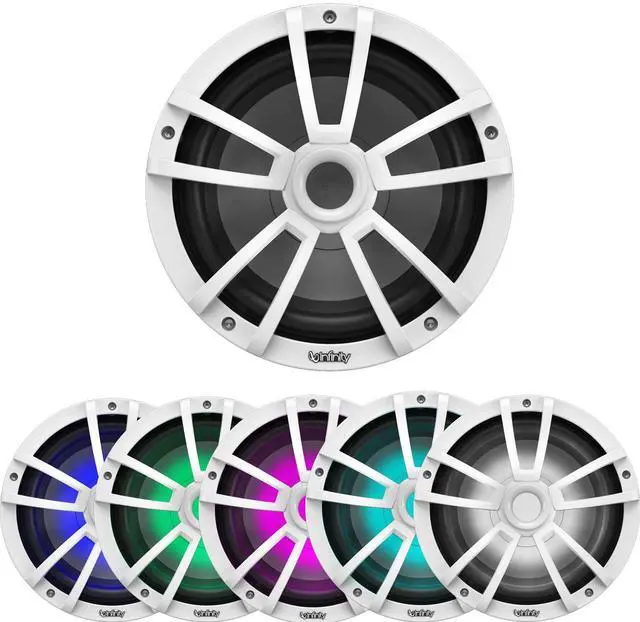

Subwoofer:

• IPx5 Marine Rating


• Cosmetic Appeal


• Outdoor Performance


• Multi-Color RGB Lighting


• Marine Design


• Bridge Mounted (Grille Mounted) Tweeters


• Balanced Dome Tweeters


• Weather-Resistant


• One-Piece Polymer Basket


• Rubber Surrounds


• Harman Standard Reliability Testing


• Individually Voiced


• Power Handling: 250W RMS, 750W peak


• Sensitivity (@ 2.83V): 89dB


• Frequency Response: 25Hz – 500Hz


• Impedance: 4 ohms

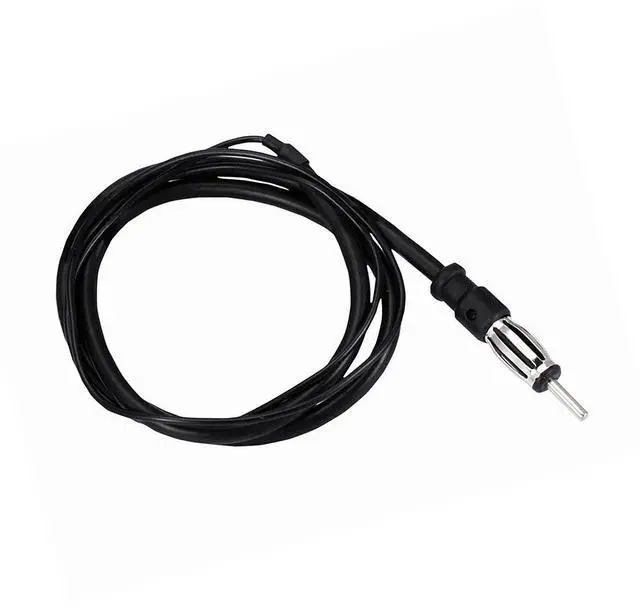

Radio Antenna:

• 22" AM/FM Marine Antenna


• Improves Radio reception

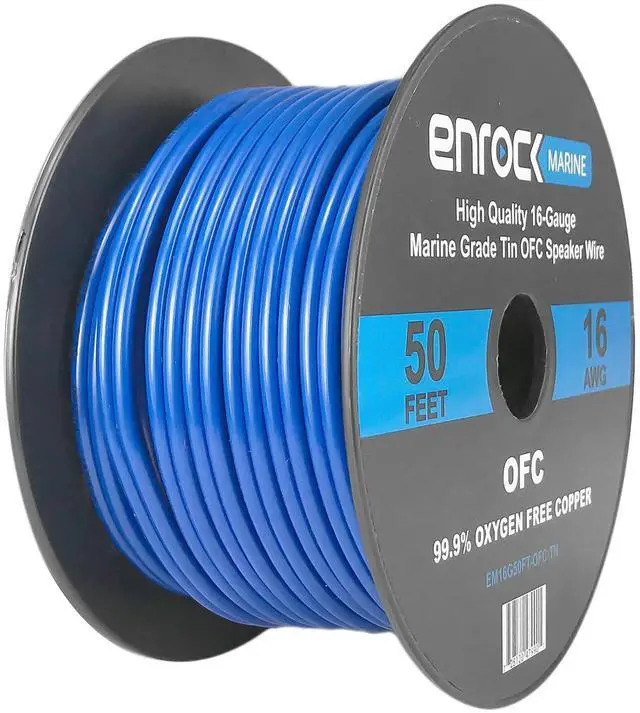

Speaker Wire:KEY_TAB

• Connects audio speakers to your Audio Video (A/V) receiver or amplifier.


• Marine grade tinned wire


• Oxygen Free Copper (OFC)


• Length: 50 Feet


• Gauge: 16
