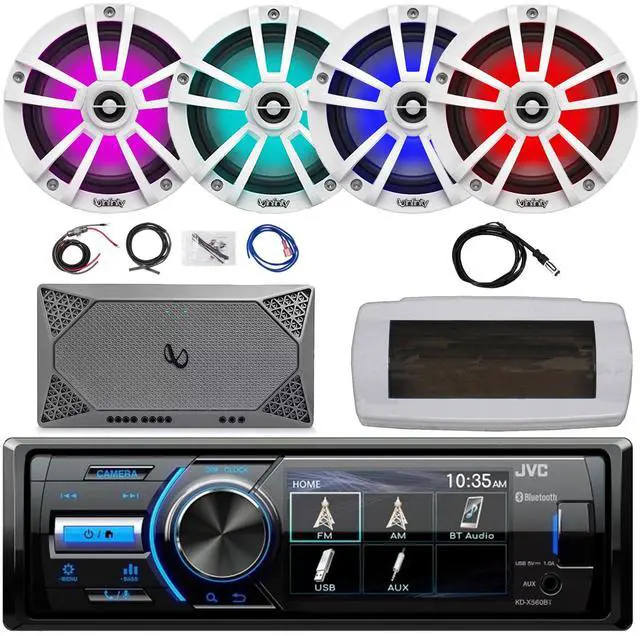

JVC KD-X560BT Single-DIN Marine Bluetooth USB/AUX MP3 AM/FM Radio Digital Media Stereo Receiver W/White Cover, 4x 6.5" 225W Max Power RGB LED White Boat Speakers, 4-Channel Amplifier W/Kit, Antenna

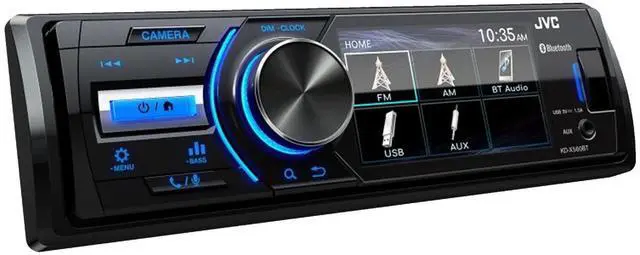

Receiver:

• Single-DIN Digital Media Receiver


• Built-In Bluetooth


• 3" Color Display


• Conformal Coated PCB


• Camera Input


• 13-band EQ (9-Preset EQ)


• AUX/USB Inputs


• Time Alignment


• Shallow Chassis


• Blue Key Color Illumination


• Multilingual Display


• MP3/WMA/WAV/AAC/FLAC/H.264/JPEG/PNG/BMP Playback


• Hands Free Call


• Android Music Playback


• iOS Compatible


• 30 Preset Stations


• Wireless Remote Control Ready (Optional)


• Maximum Power Output (Front & Rear): 45W x 4


• Full Bandwidth Power (Front & Rear): 16W x 4

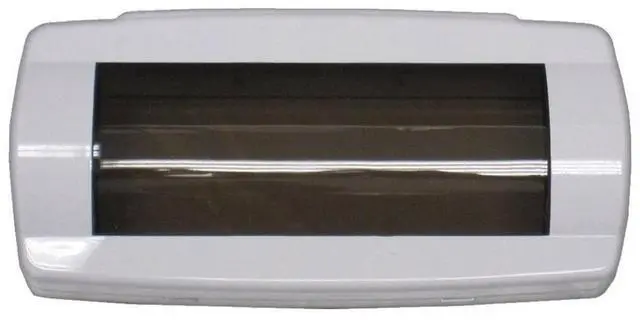

Stereo Cover:

• Fits standard DIN size shaftless stereos


• Door snaps closed securely


• Rubber gasket seals door closed so water cannot penetrate


• Heavy duty Lexan plastic cover

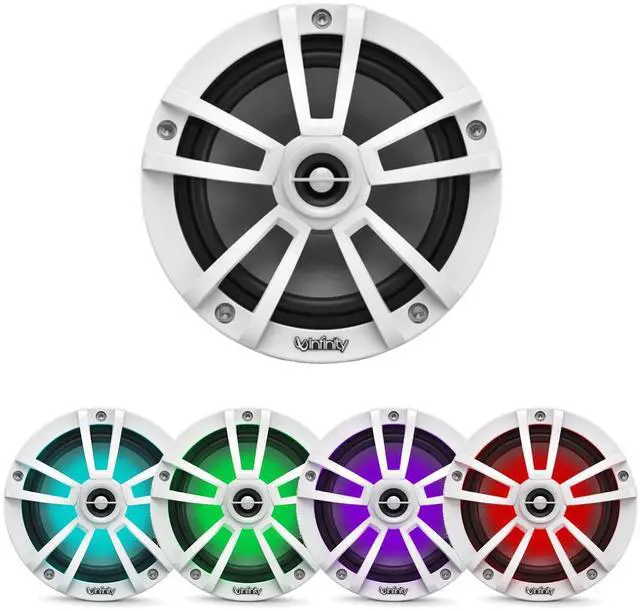

Speakers:

• 6.5" Two-Way Marine Multi-Element speaker


• Seven color multi-color RGB LED lighting


• Power Handling 75W RMS, 225W peak


• Sensitivity: 92dB


• Frequency Response: 50Hz- 20kHz


• Impedance: 4 ohms


• IPx5 Rated

Wiring Instructions

Lighting is controlled manually through hardwire connection. Remove the adapter at the end of the speakers to expose the wiring. It will include a Black, Red, Green and Blue wire. When hard wiring the RGB lighting, the black lead is +12V and the Red/Green/Blue leads are ground (-) There are seven colors available through hardwire connection, select your color of choice and proceed with wiring it.

• +12V = Black


• (-) Red = Red


• (-) Green = Green


• (-) Blue = Blue


• (-) Red + Green = Lime Green


• (-) Red + Blue = Magenta


• (-) Blue + Green = Aquamarine


• (-) Red + Blue + Green = Blue/White

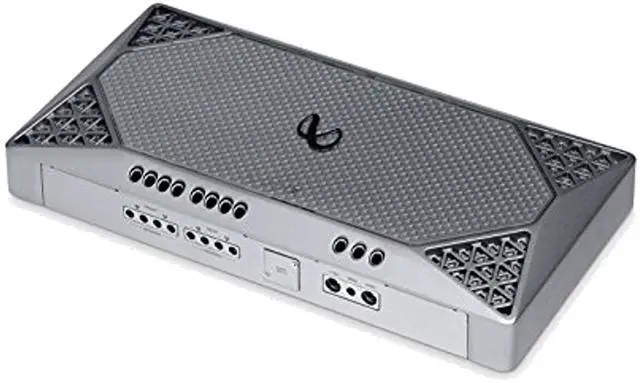

Amplifier:

• 4 Channel Marine Amplifier


• Class D Technology


• Max Power - 1000W Peak


• Power Output, 2Ω - 100W RMS x 4


• Power Output, 4Ω - 70W RMS x 4


• Power Output, 4Ω Bridged - 200W RMS x 2


• Signal-to-Noise Ratio - ≥85dB


• High and low level inputs


• Variable crossovers and bass boost

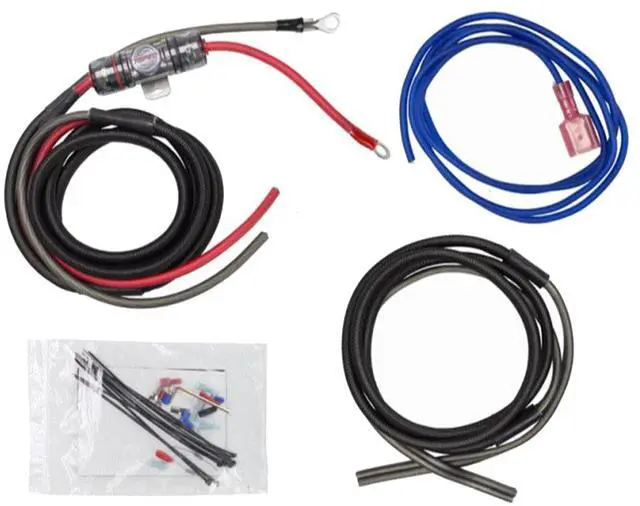

Amplifier Wiring Kit:

• Designed tor motorcycles


• 6 feet of red and black T-Spec OFC power and ground wire with a T-Spec V8MANL fuse holder and 60 amp fuse protected by a black nylon braid


• Pre-terminated ring terminals make connections to the battery simple


• Two 4 foot pieces of 16 gauge OFC speaker wire protected by black nylon mesh makes upgrading the factory speaker wires or adding new speakers a smart choice


• Upgrading Harmon Kardon System – Two 47-ohm .5 watt resistors to keep the factory radio outputs active


• All the necessary installation hardware is included along wtth a 4 × 6 inch hook and loop mounting pad for micro-amplifiers to hold the amplifier securely in place

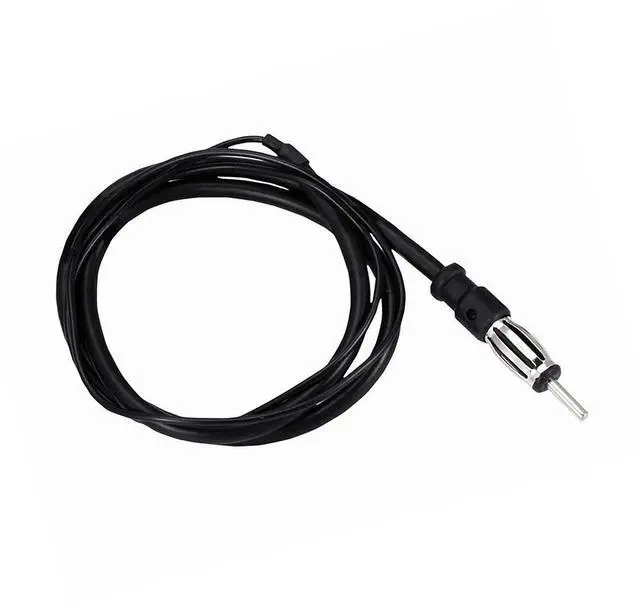

Radio Antenna:

• 22" AM/FM Marine Antenna


• Improves Radio reception
