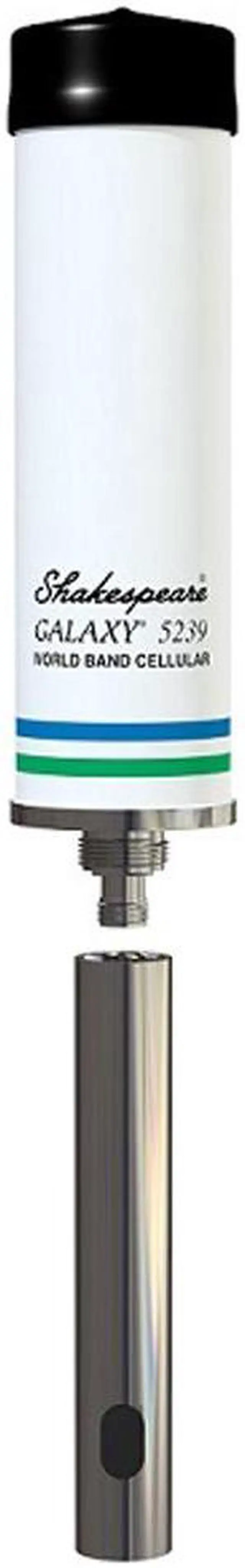

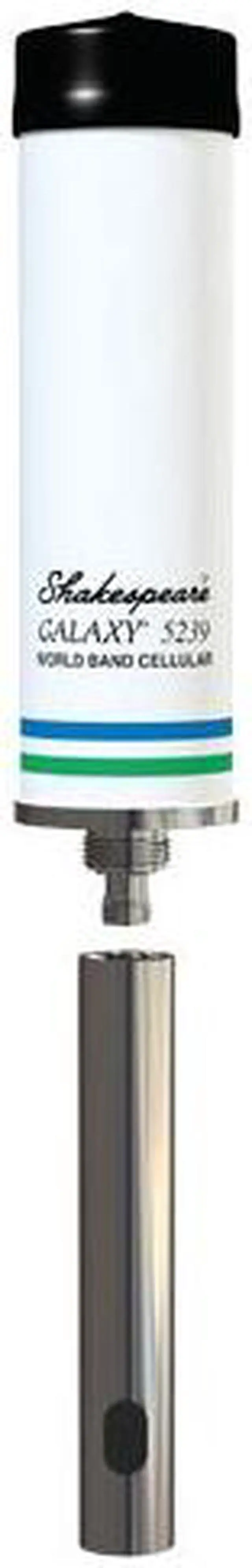

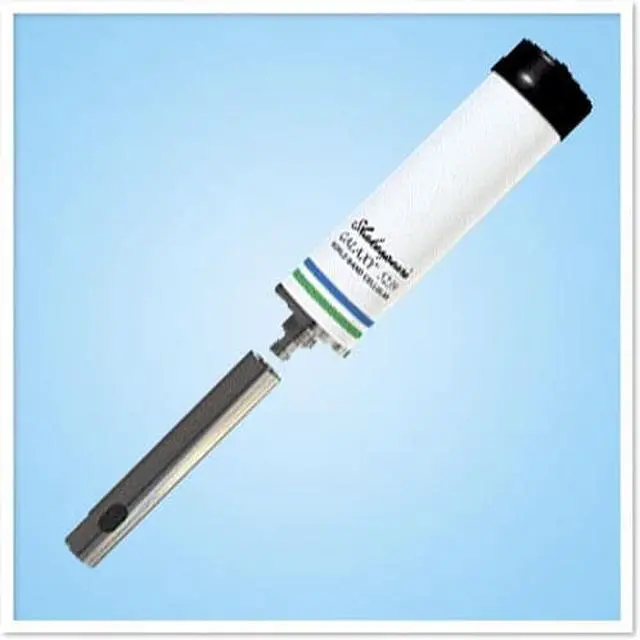

Cellular/Wi-Fi World Band Galaxy Antenna
The Galaxy 5239 antenna is Shakespeare's smallest Galaxy antenna, but don't let the size fool you. This World-band antenna provides coverage for 2G/3G/4G and WLAN systems for Cellular, PCS, AWS and LTE frequencies, as well as 802.11n Wi-Fi. This compact, feature rich antenna is at home on virtually any watercraft, and is fitted with a stainless steel ferrule and N-connector that are compatible with nearly all Shakespeare 1in -14 threaded mounts.
Features:
- Full Band (698 - 2700 MHz) Broadband
- 2G/3G/4G and WLAN systems
- Wi-Fi 802.11n compatible
- Designed for marine use
- Omni-directional antenna 3-4 dB Gain.
- Easy to install
- Includes FME Cables
Specifications:
- Frequency: 698-960/1700-2700 MHz
- Input Impedence: 50 ohm
- Antenna Gain: 2-3dB @ 698-960/3-4dB @ 1700-2700 MHz
- VSWR: ≤ 1.8
- Power Rating (W): 10
- Polarization Type: Vertical
- Radiation: Omni-Directional
- Maximum Power (W): 100
- Connector Type: N-female
- Dimension: 9.25" H x 2.625" D
- Color: White
- Operating Temperature (F): -22 to +176
- Mounting: 1" x 14 Thread Mount
- Ground Plane: Internal
- Material: Fiberglass
