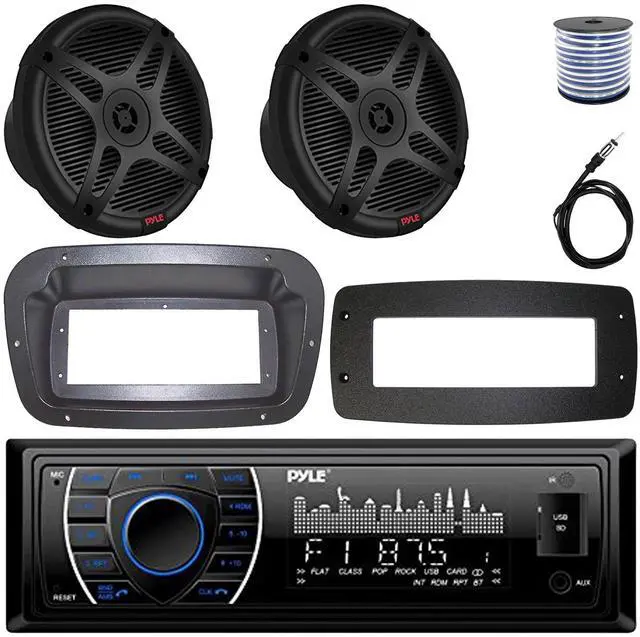

Pyle PLRMR27BTB Single-DIN Marine Bluetooth USB/AUX MP3 AM/FM Radio Stereo Receiver W/Install Kit + Adapter Plate, 2x 6.5" 600W Max Power 2-Way Coaxial Component Speakers W/50 Feet Wire, 22" Antenna

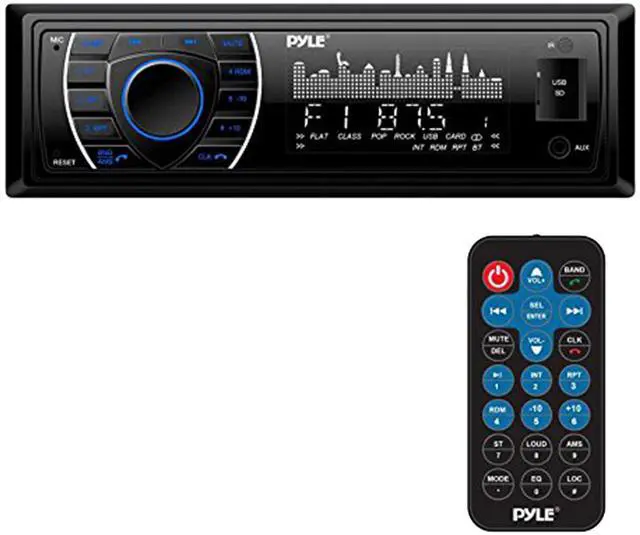

Receiver:

• In-Dash Console Marine Stereo System


• Digital AM/FM Radio Receiver


• Bluetooth Wireless Music Streaming


• Built-in Microphone for Hands-Free Talking


• USB Flash Drive & Micro SD Memory Card Readers


• Ability to Connect Additional External Devices



• Rear RCA (L/R) Output Connector Jacks


• Illuminated Button Controls


• LCD Digital Display Panel



• Repeat/Random Music Functions


• Bass, Treble, Balance, Fader Adjustment


• EQ Audio Configuration


• Used for Automobile, Off-Road, Boat & Marine Watercraft

Bluetooth Receiver Connectivity:

• Built-in Bluetooth Wireless Music Streaming Receiver


• Integrated Front Panel Microphone for Hands-Free Calling




• Bluetooth Version: 2.0



• Wireless Range: 25+ ft.

Whats in the Box:

• Bluetooth Marine Receiver


• Power & Wiring Harness


• Metal Chassis Frame Bracket



• Remote Control

Receiver Technical Specs:

• Single DIN Universal Standard Size


• Receiver MAX. Power: 300 Watt (75W x 4)



• MPX/PLL Tuning Radio System


• S/N Ratio: >60dB


• Tone Controls: +/-10dB


• Stereo Separation: >45dB


• Receiver Current Drain: 15 Amp


• Digital Audio File Support: MP3, WMA



• Frequency Response: 20-20kHz


• Power: DC 12V


• Receiver Chassis Dimensions: 178(W) x 108(D) x 50(H) mm

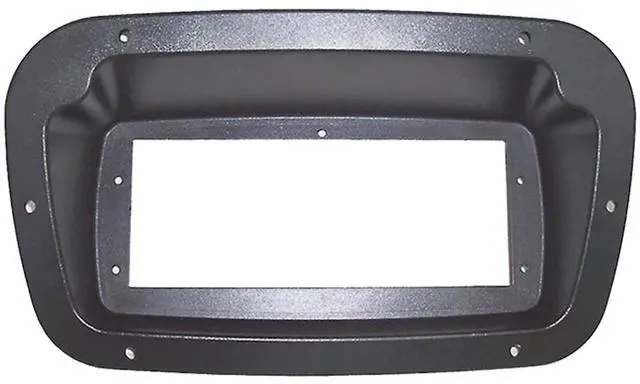

Stereo Install Kit:

• mounting bezel for stereo installations near hot tubs, saunas, and pools


• works with single-DIN (2" tall) marine and weather-resistant receivers


• dimensions: 12-3/4"W x 7-1/8"H

What's in the box:

• Spa bezel

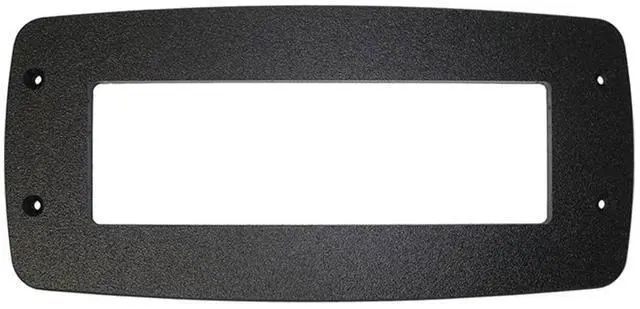

Adapter Plate:

• adapter plate for large dash cavities


• works with single-DIN (2" tall) marine receivers

What's in the box:

• Mounting plateKEY_TAB

Speakers:

• 5.25" Polycone Speakers


• Power Handling: 20 Watts


• Impedance: 4 ohms


• Width: 5.875"


• Mounting Depth: 1.375"


• NO Instructions or mounting hardware included.

Amplifier:

• 4 Channel Amp System


• Dual MOSFET Power Supply


• Marine Grade Design


• Waterproof Marine Rating IP-01


• Dual Adjustable Input GAIN Level Controls


• Dual High Level Speaker Input Connectors


• Dual RCA (L/R) Input Connector Jacks


• Gold-Plated Speaker Output Terminal Connectors


• Adjustable Input GAIN Level Control


• Output Power: 100 Watt x 4 MAX


• Amplifier Class: AB


• Fuse Type: 20A


• Matching Speaker Impedance: 4-8 Ohms

Amp Kit:

• Marine Grade Cables and Wires


• Perfect for Installations in Boats and Outdoor


• High Resistance to Moisture


• 20ft. 8 Gauge Red Power Wire


• 4ft. 8 Gauge Black ground Wire


• 20ft. 18 Gauge Blue Remote Turn-On


• 20ft. 12 Gauge StereoSpeaker Wire


• 20ft. Right Angle/Standard Stereo RCA Audio Cable


• 6ft. Black Split Loom Cable Conduit


• AGU Type 60A Gold Plated Fuse


• Water Resistant In-line Fuse Holder


• 2 Ring Terminals: 8G


• 2 Spade Terminals: 8G


• 5 Spade Terminals: 14-16G


• 3 Butt Connectors 20 Cable Ties


• 1 Black Grommet


• Sold as: 0


• Weight: 2.1 lbs.

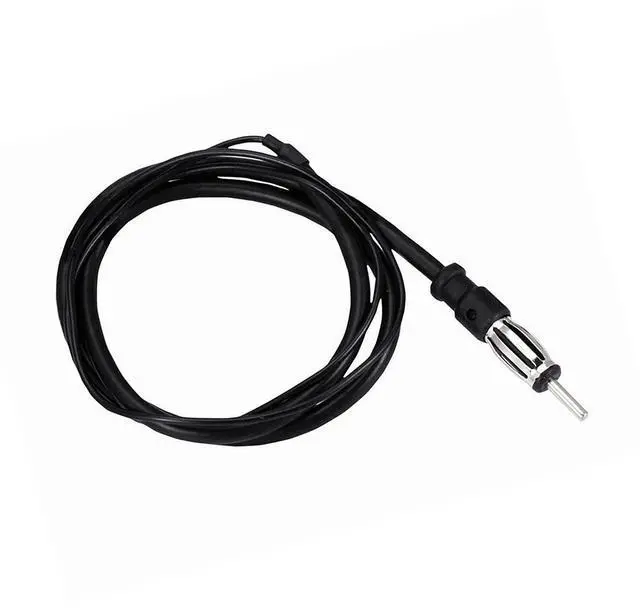

Radio Antenna:

• Flexible Mast AM/FM Marine Antenna


• 180 degrees Swivel base for maximum mobility and 45 inch cable


• Angled mounting options allow installation of the antenna in the most convenient locations
