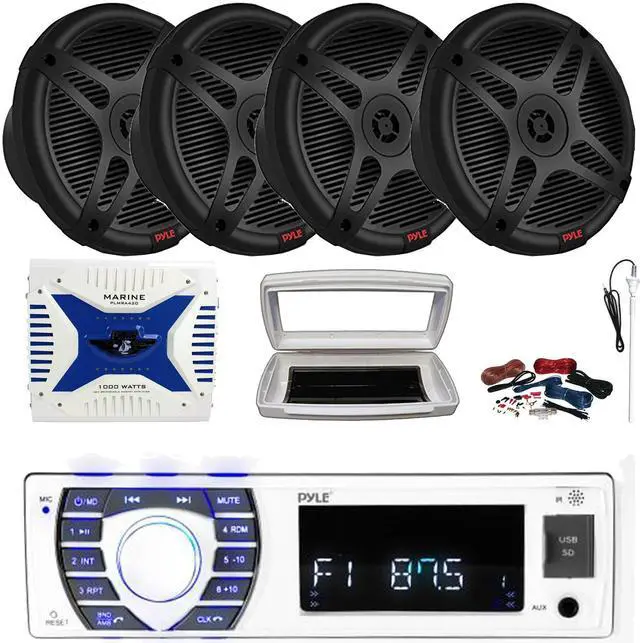

Pyle PLRMR23BTW Single-DIN Bluetooth Marine USB/AUX MP3/SD AM/FM Radio Stereo Receiver W/White Cover, 4x 6.5" 600W Max Power Dual 2-way Coaxial Range Speakers, 4 Channel Amplifier W/Kit, Radio Antenna

Receiver:

• In-Dash Console Marine Stereo System


• Stereo Radio Receiver with AM/FM Radio


• Bluetooth Wireless Music Streaming


• Built-in Microphone for Hands-Free Talking


• USB Flash Drive & Micro SD Memory Card Readers


• Aux (3.5mm) Input Connector Jack


• Ability to Connect Additional External Devices


• (Smartphones, MP3 Players, Tablets)

Bluetooth Receiver Connectivity:

• Built-in Bluetooth Wireless Music Streaming Receiver


• Remote Control

Receiver Technical Specs:

• Single DIN Universal Standard Size


• Receiver MAX. Power: 300 Watt (75W x 4)


• Bluetooth Support: A2DP, AVRCP, HSP, HFP


• MPX/PLL Tuning Radio System


• S/N Ratio: >60dB


• Tone Controls: +/-10dB


• Stereo Separation: >45dB


• Receiver Current Drain: 15 Amp


• Digital Audio File Support: MP3, WMA


• Maximum USB/Micro SD Support Size: 32GB


• Frequency Response: 20-20kHz

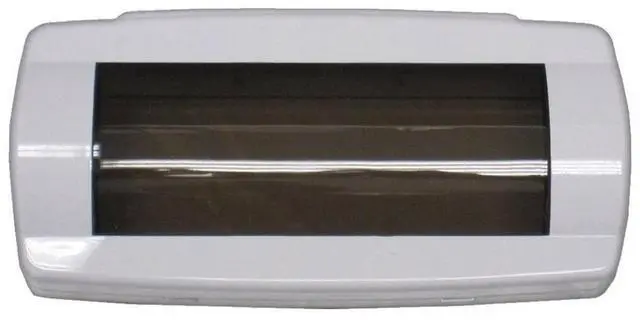

Stereo Cover:

• Fits standard DIN size shaftless stereos


• Door snaps closed securely


• Rubber gasket seals door closed so water cannot penetrate


• Heavy duty Lexan plastic cover

Speakers:KEY_TAB

KEY_TAB

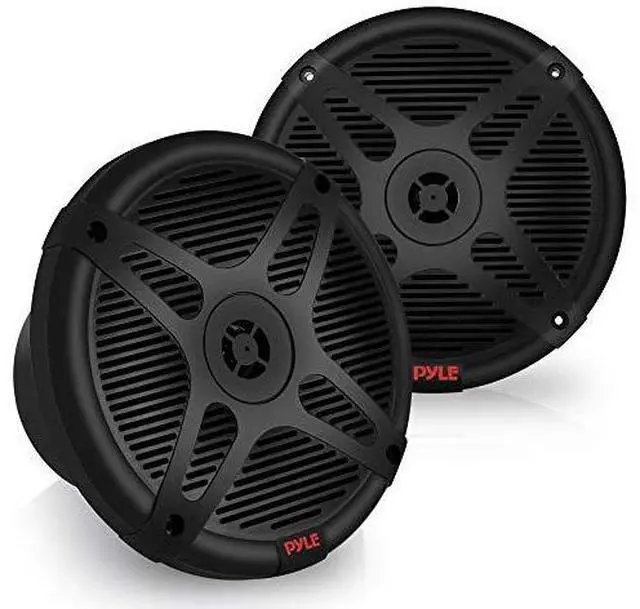

• Includes (2) 6.5'' Coaxial Speakers


• Active Powered Speaker System


• Marine Grade Waterproof-Rated Construction


• Water-Resistant & Weatherproof Design


• Wireless Radio Frequency (RF) Streaming Ability


• RF Audio Module Supports Additional Speaker Connectivity


• Extended Range Streaming Performance


• Impressive Wide-Bass Response

What’s in the Box:

• (2) 6.5’’ -inch Marine Speakers


• Cut-Out Template


• Mounting Screws

Sizes / Dimensions:

• Total Diameter: 6.9’’ -inches


• Cut-Out Diameter: 6.75’’ –inches


• Total Depth: 3.97” -inches


• Mounting Depth: 3.1’’ -inches

Technical Specs:

• Power Output: 600 Watt MAX (300 Watt RMS)


• Marine Grade Rating: IP-X4


• Wireless Radio Frequency (RF) Streaming Rage: 100’+ ft.


• Speaker Composition: Polypropylene Cone, Butyl Rubber Surround


• Voice Coil: 1.0'', Aluminum (x2)


• Tweeters: 0.5'', Neodymium Dome (x2)


• Impedance: 4 Ohm


• Sensitivity: 90 dB


• Circuit Magnet: 20 oz.


• Frequency Response: 85Hz-20kHz


• Power Supply: DC 12V


• Single Speaker Weight: 1.67 lbs. (-Each Speaker)

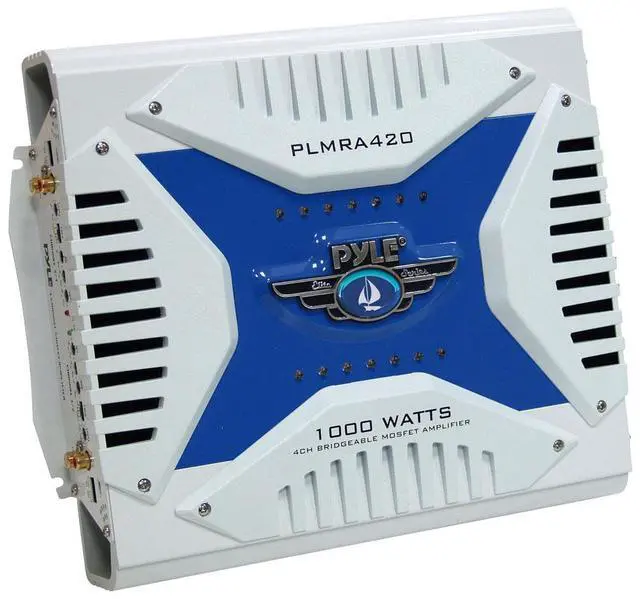

Amplifier:

• ]250 Watts x 4 Output


• 500 Watts x 2 Bridged Output (250W x 2 + 500W x 1)


• Dual Variable Hi/Lo Electronic Crossover Network


• Dual Variable Bass Boost


• Power On LED Indicator


• LED Protection Indicator


• Blue LED Level Display


• Tri-Mode Configurable


• Variable Input Level (Gain) Control


• Thermal, Overload, Short Circuit Protection


• Dimensions: 10.9'' W x 2.7'' H x 12'' L

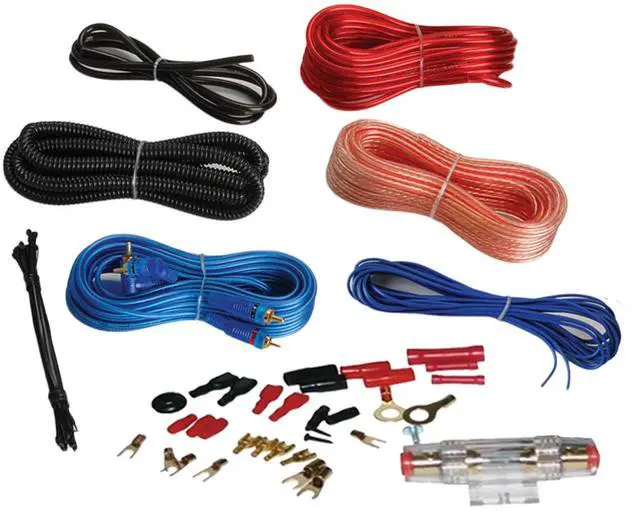

Amp Kit:

• Complete amplifier installation kit Marine Grade Cables and Wires

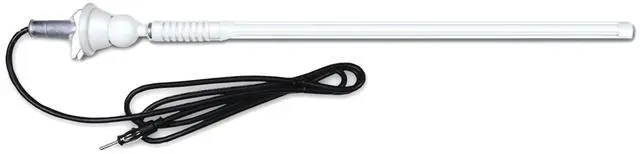

Radio Antenna:

• Flexible Mast AM/FM Marine Antenna


• 180 degrees Swivel base for maximum mobility and 45 inch cable


• Angled mounting options allow installation of the antenna in the most convenient locations
