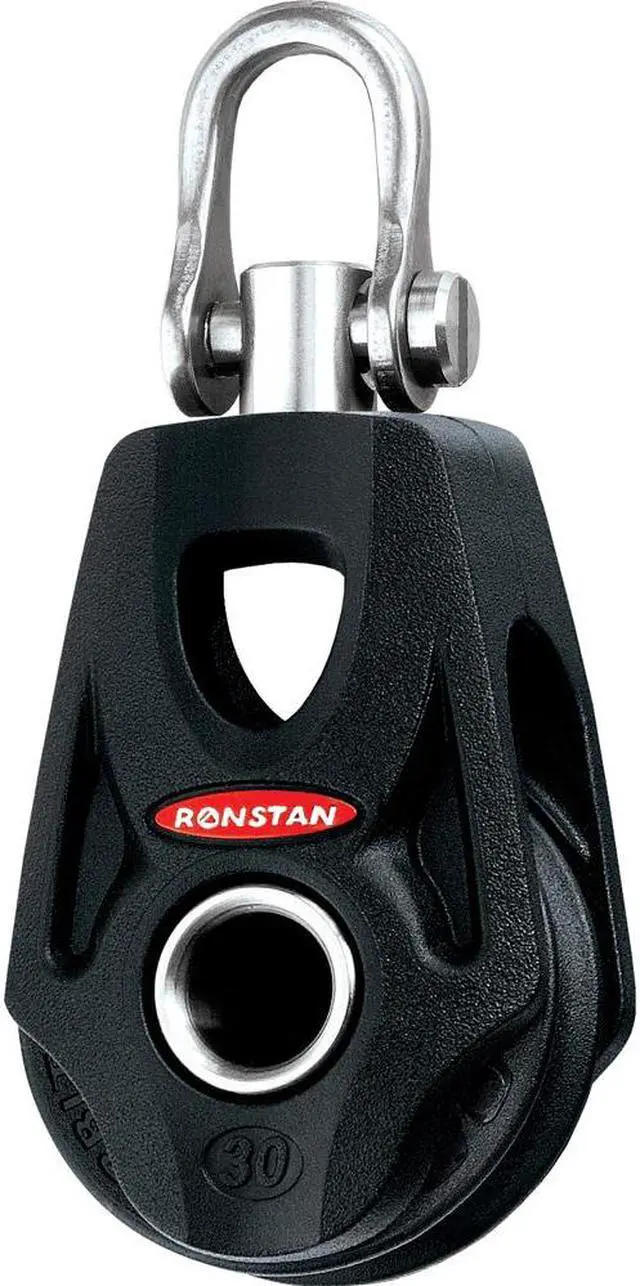

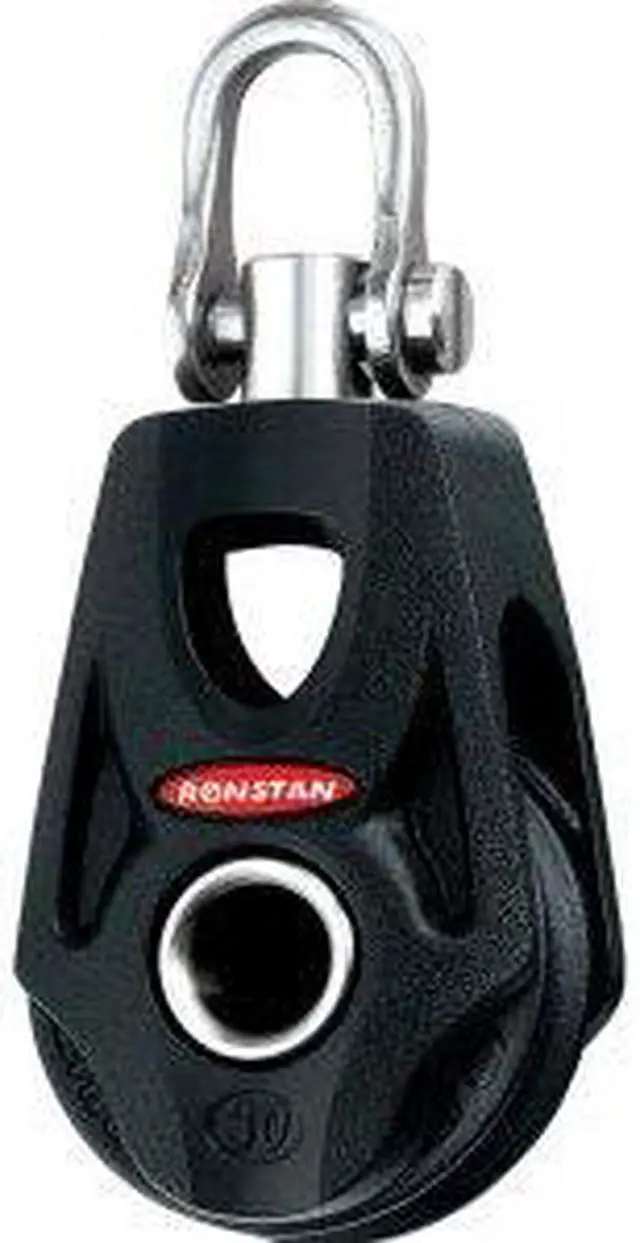

Ronstan Series 30 Ball Bearing Orbit Block - Single - Becket - Swivel Shackle Head

Series 30 Ball Bearing Orbit Block - Single - Becket - Swivel Shackle HeadBall Bearing Orbit Blocks boast the highest strength-to-weight ratio available. This is achieved through all-composite reinforced polymer materials and multiple attachment options. Their precision design provides the optimum number of ball bearings for minimum friction while weight reduction is achieved through the use of fiber-reinforced composites in the block head, cleat arms and beckets.
Features: LightweightHighest working load in its classSecure, versatile and secure attachementLow profile and compactUltra low profile thru-sheave becketLow friction 2-stage ball bearing system provides consistent performance over the full working load rangeApplications: Mainsheet systems and spinnaker sheets on dinghies to 5M(16')Halyard, vang and backstay applications on boats to 5M(16')Control line applications on larger yachtsMaterials:
Sheave: High compression strength carbon black
AcetalBall Bearings: High compression strength
AcetalFrame/Cheeks: Toughened, glass fiber reinforced
NylonLink: UV stabilized, multi-strand impregnated
SK75 DyneemaSpecifications:
Sheave: 30mm(1-3/16")Max.
Rope: 8mm(5/16")M. W. L.: 300kg (660lbs) B. L.: 600kg(1, 320lbs)Weight: 32g( 1.1 oz)
