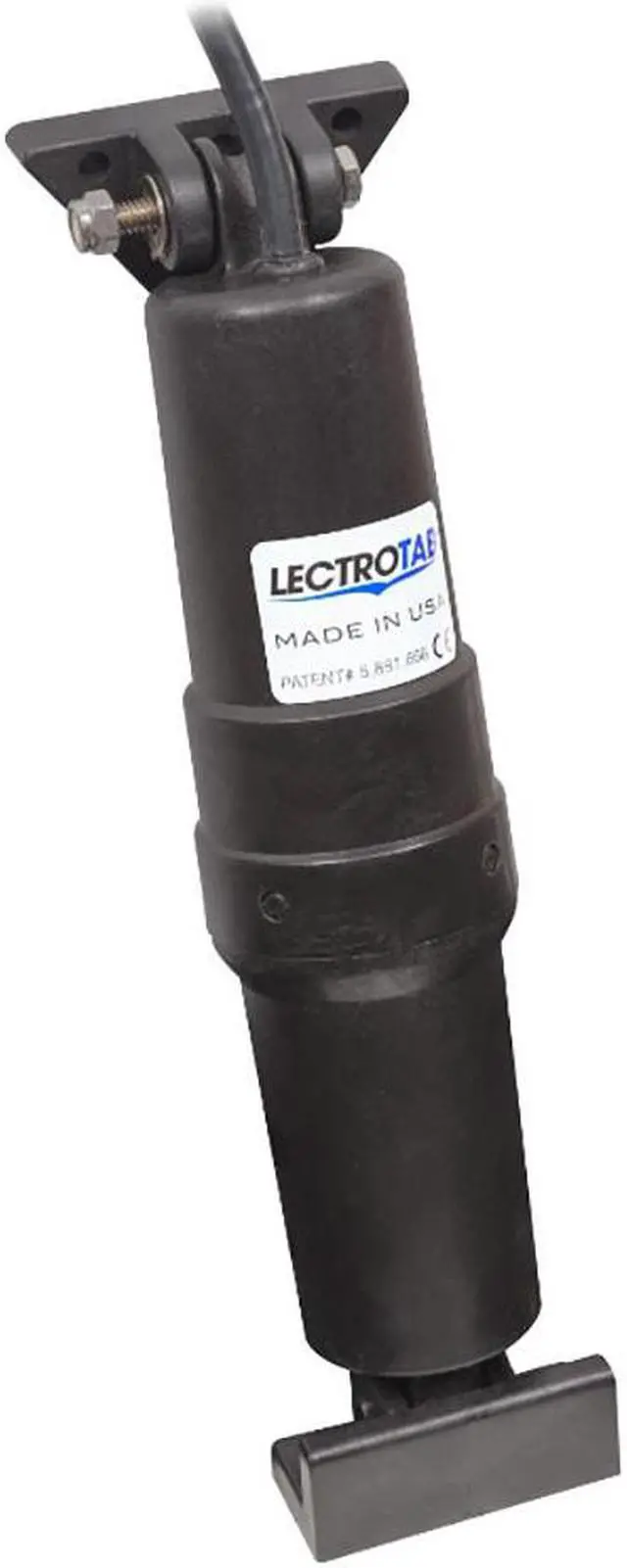

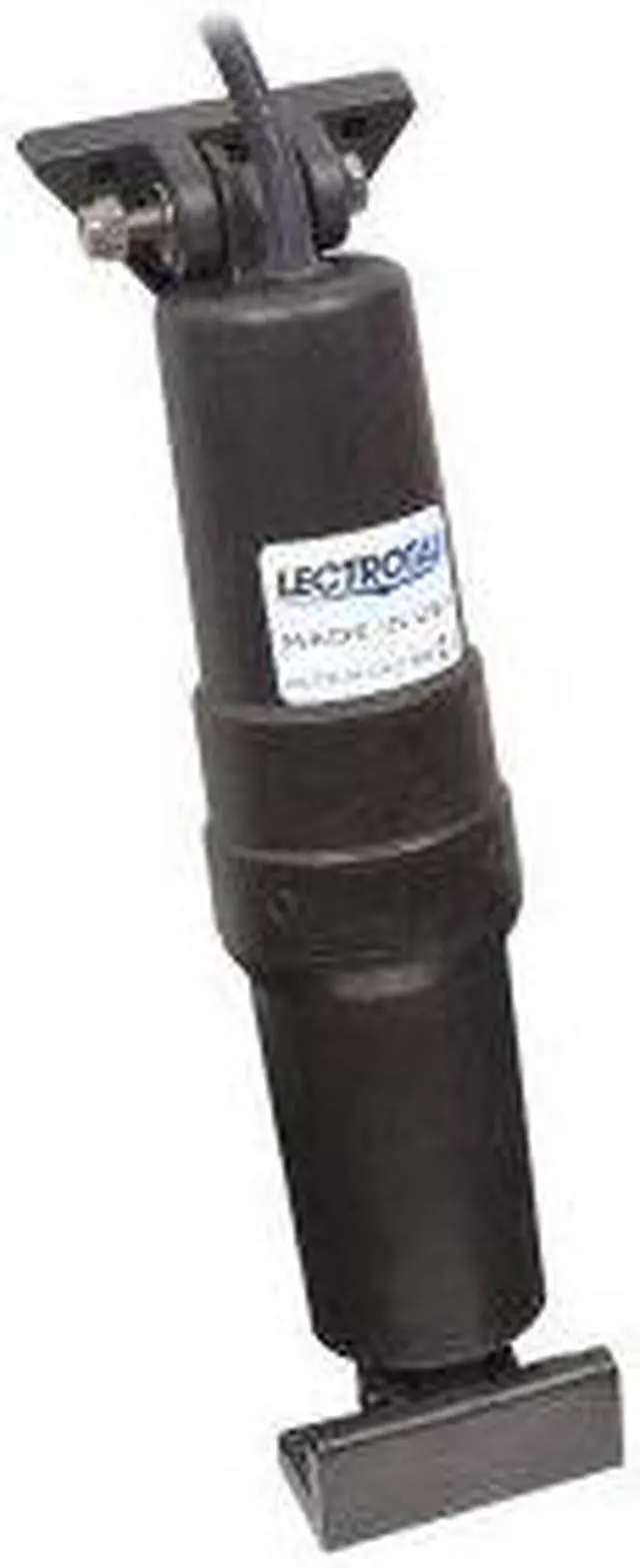

Lectrotab 12 V Short Trim Tab Actuator - 23' Cable

12 V Short Trim Tab Actuator - 23' CableKEY_TAB

Ideal for limited vertical height applications such as swim platforms, Lectrotab short trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance free design. KEY_TAB The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. KEY_TAB

The actuator assembly is packaged in a non-metallic permanently sealed housing. KEY_TAB No components need to be installed inside the boat. KEY_TAB Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. KEY_TAB The short actuator incorporates either a standard or low profile transom mounting bracket.KEY_TAB

Features:

• Short actuator perfect for swim platform or limited vertical height applications
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• All actuators fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length KEY_TAB - 23' (7 M)
• Actuator Vertical Height - 10" (254 mm)
• Upper Mounting Bracket - Low Profile
• Lower Mounting Bracket - Standard

*Sold as an Individual
