Lectrotab XKA Aluminum Alloy Trim Tab - 9x9

XKA Aluminum Alloy Trim Tab - 9 x 9

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. KEY_TAB All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. KEY_TAB All Aluminum tabs are sealed with a corrosion resistant epoxy coating.KEY_TAB

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. KEY_TAB The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. KEY_TAB The actuator assembly is packaged in a non-metallic permanently sealed housing. KEY_TAB No components need to be installed inside the boat.KEY_TAB

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. KEY_TAB The actuator incorporates either a standard or low profile transom mounting bracket.KEY_TAB

*Control switch not includedKEY_TAB

Features:

• All Tabs sealed with a corrosive resistant epoxy coating
• Equivalent strength to 10 gauge stainless steel
• "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 9" (23 x 23 cm)
• Boat Length - 14' to 19' (4 to 6 M)
• Trim Tab Material - Marine grade 6005-T5 Aluminum AlloyKEY_TAB
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length KEY_TAB - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)

In the Box:

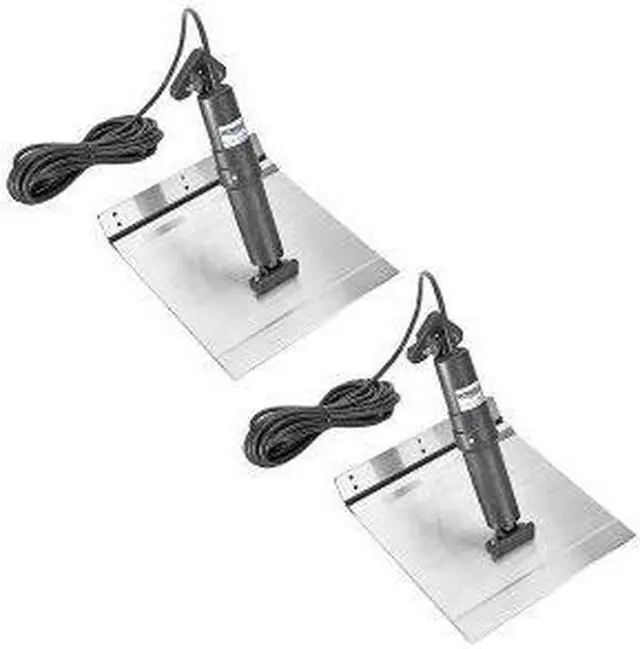

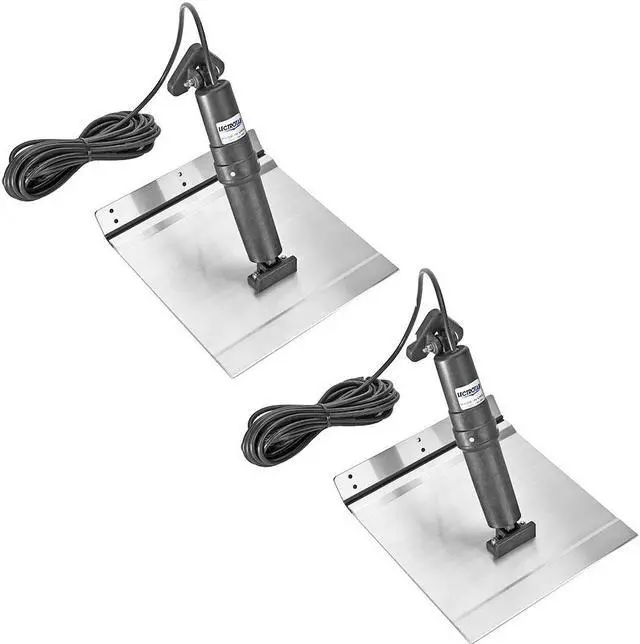

• Two (2) Aluminum Alloy tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction ManualKEY_TAB

*Sold as an Individual
