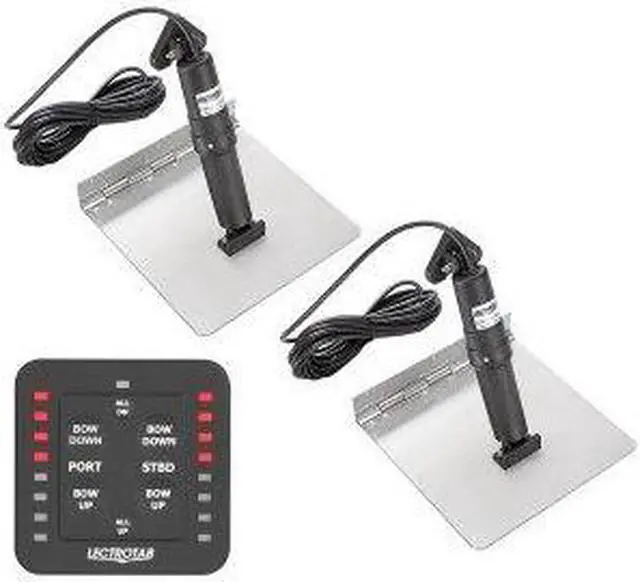

Lectrotab XKA Stainless Steel Trim Tab Kit w/One-Touch Control - 12 x 9

XKA Stainless Steel Trim Tab Kit with One-Touch Control - 12 x 9

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. KEY_TAB All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. KEY_TAB This design eliminates the need for welding.KEY_TAB

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. KEY_TAB The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. KEY_TAB The actuator assembly is packaged in a non-metallic permanently sealed housing. KEY_TAB No components need to be installed inside the boat.KEY_TAB

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. KEY_TAB The actuator incorporates either a standard or low profile transom mounting bracket.KEY_TAB

Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips. KEY_TAB

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:KEY_TAB

• Trim Tab Size (L x W) - 12" x 9" (30 x 23 cm)
• Boat Length - 18' to 29' (5.5 to 8.5 M)
• Trim Tab Material - 12 gauge, 304 Stainless SteelKEY_TAB
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length KEY_TAB - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)KEY_TAB
• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)KEY_TAB
• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) One-Touch ControlKEY_TAB
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit
