Lectrotab XKA Stainless Steel Trim Tab Kit w/ALC-1 Control - 9 x 24

XKA Stainless Steel Trim Tab Kit with ALC-1 Control - 9 x 24KEY_TAB

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. KEY_TAB All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. KEY_TAB This design eliminates the need for welding.KEY_TAB

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. KEY_TAB The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. KEY_TAB The actuator assembly is packaged in a non-metallic permanently sealed housing. KEY_TAB No components need to be installed inside the boat.KEY_TAB

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. KEY_TAB The actuator incorporates either a standard or low profile transom mounting bracket.KEY_TAB

The Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. Additionally, the ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:KEY_TAB

• Trim Tab Size (L x W) - 9" x 24" (23 x 61 cm)
• Boat Length - 24' to 37' (7 to 11 M)
• Trim Tab Material - 12 gauge, 304 Stainless SteelKEY_TAB
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length KEY_TAB - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
• Control Mounting Hole Cutout - 2" (50 mm)
• Control Operating Voltage - 12 or 24 V

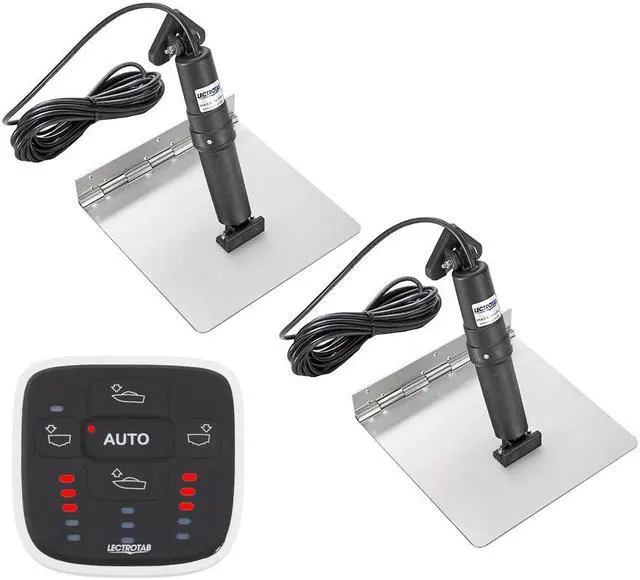

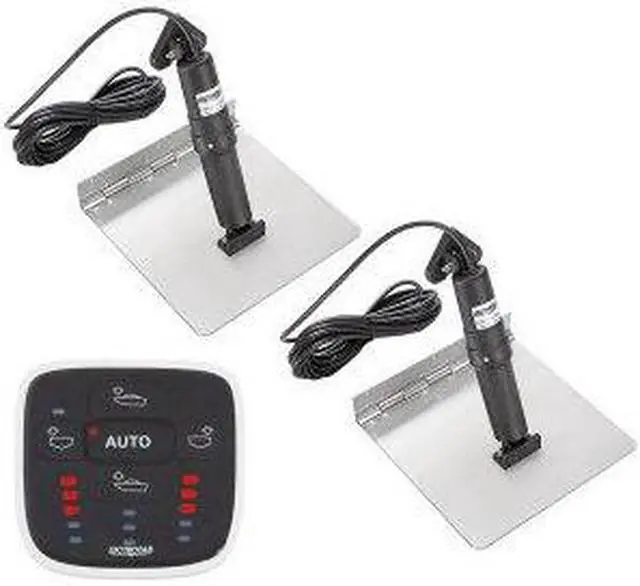

In the Box:

• One (1) Automatic Leveling Control
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction ManualKEY_TAB

*Sold as a Kit
