Acaigel 12V 200A Heavy Duty Split Charge Relay w/ 2 Terminals for Car Truck Marine Boat
Limited time offer, ends 11/09 By youer_supermarket
- Top quality products: The quality of the products can be guaranteed to the greatest extent, because we have our own production warehouse. Products can be tested for quality before they leave the factory.
- High-quality distribution logistics: Our delivery warehouse is in the United States. The logistics method used is a local first-level logistics service provider in the United States. From the moment you place the order, it will be collected within 24 hours. You can receive your package within 3-5 working days.
- Timely after-sales service: Whether you have any questions about the logistics provider or product quality, you can contact me at any time. As long as the product is unused, you can return it to our warehouse in New Jersey. We serve you wholeheartedly 24 hours a day.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Heavy duty make or break (on/off) relay Ideal for universal 12V applicatis
Type: Extra Heavy Duty 200A Split Charge Relay
Terminals: 4 high quality durable & firm terminals
Feature:
1. High Power High Current Car Automobile Relay, Normally Open Relay
2. On Both Ends of The Coil Can Drive Resistance, or Protection Diode
Useful: Universal, can be used in car, motor homes, tractors, Construction Vehicle etc Large vehicles start.
All kinds of large current control system

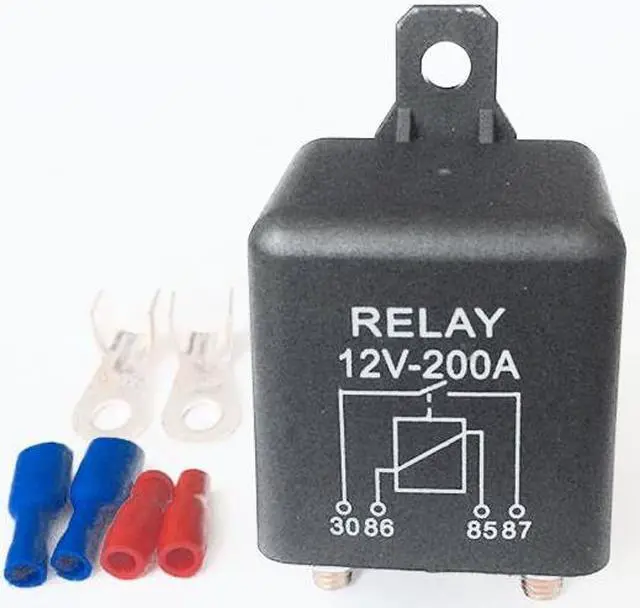

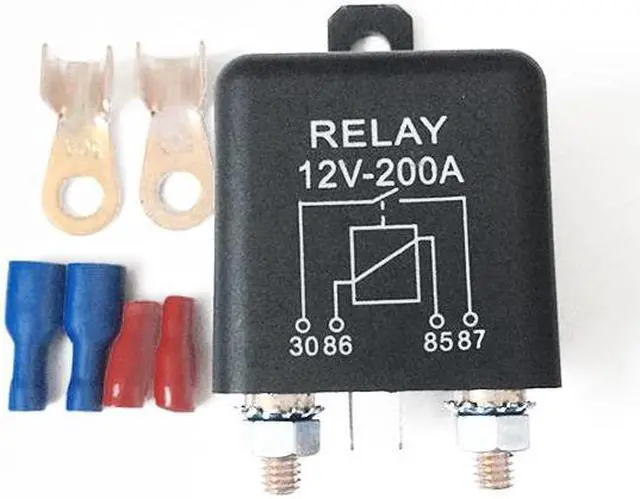

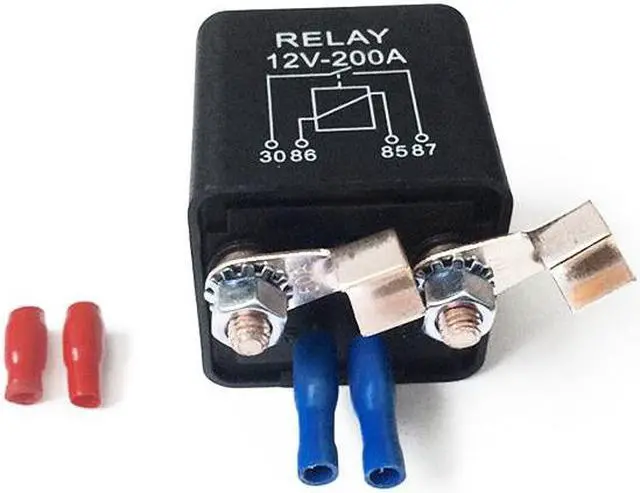

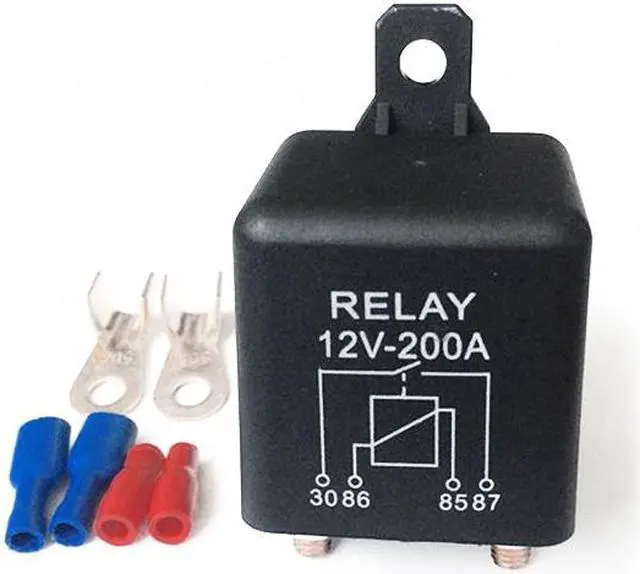

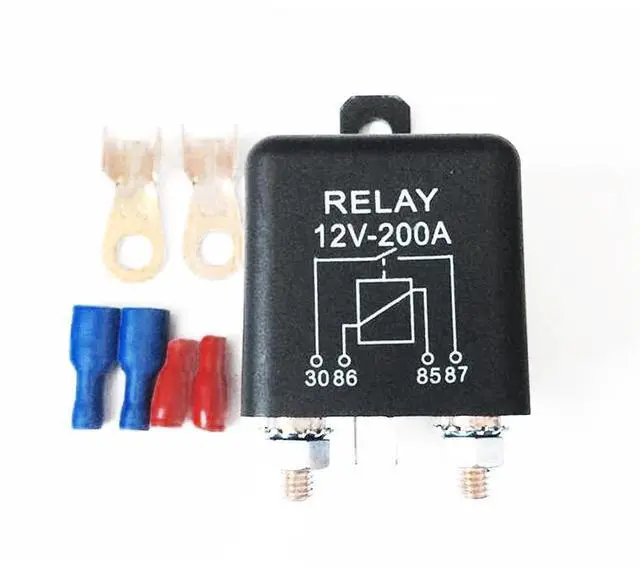

Package Included: 1 x Heavy Duty Split Charge 200A ON/OFF Relay; 2 x Terminal; 2 x Footprint
Contact Data:
Contact Material: AgSnO12
Contact Form: Normal Open
Contact Ratings: No: 200A
Max switching Current: 200A
Max Switching Voltage: 75VDC
Max Switching Power: 2000W
Life Expectancy Electrical: 100, 000 Operations (at 30 Operations/min)
Life Expectancy Mechanical: 10, 000, 000 Operations
Coil Specification:
Nominal Voltage (VDC): 12V
Coil Resistance (
4.8W / 2.4W ): 30/60
Max Operate Voltage (VDC): 6.0 ~ 8.0
Mix Release (VDC): 1.2 ~ 3.6
Max Applicable Voltage (VDC): 15.6
Characteristics:
Temperature Range: -30°C ~+80°C
Shock Resistance:
Operations Extremes: 10g
Damage Limits: 100g
Humidity: 40%~85%
Insulation Resistance: 100m ohm Min at 500VDC
Dielectric Strength Between Open Contacts 500VAC (for one minute/sec)
Between Contact and coil: 750VAC (for one minute/sec)
Operate Time: 15ms
Release Time: 10ms
Type: Extra Heavy Duty 200A Split Charge Relay
Terminals: 4 high quality durable & firm terminals
Feature:
1. High Power High Current Car Automobile Relay, Normally Open Relay
2. On Both Ends of The Coil Can Drive Resistance, or Protection Diode
Useful: Universal, can be used in car, motor homes, tractors, Construction Vehicle etc Large vehicles start.
All kinds of large current control system
Package Included: 1 x Heavy Duty Split Charge 200A ON/OFF Relay; 2 x Terminal; 2 x Footprint
Contact Data:
Contact Material: AgSnO12
Contact Form: Normal Open
Contact Ratings: No: 200A
Max switching Current: 200A
Max Switching Voltage: 75VDC
Max Switching Power: 2000W
Life Expectancy Electrical: 100, 000 Operations (at 30 Operations/min)
Life Expectancy Mechanical: 10, 000, 000 Operations
Coil Specification:
Nominal Voltage (VDC): 12V
Coil Resistance (
4.8W / 2.4W ): 30/60
Max Operate Voltage (VDC): 6.0 ~ 8.0
Mix Release (VDC): 1.2 ~ 3.6
Max Applicable Voltage (VDC): 15.6
Characteristics:
Temperature Range: -30°C ~+80°C
Shock Resistance:
Operations Extremes: 10g
Damage Limits: 100g
Humidity: 40%~85%
Insulation Resistance: 100m ohm Min at 500VDC
Dielectric Strength Between Open Contacts 500VAC (for one minute/sec)
Between Contact and coil: 750VAC (for one minute/sec)
Operate Time: 15ms
Release Time: 10ms
