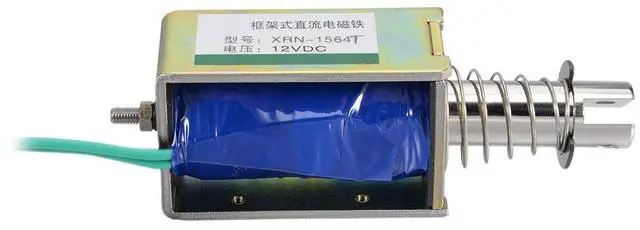

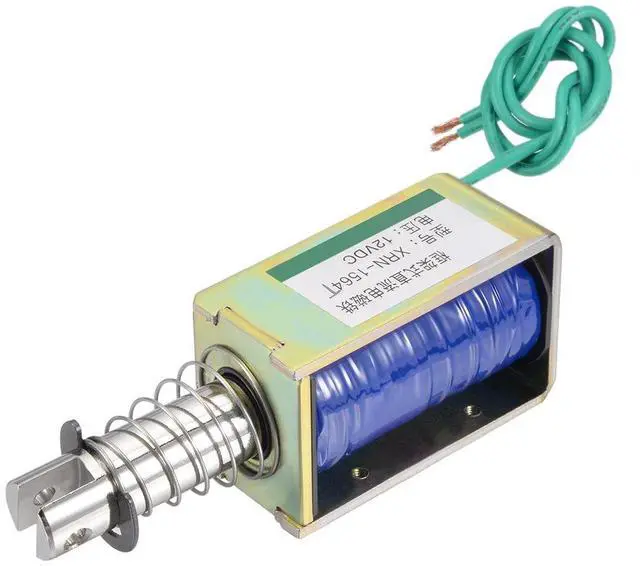

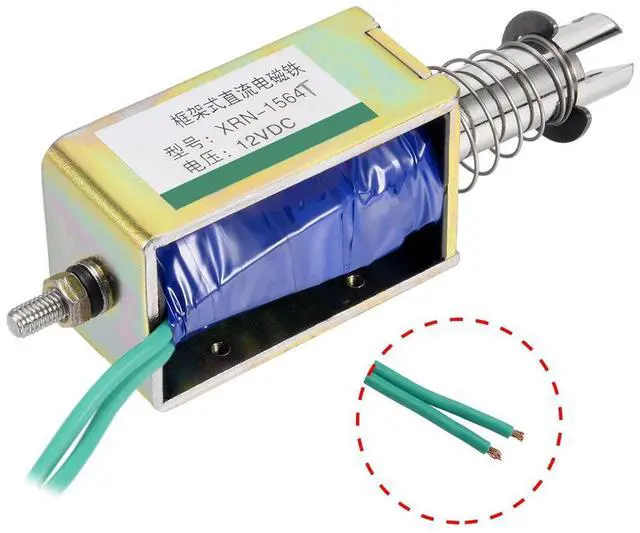

DC 12V 60N 10mm Stroke Push Pull Type Open Frame Solenoid Electromagnet XRN-1564T

Description:

1.Pull Type, linear motion, open frame, plunger spring return, DC solenoid electromagnet.

2.Support DC 12V voltage, high power, pull type, linear motion, is easy to install.

3.DC solenoid electromagnet mainly used in vending machines, transport equipment, office facility, household appliance, mechanical, etc.

Specification:

Material :Metal

Force: 60N ;

Travel: 10mm;

Rated Voltage: DC 12V;

Cable Length: 240mm/9.45";

Total Length: 11cm/4.33";

Mounting Hole Dia.: M3;

Plunger Bar Dia.: 15mm/0.59"

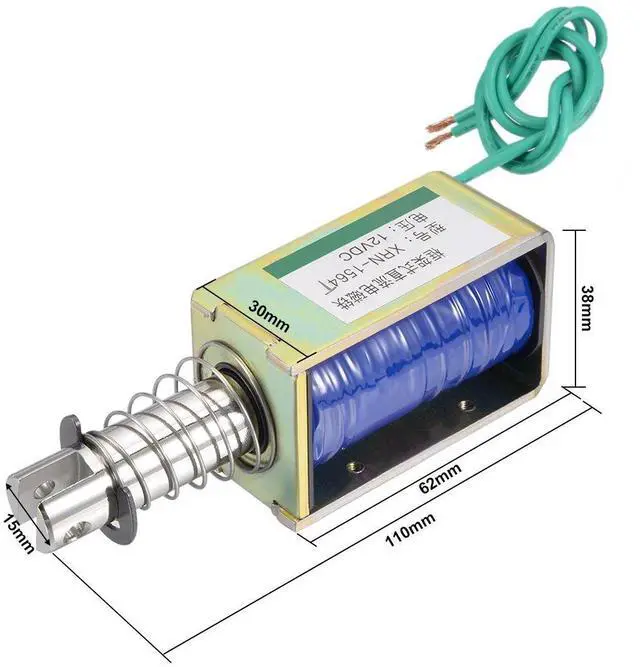

Size: 64 x 30 x 38mm/1.52" x 1.18" x 1.5"(L*W*H)

Package Content:

1 x DC Solenoid Electromagnet

Note:

Please pay attention:As an actuating element of an automation equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 2 seconds.If the operate time is too long,the electromagnet temperature will rise.Too high temperature can affect the life of the electromagnet.

Please take the electromagnet put down gently when you install it. The screw thread can make a corresponding change according to your demand. This product is small in size, please pay attention to in the process of using eelectricity, so as not to damaged the electromagnet.
