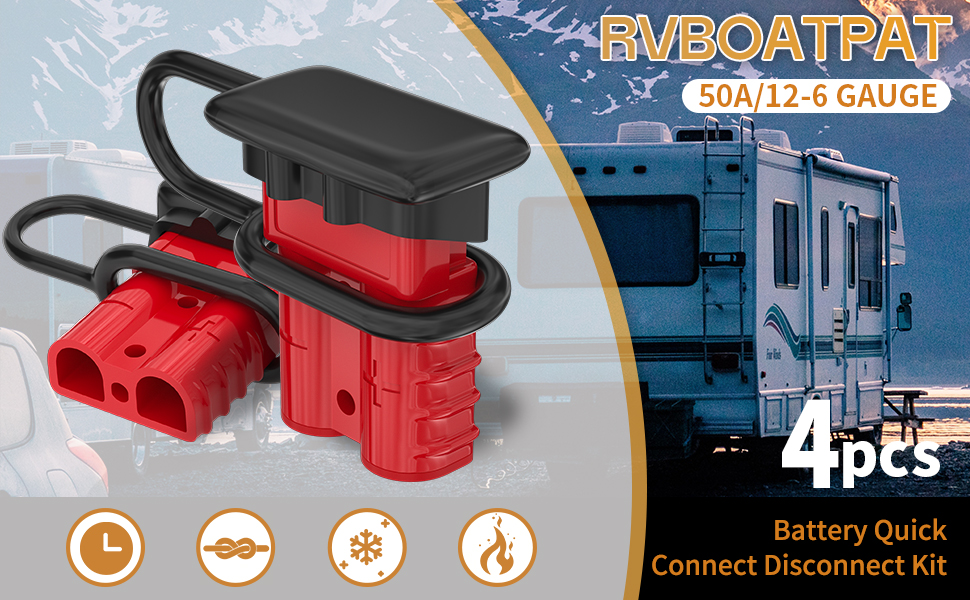

4PCS 50Amp Battery Quick Connect/Disconnect Connector, 6 to 12 Gauge 600V Battery Cable Connector, Wire Harness Plug Kit for Car Winch Trailer

Product Information: The battery quick connector plug kit is suitable for 6 gauge 8 gauge 10 gauge and 12 gauge AWG cable; Max voltage: 600V; Capacity: 50A.
What You Get: Purchasing this 50 Amp battery quick connect/disconnect you will receive 4 x housing , 4 x protect cover8 x terminals , 8 x sealed rubber4 x screws and 4 x nuts.
Product of Quality: The quick connect battery connector is made of solid PC flame retardant material with rubber dust plug. The boat battery plug in connector we adopt red copper silver plastic.

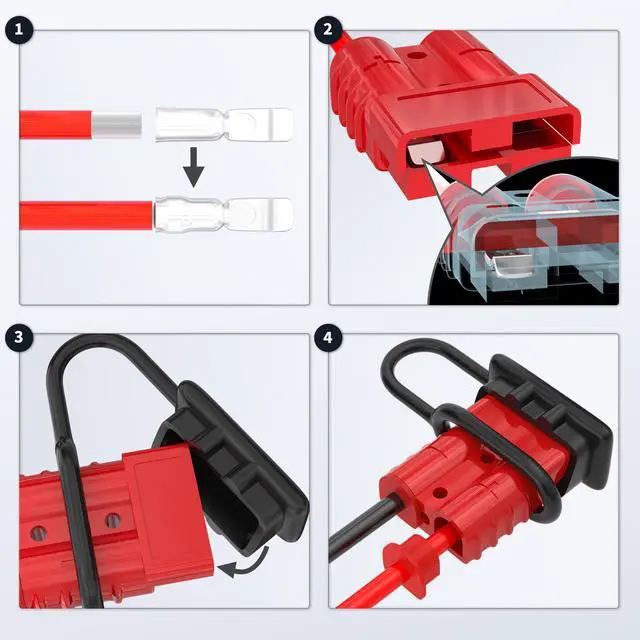

Simple Installation: Insert the wire into the terminal pin, and then crimp it successfully. Insert the terminal pin into the connector housing, lock it and cover the dust cover.
Wide Application: The quick connect wire connectors usually used in towing winch quick connect systems for trucks, ATV and RV, winches, elevators, cranes, boats and trailers.

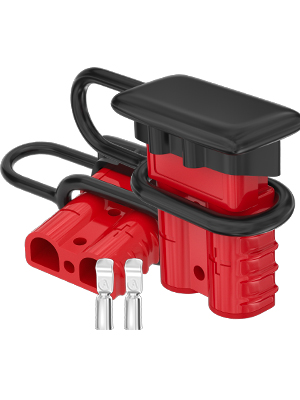

Quick Connect Battery Connector

RVBOATPAT is a professional factory. We are committed to producing various high-performance industrial products. All kinds of products are widely used in automobiles, ships, trucks, circuits, etc. to make electric energy safer, more convenient and more efficient.

Quick Connect Battery Connector

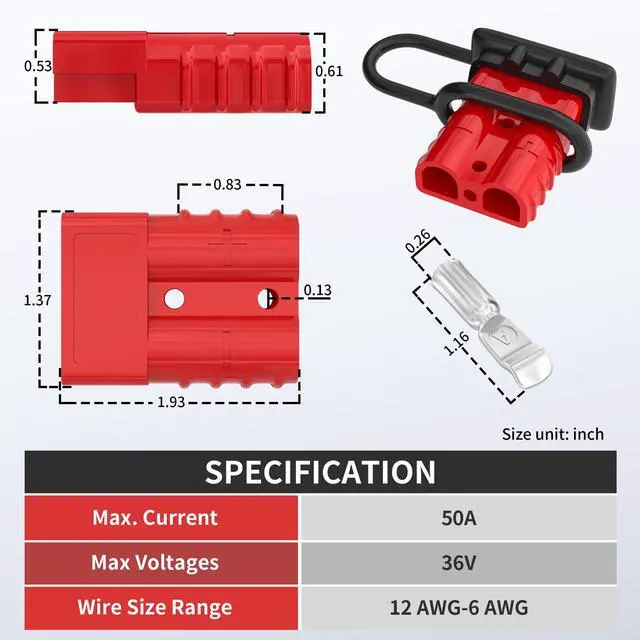

Specifications

Max. Current: 50A

Voltage Range: 12–36V

Wire Size Range: 6–12 AWG (0.16–0.18 in.)

Terminal Pin Width: 0.22 inch

Voltage Current: rated at 600 volts DC or AC

Contacts material: copper silver

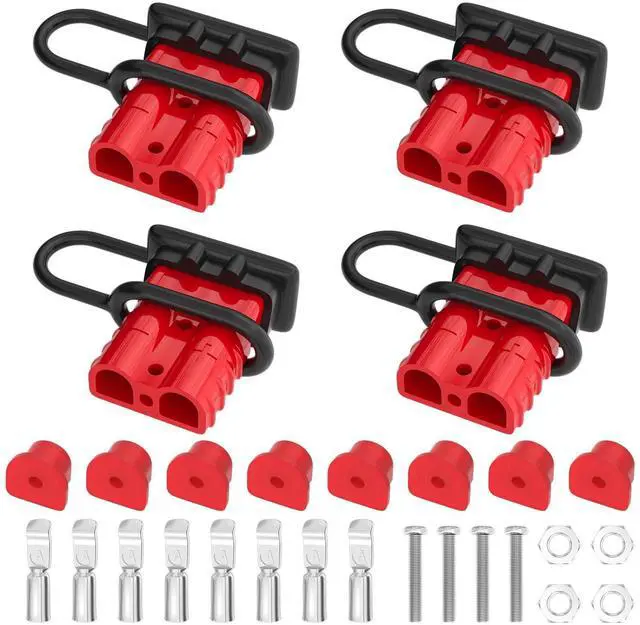

Package Includes:
4 x Housing
4 xProtect Cover
4 x Screws and 4 x Nuts
8 x Sealed Rubber
8 x Terminal

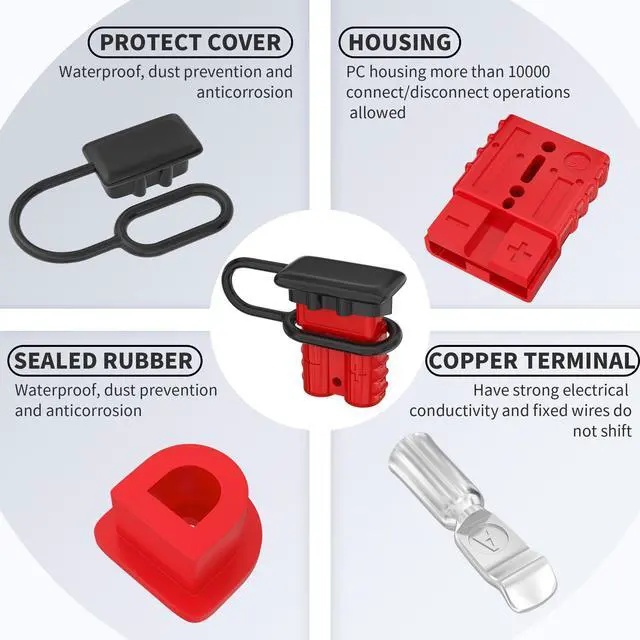

Housing

The sturdy housing allows the battery to quickly connect/disconnect over 10,000 times. Accurate markings on the housing aid in wiring.

Connect/Disconnect Connector

Terminals

Silver plated copper terminals ensure strong conductivity and stable current and voltage.

Connect/Disconnect Connectors

Protect cover

The protect cover can prevent water and dust and protect your harness plug from dust and debris.

Sealing rubber

Waterproof, dust-proof, anti-corrosion, and fixed wires do not shift

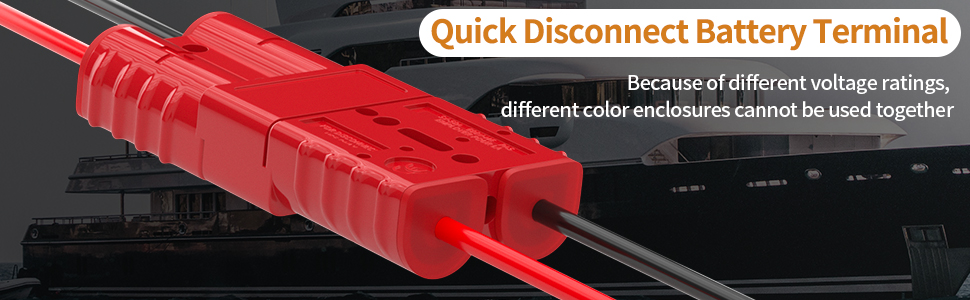

Battery Quick Disconnect
Battery Quick Disconnect
