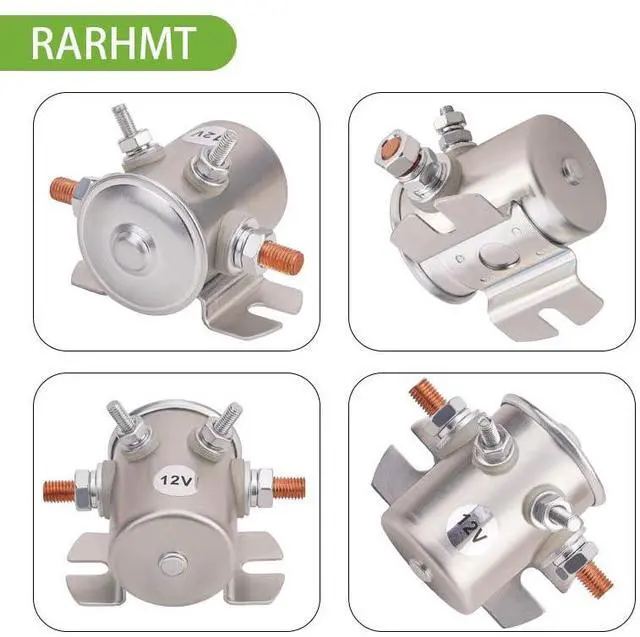

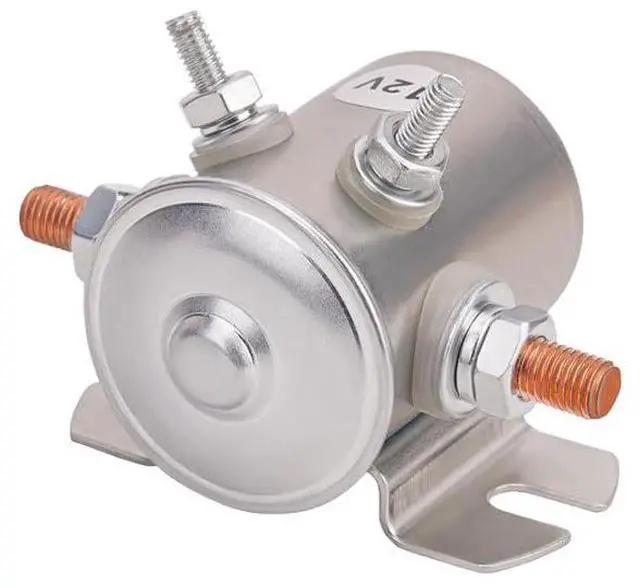

    12VDC Max 300A Continuous Duty Solenoid Relay 4-Terminal - Fit for EZGO Marathon 1979-1994 & Automotive Marine Boat Winch Electric Golf Cart Camper - Replaces 70-111224 3635820 1114208 1114223

    Be the first to review this product...
    • Important Specifications Solenoid type: 4 Terminal | Voltage: 12VDC | Continuous Working Current: Below 150A | Max Transient Flash Current: 300A | Resistance: 14 | Capacity: 10.2W | Contact Load Terminal: 5/16"-24 Stud standard & long | Contact form: Normally Open (NO) | Bracket Mounting Holes: Holes 5/16" x 19/32" and 2-13/64" on Centers.
    • Wide Application This 300A 12V Solenoid replaces part numbers: #70-111224, 3635820, 1114208, 1114218, 1114223, 1114534, 1114547. It is widely used for automotive applications such as marine boats, winches, military vehicles, hydraulic control units, golf carts, caravans, campers, RVs, motorhomes, factory machines, tractors,...
    • ApplicationWiedly Used for Marine, E-Z-GO Gas Marathon models with 2 or 4-Cycle Engines, Winch, Golf Carts. Attention: Normally Make 80A as Working Current, Need Break 5 sec on, 50 min off -/ If u need a long working one, pls note us.
    • High QualityA RARHMT Continuous Duty Solenoid Relay is manufactured with premium quality components, the coil roll is using 180 copper wire, Meet Environmental Plating Requirement, And Avoid Rusting, Shining.
    • Service100% satisfaction guarantee, If you have any issues with the part, simply contact customer service for troubleshooting help, parts, replacement, or refund. Our aim is to make you satisfy the parts and the service we provide for you.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    Duty Solenoid Relay

    Motor Winch

    Motor Winch

    Golf Cart

    Golf Cart

    Marine

    Marine

    VAN

    VAN

    Duty Solenoid Relay

    Replaces:

    • DELCO 1114208,1114218.
    • JOHNSON ELECTRIC 5117340.
    • MOTORCRAFT SWX88.
    • PRESTOLITE 15-88, SWX-88, 15-132, SAS4202, 15-108.
    • YALE 502265300,15-132, 15-133, 15-236, 15-311, 15-316, 15-88.
    • Trombetta 974-1215-011-09, 974-1215-011, 98226-9.
    • EZGO 16542G1.

    Max 300a continuous duty solenoid relay

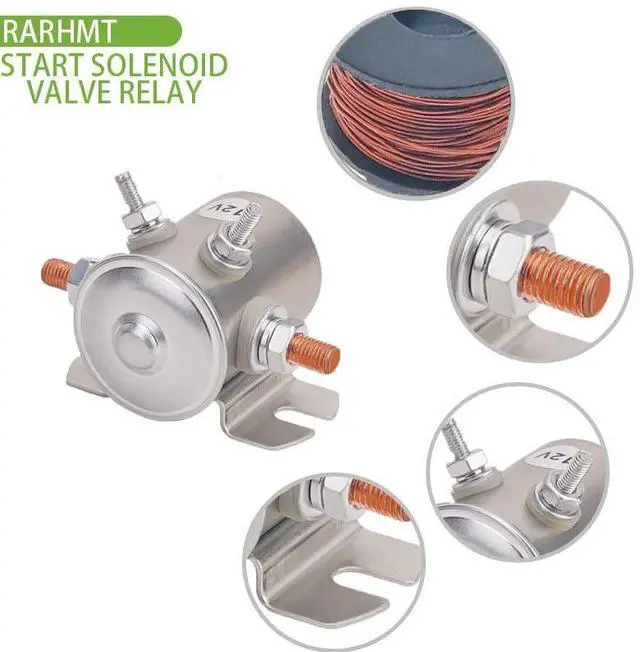

    180? copper coil wire rolls upgrade the conductivity of the product.Max Transient Current can reach 300Amp.

    Potted Coil Interiors protect YOUR solenoid against any harsh environment.

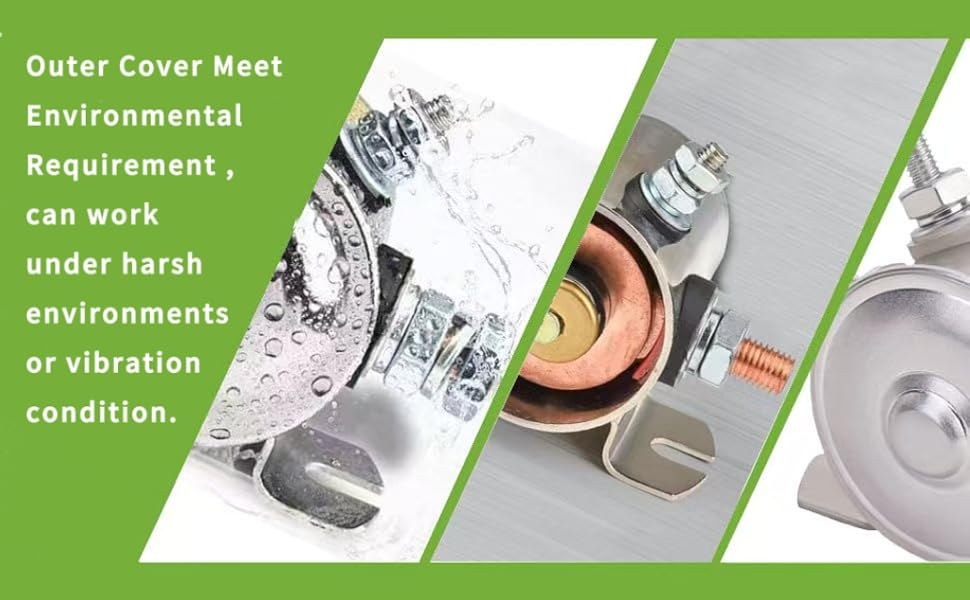

    Firmly Enclosed for overall protection from dust, dirt, sand and any other substance that could cause damage to YOUR Solenoid.

    Continuous work is 5minutes, must cool down. if long work no stopwill be HOT and caused Short-Circuit or Fire.

    70-111224

    Specifications

    Voltage 12VDC
    Resistance 14O
    Capacity 10.2W
    Max Transient Flash Current 300Amp
    Continuous Working Current Under 150Amp
    Replaces 70-111224 3635820 1114208 1114218 1114223 1114534 1114547
    Contact Studs 5/16 -24 Studs Standard & Long
    Bracket mounting Holes 5/16 x 19/32 2-13/64 on Center
    Duty Soleniod Relay
    Duty Solenoid Relay
    Motor Winch

    Motor Winch

    Golf Cart

    Golf Cart

    Marine

    Marine

    VAN

    VAN

    Duty Solenoid Relay

    Replaces:

    • DELCO 1114208,1114218.
    • JOHNSON ELECTRIC 5117340.
    • MOTORCRAFT SWX88.
    • PRESTOLITE 15-88, SWX-88, 15-132, SAS4202, 15-108.
    • YALE 502265300,15-132, 15-133, 15-236, 15-311, 15-316, 15-88.
    • Trombetta 974-1215-011-09, 974-1215-011, 98226-9.
    • EZGO 16542G1.

    Max 300a continuous duty solenoid relay

    180? copper coil wire rolls upgrade the conductivity of the product.Max Transient Current can reach 300Amp.

    Potted Coil Interiors protect YOUR solenoid against any harsh environment.

    Firmly Enclosed for overall protection from dust, dirt, sand and any other substance that could cause damage to YOUR Solenoid.

    Continuous work is 5minutes, must cool down. if long work no stopwill be HOT and caused Short-Circuit or Fire.

    70-111224

    Specifications

    Voltage 12VDC
    Resistance 14O
    Capacity 10.2W
    Max Transient Flash Current 300Amp
    Continuous Working Current Under 150Amp
    Replaces 70-111224 3635820 1114208 1114218 1114223 1114534 1114547
    Contact Studs 5/16 -24 Studs Standard & Long
    Bracket mounting Holes 5/16 x 19/32 2-13/64 on Center
    Duty Soleniod Relay
    12VDC Max 300A Continuous Duty Solenoid Relay 4-Terminal - Fit for EZGO Marathon 1979-1994 & Automotive Marine Boat Winch Electric Golf Cart Camper - Replaces 70-111224 3635820 1114208 1114223
