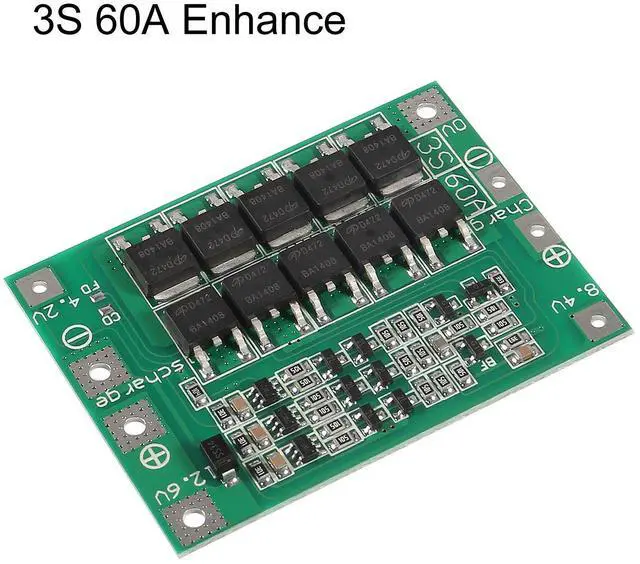

KEHIPI 3 PCS 3S 11.1V 12V 12.6V 60A 18650 Charger PCB BMS Protection Board with Enhance Li-ion Lithium Battery Charger Lipo Cell Module for Drill Motor

Suitable for: 1.Suitable for lithium batteries with nominal voltage of 3.7V and full voltage of 4.2V (including 18650, 26650, polymer lithium batteries, no size limit) 2.Suitable for electric drill with starting current below 120A and power below 260W.

Note:To successful starting the drill requires three 15C-20C power batteries, or six 10C-15C power batteries (ordinary 18650 battery can not start the drill!! Recommended power battery models: for SONY VTC4, VTC4A, VTC5A, VTC6).

0V and 12.6V cable, use copper wire of more than 3 square millimeters .

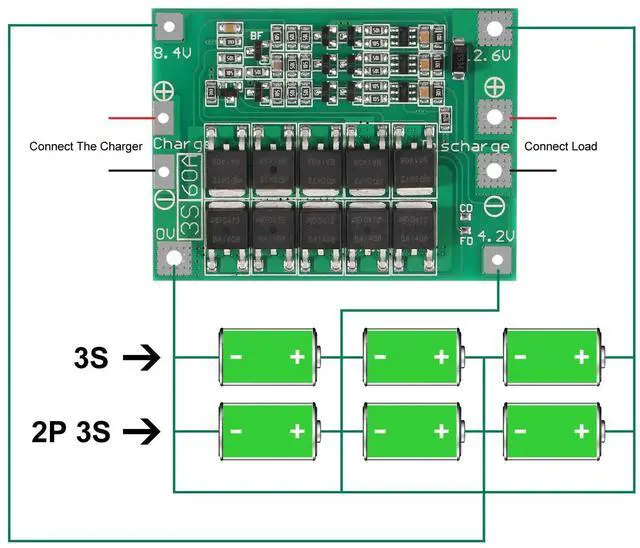

Strictly according to the diagram wiring: 0V/4.2V/8.4V/12.6V,Otherwise it will cause damage to the chip.

Do not mix the good battery and poor battery to use.

The internal resistance of 3 battery capacity are closer will be better.

Highlight:

Over-discharge protection,

overcurrent protection,

overcharge protection;

High charge and discharge current;

Compact size and lightweight.

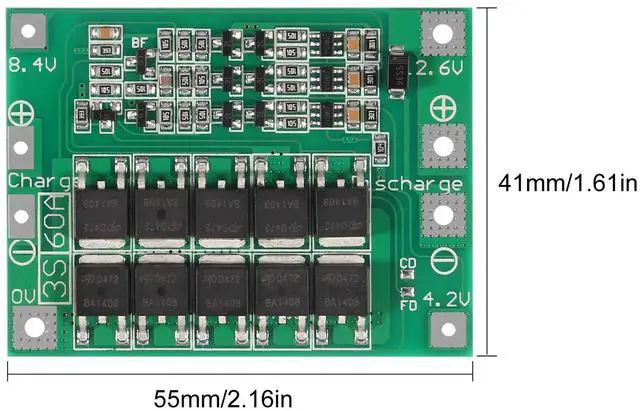

Specifications:

Charging voltage:12.6v ~ 13.6v

Over Charge voltage:4.25±0.05v

Over Discharge voltage: 2.5v±0.05v

Continuous discharge current (upper limit): 60A (if the cooling environment is not good, please reduce the load current );

Continuous charge current (upper limit): 10A

Internal resistance: Less than 100m

Working temperature:-40 ~ +50Celsius

Storage Temperature:-40 ~ +80Celsius

Package inlcuded:

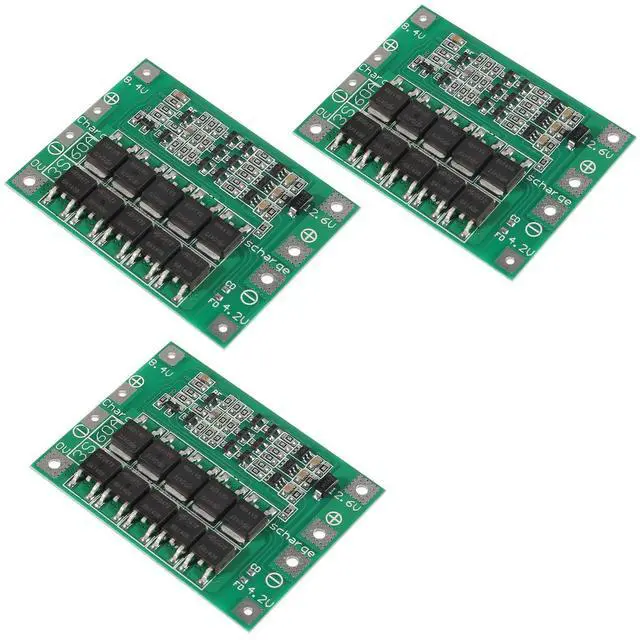

3 x 3S 60A lithium Battery Protection Board with Enhance
