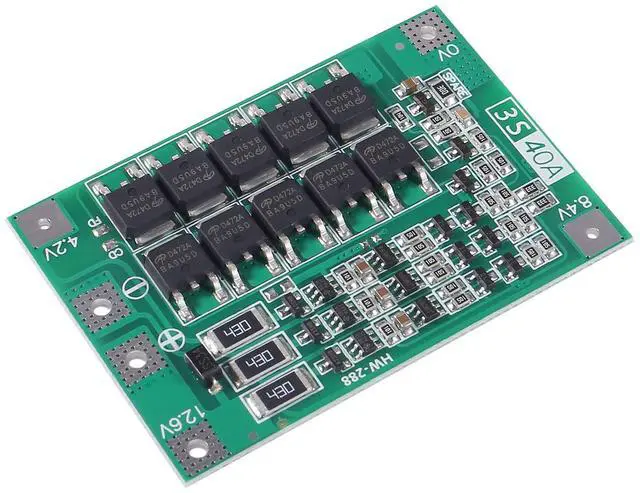

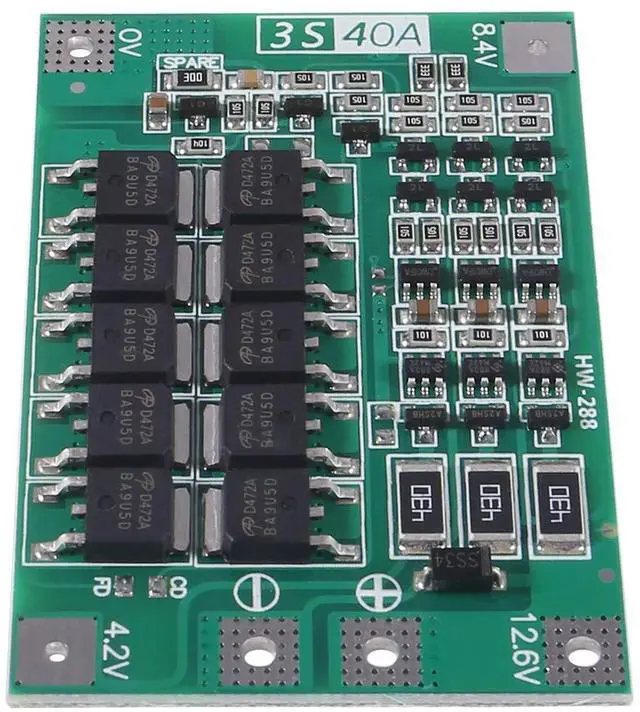

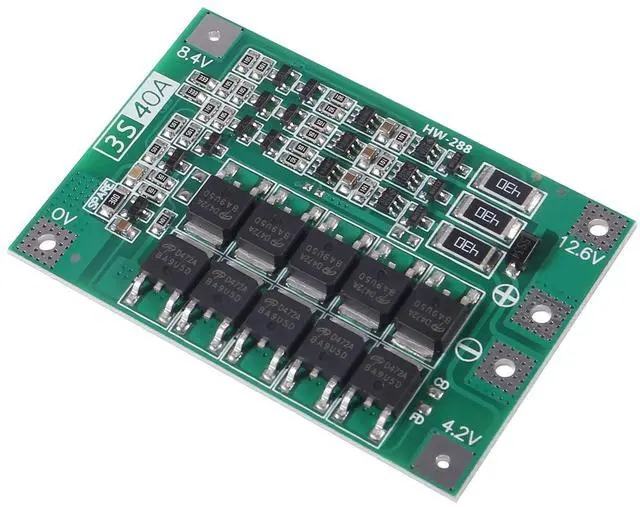

KEHIPI 3 PCS 3S 11.1V 12V 12.6V 40A 18650 Charger PCB BMS Protection Board Li-ion Lithium Battery Charger Lipo Cell Module for Drill Motor with Balance

Specifications:

Charging voltage:12.6v ~ 13.6v

Over Charge voltage:4.25±0.05v

Over Discharge voltage: 2.5v±0.05v

Continuous discharge current (upper limit): 40A (if the cooling environment is not good, please reduce the load current )

Continuous charge current (upper limit): 20A

Internal resistance: Less than 100m

Working temperature:-40 ~ +50Celsius

Storage Temperature:-40 ~ +80Celsius

Weight: 9.8g

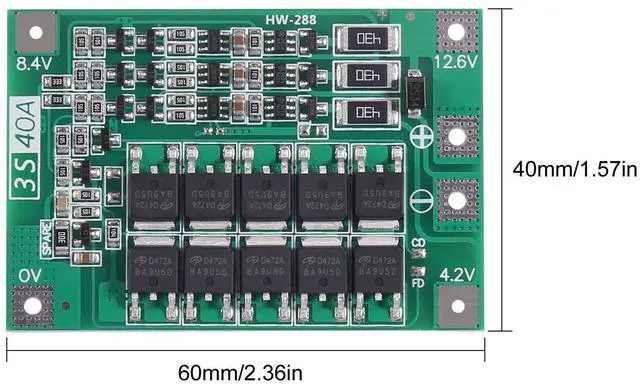

Size:41 mm×60 mm×3.4mm/ 1.61 ×2.36×0.13

Detailed electrical parameters are shown in the picture

Suitable for:

1.Suitable for lithium batteries with nominal voltage of 3.7V and full voltage of 4.2V (including 18650, 26650, polymer lithium batteries, no size limit)

2.Suitable for electric drill with starting current below 80A and power below 170W .

Attention:

To successful starting the drill requires three 15C-20C power batteries, or six 10C-15C power batteries (ordinary 18650 battery can not start the drill!! Recommended power battery models: VTC4, VTC4A, VTC5A, VTC6).

0V and 12.6V cable, use copper wire of more than 3 square millimeters (cannot use nickel plate!!!).

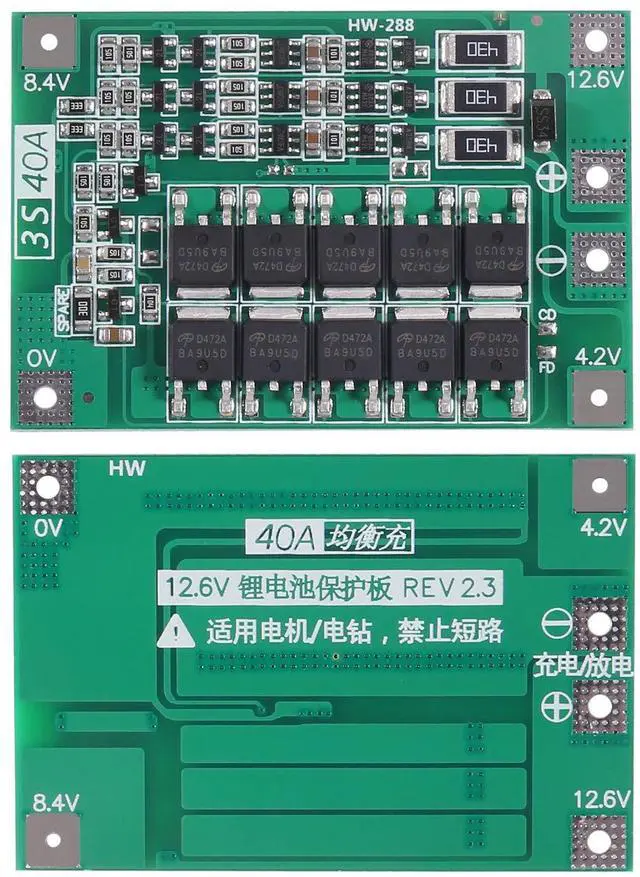

Strictly according to the diagram wiring: 0V/4.2V/8.4V/12.6V,Otherwise it will cause damage to the chip.

Do not mix the good battery and poor battery to use.

The internal resistance of 3 battery capacity are closer will be better.

Package inlcuded:

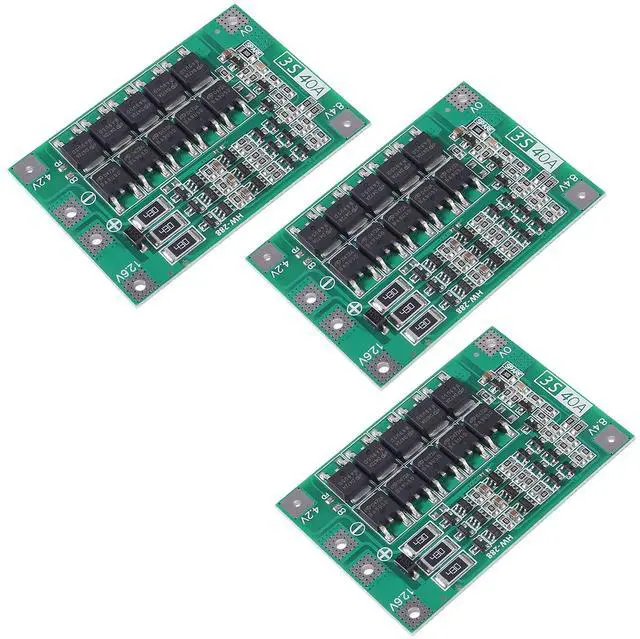

3x 3S 40A lithium Battery Protection Board
