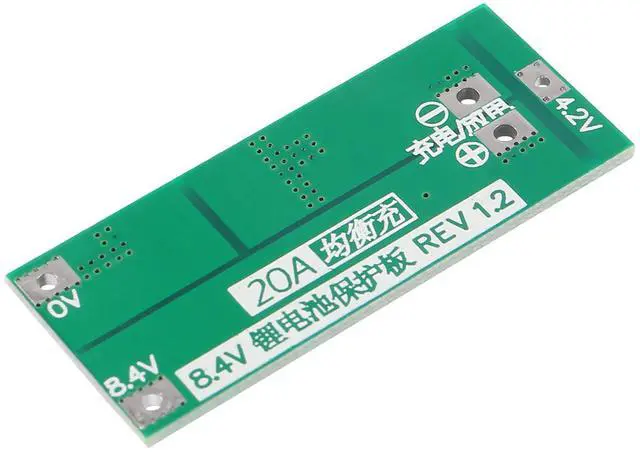

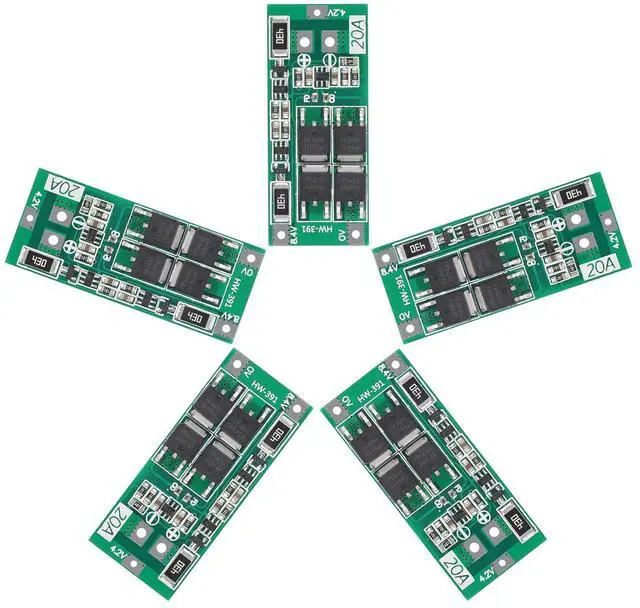

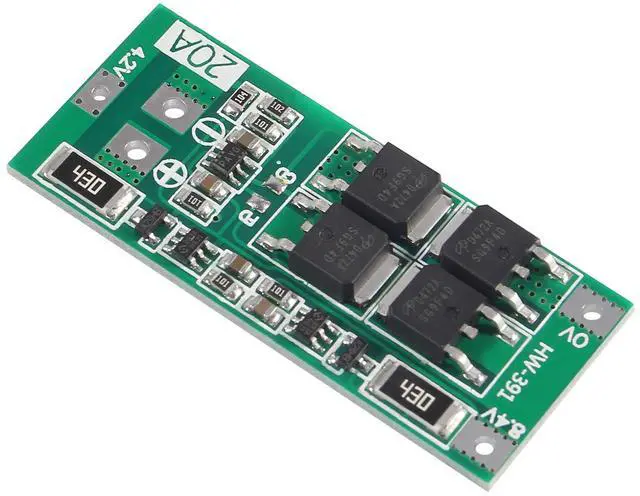

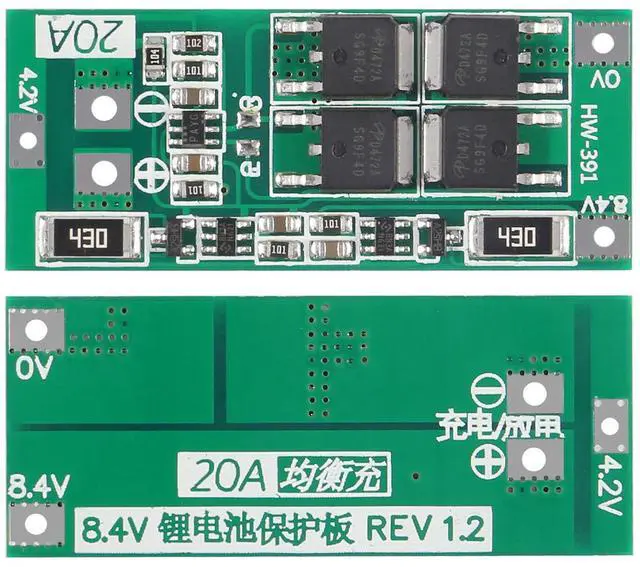

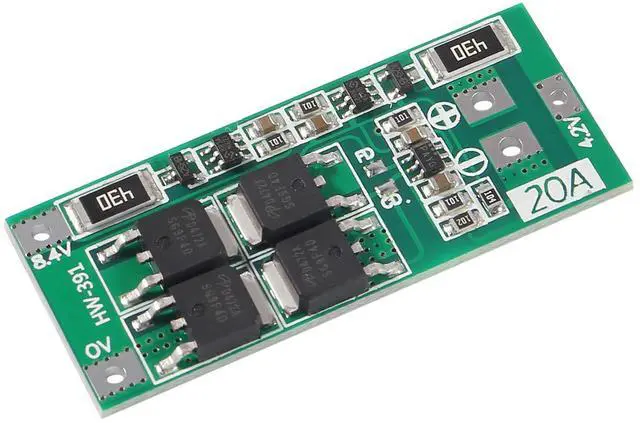

2S 20A Li-ion Lithium Battery Charge Protection Board 18650 Cell PCB BMS Protection Module 7.4V 8.4V Power Supply Balance Panel
Applicable scope:Suitable for lithium batteries with nominal voltage of 3.7V and full voltage of 4.2V (including 18650,26650,polymer lithium batteries,without limitation on the dimensions)
Continuous discharge current (upper limit):20A (If the cooling environment is not good,reduce the load current use), Continuous charge current (upper limit):10A
Standard Edition:Suitable for starting drills with currents up to 25A below 50W,or resistive loads below 168W.
Balanced version:Suitable for starting currents below 25A and below 50W power drills,or resistive loads below 168W,with balanced
Futures:
Color:green
Charging voltage:8.4V - 9.0V
Material:ABS and metal

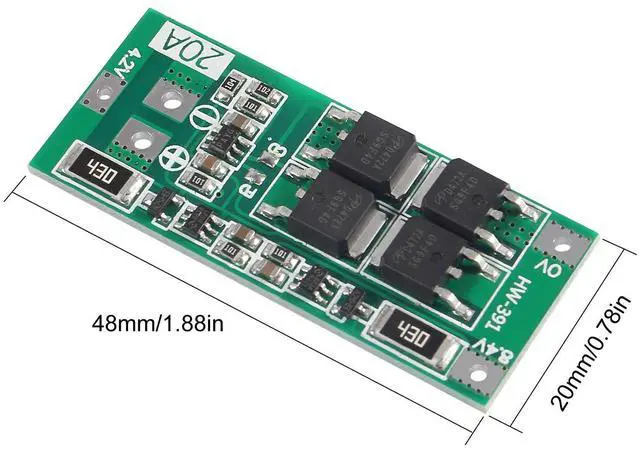

Product Size: 48*20*3.4mm (Balancing)
Package Contents:

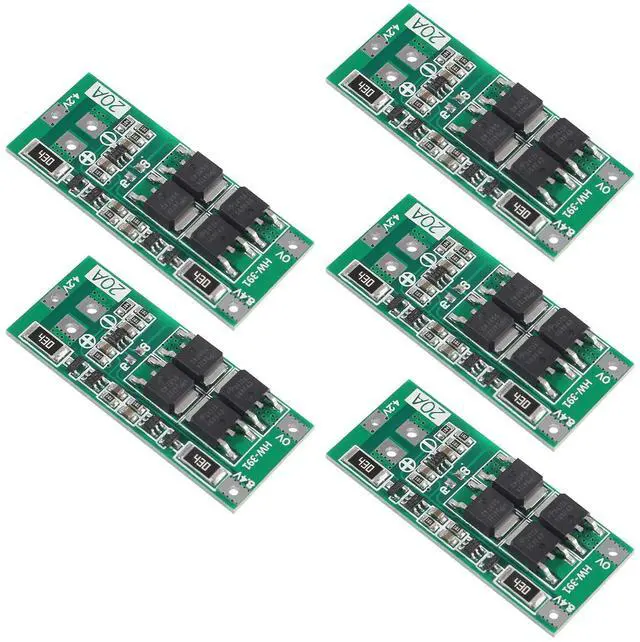

5pcs * 2S 20A Lithium Battery 18650 Charger PCB BMS Board
