KEHIPI 5Pack LM2596 LM2596S DC-DC Step Down Variable Volt Regulator Input 3.0-40V Output 1.5-35V Adjustable Buck Converter Electronic Voltage Stabilizer Power Supply Module with LED Display
- Application: widely used for DIY mobile power, monitor power supply, power buggies,communications equipment supply,etc.
- LM2596 DC-DC Buck Step-down Power Converter Module
- Input DC 4-40 V (input voltage must be 1.5 V higher than the output voltage, no boost).
- Output: DC 1.25-37 V voltage is continuously adjustable, maximum output current is 3 A.
- 4.0-40V to 1.25-37V LED Voltmeter
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

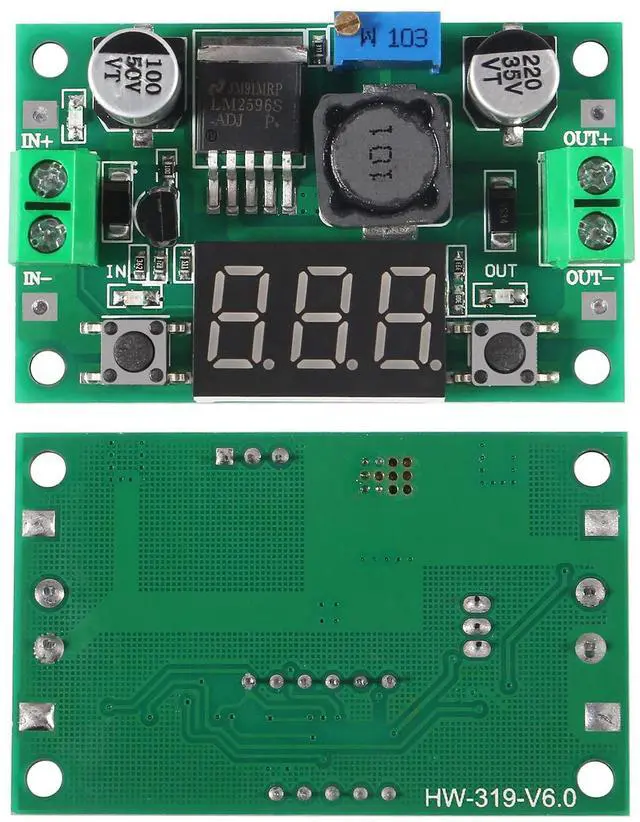

LM2596S LM2596 with LED Display Voltmeter Buck Converter DC-DC 4.0-40V to 1.25-37V 2A Voltage Adjustable Board Step Down Module Power Supply Module
Specifications:
Model: LM2596 / Digital Tube Voltmeter
Input voltage: DC 4V - 40V
Output Voltage: DC 1.5V - 35V (adjustable)
Output Current: 2A (max.)
Conversion Efficiency: 92% (max.)
Switching Frequency : 150KHz
Operating Temperature: -45 to +85
Size(L x W x H): 57*36*13mm
Weight: about 21g
Package List:

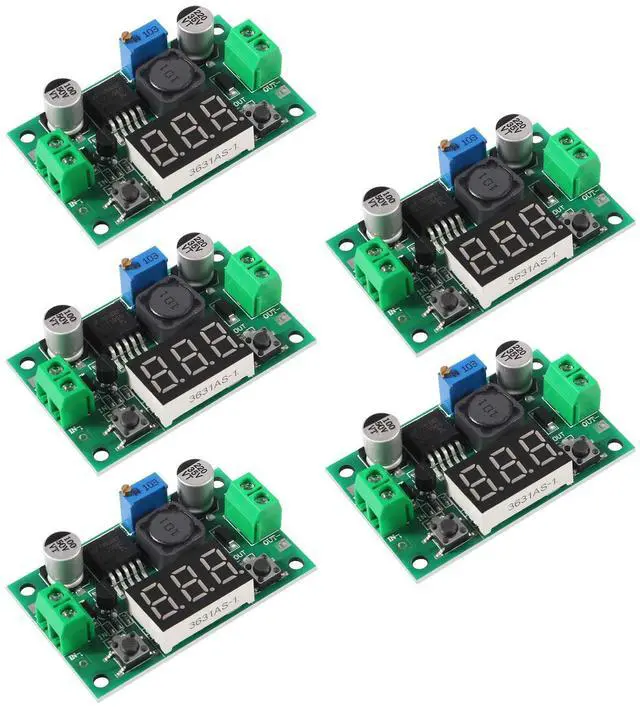

5x LM2596 DC-DC Buck Converter Module with LED Display
