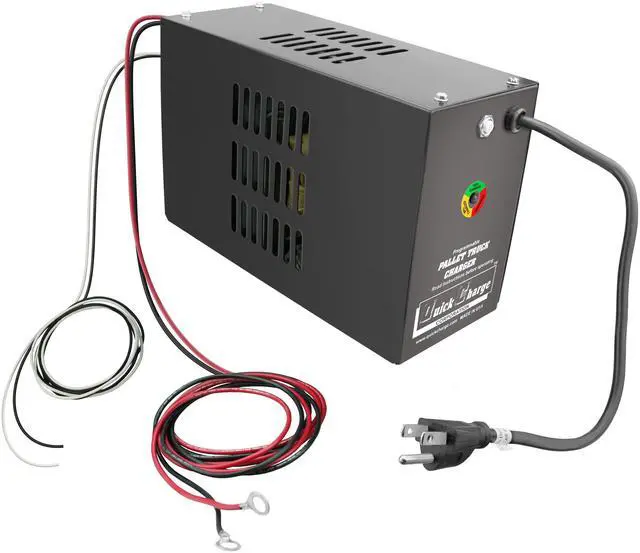

Onboard Fully Automatic Charger for Hyster Pallet Jacks: W45Z, HY4075269
- This drop-in ready PJ2415 24V Quick Charge On-Board pallet jack charger with O-Ring connectors is designed for a wide variety of Yale & Hyster lifts! Compatible with GEL, WET Cell, AGM, and Lithium-Ion batteries.

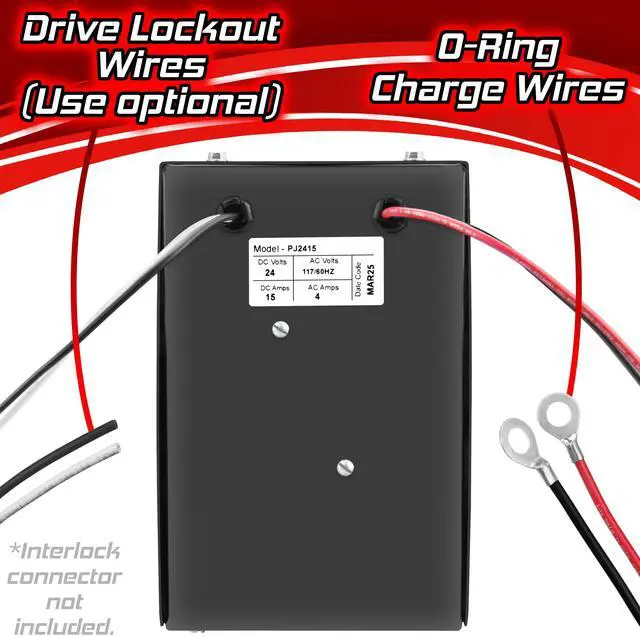

- Comes with a Drive Lockout option* (Black & White wires) to prevent damage to the charger from operating the machinery. *Interlock Connector not included, reuse your existing connector.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
PJ2415 Charger Specifications=
DC Volts= 24 V
DC Amps= 15 A
AC Volts= 117 / 60Hz
AC Amps= 4 A

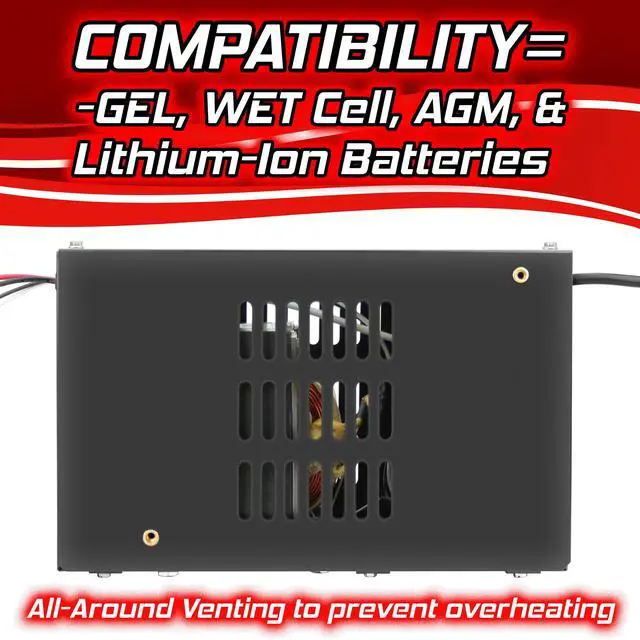

Compatible Chemistry= GEL, Wet Cell, AGM, Lithium-Ion
Connector Type= O-Ring Lugs
Drive-Lockout Option? = YES

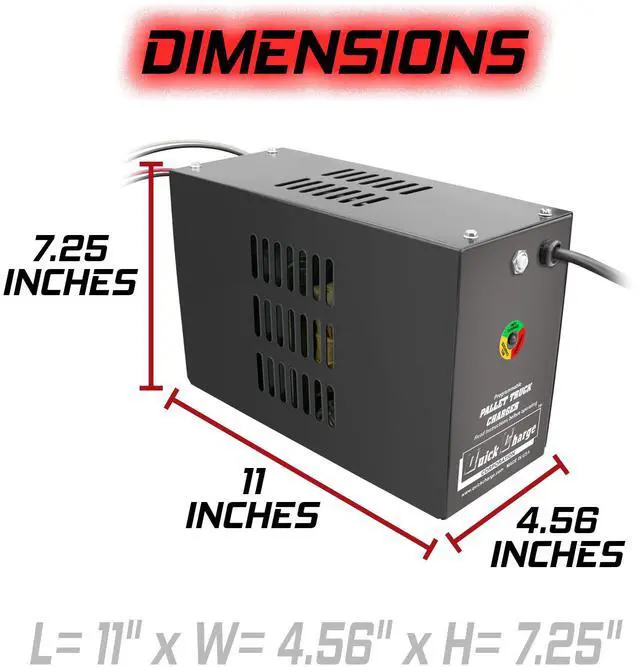

Dimensions= L= 11" x W= 4.56" x H= 7.25"
Weight= 19 Lbs ( 8.62 kg)
COMPATIBILITY=
Compatible with Hyster Pallet Jacks=
W40Z, W45Z, HY4075269, HY1607815, HY2054228, HY2102631, HY8512512, HY2048079, HY2073416, HY4603626, S/N B218N26949L, and Up.
Compatible with Yale Pallet Jacks=
MPB40-E*, 580055473, 582003887, 580034920, 524245865, 580087314, 580029671.
*When used with 9" MPB40-E can replace charger model: 1-24020-04-hf. Cannot replace this charger on the 7" truck battery; there is not enough space.
Can replace Yale charger 1-24012-04.
DC Volts= 24 V
DC Amps= 15 A
AC Volts= 117 / 60Hz
AC Amps= 4 A
Compatible Chemistry= GEL, Wet Cell, AGM, Lithium-Ion
Connector Type= O-Ring Lugs
Drive-Lockout Option? = YES
Dimensions= L= 11" x W= 4.56" x H= 7.25"
Weight= 19 Lbs ( 8.62 kg)
COMPATIBILITY=
Compatible with Hyster Pallet Jacks=
W40Z, W45Z, HY4075269, HY1607815, HY2054228, HY2102631, HY8512512, HY2048079, HY2073416, HY4603626, S/N B218N26949L, and Up.
Compatible with Yale Pallet Jacks=
MPB40-E*, 580055473, 582003887, 580034920, 524245865, 580087314, 580029671.
*When used with 9" MPB40-E can replace charger model: 1-24020-04-hf. Cannot replace this charger on the 7" truck battery; there is not enough space.
Can replace Yale charger 1-24012-04.
