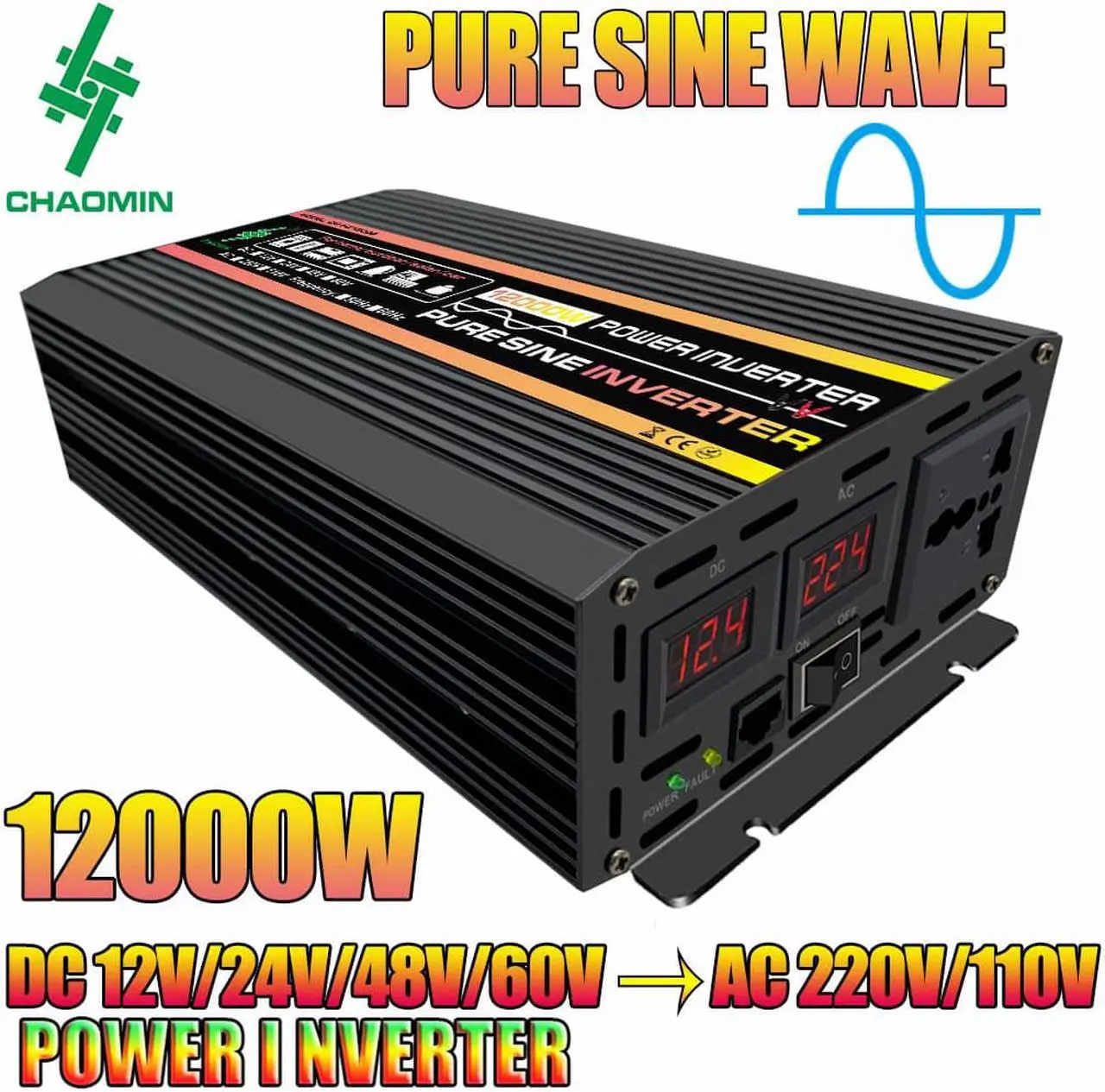

12000 watts power inverter pure sine wave dc 12v to 110v ac car inverter

What's in the box:
1 x Power Inverter
2 x Battery Clip
1 x User Manual

Specifications

:
Model: HZ12000
Name: Pure sine wave power inverter
Input voltage: DC 12V/24V
Output voltage: AC 110V
Output frequency: 60Hz
Peaks Power: 12000W
Rated power: 2000W
Weight: 2.9 kg
Maximum Active Surge Rating (less than 1 second): 12000W
Maximum AC Current per socket: 8.33A mpere
Output Waveform: True/pure sine wave ( <3% THD)
Efficiency: 90%
No Load Current Draw (DC side) <0.6 A

Features:
- 12V is generally for cars, 24V for trucks, 48V and 60V is generally for electric vehicles.
- Available Range Of Rated Voltage Of Electrical Appliances: 210~230V, 110~130V

- Safe Range Of Input Voltage:
12V: 9.8 ~15V
24V: 20~28V
48V: 44~53V
60V: 58~68V

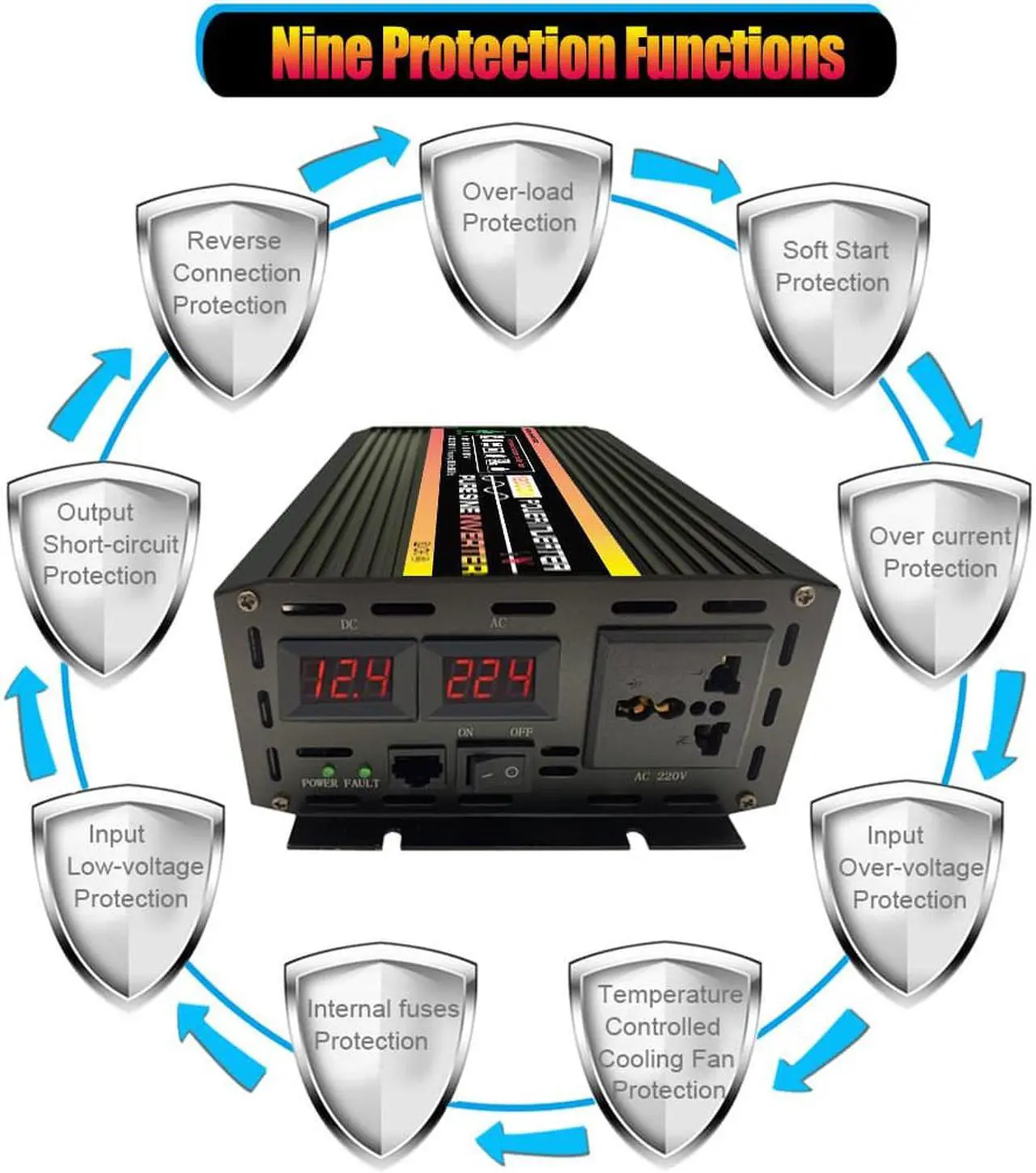

- 8 Safety Protection Function:
Reverse polarity protection
Low input voltageprotection
High input voltage protection
Over-current protection
Short circuit protection
Over temperature protection
Overload protection
Internal fuses

Battery Usage Time Cacalation:
1)The working time of inverter, it is depend on the battery power and load power.
2)Formula: Working time (hours) = Battery Capacity X Battery Voltage X 0.8X 0.9 /Load Power
3) For example, the battery of 12V 60A is supplied to a 110V 100W bulb.
The working time is = 12 (V) X 60 (AH) X 0.8 X 0.9 / 100 (W) = 5.18 (hours)

Note: Discharge coefficient of 0.8 -battery, Conversion efficiency of 0.9 -inverter

What Size Power Inverter Do I Need?
The size you choose depends on the watts (or amps) of what you want to run (find the power consumption by referring to the specification plate on the appliance or tool). We recommend you buy a larger model than you think you'll need (at least 10% to 20% more than your largest load).
