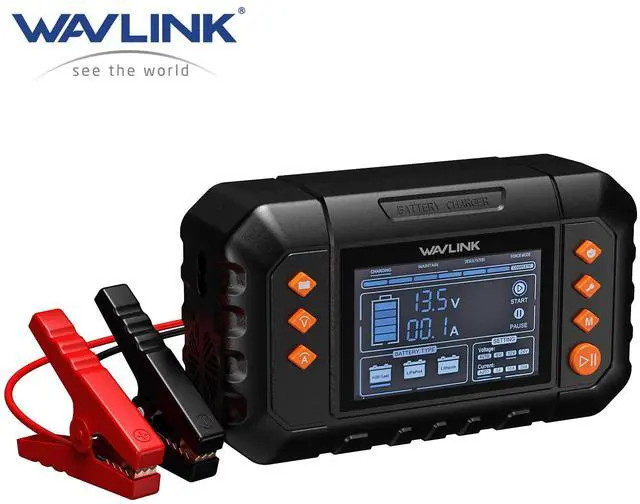

WAVLINK Intelligent 280W
Multi-Stage Battery Charger: Power Up & Protect Your Batteries Efficiently
Elevate your charging game with our max. 20A smart battery charger, offering pulse repair technology to restore lost battery performance and ensure powerful engine starts while prolonging battery life. With versatile compatibility for various lead-acid, lithium, and LiFePO4 batteries, this charger boasts multiple protections such as reverse polarity, overcharging, short circuit prevention, and more for a safe charging experience. Featuring fast and trickle charging modes, this charger is perfect for cars, motorcycles, boats, RVs, and more, ensuring your batteries stay charged and ready for action. Get the ultimate in charging efficiency and safety with our advanced battery charger - the ideal companion for all your charging needs.
Compatibility:
1)Capable of charging three types of batteries: Lead-acid, Lithium, and LiFePO4 batteries. (*Before charging, always confirm the type of battery you are using and verify its voltage for optimal performance. )
2)Charging and maintaining cars, automobiles, scooters, UTVs, motorcycles, mopeds, lawn mowers, tractors, trucks, RVs, campers, boats, snowmobiles, golf carts, and more.
Key Points:
- Efficient Pulse Repair: Automatically detects battery issues and restores performance.
- Overall Charging Protections: Ensures safety with multiple protective features.
- Intelligent Multi-Stage Charging: Offers various charging stages for optimal battery maintenance.
- Fast & Trickle Charging: Provides efficient charging for a variety of devices.
Multiple Modes Operation
(1) Standby Mode
When the PAUSE indicator lights up, the charger enters the Standby mode.
In this mode, the charger does not charge or provide any power to the battery and energy save is activated, drawing microscopic power from the electrical outlet.
(2) Professional Mode
Connect the power supply while long pressing the battery type button, tap the battery type button again until the cell number indicator lights up to enter the professional mode.
Supports LiFePO4, Lithium batteries.
(3) Charging Mode
Suitable for most battery charging.
Supports Lead-acid, LiFePO4, Lithium batteries.
(4) Maintain Mode
Charging a severely depleted battery.
Supports Lead-acid batteries.
(5) Desulfation Mode
Restore the performance of aging batteries.
Supports Lead-acid batteries.
(6) Supply Mode
Forces charging when the product does not detect a connected battery.
Supports Lead-acid batteries.
Failure Codes

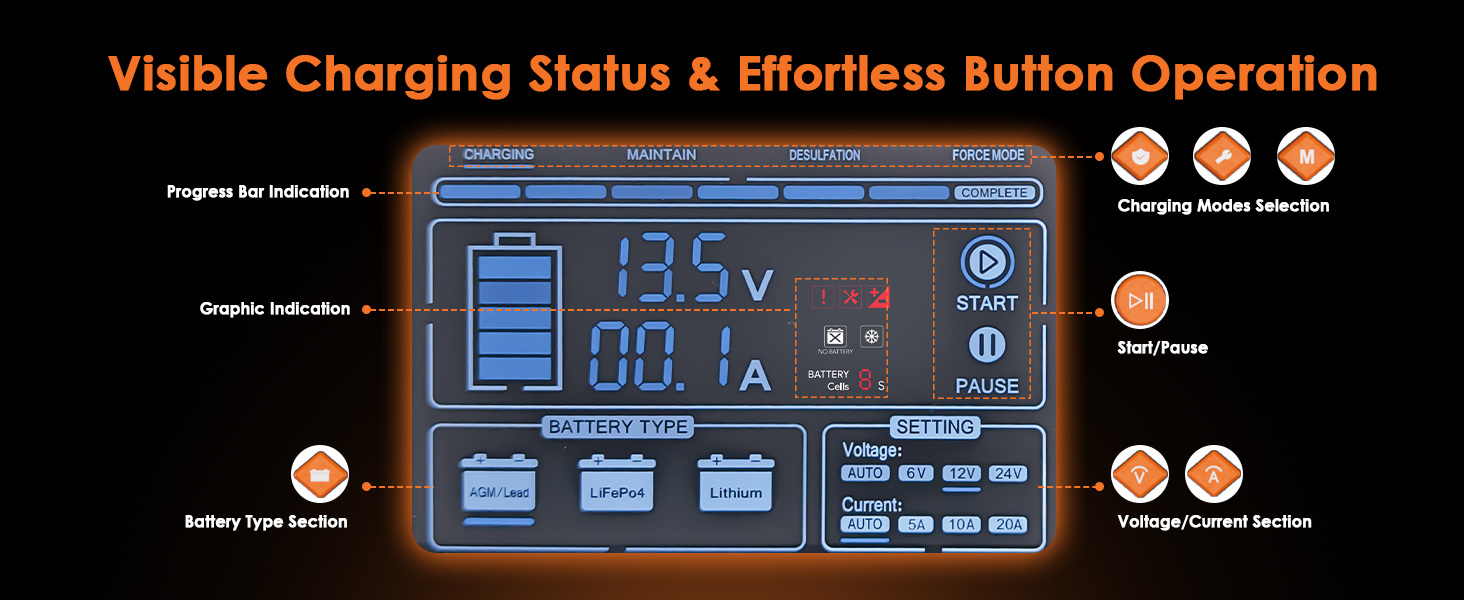

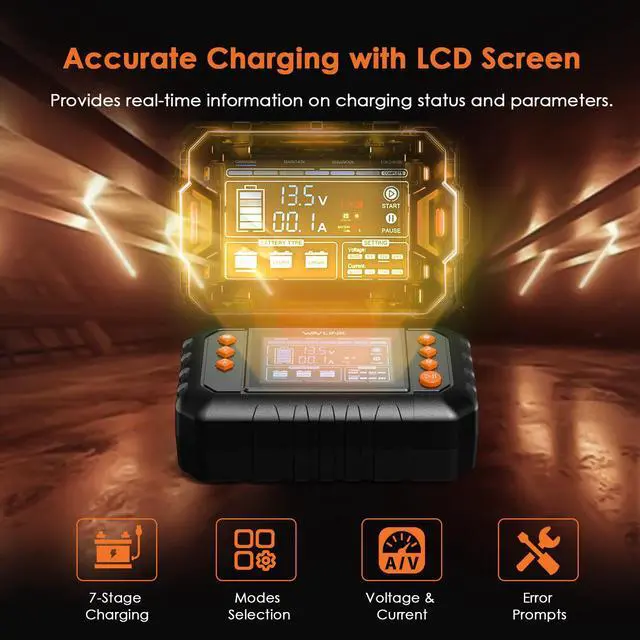

When the machine cannot be charged during use, the product screen will show error codes. Please find the description of them.
01: The battery's output electrode is reversed.
02: The charger output is short-circuited.
03: The internal temperature of the product is too high.
04: The output charging mode is selected incorrectly.
41: The output voltage is too high.
42: The output current is too high.
Specification:
- Input Voltage AC: 100-240V AC, 50/60Hz Max 350W
- Output Power: 280W Max
- Charging Voltage: Various
- Charging Current: 5A (6V), 10A (6V), 5A (12V), 10A (12V), 20A (12V), 5A (24V), 10A (24V), Auto(6V, 12V, 24V)
- Low-Voltage Detection: 1V (6V), 8V (12V), 16V (24V)
- Back Current Drain: <0.5mA
- Ambient Temperature: -20 to +40
- Type of Batteries: 6V, 12V, 24V
- Battery Capacity: Up to 300Ah, Maintains All Battery Sizes

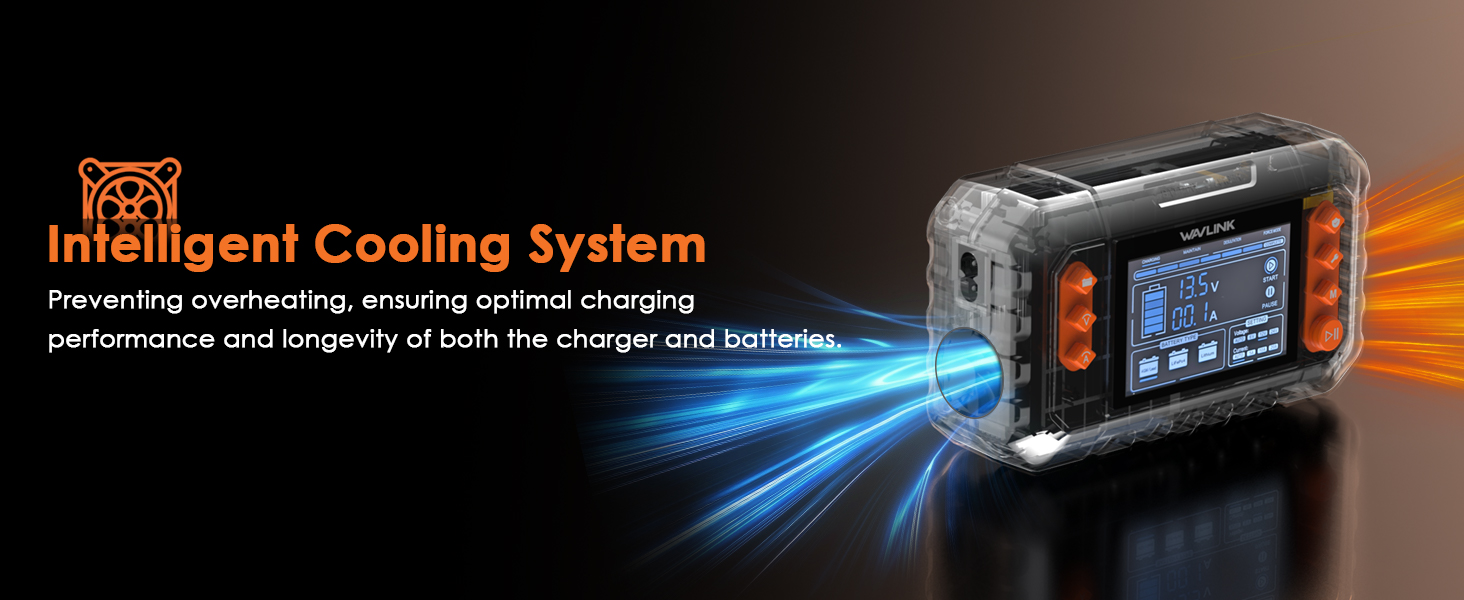

- Cooling: Fan Convection
- Dimensions (L x Wx H): 6.50 x 3.78 x 2.17 in/ 16.5 x 9.6 x 5.5 cm
- Weight: 2.31 lb/ 1.05 kg
- Cable Length: Power plug end: 2m/ 6.6 ft
Alligator end: 1.1 m/ 3.6 ft
- Battery Chemistries: Wet, Gel, MF, CA, EFB, AGM, Calcium, Lithium, LiFePO4
Features
- Efficient Pulse Repair: Detects battery sulphation and acid stratification automatically, and uses the latest pulse repair function to restore lost battery performance. Trickle float charging maintains your battery during winter. More powerful engine starts and prolongs batteries' service life. (NOTE: a completely failed battery can not be activated or charged. )
- Overall Charging Protections: Intelligent control, reverse polarity, cooling system, fireproof, sparkproof, overcurrent protection, overvoltage protection, overcharging protection, short circuit protection, and backflow prevention.

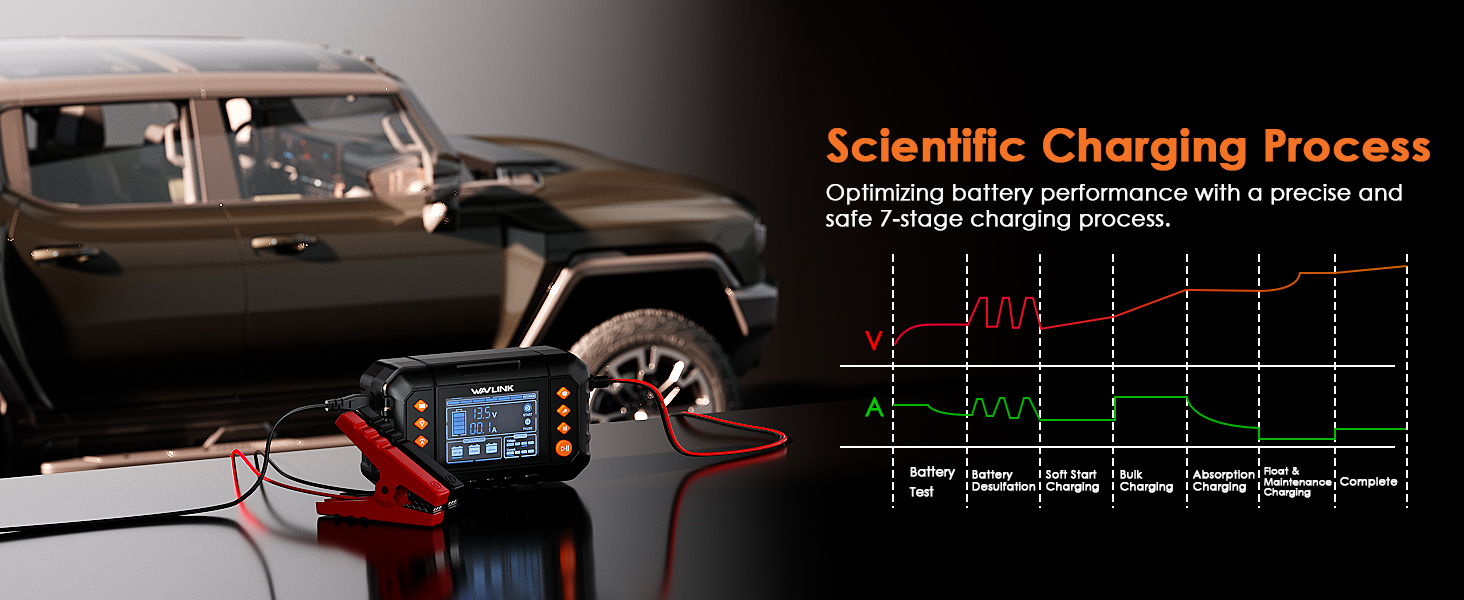

- Intelligent Multi-stage Charging: Battery desulfation, buffer start, bulk charging, absorption, battery analysis, battery recondition, float charging and intelligent monitoring.
- Designed for charging all types of 6V&12V&24V lead-acid batteries, lithium batteries and LiFePO4 batteries.
In the Box
- 1 x 280W Intelligent Battery Charger
- 1 x Battery Charging Cable
- 1 x Plug the Power Cord at the End of the Figure-Eight Tail
- 2 x Copper Wire Terminals
- 1 x Quick Start Guide
Warm Tips:
- A completely failed battery can not be activated or charged.
- Professional mode does not apply to auto-memory.
- Before charging, ensure that the type of rechargeable battery matches the type set on the charger.

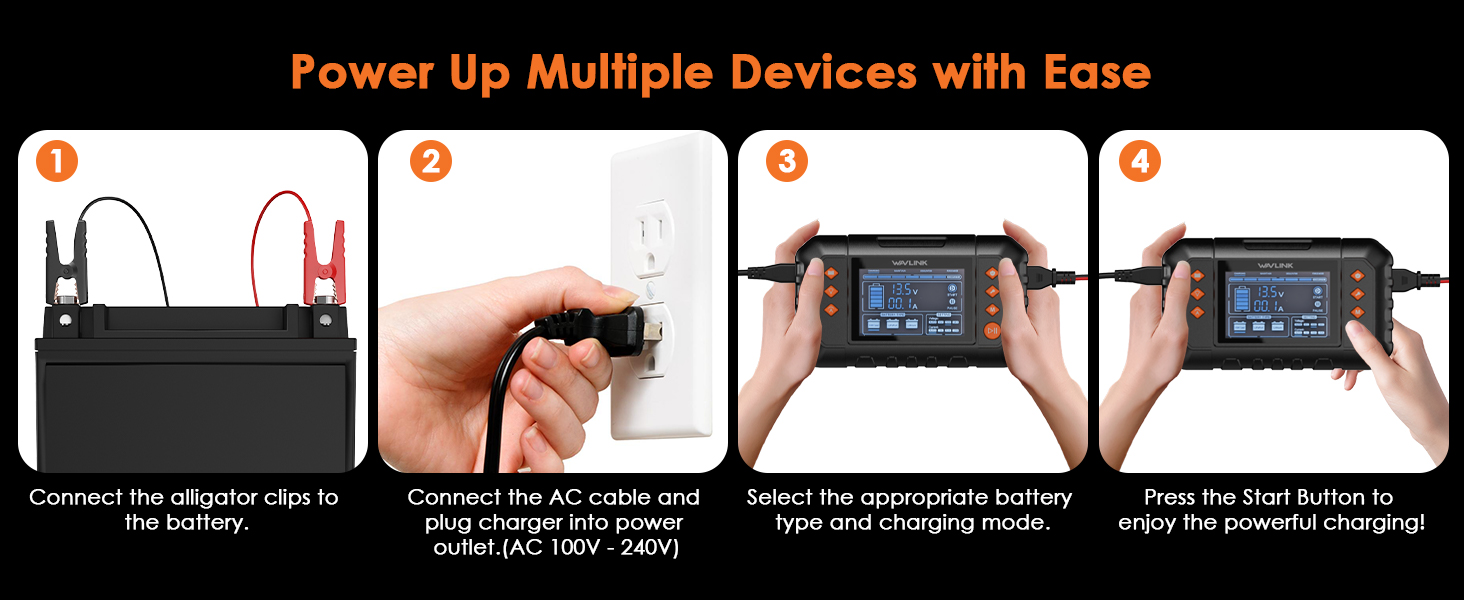

- Before charging, please connect the alligator clips to the battery first, and then plug in the power cord.
- After charging is complete, please unplug the power cord first, and then remove the alligator clips.
- When using Force mode, the settings will be saved. If you don't reset to the default settings before using it again, it may damage your other batteries.
