WAVLINK Golf Cart Smart Battery Charger

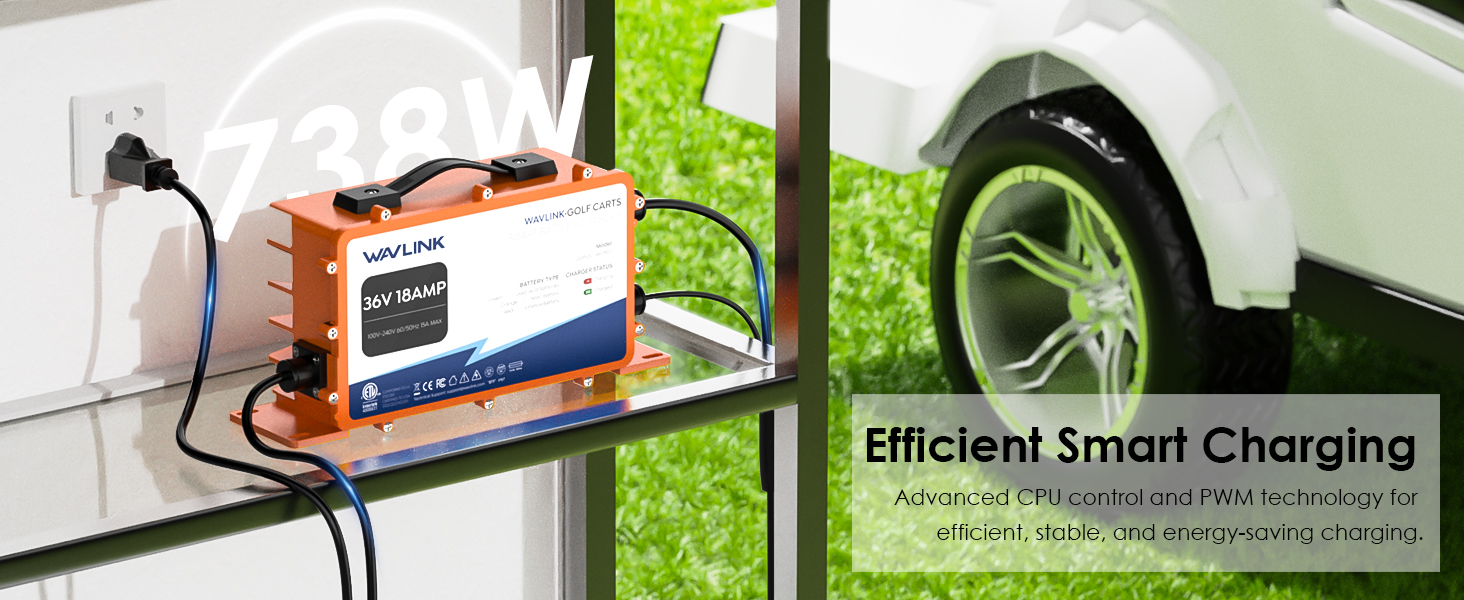

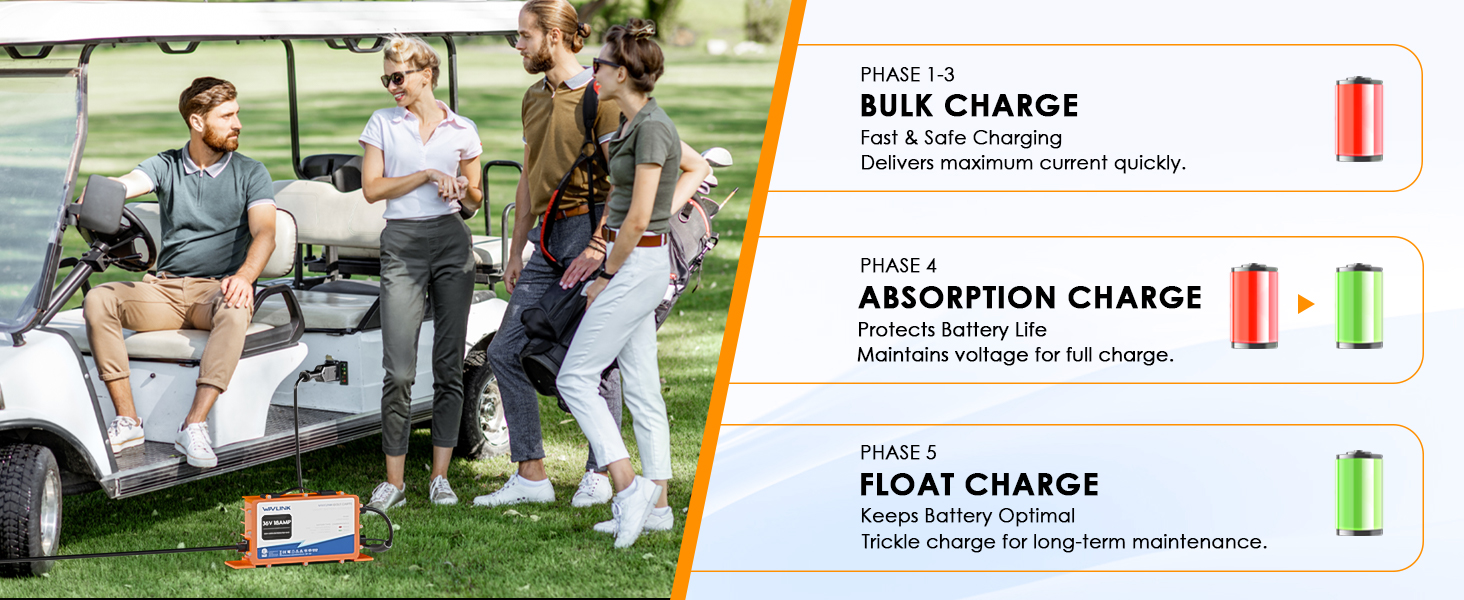

The GS950C series charger offers high efficiency, stability, and energy-saving features through its CPU control and PWM technology. With a multi-stage charging mode, it automatically adjusts the charging current and voltage to ensure thorough battery charging without overcharging. This intelligent system protects your battery life effectively.
Compatibility:
1)Capable of charging three types of batteries: lead-acid, lithium iron phosphate, and ternary lithium batteries.(*Before charging, always confirm the type of battery you are using and verify its voltage for optimal performance.)

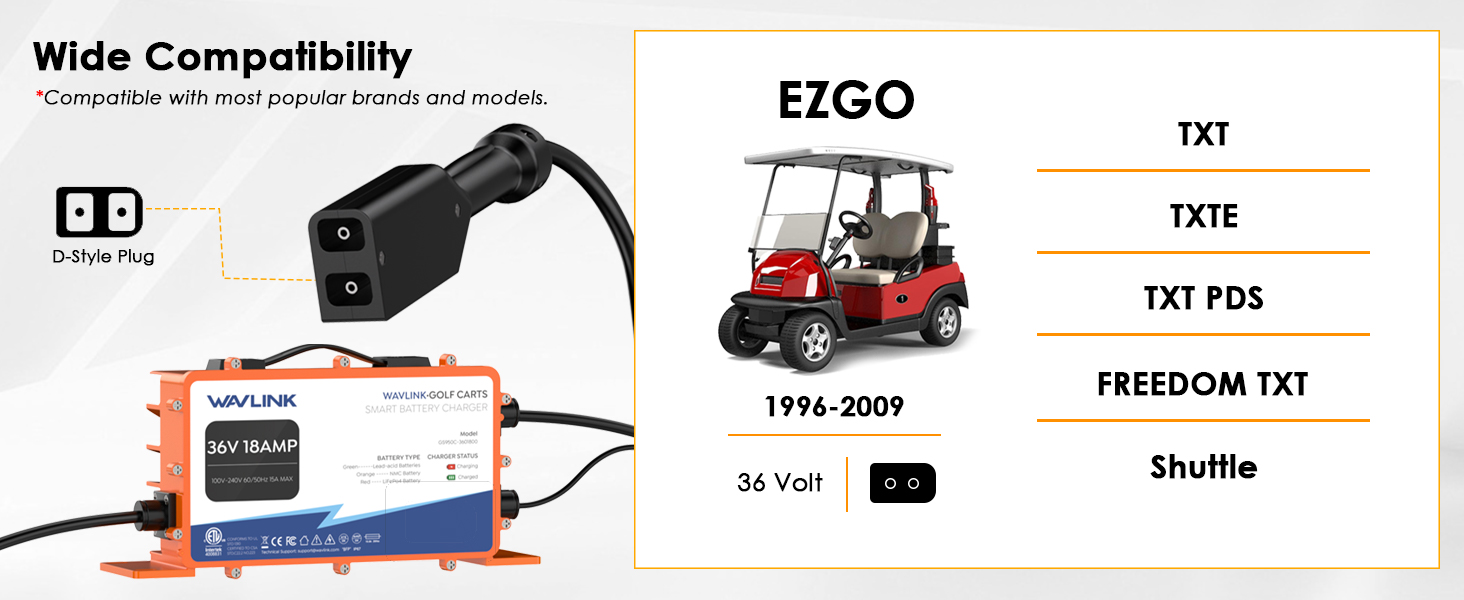

2)D-Style Plug Compatibility: EZGO TXT, TXTE, TXT PDS, Freedom TXT, Shuttle (1996 - 2009; 36 Volt).
Key Points:

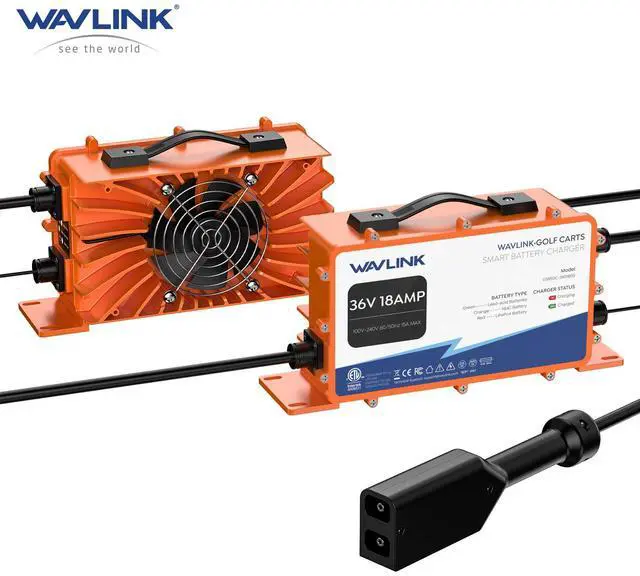

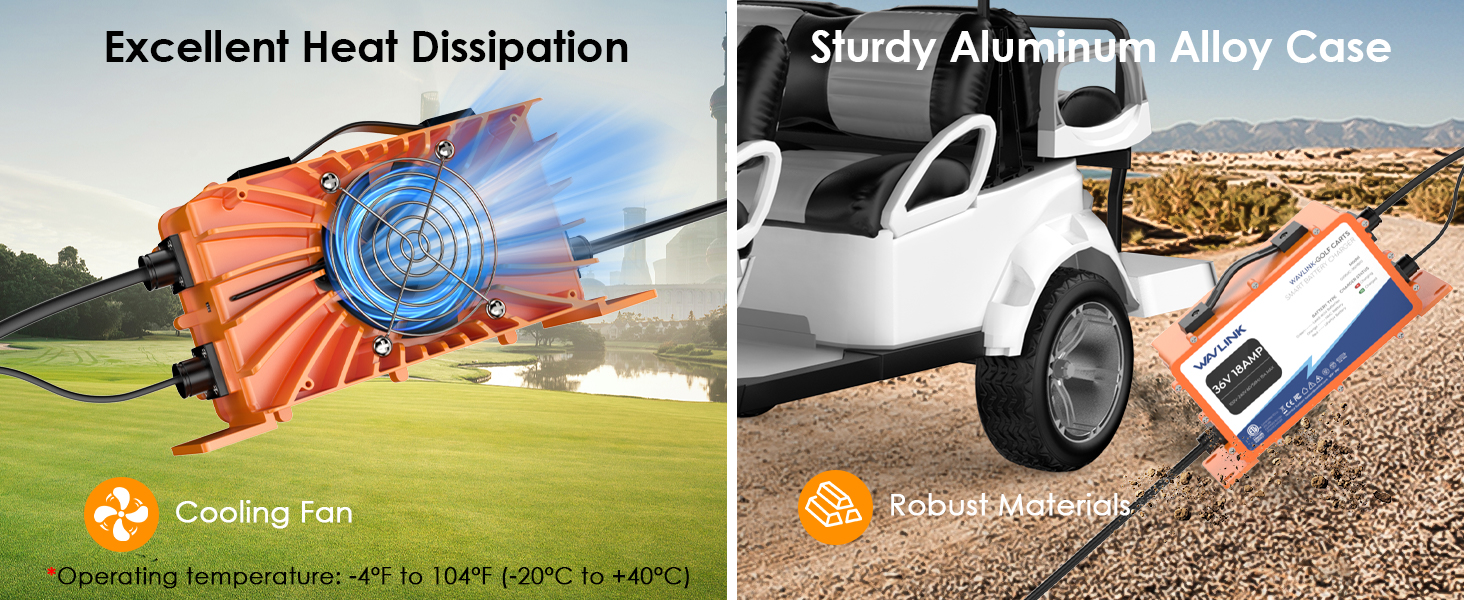

- Excellent Heat Dissipation with Internal Fan

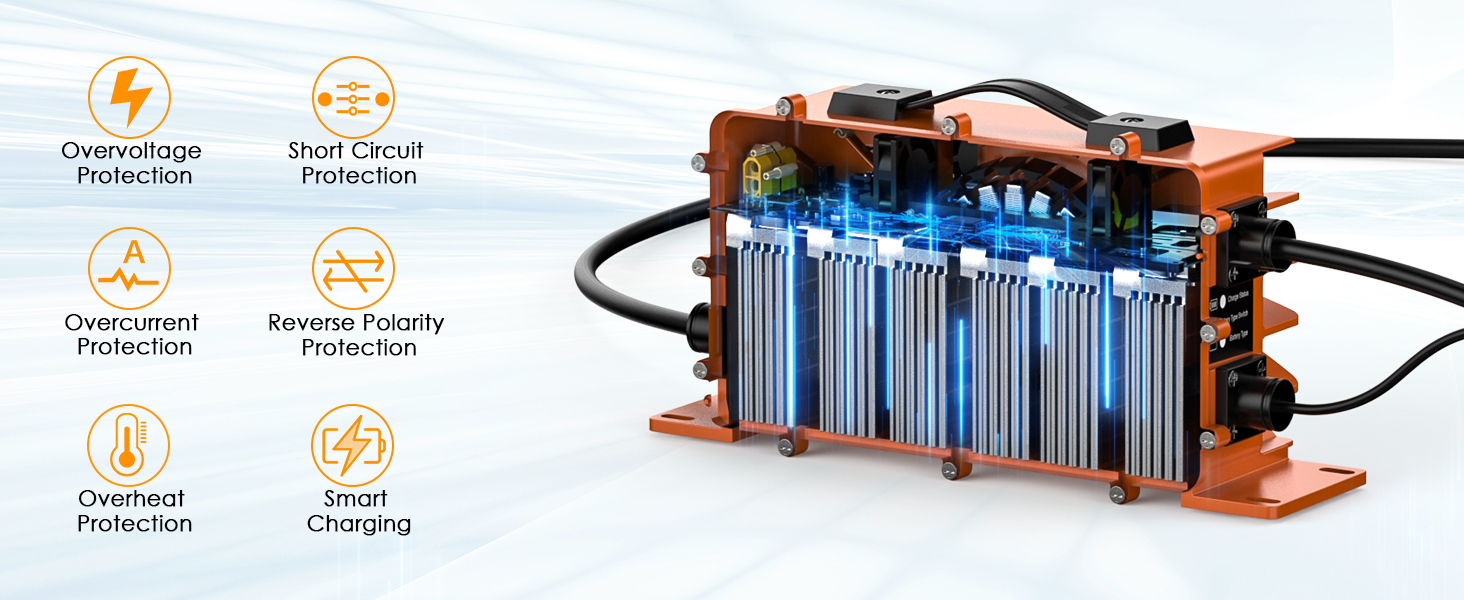

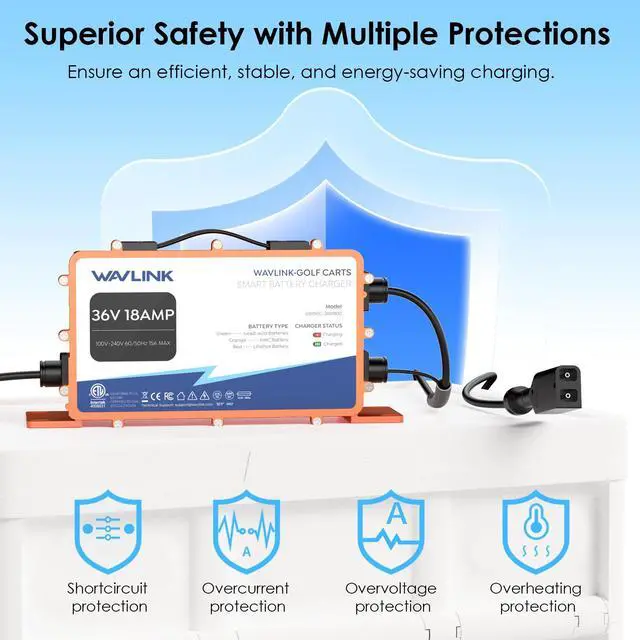

- Multiple Protections: Safe Charging with Short Circuit & Overvoltage Protection
- High Compatibility: LiFePo4, NMC, and Lead Acid Battery, OBC/non-OBC CartsHigh Compatibility: LiFePo4, NMC, and Lead Acid Battery, OBC/non-OBC Carts
- Smart Charging Mode

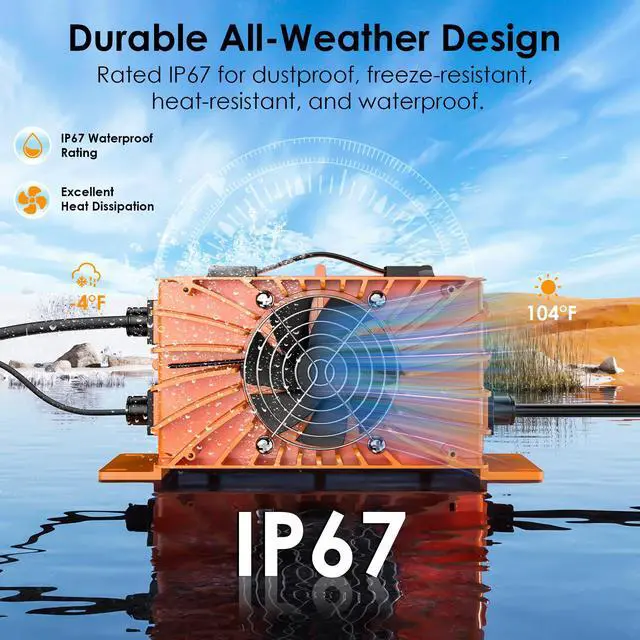

- IP67 Waterproof Rating, Freezing and Heat Resistant

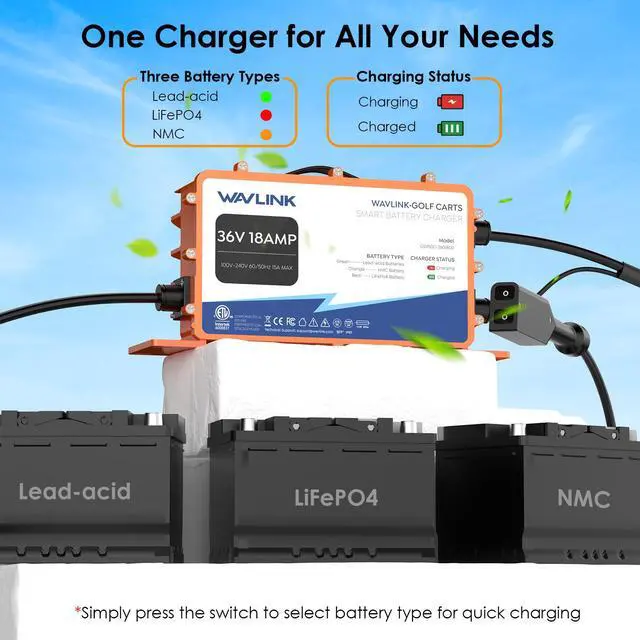

LED Indicators (*correspond to different battery types and operating statuses):
1) Battery Type LED:
- Green: Lead-acid batteries
- Orange: NMC battery
- Red: LiFePo4 battery

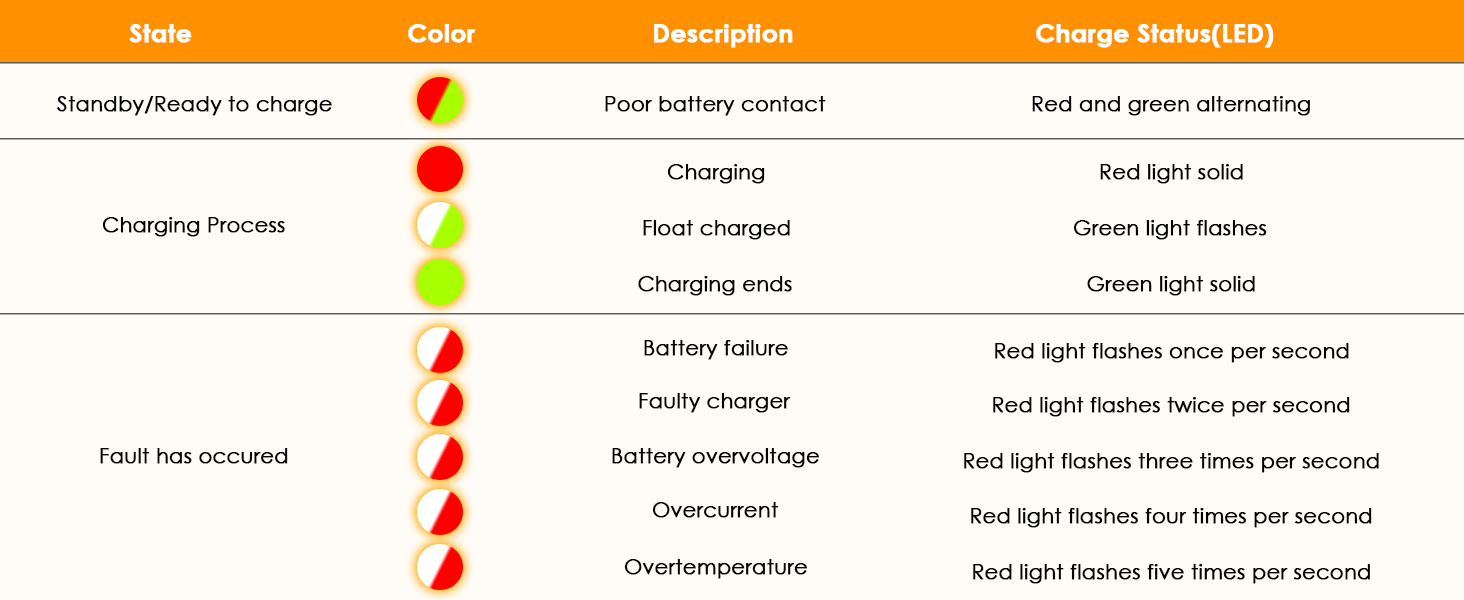

2) Charging Status LED:
- Red and green alternating: Poor battery contact
- Red light solid: Charging
- Green light flashes: Float charged
- Green light solid: Charging ends
- Red light flashes once per second: Battery failure
- Red light flashes twice per second: Faulty charger
- Red light flashes three times per second: Battery overvoltage
- Red light flashes four times per second: Overcurrent
- Red light flashes five times per second: Overtemperature

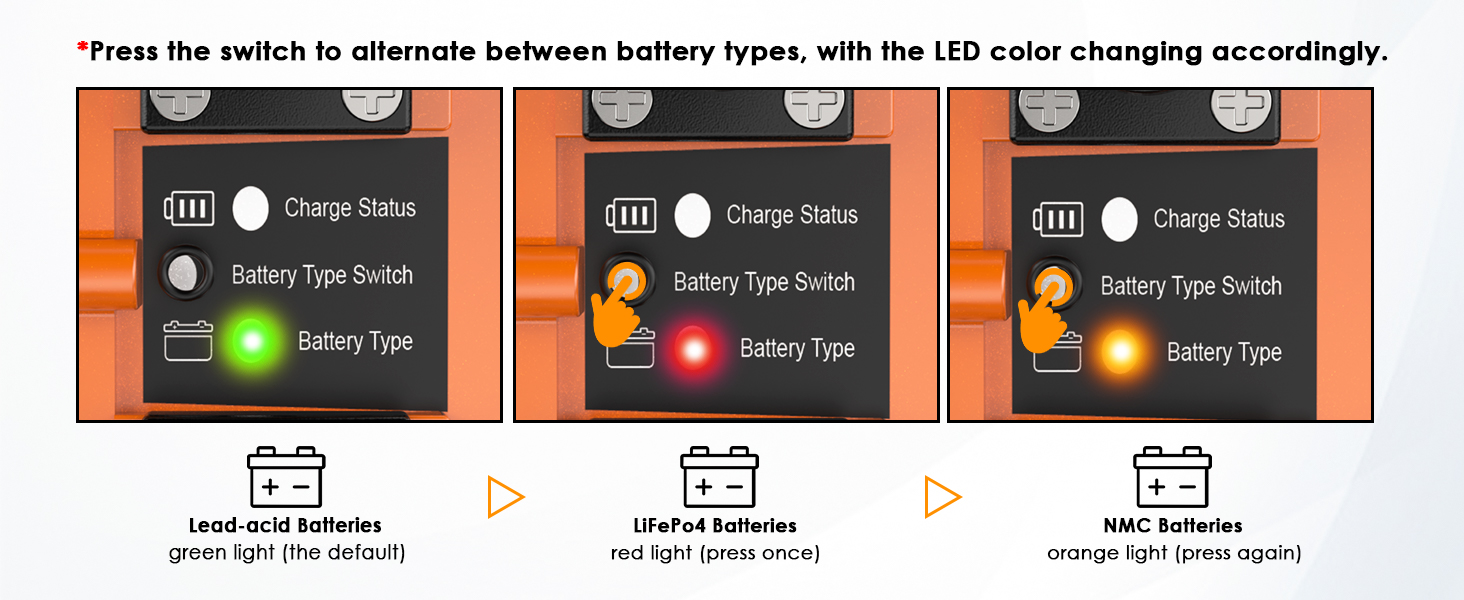

3) Battery Type Selector Switch:
To charge a ternary lithium battery or lithium iron phosphate battery, press the switch to cycle through battery types. The corresponding LED color will indicate the selected rechargeable battery type. Press the switch to alternate between battery types, with the LED color changing accordingly.
Specification:
1. Model: WL-GS950C-3601800
2. LED Indicators: 1x Battery Type LED; 1x Charging Status LED
3. Button: 1x Battery Type Switch
4. Input Voltage: 100V-240V 60/50Hz
5. Max. Charging Current: 18A
6. Battery Voltage: 36V
7. Max. Output Power: 738W
8. Plug Type: D-Style

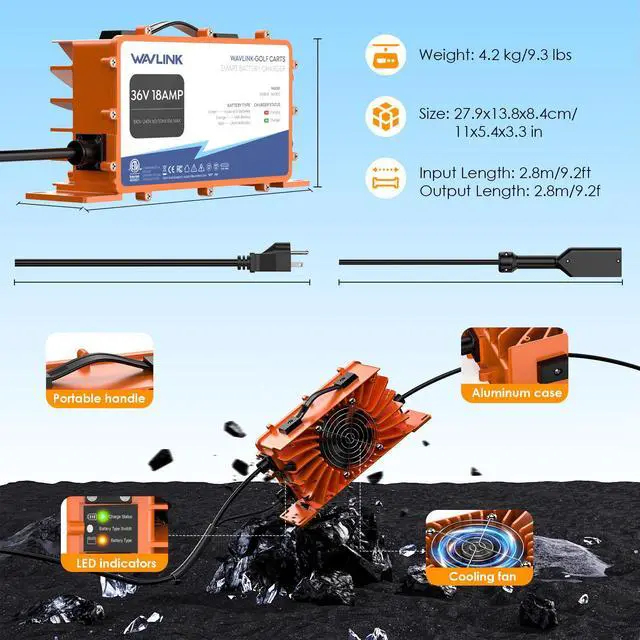

9. Product Weight: 4.2 kg/9.3 lbs (Approximate)
10. Dimensions: 27.9 x 13.8 x 8.4 cm/11.0 x 5.4 x 3.3 in (L x W x H)

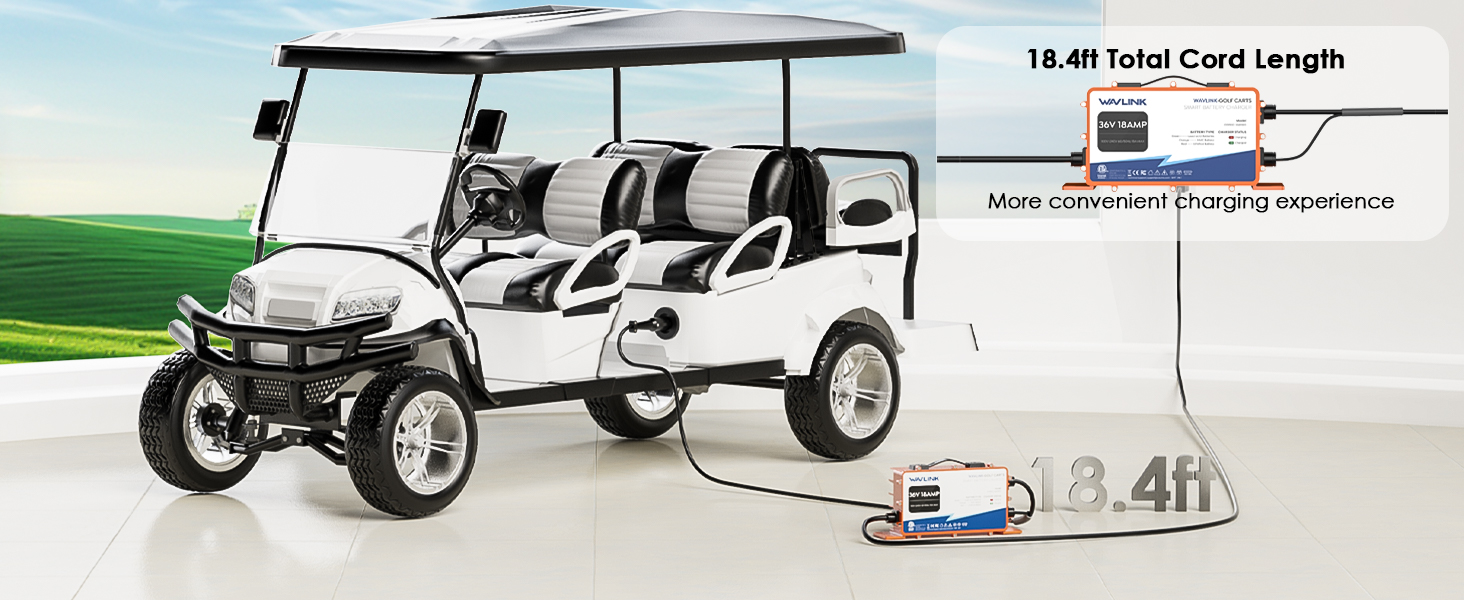

11. Charging Cable(Input): 2.8 m/9.2 ft; Charging Cable(Output): 2.8 m/9.2 ft.
Features

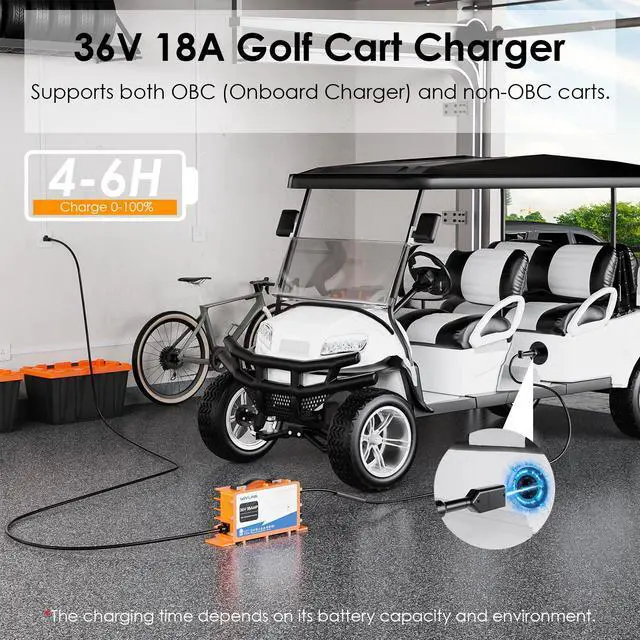

- Compatible with LiFePo4, NMC, and lead-acid battery types for both OBC (onboard charger) and non-OBC carts.

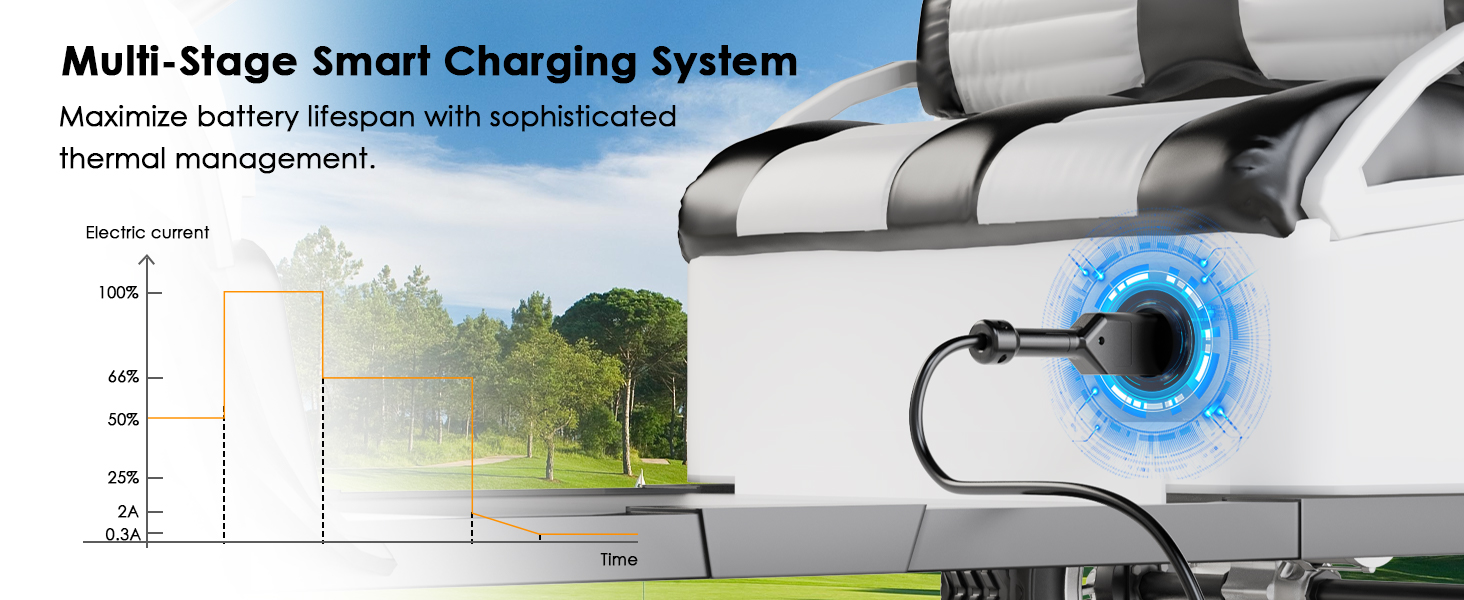

- Enhances battery life and ensures safe charging by adjusting the process and switches to trickle mode with smart charging technology.
- Suitable for use in rainy, dusty, or other inclement weather, featuring dust resistance, freeze resistance, heat resistance, and IP67 waterproof rating.
- Includes a long fast-charging cable for flexible use in various scenarios, along with a sturdy aluminum alloy case for superior durability.
- Uses a rubber cord that is more abrasion-resistant and heat-resistant than PVC cords, with effective waterproofing capabilities.
In the Box
1 x Golf Cart Smart Battery Charger
1 x Quick Start Guide
Warm Tips:

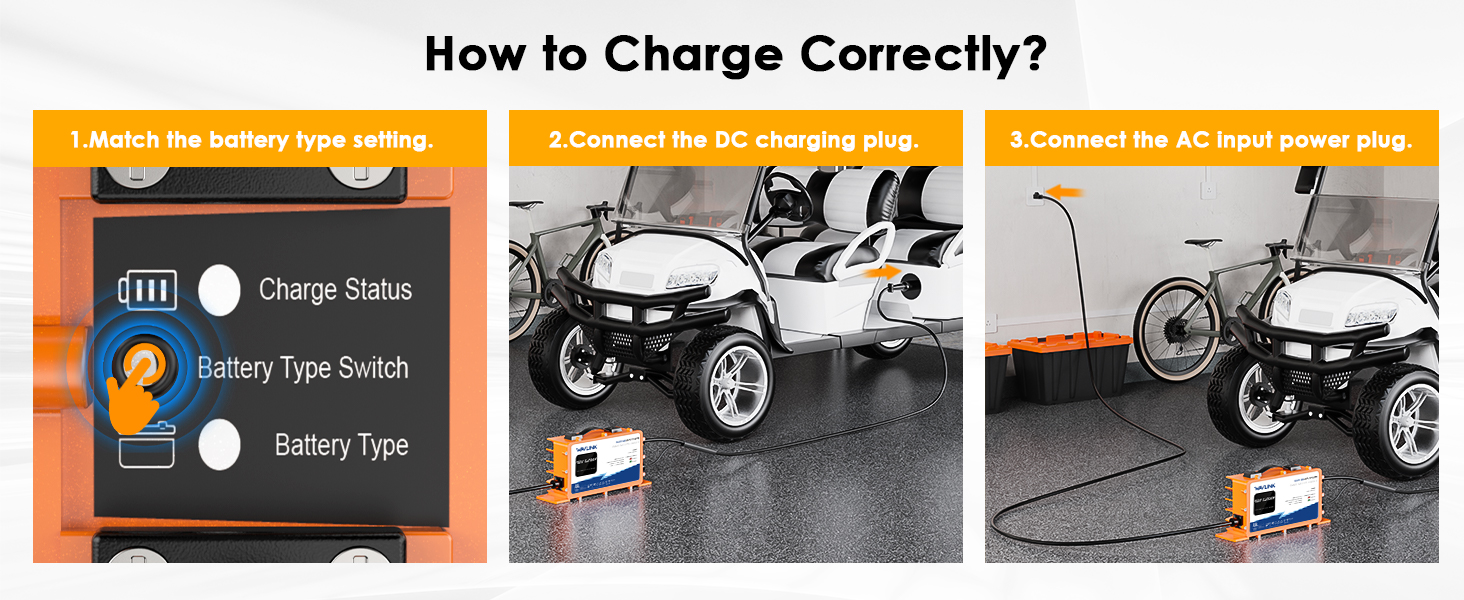

1. Before charging, ensure that the type of rechargeable battery matches the type set on the charger.
2. Before starting to charge, always connect the DC charging plug first, followed by the AC power plug.
3. After charging is complete, always disconnect the AC power plug first, then unplug the DC charging plug.
4. Routine Maintenance (Before carrying out the following operations, ensure that the charger is disconnected from the battery and mains supply.)
- Regularly remove dust from the ventilation slots and fan to ensure good heat dissipation from the charger.
- Periodically wipe the casing with a cloth dampened with a small amount of alcohol.
- Do not use or store the charger in a place with high humidity or temperature.
