Mroinge is exporting all kinds of Automotive Accessories (including battery charger, battery tester, solar charger controller, power inverter, tire inflator & car battery monitor) to US,CA,UK,DE,and JP, and our products to high-quality low-cost, which are appreciated by customers because of excellentprice versus performance ration and high quality. the good faith for this serves the objective, wholeheartedly provides high quality, the quick service for the customer, our products have always been trusted and favored by customers.
Mroinge MBC010 12V 1A Battery Charger is much more than a trickle charger. It has a Microcomputer chip, is lightweight, compact, fully automatic and very easy to use especially in small spaces, that digitally controls the 4-stages of battery charging (Initialization, constant current, constant voltage and floating charge). the charger come with power down memory function, so the charger will re-start to charge the battery automatically when the main power recovered.
This battery charger will keep the battery fully charged so that it is ready to go always. It has a microprocessor controlled fully automatic charger and maintainer and is designed to extend the life of any 12V lead acid battery commonly used in automobiles, motorcycles, ATVs, personal watercraft, RVs, boats, golf carts, back-up generator systems, etc.

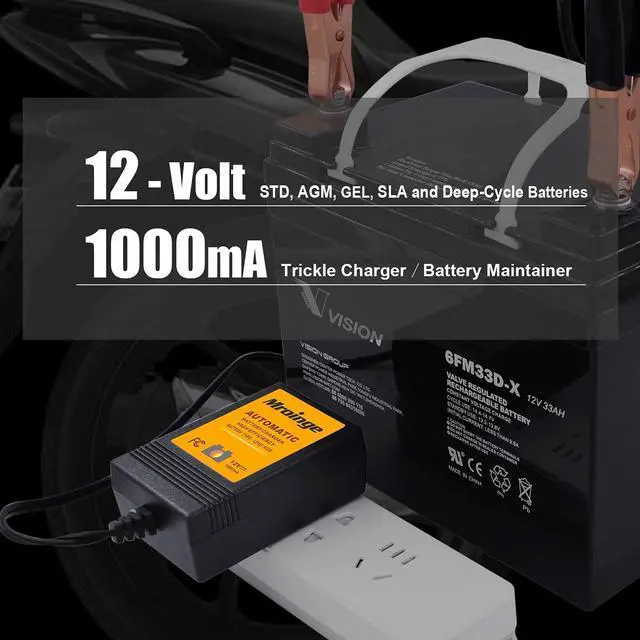

Specification:
Input: 100-120VAC 50/60Hz 0.5A
Charging Current: 1000mA
Battery Voltage: 12V
Suitable Battery Type: Lead-Acid (AGM, GEL, WET, VRLA and Deep-Cycle)
NOTICE: This smart battery charger does not support the charging of bad batteries less than 3.6V.

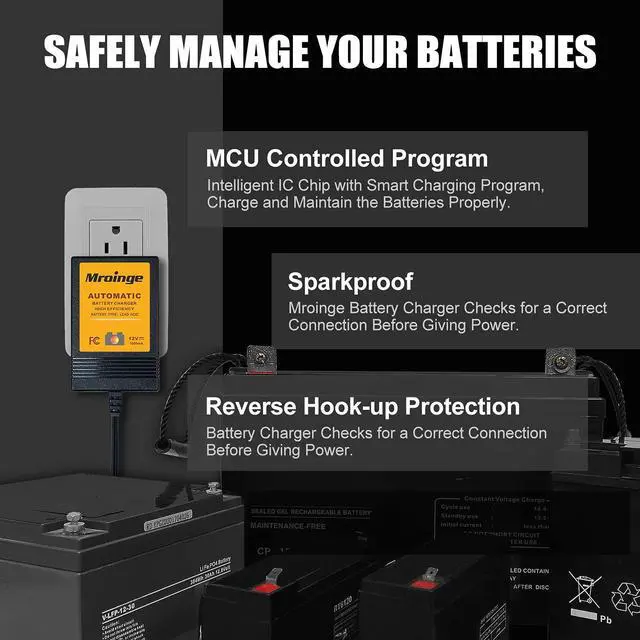

Multi-level Safety Protection
4 STAGES - STANDARD CHARGE & MAINTAIN MODES
- Initialization: Initialize diagnostic battery performance and desulfating the battery through 17V pulse.
- Bulk: Major charging stage where the battery receives the majority of its charge. During this stage the battery brought to 75 - 80% of its charger. The MBC010 charger delivers maximum current until the terminal voltage has risen to the full charge level for Normal battery.
- Absorption: Completes the charge up to virtually 100% at a constant voltage. The current tapers off after the current reached the minimum level.
- Float: Maintenance charging at constant voltage, keeping the batteries at 100% charge. Float mode chargers indefinitely without damaging the battery.

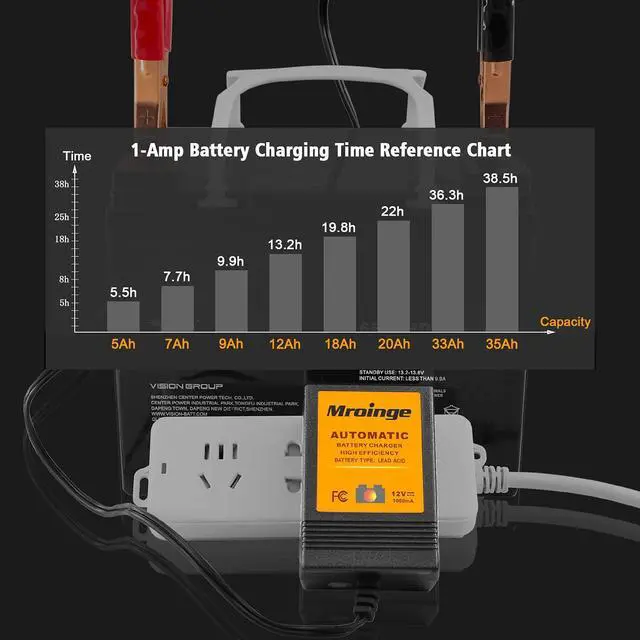

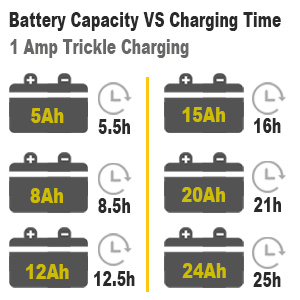

CHARGING TIME VS BATTERY CAPACITY
You can better understand the charging time based on battery capacity.
- The image shows the duration of the bulk step up to about 90% state of charge.
- These data is measured under an ideal condition, just for reference.

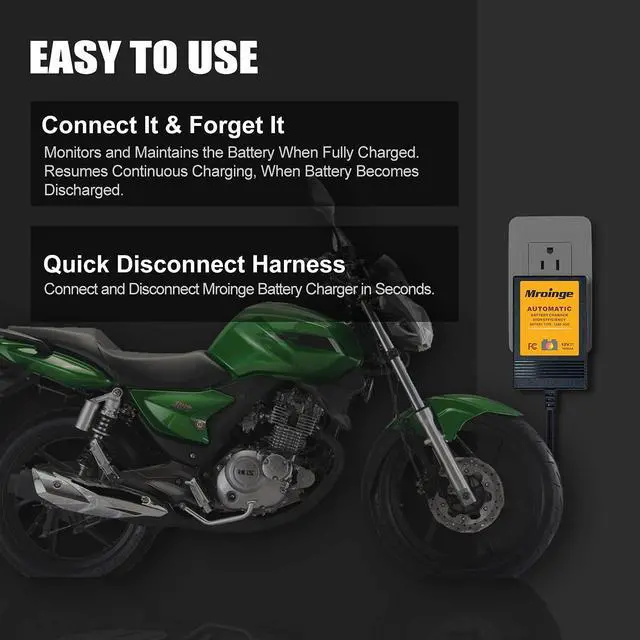

The unit has a very simple operation design, so very easy to use.
- Firstly, Correct connect the battery.
- Then, Connect the AC power supply.
The unit is built-in 2 color LED indicates stage of charging, so very easy to use.
- FLASHING RED: not charging battery, reverse battery, battery error.
- SOLID RED: battery charging.
- FLASHING GREEN: battery greater than 80% charged.
- SOLID GREEN: full charged and maintaining.

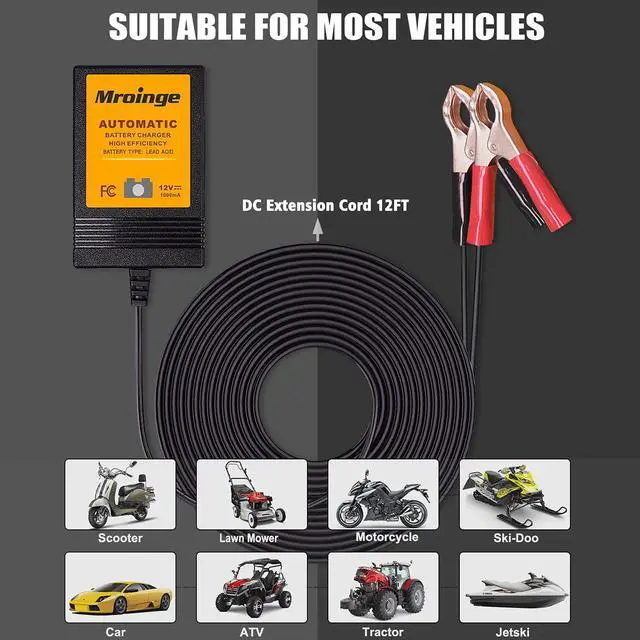

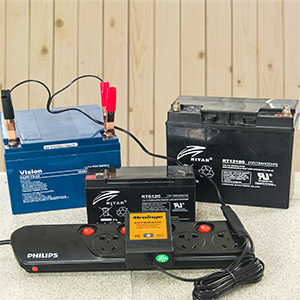

Suitable battery type:
Perfect for all 12V lead-acid PD SLA GEL AGM and WET batteries and automotive, ATVs, RVs, scooters, golf carts, lawn mowers, motorcycles, cars, boats and more.

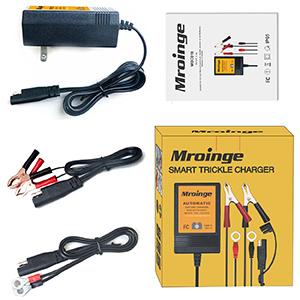

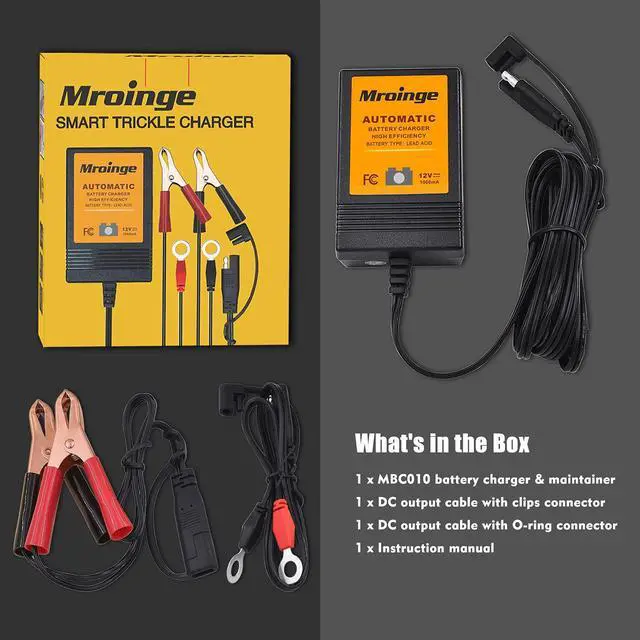

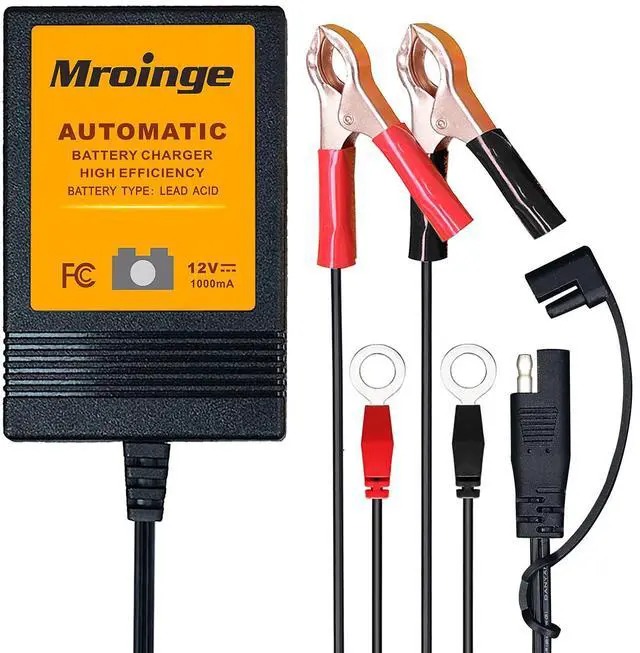

What's in the Box
- 1 x MBC010 battery charger & maintainer
- 1 x DC output cable with clips connector
- 1 x DC output cable with O-ring connector
- 1 x Instruction manual
Note: Output cord total length of 12-foot.
 1A Trickle Charger |  5A Car Battery Charger | |
|---|---|---|
| Customer Reviews | — | — |
| Price | — | — |
| Power | 1A | 5A & 2A |
| Battery Voltage | 12V | 12V & 6V |
| Charging status indicator | LED | LCD Display |
| Suitable Battery Type | Lead-Acid | Lead-Acid and Lithium (LiFePO4) |
| Maintenance Mode | ? | ? |
| Waterproof IP65 | X | ? |
| Multi-Stage Charging | 4-Stages | 7-Stages |
| Multi-Safety Protections | ? | ? |
