Mroinge is exporting all kinds of Automotive Accessories (including battery charger, battery tester, solar charger controller, power inverter, tire inflator & car battery monitor) to US,CA,UK,DE,and JP, and our products to high-quality low-cost, which are appreciated by customers because of excellentprice versus performance ration and high quality. the good faith for this serves the objective, wholeheartedly provides high quality, the quick service for the customer, our products have always been trusted and favored by customers.

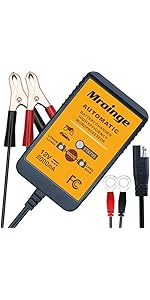

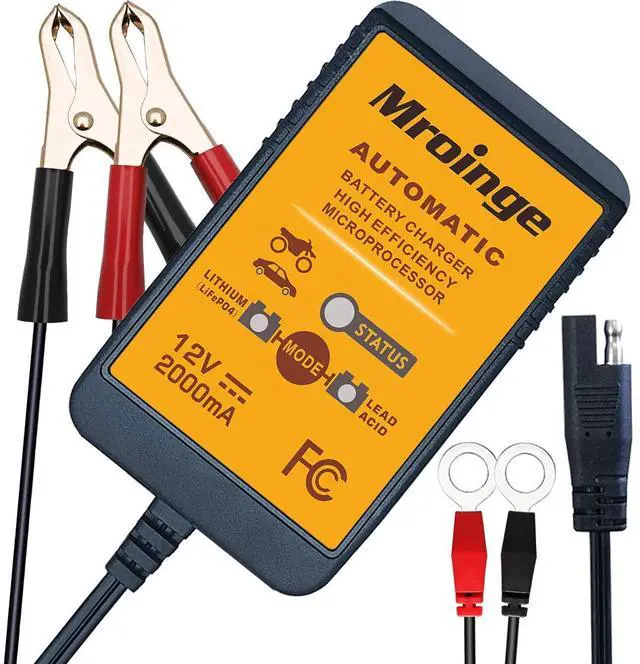

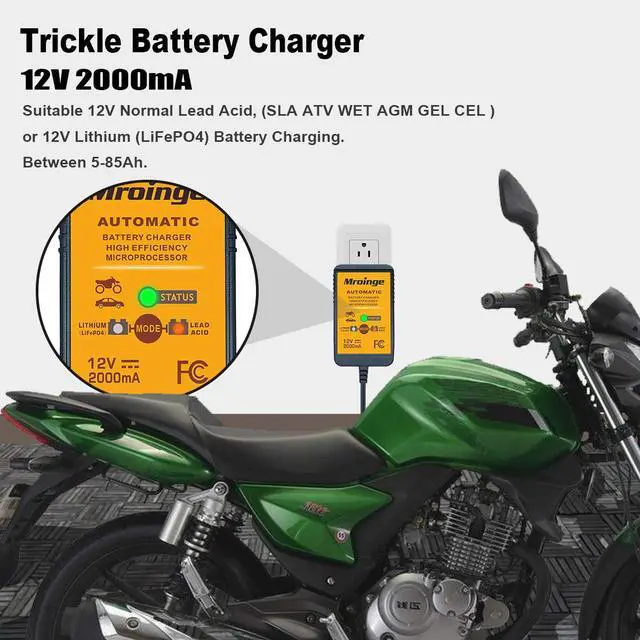

Mroinge MBC022 12V 2A Battery Charger is much more than a trickle charger. It has a microcomputer chip, is lightweight, compact, fully automatic and very easy to use especially in small spaces, that digitally controls the 4-stages of battery charging (Initialization, constant current, constant voltage and floating charge). the charger come with power down memory function, so the charger will re-start to charge the battery automatically when the main power recovered.

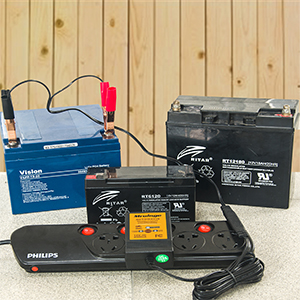

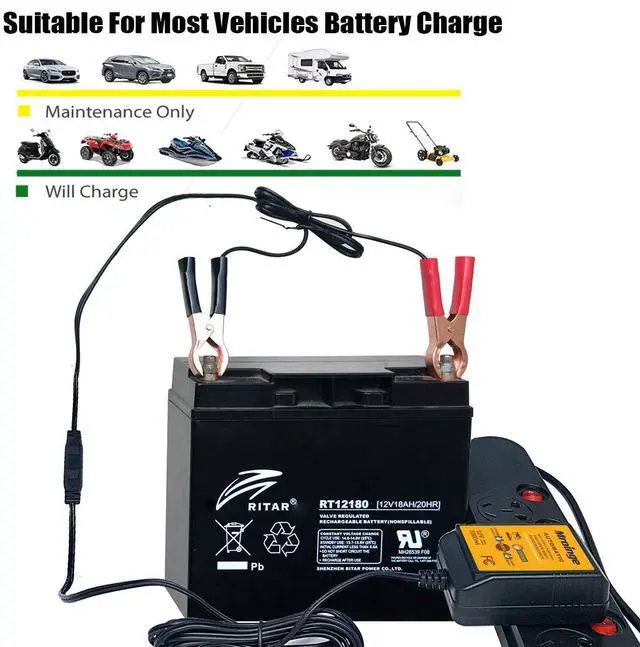

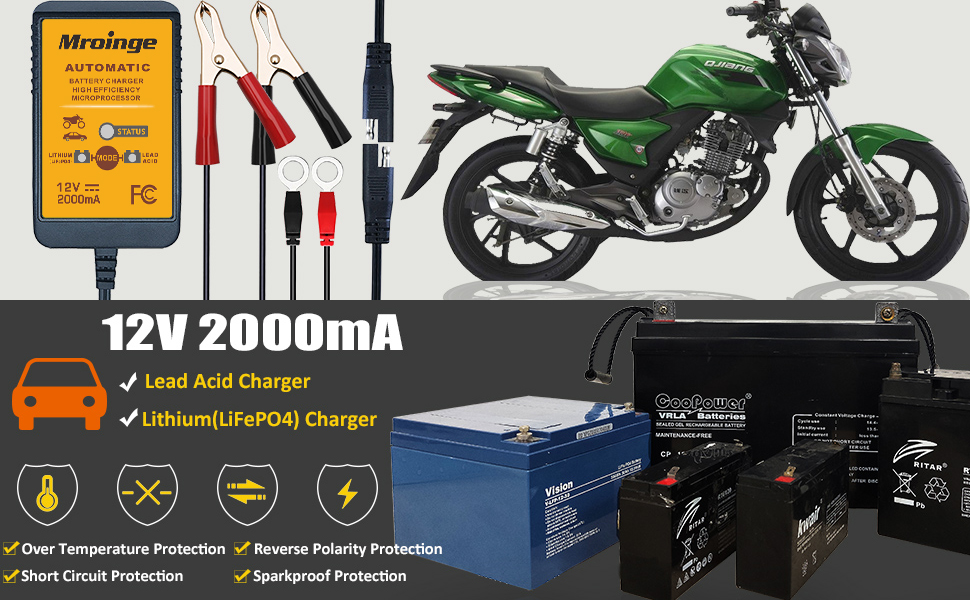

This smart battery charger will keep the battery fully charged so that it is ready to go always. It has a microprocessor controlled fully automatic charger and maintainer and is designed to extend the life of any 12V lead acid and 12V-Lithium(LiFePO4) battery commonly used in automobiles, motorcycles, ATVs, personal watercraft, RVs, boats, golf carts, back-up generator systems, etc.
Specification:
> Input: 100-120VAC 50/60Hz 0.6A
> Battery Voltage: 12V
> Charging Current: 2.0Amp
> Suitable Battery Type: 12V Lead-acid (AGM, GEL, WET, VRLA and Deep-Cycle) and 12V Lithium (LiFePO4)

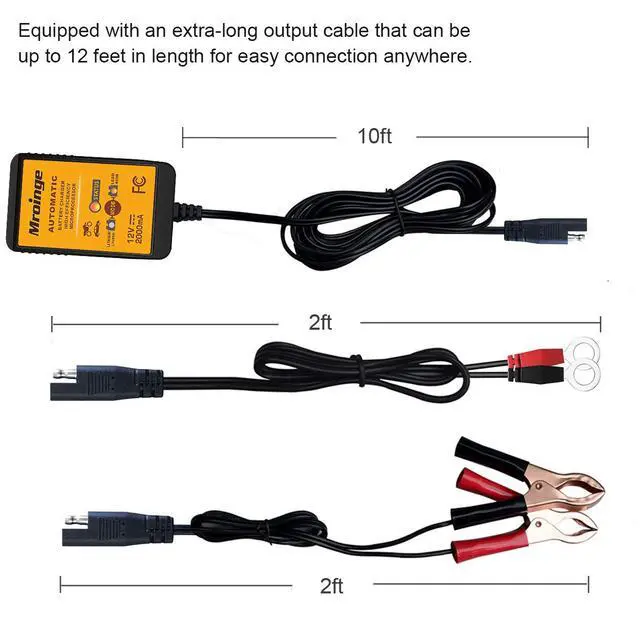

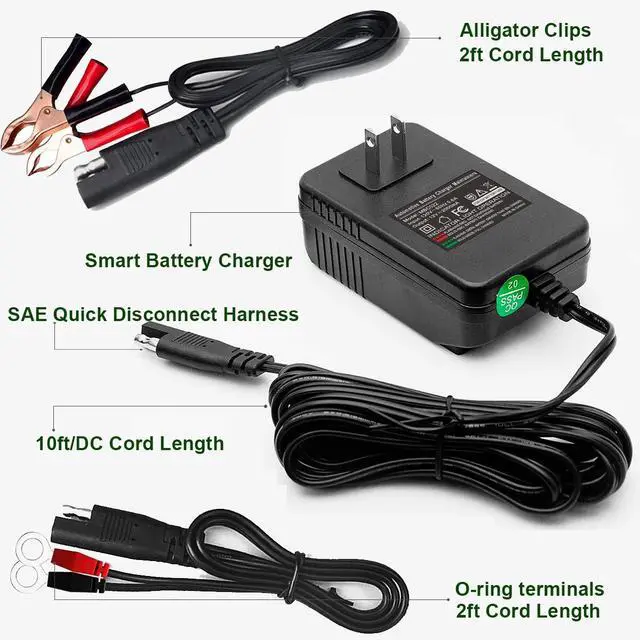

Package:
> 1 x Battery Charger
> 1 x Alligator Clips Cable
> 1 x Battery Rings Cable
> 1 x User Manual
Multi-level Safety Protection

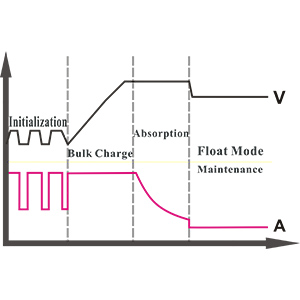

4 STAGES - STANDARD CHARGE & MAINTAIN MODES
- Initialization: Initialize diagnostic battery performance and desulfating the battery through 17V pulse.
- Bulk: Major charging stage where the battery receives the majority of its charge. During this stage the battery brought to 75 - 80% of its charger. The MBC022 charger delivers maximum current until the terminal voltage has risen to the full charge level for Normal battery.
- Absorption: Completes the charge up to virtually 100% at a constant voltage. The current tapers off after the current reached the minimum level.
- Float: Maintenance charging at constant voltage, keeping the batteries at 100% charge. Float mode chargers indefinitely without damaging the battery.
EASY TO USE
The unit has a very simple operation design, so very easy to use.
- Firstly, Connect the AC power supply.
- Secondly, Choose the right battery type( lead-acid or lithium(LiFePO4) ).
- At Last, Correct connect the battery.
IMPORTANT: When you select the charging mode, you must disconnect the battery.

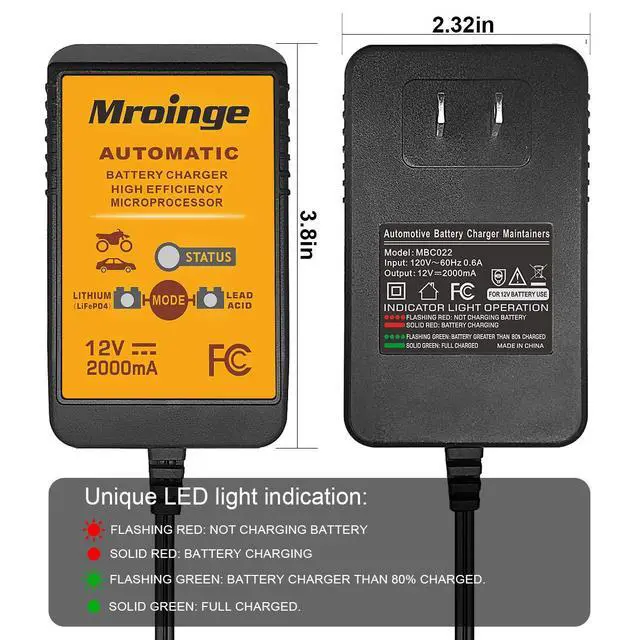

The unit is built-in 2 color LED indicates stage of charging, so very easy to use.
- FLASHING RED: not charging battery, reverse battery.
- SOLID RED: battery charging.
- FLASHING GREEN: battery greater than 80% charged.
- SOLID GREEN: full charged and maintaining.

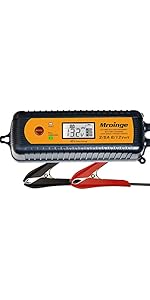

 2A Trickle Charger |  5A Car Battery Charger | |
|---|---|---|
| Customer Reviews | — | — |
| Price | — | — |
| Power | 2A | 5A & 2A |
| Battery Voltage | 12V | 12V & 6V |
| Charging status indicator | LED | LCD Display |
| AGM/GEL/WET Charging | ? | ? |
| 12V Lithium(LiFePO4) Charging | ? | ? |
| Maintenance Mode | ? | ? |
| Waterproof IP65 | X | ? |
| Multi-Stage Charging | 4-Stages | 7-Stages |
| Multi-Safety Protections | ? | ? |
