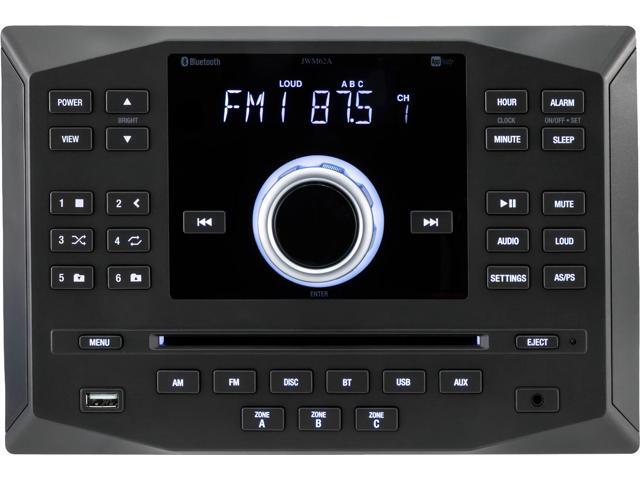

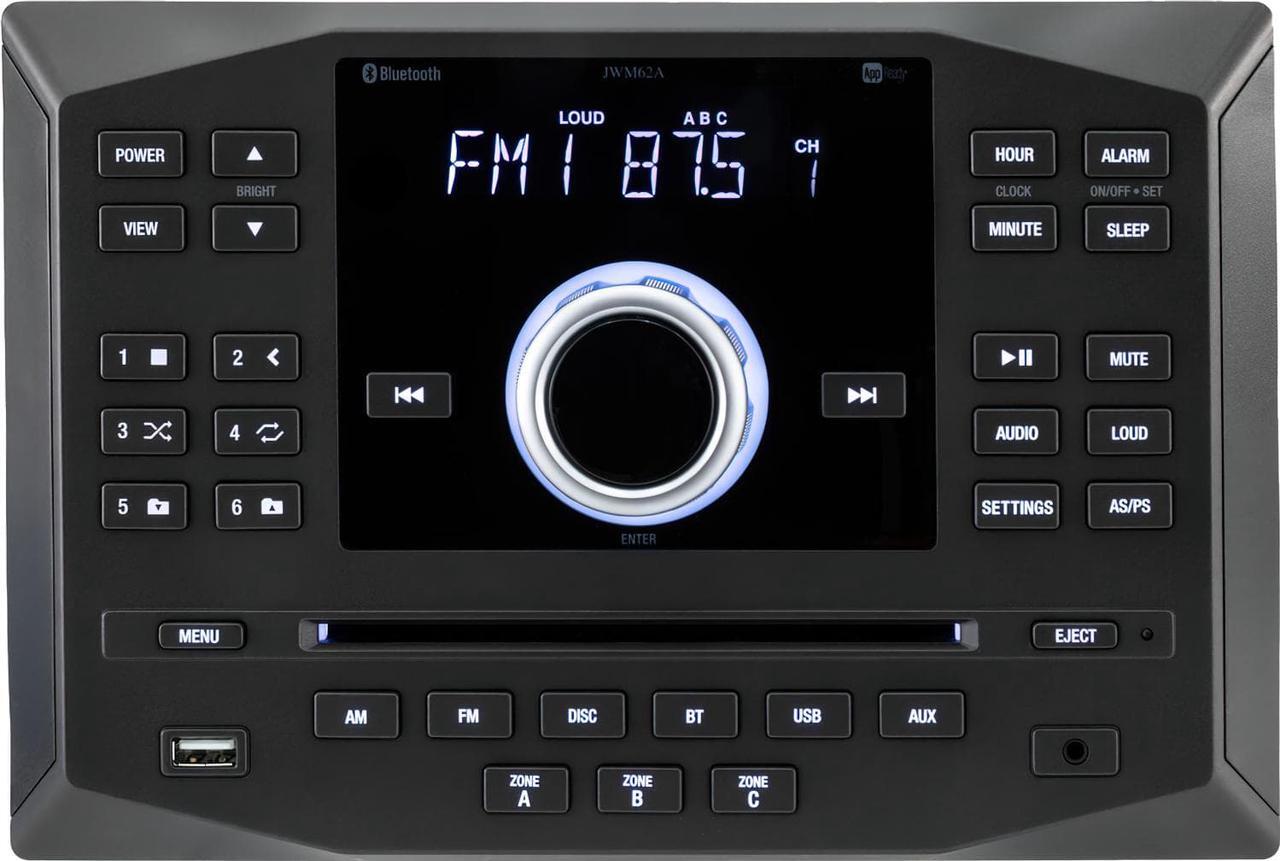

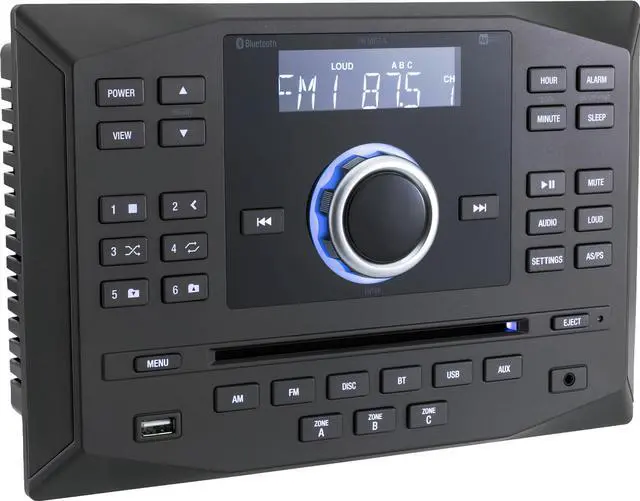

Jensen JWM62A AM|FM|DVD|CD|USB|AUX|App Ready Bluetooth RV Wallmount Stereo w/ App Control, 3-Speaker Zones / 8 Speaker Output 8X 6 Watt, Receives Bluetooth Audio (A2DP) & Controls (AVRCP) from Devices

The JWM62A combines the very best in advanced audio technology with a sleeker profile that maintains the same JENSEN footprint that has been used in over a million units on the market today, making replacing or upgrading a breeze. The JWM62A has a dedicated Bluetooth pairing button that makes it easier than ever for campers to connect their smart device to their stereo. With the push of a button, campers can stream their entire music library from anywhere in a 33-foot range of the RV. With the jControl app, music won't be the only thing campers can control from their smartphones. All JENSEN wallmounts stereos have the same footprint so you can easily upgrade to this model.

The jControl app, available for free on android and Apple devices, turns any smartphone into a wireless remote control. jControl will sync with the JWM62A to remember station presets and settings to control three separate speaker zones for the ultimate listening experience. App control allows the RV owner to control their stereo and speaker zones from another room, or even from outside their RV. The JWM62A features a USB input capable of charging both iPhone and Android devices.

The JWM62A also has two RCA video output jacks, a front A/V stereo jack, a rear A/V output, a rear audio output, and a built in CD/DVD player that supports numerous audio and video formats. The wallmount stereo is complete with a built-in alarm clock with a sleep timer for those early morning adventures.

All JENSEN Wallmount Stereos have the same footprint so you can easily upgrade to this model.

The Jensen JWM62A is the Official Replacement of the AWM968, JWM6A & JWM60A, the footprint is the same as well as the wire harness so it is a direct replacement. Jensen added the feature of App Control and 2 Video outputs for the new model JWM62A.

IMPORTANT: Make sure Transport/Shipping Screw has been removed from Rear of Unit! The "Transport/Shipping Screw" protects the DVD Player during shipping, but must be removed in order to use the DVD Player. Disc will load for several seconds and then eject if Transport/Shipping Screw has not been removed. Make sure you read the Owners Manual before installing the Stereo!

• 12V DC Power


• DVD Player


• Plays CD, CD-R, CD-RW, DVD, DVD+RW, DVD-RW, MP3


• Video format supported: DVD-Video, MPEG-4, VCD, JPEG


• Audio format supported: CD-DA, MP3, WMA, Dolby


• Digital AM/FM Tuner/30 Preset stations (12 AM/18 FM)


• Auto-Store/Preset Scan


• Bluetooth Ready with A2DP/AVRCP Streaming Audio


• Dedicated Bluetooth® button (A2DP, AVRCP) - 33-ft. range


• USB input for full iPod/iPhone control and charging


• App Ready - Control main functions from most (Bluetooth) devices with JENSEN jControl app


• Pre-set Equalizer - 5 settings (User > Flat > Pop > Classical > Rock)


• Electronic Bass, Treble, Balance and Fader Control


• Skip Protected Disc Mechanism


• Slot type DVD/CD-R/RW and MP3 Compatible


• Low Battery Alarm


• Time/Alarm Clock and Sleep Timer


• White LED Backlight LCD Display


• White LED backlit LCD and front panel control buttons with 10 level dimming


• 1/8" A/V Front Auxiliary Input


• Rear Audio RCA Inputs/Outputs


• USB Playback of MP3/WMA Files


• Made for iPod/iPhone (USB Input)


• Three speaker zones (A, B, C) / 8 Speaker Output


• Wireless Remote Control Included


• RCA Video Output


• RCA Coaxial Input


• Optical Input

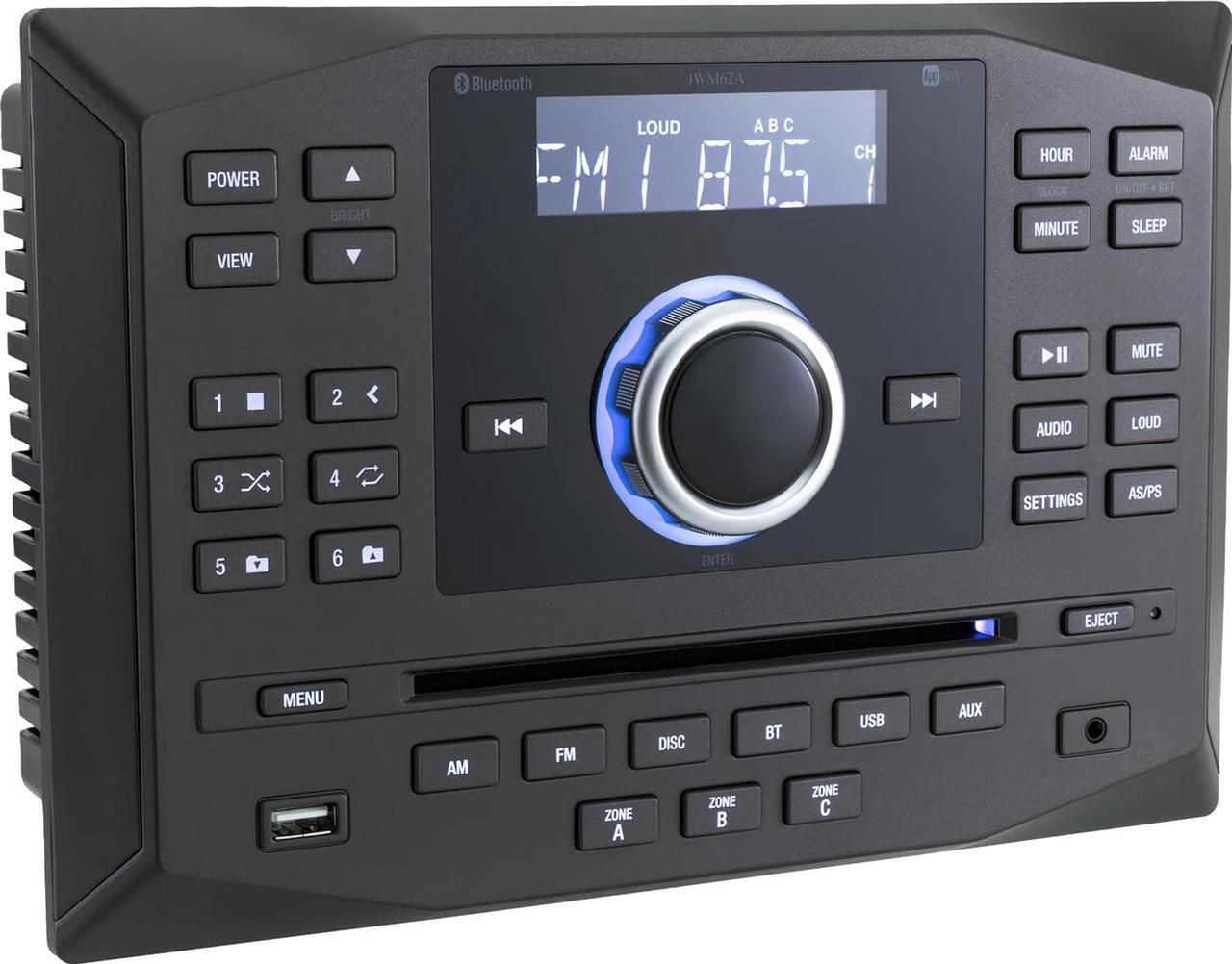

• Sleeker, slimmer profile, designed to hide mounting screws

• Frequency Coverage (USA): 87.5 to 107.9 MHz


• Frequency Coverage (Europe): 87.5 to 108 MHz


• Sensitivity: <4


• Stereo Separation at 1 kHz: >25 dB

• Frequency Range (USA): 530-1710 kHz


• Frequency Range (Europe): 522-1620 kHz


• Sensitivity (S/N=20dB): <63

• Output Power: 6W x 8


• Output Impedance: Compatible with 4-8 ohms speakers, 4 ohm load minimum

• Frequency Response: 20-20,000 Hz


• Channel Separation: 50 dB


• S/N Ratio: 65 dB


• Distortion: 0.5%

• Power Supply Requirements: DC 12 Volts, Negative Ground


• Operating Voltage: 11-16 VDC

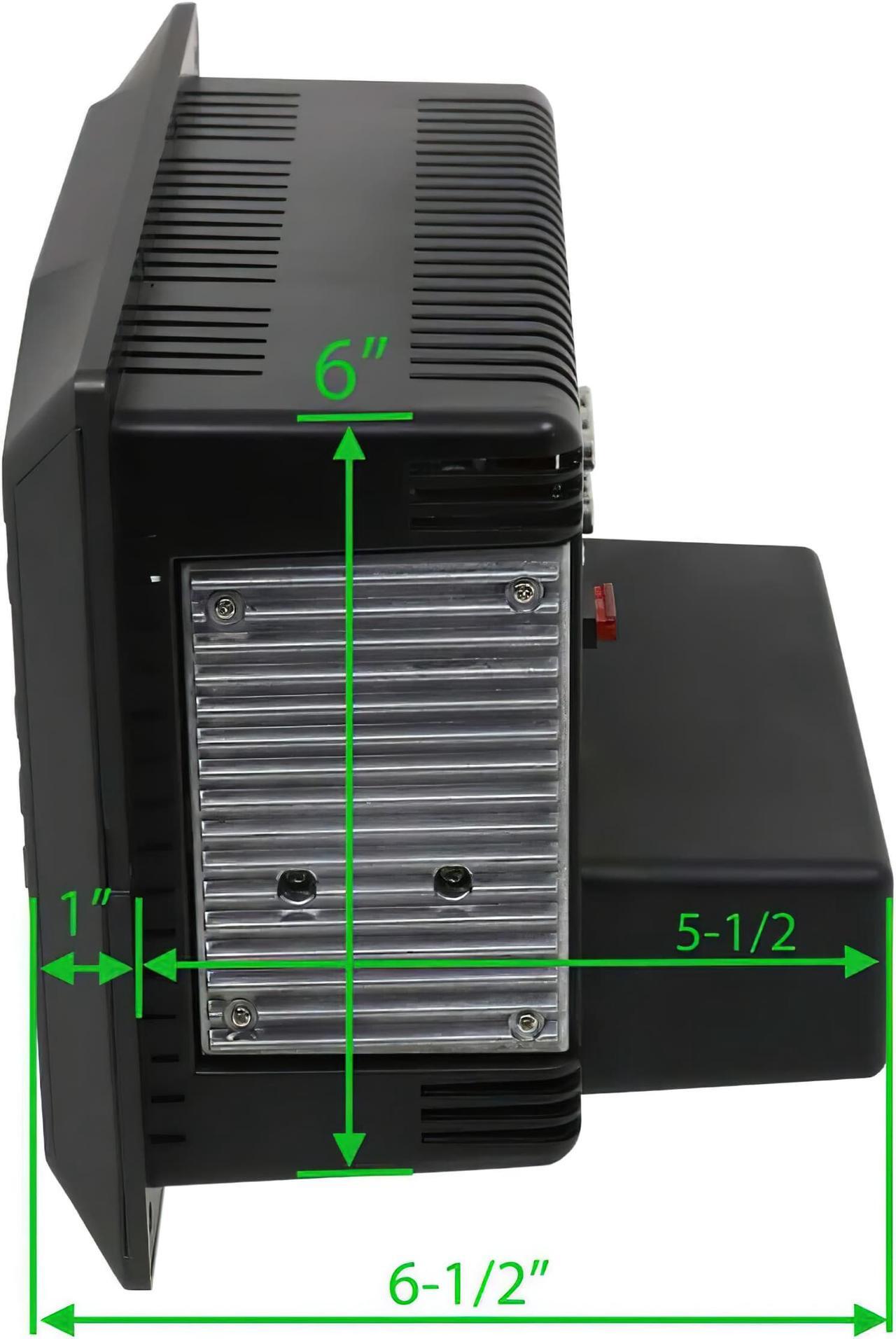

• Overall Dimensions: 10.4" (W) x 7.0" (D) x 6.77" (H); 265.0mm (W) x 178.0mm (D) x 172.8mm (H)

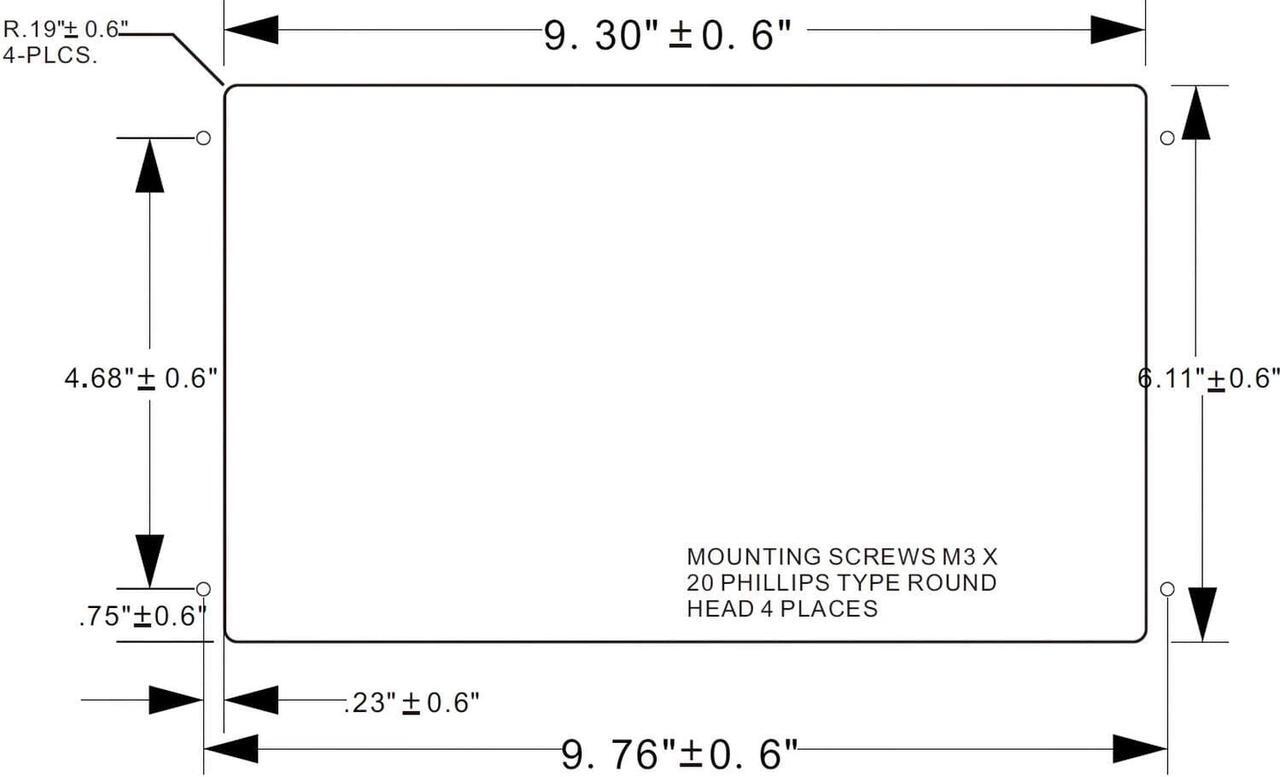

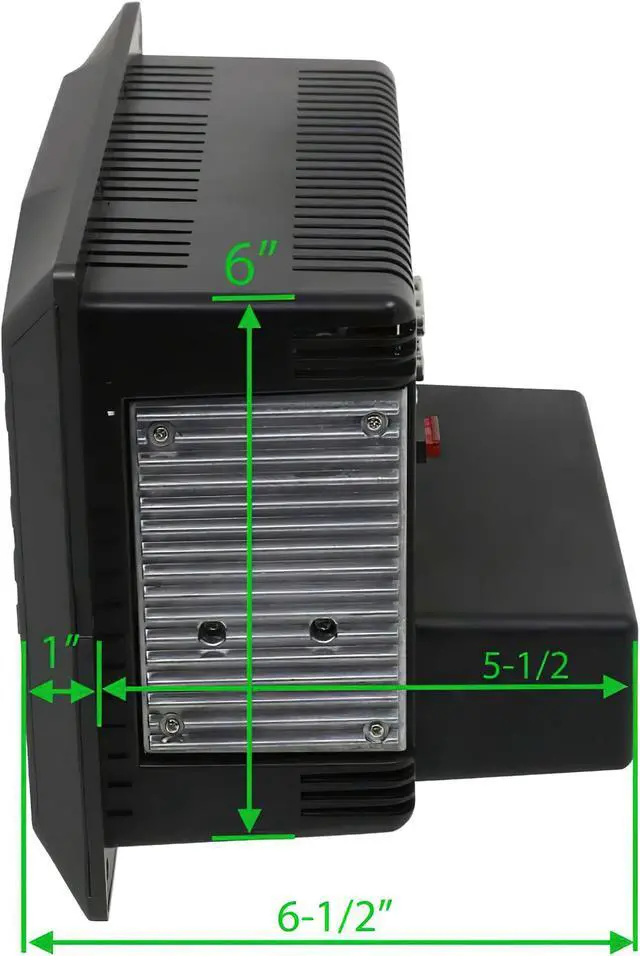

• Mounting Dimensions: 9.3" (W) x 6.11" (D) x 5.12" (H); 236.2mm (W) x 155.2mm (D) x 73.6mm (H)


• Weight: 3.20 lbs; 1.45 KG

• Power System: 12V DC (2-Wire)


• Operating Voltage Range: 10 ~ 16V


• Current Draw @ 12V: Quiescent 0A; Standby 112mA; Maximum 6A


• Operating Temperature Range: -4°F to 149°F, -20°C to 65°C


• Storage Temperature Range: -22°F to 158°F, -30° to 70°C


• Operating Relative Humidity: 95%


• Overall Package Dimensions: 10.5" L x 7" W x 5.5" D


• Product Weight (unpackaged): 3.5 lbs.

• FM Sensitivity: 2 uV


• AM Sensitivity: 15 uV


• CD Frequency Response: 20Hz to 20kHz


• CD SIgnal to Noise: 73 dB


• CD Skip Threshold (Random Freq. Profile): 3 seconds buffer


• Compatible CD Formats: CD, CD-R, R/W, MP3, DVD, DVD+/- RW


• Speaker Level Power Output: 8x x 6W rms


• Maximum Output Power: 50 Watts Total


• Total Harmonic Distortion: 1 %


• Applied Test Suite: ASA ES0001


• Regulatory Certifications: FCC Part 15B

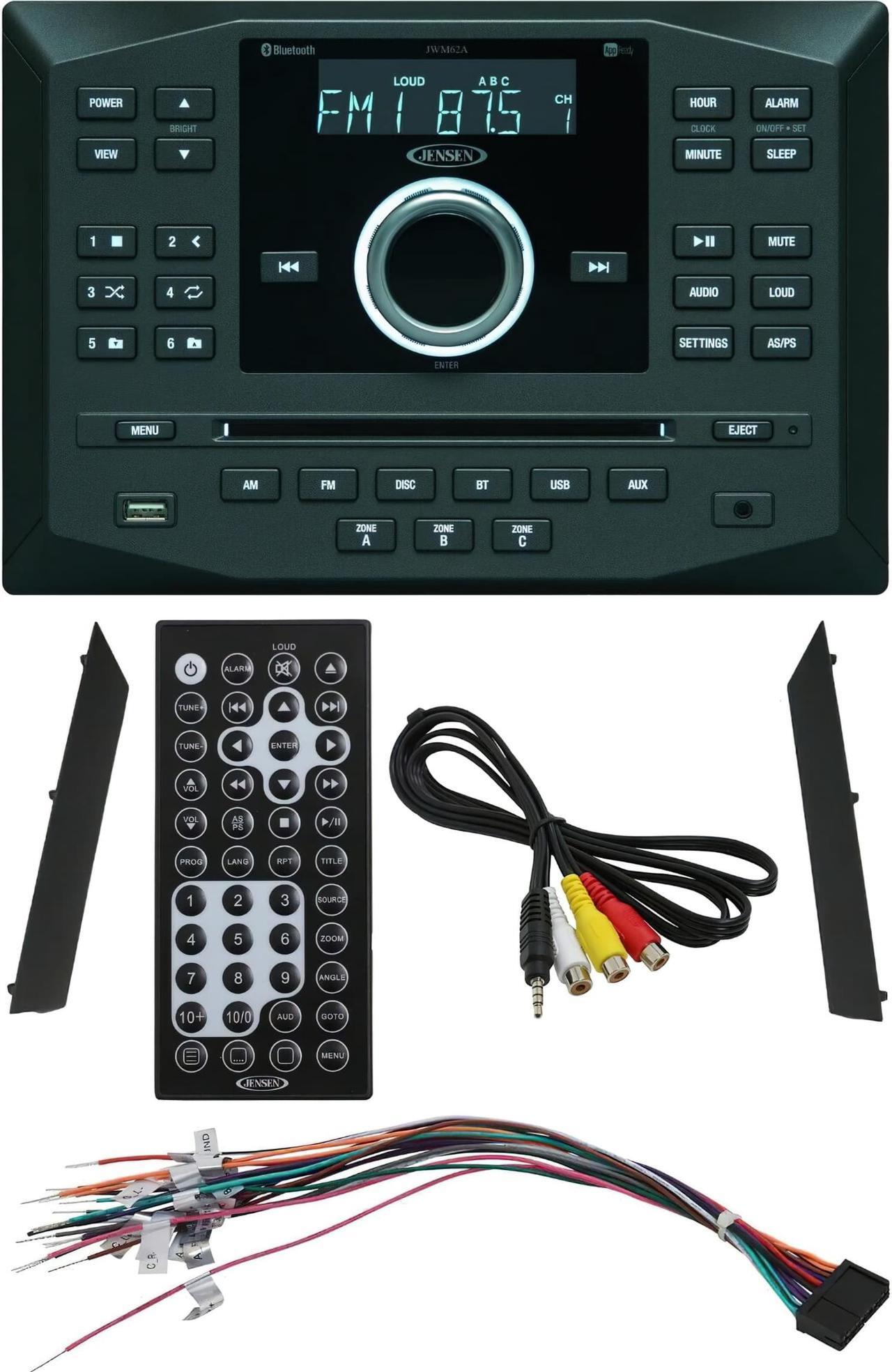

• JWM62A RV Stereo Wall-Mount Receiver (10A Fuse)


• Wireless Remote Control (CR2025 3V Battery pre-installed)


• 2 Screw-Covers (pre-installed)

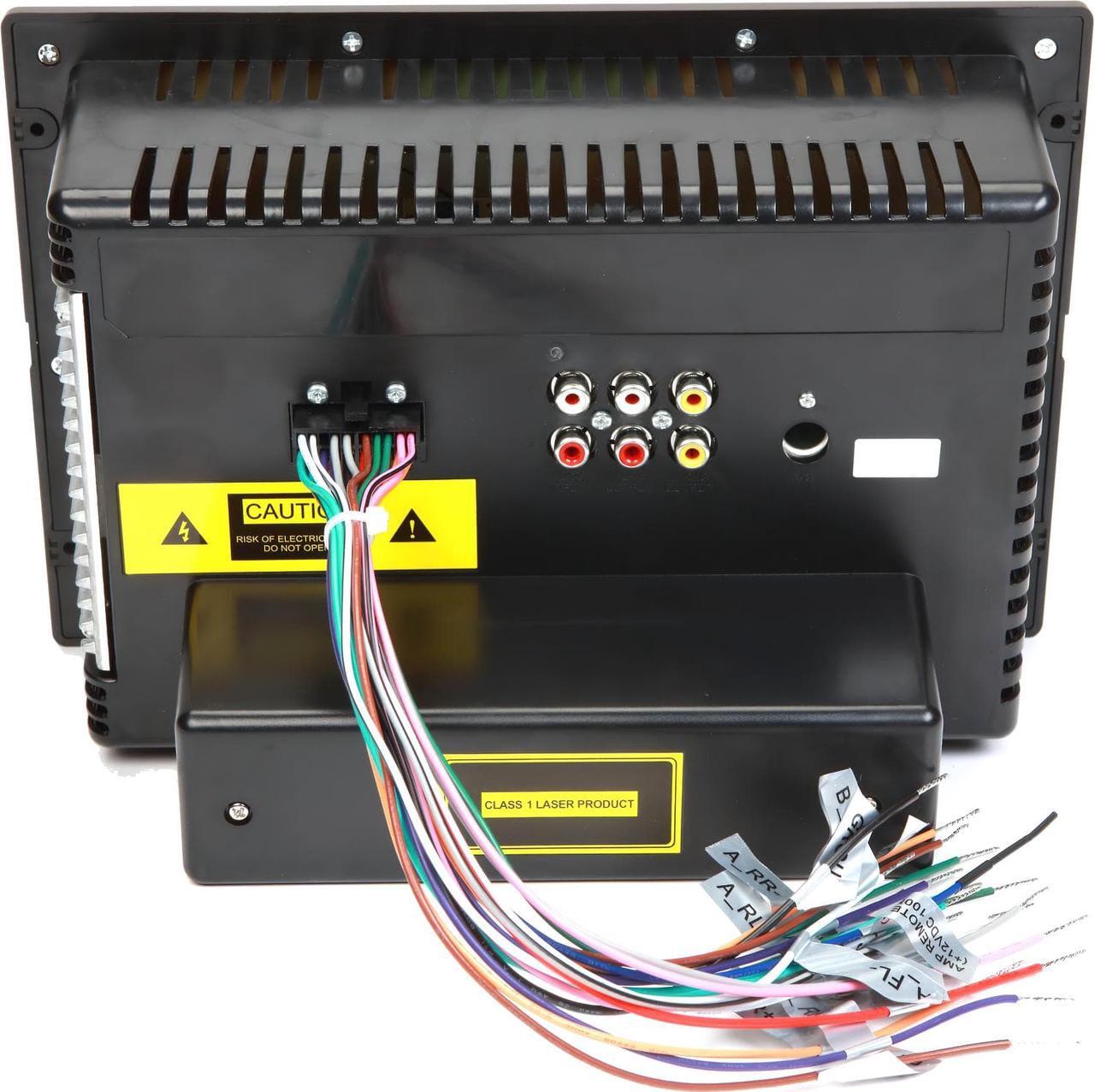

• 20-PIN Power & Speaker Wire Harness


• AUX Audio/Video Cable (4' AV Minijack-to-RCA)


• Quick Reference Guide
