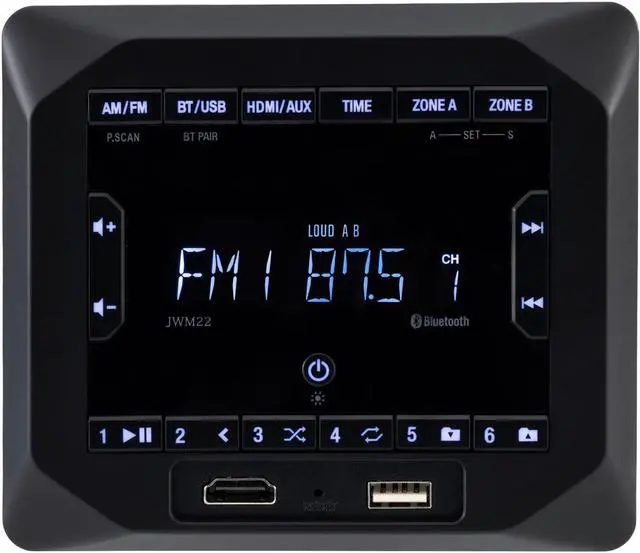

Jensen JWM22 2-Speaker Zones AM/FM|BT|HDMI|AUX Cube Wall Mount RV Stereo, Speaker Output 4X 6 Watt, 30 Station Presets (18FM/12AM), Receives Bluetooth Audio (A2DP) and Controls (AVRCP) from Devices

The JENSEN JWM22 is our first-ever cube-shaped stereo & is designed to deliver more functionality in a smaller package, ideal for the RV market. This compact stereo supports four speakers with two independent speaker zones to give RVers more control of their audio.

The Jensen JWM22 is the Official Replacement of the JWM20.

• Bluetooth streaming audio (A2DP) & control (AVRCP)


• Front USB with MP3/WMA playback


• Front HDMI input for pass through to HDMI output


• HDMI Input Pass Through Rear HDMI Output


• HDMI pass thru (plays HDMI audio input over speaker & low level outputs)


• Digital AM/FM Tuner/30 Preset stations (12 AM/18 FM)


• 2 Zones / 4 Speakers Output


• Rear AUX A/V input (RCA jacks)


• Rear AUX Audio Output (RCA)


• Mono subwoofer line level audio output (rear RCA jack)


• Electronic Bass, Treble, Balance & Fader Controls


• White dimmable LED backlit controls


• Stereo line level audio output zone A (rear RCA jacks)


• 24 Watts maximum


• Clock with alarm & sleep timer


• Wireless Remote Control Included


• 5.25"W x 4.6"H x 3.5"D

• Tuner Range: 87.5-107.9 Mhz


• Sensitivity: <4 V


• Stereo Separation @ 1kHz: >25 dB

• Tuner Range: 530-1710 kHz


• Sensitivity: <63 V

• Output Power: 4x 6 Watts


• Output Impedance: Compatible with 4-8 ohms speakers, 4 ohm load minimum


• Total System Power: 24 Watts Maximum

• Power Supply Requirements: DC 12 Volts, Negative Ground


• Operating Voltage: 10 to16 VDC


• Current Draw @ 12V: Quiescent 0A, Standby 110mA, Nominal 3A, Maximum 8A


• Operating Temperature Range: -4°F to 149°F -20°C to 65°C


• Storage Temperature Range: -22°F to 158°F -20°C to 70°C


• Maximum Relative Humidity: 95%

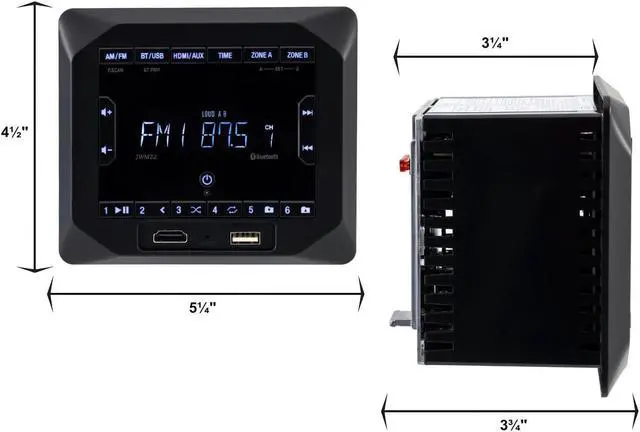

• Overall Dimensions: 5.25" (W) x 4.6" (D) x 3.5" (H)

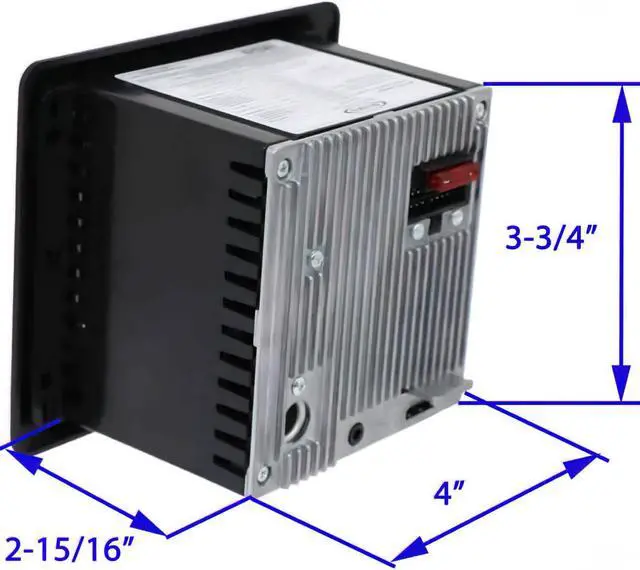

• Mounting Dimensions: 96.8mm (W) x 73.8mm (D) x 99.9mm (H)


• Product Weight (unpackaged): 1.0 lb


• Weight: 0.77 lbs

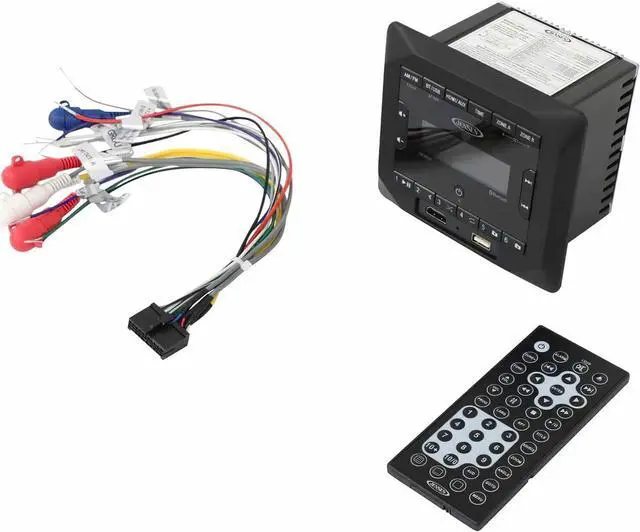

• Jensen JWM22 Stereo


• Quick Reference Guide


• User Manual


• Remote Control with Battery


• 20 Pin Power/Speaker Wire

*Installation Tools and Hardware not included
