Proscenium PR-LOC4.4-PRO 4-Channel Active Line Output Converter with Bass Boost and 40V Input
- 4-channel: 4 in, 4 out
- This supplemental product will directly plug into the PRO series LOCs and Line driver
- Bass Boost: 0dB + 12dB (rear channels)
- Low pass filter: <250Hz (rear channels)
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

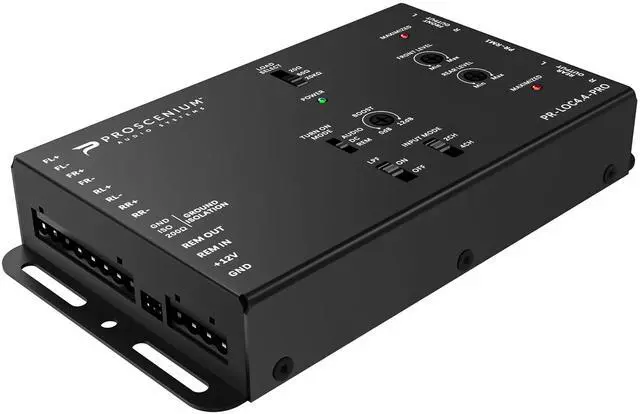

Proscenium PR-LOC 4.4 -PRO 4-Channel Active Line Output Converter with Bass Boost and 40V Input
This 4-channel Active LOC with Bass Boost has universal applications and enables installers to add aftermarket amplifiers to OEM source units for enhanced sound quality. This advanced technology features incredible input power capabilities, a load selector, clip indicator, enhanced output controls, and noise isolation countermeasures. This supplemental product will directly plug into the PRO series LOCs and Line driver.
Product Highlights:
Condition: New
4-channel: 4 in, 4 out
Line driver
Max input level: 40V / 400W @20K Ohm
Operating voltage: 9V-16V
Trigger selection: REM / DC / AUDIO
Remote Output Rating 500mA
Turn on trigger (DC): 3V-7V
Output max @ 13.8V: 9.5VKEY _TAB RMS
Input impedance selection: 20 / 60 / 20k Ohm
Ground selection: GND / ISO / 200 Ohm
Independent Front/Rear Gain adjustment: – 28dB to +1dB
Input sensitivity: 0.5V -20V
Signal to noise: >110dB @ 6.4V output
THD+N (Total Harmonic Distortion): <0.01%
Frequency response: 20Hz-20kHz
Low pass filter: <250Hz (rear channels)
Bass Boost: 0dB + 12dB (rear channels)
This 4-channel Active LOC with Bass Boost has universal applications and enables installers to add aftermarket amplifiers to OEM source units for enhanced sound quality. This advanced technology features incredible input power capabilities, a load selector, clip indicator, enhanced output controls, and noise isolation countermeasures. This supplemental product will directly plug into the PRO series LOCs and Line driver.
Product Highlights:
Condition: New
4-channel: 4 in, 4 out
Line driver
Max input level: 40V / 400W @20K Ohm
Operating voltage: 9V-16V
Trigger selection: REM / DC / AUDIO
Remote Output Rating 500mA
Turn on trigger (DC): 3V-7V
Output max @ 13.8V: 9.5VKEY _TAB RMS
Input impedance selection: 20 / 60 / 20k Ohm
Ground selection: GND / ISO / 200 Ohm
Independent Front/Rear Gain adjustment: – 28dB to +1dB
Input sensitivity: 0.5V -20V
Signal to noise: >110dB @ 6.4V output
THD+N (Total Harmonic Distortion): <0.01%
Frequency response: 20Hz-20kHz
Low pass filter: <250Hz (rear channels)
Bass Boost: 0dB + 12dB (rear channels)
