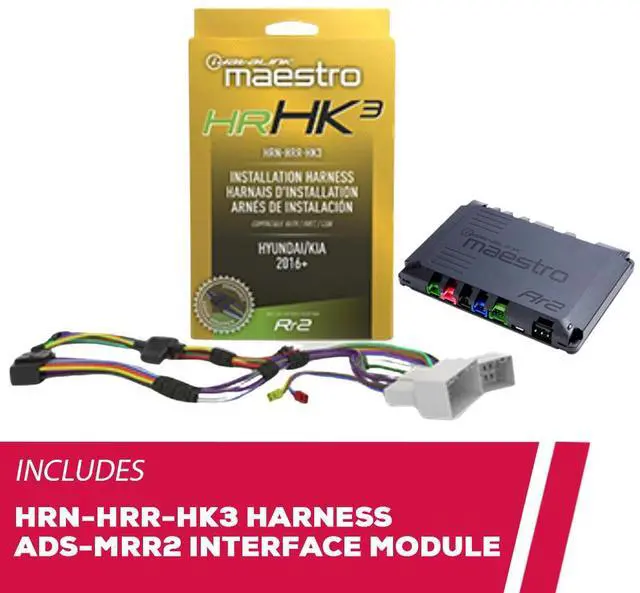

iDatalink HRN-HRR-HK3 Radio Replacement Harness with ADS-MRR2 Interface Module

iDatalink HRN-HRR-HK3 Radio Replacement Harness with ADS-MRR2 Interface Module

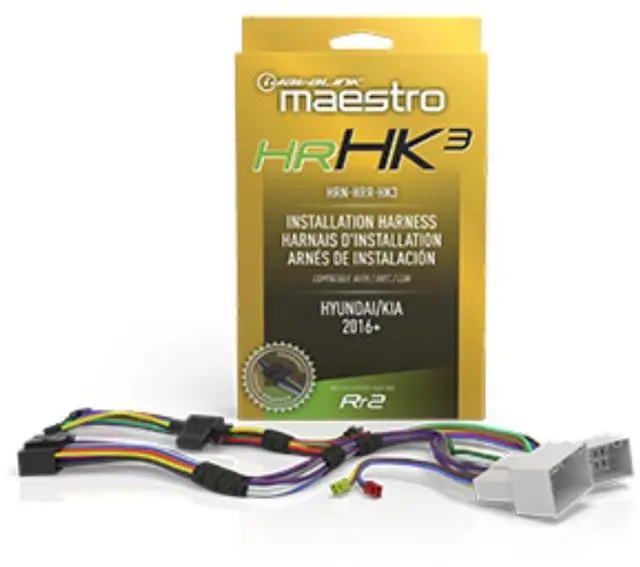

The iDatalink HRN-HRR-HK3 installation harness is designed exclusively for use with the Maestro RR2 module and is compatible with select 2016+ Hyundai and Kia vehicles. It supports both non-amplified and amplified systems (RSPDIF is required to retain the factory amplifier, which is sold separately). This harness retains key factory features including the backup camera, steering wheel controls, hard panel radio controls, and audio/phone data in the instrument cluster. Optional head unit adapters are available for most major radio brands to ensure a simplified installation.

Product Highlights:

• Condition: New


• Designed for select Hyundai and Kia vehicles


• Compatible with Maestro ADS-MRR or ADS-MRR2 module


• Retains steering wheel audio controls


• Keeps factory backup and front/side cameras (receiver must support second camera input)


• Preserves Rear Seat Entertainment system


• Maintains climate status display


• Provides parking brake output for NAV receivers


• Includes reverse and VSS (Vehicle Speed Sensor) outputs


• Displays engine and vehicle performance data on touchscreen

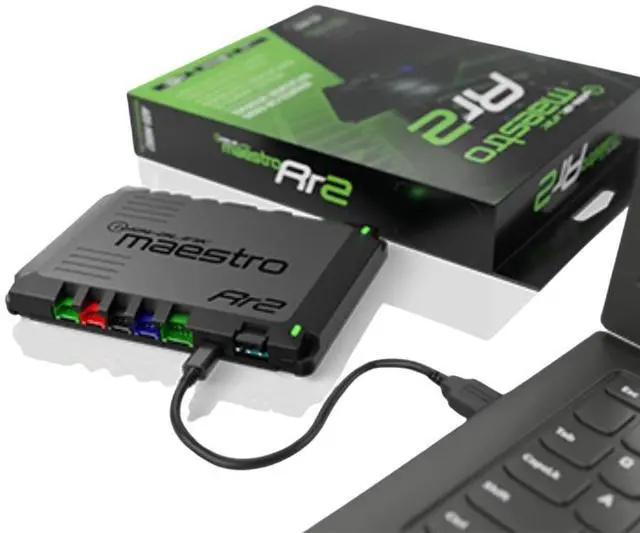

iDatalink ADS-MRR2 Interface Module:

• Condition: New


• Compatible with select 2006 and newer Chrysler, Fiat, Ford, GM, Honda/Acura, Subaru, Toyota/Scion, and Volkswagen models


• Advanced radio replacement interface for improved infotainment retention


• Offers exclusive screens and infotainment features like the Maestro RR


• Bluetooth programming available directly from iOS and Android devices


• Retains basic radio functions with non-iDatalink-compatible radios


• Requires select accessories and aftermarket radios (sold separately)
