Standard Technical Specifications

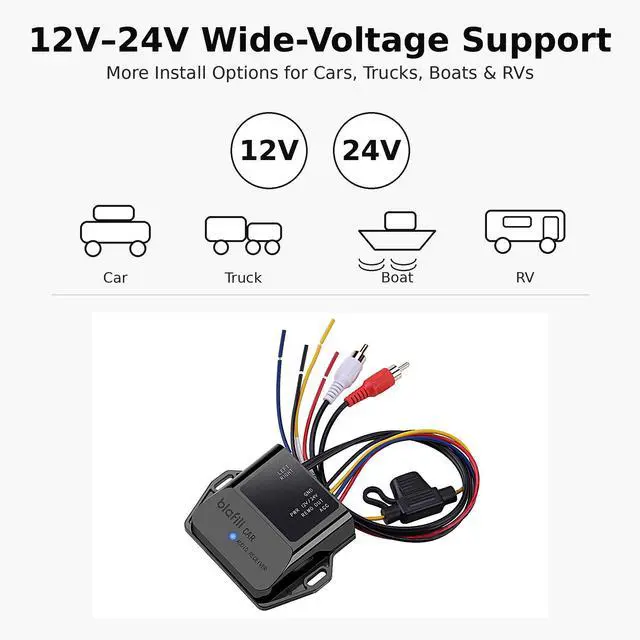

Works with 12V & 24V Systems
Perfect for cars, trucks, boats, and power sport audio. Integrated 2A fuse helps prevent damage from power surges or accidental short circuits. Note: The remote trigger output voltage matches the system's power input. If using a 24V system, ensure the connected amplifier can accept 24V trigger signals or add a voltage regulator to protect the amplifier.

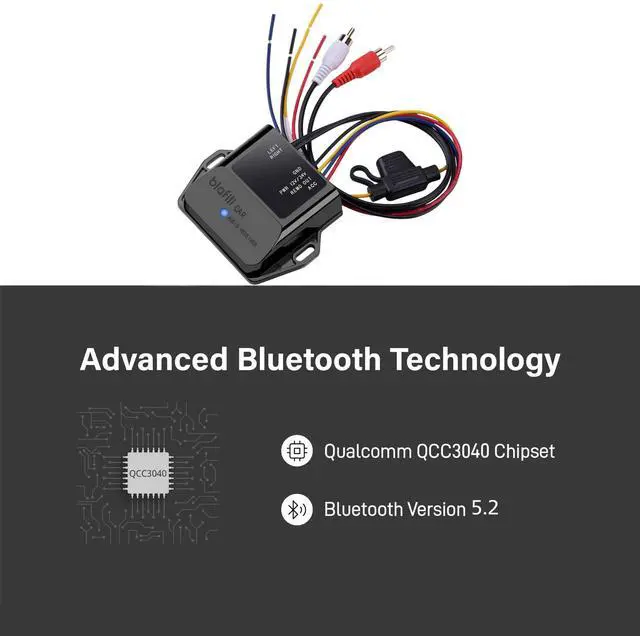

Bluetooth 5.2 with Qualcomm QCC3040
Powered by the Qualcomm QCC3040 Bluetooth 5.2 chipset, blafili CAR offers faster wireless transmission, lower latency, and extended connection range — ideal for high-performance car, marine, and motorcycle audio systems.
Stereo RCA Output & Remote Trigger Wire Support (Music-Activated)
- The blue remote trigger wire provides an output only while audio is actively playing via Bluetooth. This feature ensures that your amplifier or powered speaker system is triggered only when needed, preventing unwanted power cycling during idle periods.
- RCA output ensures clean stereo audio transmission directly to your amp or powered speakers.

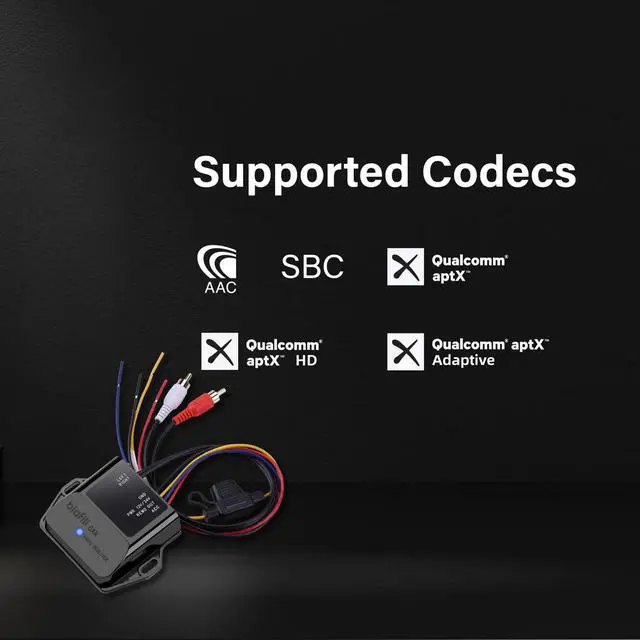

Premium Audio Codecs
Supports aptX Adaptive, aptX HD, aptX, AAC, SBC for Hi-Fi sound. While blafili CAR doesn't include a built-in EQ app, it seamlessly passes high-quality audio to your amplifier or head unit. To shape your sound—bass, treble, and more—simply use your phone’s or mixer’s EQ settings. For best results, pair it with an audio system that supports EQ adjustments.
ACC Auto Power-On Control

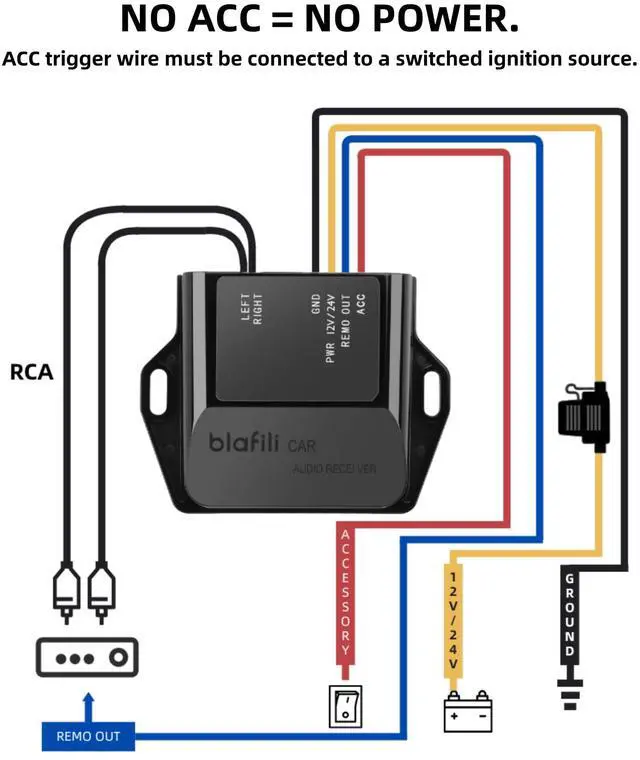

Turns on/off with your ignition – no manual switch needed. The blafili CAR Bluetooth receiver requires both the **+12V (or +24V)** power( YELLOW ) and the **ACC (accessory/ignition) line( RED )** to be properly connected in order to power on. Without the ACC line receiving voltage (typically when the ignition is on), the unit will remain off by design.
Easy Installation & Versatile Mounting Options
The compact design and included wiring make it easy to mount blafili CAR behind a dashboard, in a glovebox, or directly onto a wall. Perfect for custom car, marine, or motorcycle audio setups.
 blafili B3 |  blafili XLR |  blafili CAR |  blafili 6dot35 |  blafili Bicast | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| Target Scenario | HiFi systems, mixers | Mixers, PA/DJ consoles | Car / marine / motorcycle audio | Mixers, active PA speakers | Mixers, PA/DJ consoles |
| Audio Direction | Bluetooth-In Only (No Transmit) | Bluetooth-In Only (No Transmit) | Bluetooth-In Only (No Transmit) | Bluetooth-In Only (No Transmit) | Bluetooth-Out Only(No Receive) |
| Audio Output | XLR, RCA, COAX, OPTICAL | XLR | RCA | 6.35mm (1/4 inch) TRS Audio Jack | Bluetooth Only |
| Audio Input | Bluetooth & USB Audio | Bluetooth & USB Audio | Bluetooth ONLY | Bluetooth & USB Audio | XLR & USB Audio |
| TWS Mode | N/A | ? | N/A | ? | N/A |
| Power Supply | USB-C (5V) | USB-C (5V) | 12V/24V car power (ACC trigger supported) | USB-C (5V) | USB-C (5V) |
| Built-in Battery | N/A | ? | N/A | ? | ? |
| Mounting Type | Desktop | Portable or panel | Hidden (behind dash) | Portable or panel | Portable or panel |
| Bluetooth Password Setting | ? | N/A | N/A | N/A | N/A |
| Custom Bluetooth Name | ? | ? | N/A | ? | N/A |
blafili - wireless your life
blafili B3
High-Fidelity Bluetooth Receiver with USB-C Input & XLR/RCA/COAX/OPTICAL Outputs
blafili XLR
Bluetooth Audio Receiver with Balanced XLR Output for Professional Sound Systems
blafili CAR
Wire-Free Music for Car, Boat & Motorcycle Audio Systems
blafili 6dot35
Bluetooth Audio Receiver with 1/4" TRS for Mixers, Amps, and PA Speakers
blafili BiCast
Bluetooth Audio Transmitter with XLR female for Mixers, Amps, and PA Speakers
Difficult to sync with TV ?
You will need to turn off Bluetooth on other devices first, as the blafili B3 can only connect to one device at a time.
Doesn't connect sometimes when used with wireless mic system ?
Yes, you need to turn the wireless microphone off first when you want to use the blafili product.
Can't get anything to pair with it ?
Our product blafili B3 is a Bluetooth receiver not a Bluetooth transmitter, so it can't pair and connect with Bluetooth headset, Bluetooth speaker, Bluetooth receiver and other devices.
No power / does not light up when power is applied. Is it defective?
For the blafili CAR, this is most commonly caused by a missing ACC connection. The blafili CAR requires the ACC/ignition trigger wire to be connected to a switched vehicle power source. No ACC = no power (no LED).
Does it produce any tones when pairing/unpairing?
All blafili products DO NOT produce any tones when pairing or unpairing. There are no tones produced during these actions.
Is it compatible with USB-C audio output?
No. blafili B3, blafili XLR, blafili 6dot35 support USB-C audio input (from a computer), not USB-C output.
Standard Technical Specifications
| Bluetooth Version | Bluetooth 5.2 |
| Supported Bluetooth Codecs | SBC, AAC, aptX, aptX HD, aptX Adaptive |
| Bluetooth Range | Up to 30 m / 100 ft |
| Supported Profiles | A2DP, AVRCP |
| Bluetooth Chipset | Qualcomm QCC3040 |
| Audio Input | Bluetooth only |
| Audio Output | RCA line out |
| Power Supply | Vehicle 12–24V DC |
| ACC Auto ON/OFF | Yes |
| Wiring | Red (ACC), Yellow (12V/24V with Inline 2A Fuse), Black (GND), Blue (Remote Out / Trigger Output), RCA Audio Output |
| Waterproof | IP65 (water & dust resistant) |
| Auto Reconnect | Yes |
| LED Indicators | Power / Pairing status |
| Safety | Do not remove the fuse. Replacing it with a higher amp rating may damage the device. |
| Fuse Type | It includes a pre-installed 2A inline fuse for safety and protection against overcurrent or short circuits. |
