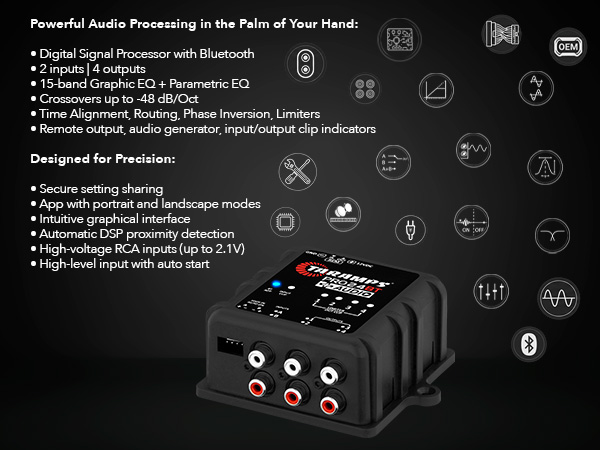

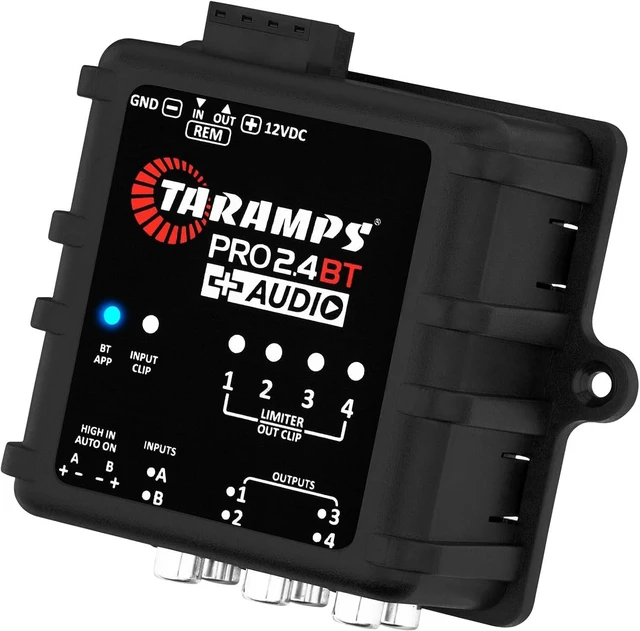

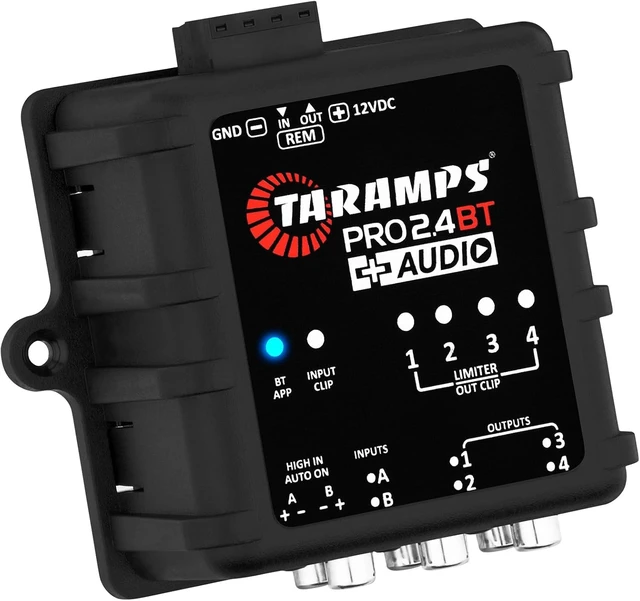

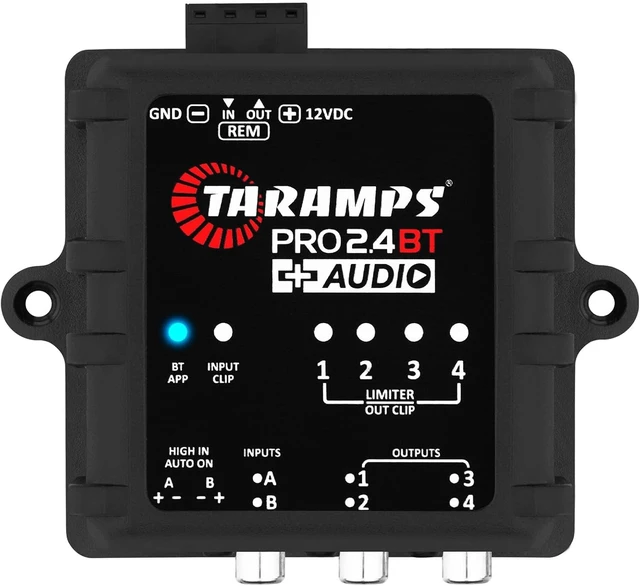

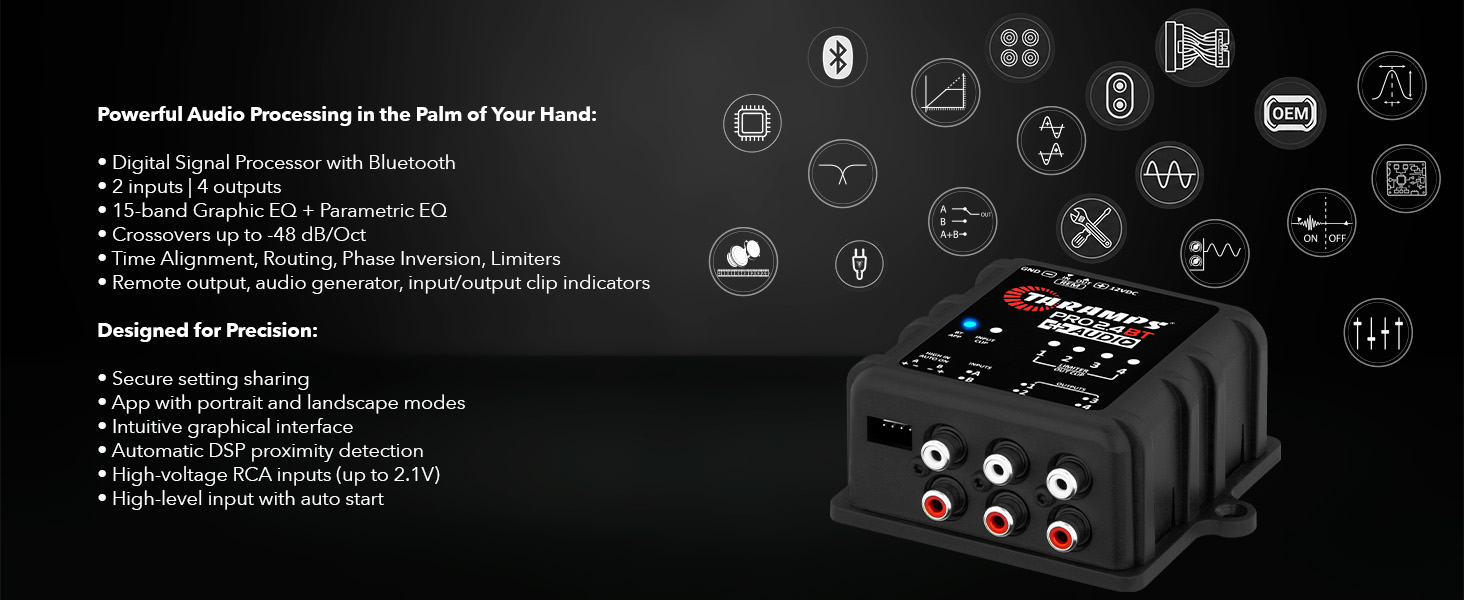

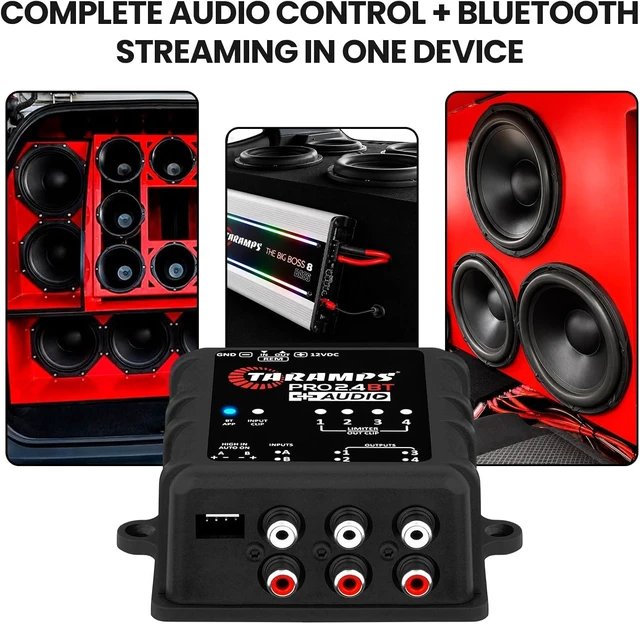

Digital Audio Processor DSP PRO 2.4 BT+ Audio
Learn More About the DSPs and Crossover
 DSP PRO 2.4BT + Audio |  DSP Pro 2.4 BT |  DSP Pro 2.4S |  DSP Pro 2.4D Dynamic Peak |  DSP Pro 2.8S | |
|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — |
Price | — | — | — | — | — |
Input Channel | 2 | 2 | 2 | 2 | 2 |
Output Channel | 4 | 4 | 4 | 4 | 8 |
Bands | 15 | 15 | 15 | 5 | 15 |

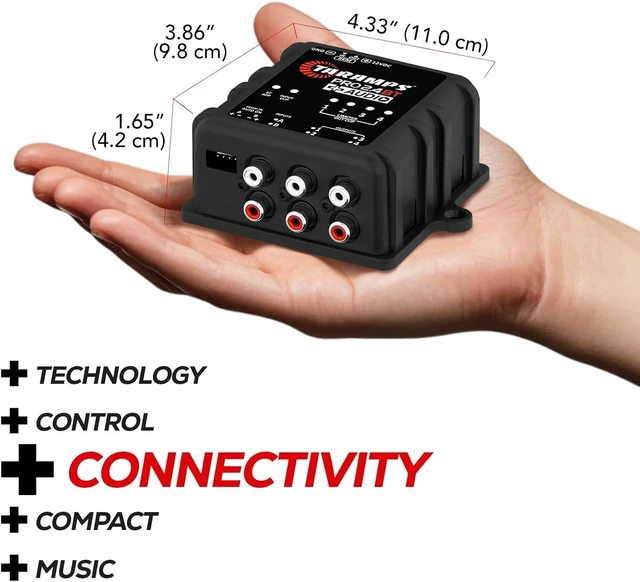

Dimensions | 4.33" x 1.65" x 3.86" | 7.80" x 1.38" x 5.12" | 7.80" x 1.46" x 4.45" | 7.80" x 1.46" x 4.45" | 7.80" x 1.46" x 4.45" |
Weight | 0.24lb | 0.95lb | 0.99lb | 0.99lb | 0.99lb |
PRO 2.4 BT + AUDIO MAIN SPECS
Can I use the PRO 2.4BT + Audio without a head unit?

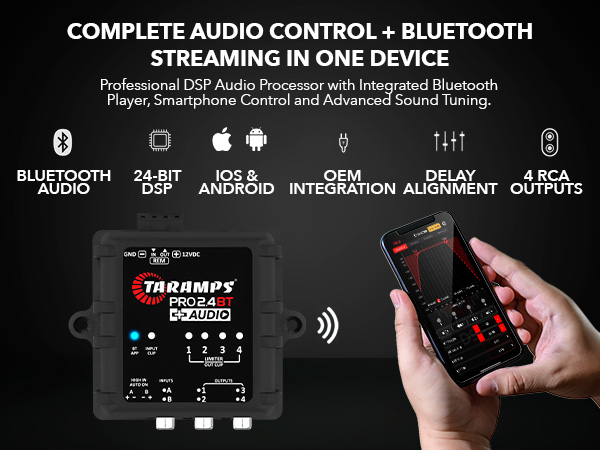

Yes. The integrated Bluetooth A2DP audio player allows you to stream music directly from your smartphone, eliminating the need for a traditional head unit while maintaining full DSP control and audio processing.

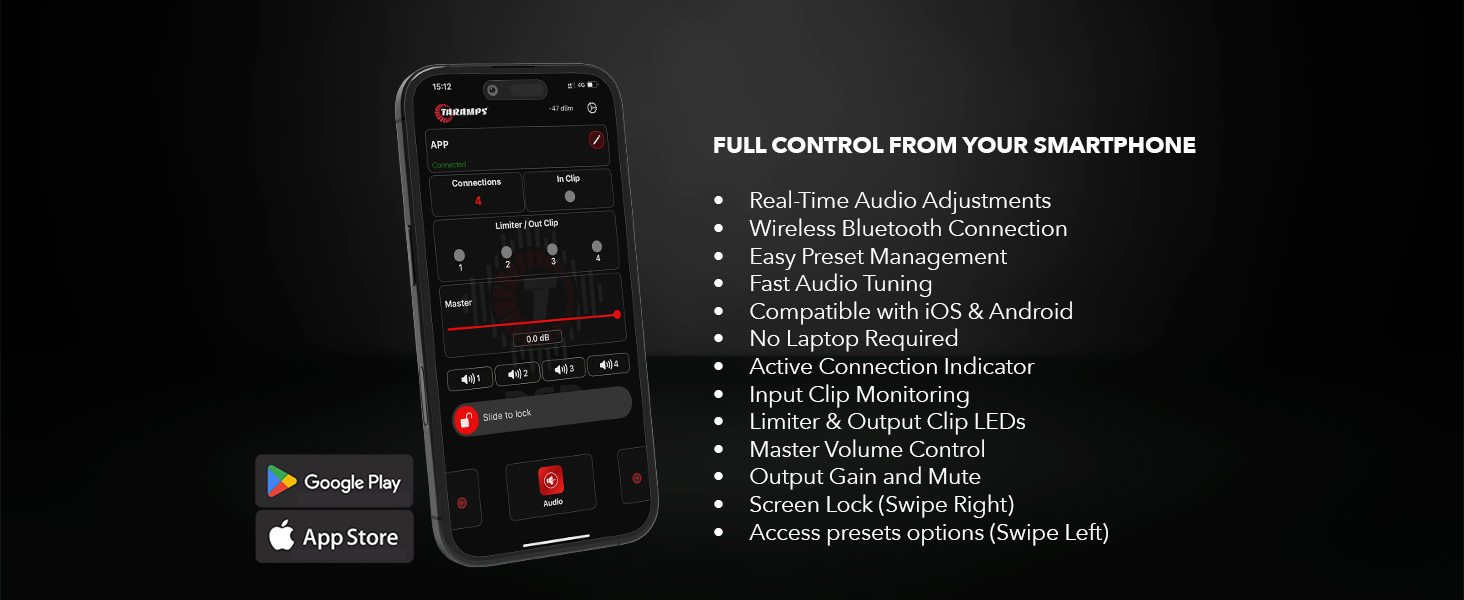

Does the PRO 2.4BT + Audio support both Bluetooth music streaming and app control simultaneously?

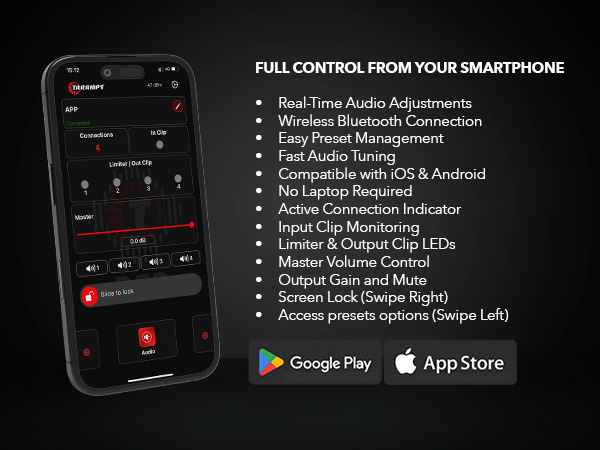

Yes. The processor uses dual Bluetooth connectivity, allowing one connection for audio streaming and another for app control and tuning adjustments at the same time.
Is the PRO 2.4BT + Audio compatible with factory OEM radios?

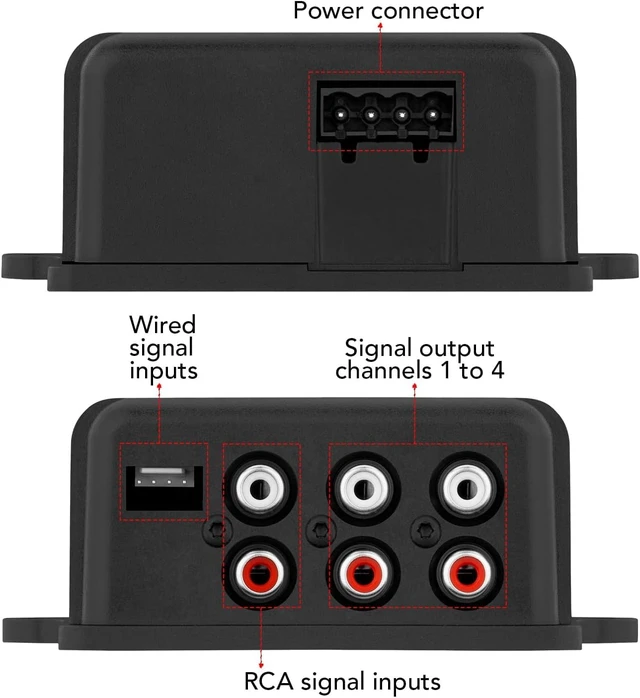

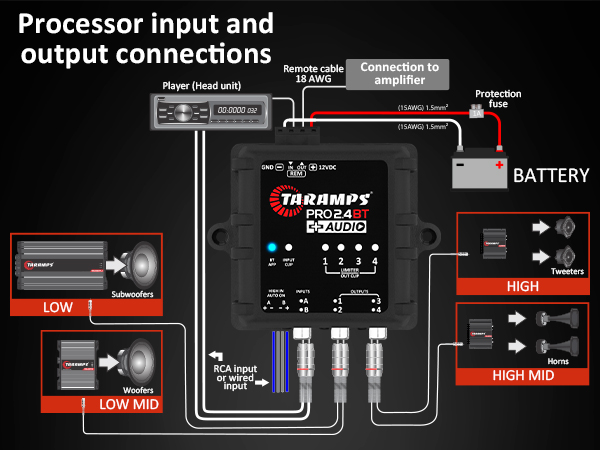

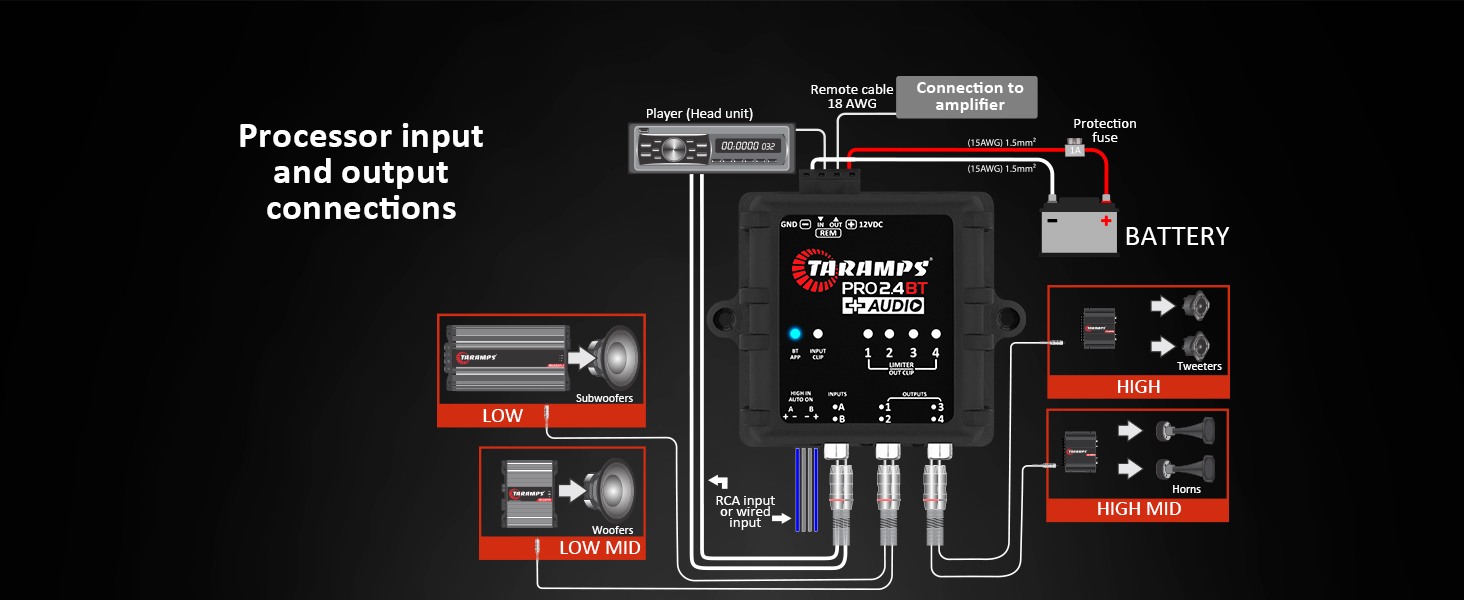

Yes. With both RCA and high-level inputs, it can be integrated with factory radios, OEM multimedia systems, and aftermarket head units.
Can I save multiple custom tuning presets?
Yes. The processor includes factory presets plus three customizable memory positions, allowing you to save and quickly switch between different audio tuning profiles.

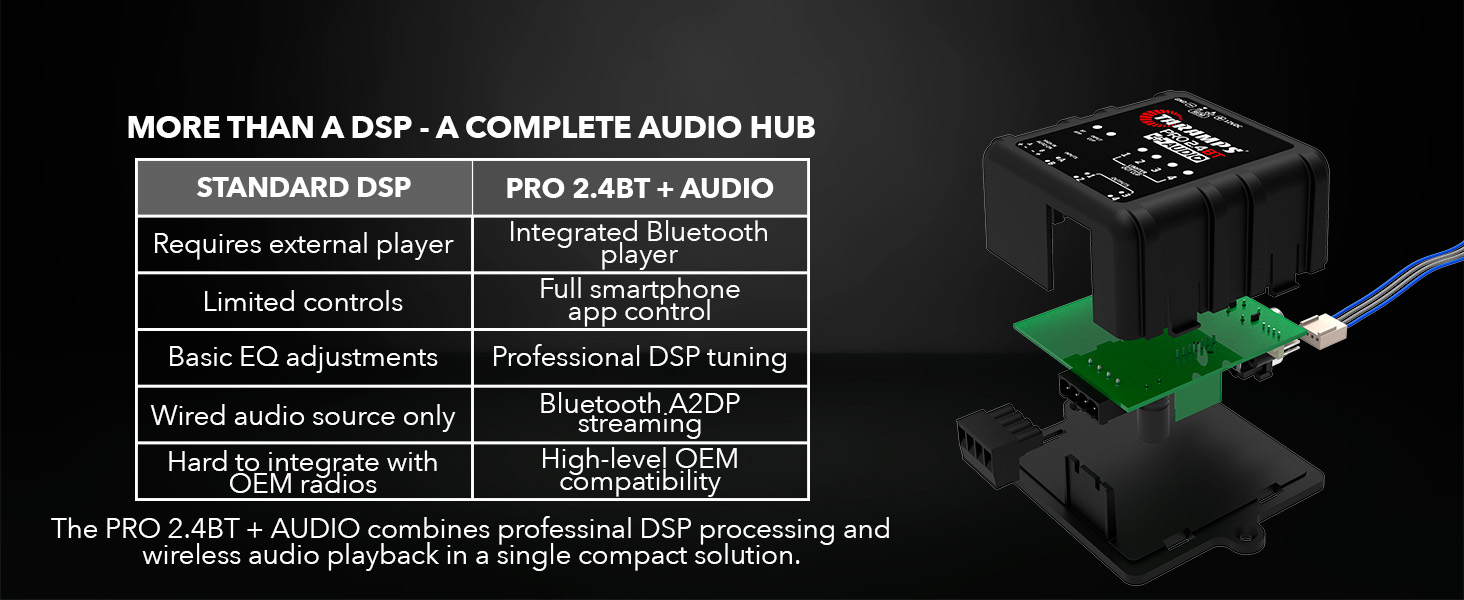

What makes the PRO 2.4 BT + Audio different from other DSP processors?
The PRO 2.4 BT + Audio includes an exclusive Android feature that allows a single smartphone to simultaneously manage two complete audio systems.
Digital Audio Processor DSP PRO 2.4 BT+ Audio
Learn More About the DSPs and Crossover
DSP PRO 2.4BT + Audio | DSP Pro 2.4 BT | DSP Pro 2.4S | DSP Pro 2.4D Dynamic Peak | DSP Pro 2.8S |
|---|---|---|---|---|
| Customer Reviews | ||||
| — | — | — | — | — |
| Price | ||||
| — | — | — | — | — |
| Input Channel | ||||
| 2 | 2 | 2 | 2 | 2 |
| Output Channel | ||||
| 4 | 4 | 4 | 4 | 8 |
| Bands | ||||
| 15 | 15 | 15 | 5 | 15 |
| Dimensions | ||||
| 4.33" x 1.65" x 3.86" | 7.80" x 1.38" x 5.12" | 7.80" x 1.46" x 4.45" | 7.80" x 1.46" x 4.45" | 7.80" x 1.46" x 4.45" |
| Weight | ||||
| 0.24lb | 0.95lb | 0.99lb | 0.99lb | 0.99lb |
PRO 2.4 BT + AUDIO MAIN SPECS
| Resolution | 24bits |
|---|---|
| Sampling Rate | 48KHz |
| Input Channel | 2 |
| Output Channel | 4 |

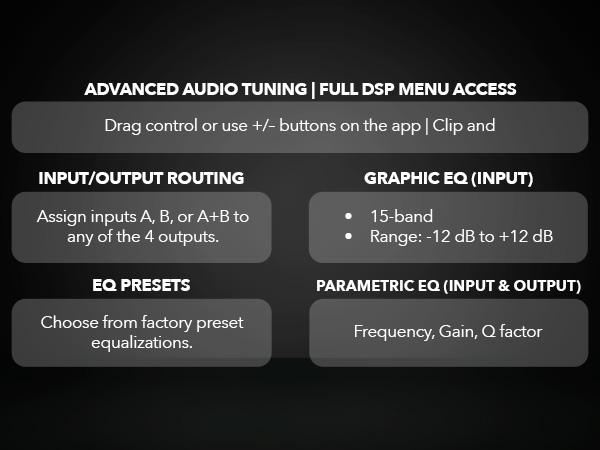

| Routing | A, B, A+B |
| General GAIN Adjustment | -80 to 0dB |
| Output GAIN Adjustment | -45 to +15dB |
| Input Impedance (RCA) | 10K Ohms |
| Input Impedance (High Level) | 50 Ohms |
| Output Impedance | 47 Ohms |
| MAX Input Level (RCA) | 5.9Vpp (2.1V RMS) |
| MAX Input Level (High Level) | 28Vpp (10V RMS) |
| MAX Output Level | 5,9Vpp (2,1V RMS) |
| Frequency Response (-1dB) | 10Hz to 22KHz |
| Total Harmonic Distor. | 0,01% |
| Signal / Noise Radio | >90dB |
Can I use the PRO 2.4BT + Audio without a head unit?
Yes. The integrated Bluetooth A2DP audio player allows you to stream music directly from your smartphone, eliminating the need for a traditional head unit while maintaining full DSP control and audio processing.
Does the PRO 2.4BT + Audio support both Bluetooth music streaming and app control simultaneously?
Yes. The processor uses dual Bluetooth connectivity, allowing one connection for audio streaming and another for app control and tuning adjustments at the same time.
Is the PRO 2.4BT + Audio compatible with factory OEM radios?
Yes. With both RCA and high-level inputs, it can be integrated with factory radios, OEM multimedia systems, and aftermarket head units.
Can I save multiple custom tuning presets?
Yes. The processor includes factory presets plus three customizable memory positions, allowing you to save and quickly switch between different audio tuning profiles.
What makes the PRO 2.4 BT + Audio different from other DSP processors?
The PRO 2.4 BT + Audio includes an exclusive Android feature that allows a single smartphone to simultaneously manage two complete audio systems.
