Jensen JWM70A DVD|USB|AUX|HDMI| App Ready Slimline Wallmount RV Stereo, jControl App, 3-Speaker Zone / 8 Speaker (8x 6W), Bluetooth Streaming Audio (A2DP) & Controls (AVRCP), iPod & iPhone Compatible

ASA Electronics is making it easier than ever to integrate technology into the RV with the JENSEN® JWM70A. This wallmount stereo is App Ready with Bluetooth connectivity for the most versatile listening experience possible. Campers can wirelessly pair any Bluetooth-enabled smart device with the JWM70A and stream their own personal music library. With the jControl app from JENSEN®, RV enthusiasts will be able to listen to their favorite music and control it, too.

The jControl app, available as a free download for both Android and Apple devices, turns a smartphone into a wireless remote control. This includes the industry-first independent volume control of three speaker zones, allowing for louder volume outside and a softer sound in interior living areas. jControl will sync with the JWM70A to remember preferred settings and the stereos 18 FM and 12 AM radio station presets.

The JWM70A was engineered with the tech-savvy camper in mind. Notable tech features include a USB input capable of charging iPhones and Androids and an easy to use DVD player that supports a wide variety of formats. The jCOM HDMI interface allows the DVD player in the JWM70A to communicate directly with JENSEN® TVs to automatically detect DVDs.

This top of the line wallmount stereo is finished with beveled edges on the control panel to add a sophisticated modern look while hiding the stereos mounting screws. The JWM70A is complete with a front audio auxiliary input, two video outputs, an RCA output, and a clock with alarm and sleep timer.

• App Ready - Control all primary functions of stereo from most Bluetooth-enabled devices with JENSEN jControl app


• Bluetooth streaming audio (A2DP) and controls (AVRCP)


• iPod/iPhone ready (via Bluetooth)


• USB playback of MP3 and WMA


• Plays CD/CD-R/CD-RW/DVD/DVD+R/DVD RW/DVD-R/DVD-RW/MP3


• jCOM HDMI interface with all JENSEN TVs automatically detects DVDs, simplifying operation


• 18 FM and 12 AM station presets


• Three Speaker zones (A/B/C) with independent volume control


• Electronic Bass, Treble, Balance and Fader Controls


• Eight speaker outputs (8 x 6W RMS; 4 ohm)


• A/V AUX input (front-3.5 mm)


• Audio AUX input (rear-RCA)


• Fixed RCA output and variable RCA output (rear)


• Two video outputs (HDMI, RCA)


• White LED backlit controls and LCD panel with 10 dimming levels


• Clock with alarm/sleep-timer


• Wireless Remote Control Included

• Frequency Coverage (USA): 87.5 to 107.9 MHz


• Frequency Coverage (Europe): 87.5 to 108 MHz


• Sensitivity: <4


• Stereo Separation at 1 kHz: >25 dB

• Frequency Range (USA): 530-1710 kHz


• Frequency Range (Europe): 522-1620 kHz


• Sensitivity (S/N=20dB): <63

• Output Power: 6W x 8


• Output Impedance: Compatible with 4-8 ohms speakers, 4 ohm load minimum

• Frequency Response: 20-20,000 Hz


• Channel Separation: 50 dB


• S/N Ratio: 65 dB


• Distortion: 0.5%

• Power Supply Requirements: DC 12 Volts, Negative Ground


• Operating Voltage: 10-16 VDC


• Overall Dimensions: 10.4" (W) x 3.8" (D) x 7.7" (H)


• Mounting Dimensions: 9.3" (W) x 6.11" (D) x 5.12" (H)


• Weight: 3.75 lbs

• Power System: 12V DC (2-Wire)


• Operating Voltage Range: 10 ~ 16V


• Current Draw @ 12V: Quiescent 0mA; Standby 115mA; Maximum 6.0A


• Operating Temperature Range: -4°F to 149°F, -20°C to 65°C


• Storage Temperature Range: -22°F to 158°F, -30° to 70°C


• Operating Relative Humidity: 95%


• Overall Package Dimensions: 10.4" x 3.75" x 6.5"


• Product Weight (unpackaged): 5 lbs.

• FM Sensitivity: 2 uV


• AM Sensitivity: 15 uV


• CD Frequency Response: 20Hz to 20kHz


• CD SIgnal to Noise: 79 dB


• CD Skip Threshold (Random Freq. Profile): 3 seconds buffer


• Speaker Level Power Output: 8 x 6W rms


• Maximum Output Power: 50 Watts Total


• Total Harmonic Distortion: 1 %


• Applied Test Suite: ASA ES0001


• Regulatory Certifications: FCC Part 15B, BT, Apple

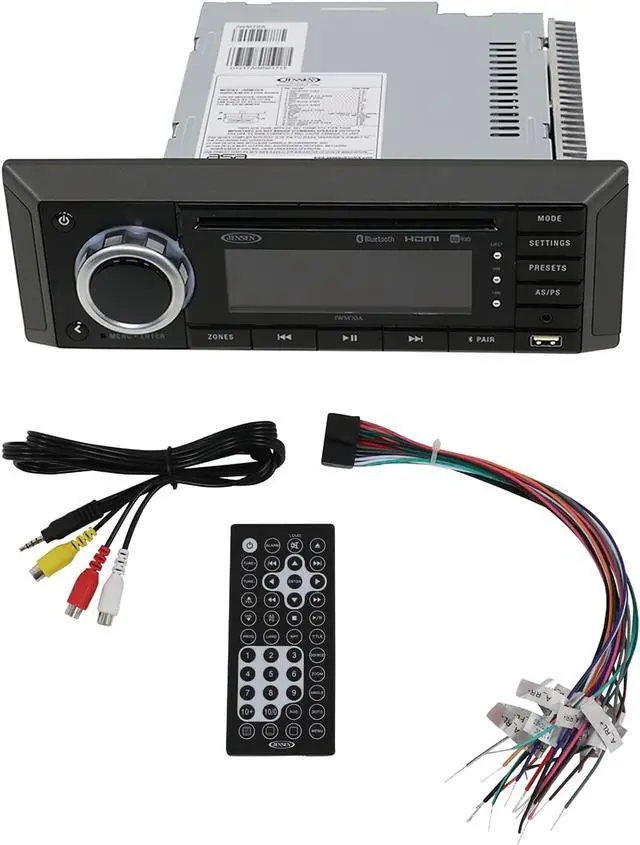

• JWM70A Stereo


• Wireless Remote Control


• 20-PIN Power & Speaker Wire Harness


• AUX Audio/Video Cable


• Left & Right Screw Cover
