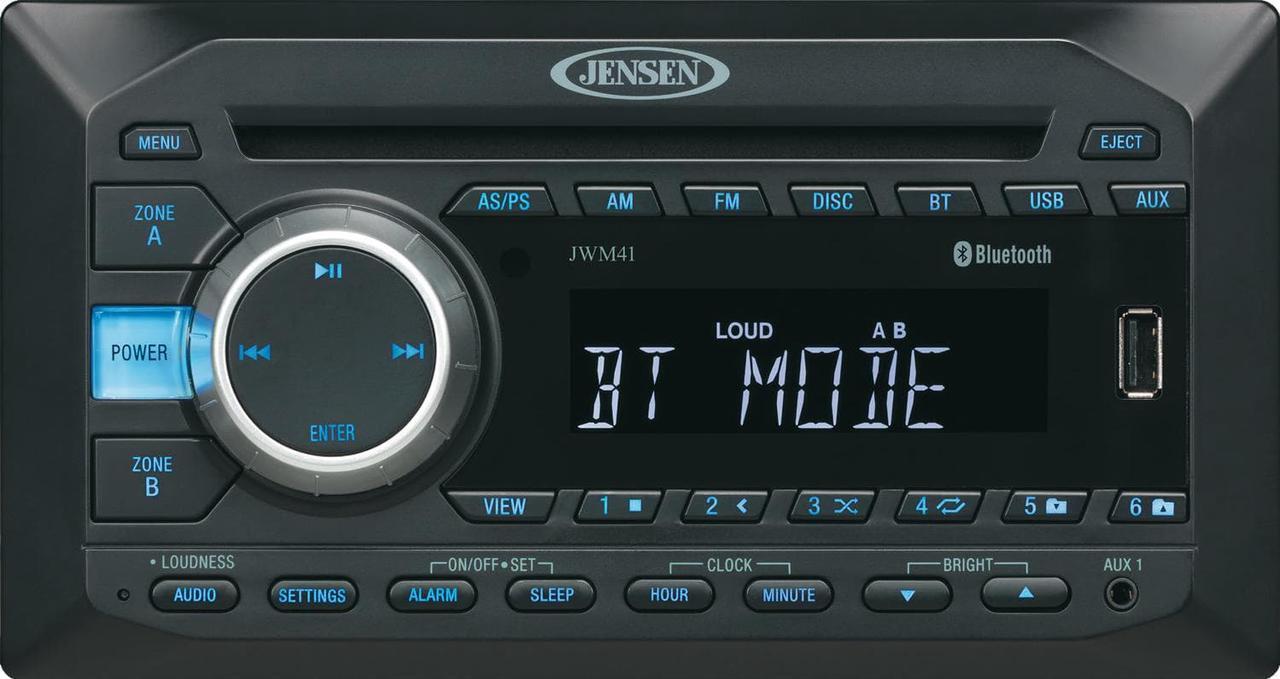

Jensen JWM41 AM/FM|DVD|CD|USB|AUX| Bluetooth (A2DP & AVRCP) Wallmount Stereo, 2-Speaker Zone / 4 Speakers, Plays: CD, CD-R, CD-RW, DVD, DVD+RW, DVD-RW, DVD-Video, MPEG-4, VCD, JPEG, CD-DA, MP3, WMA
IMPORTANT: Make sure Transport/Shipping Screw has been removed from Rear of Unit! The "Transport/Shipping Screw" protects the DVD Player during shipping, but must be removed in order to use the DVD Player. Disc will load for several seconds and then eject if Transport/Shipping Screw has not been removed. Make sure you read the Owners Manual before installing the Stereo!

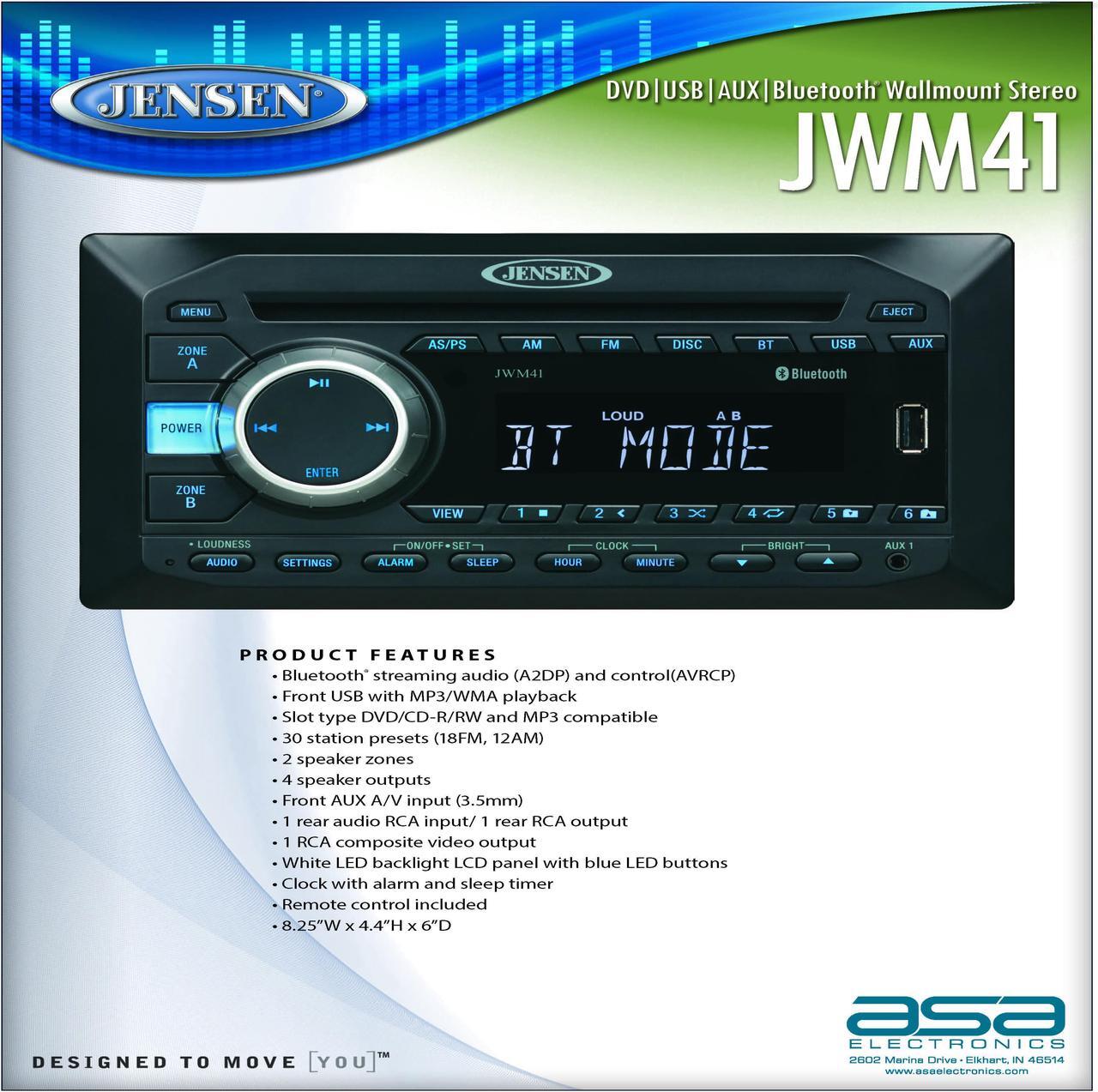

Jensen JWM41 Key Features
- Digital AM/FM Tuner/30 Preset stations (12 AM/18 FM)
- Bluetooth streaming audio (A2DP) and control(AVRCP)
- Front USB with MP3/WMA playback
- Slot type DVD/CD-R/RW and MP3 compatible
- 30 station presets (18FM, 12AM)
- Skip Protected Disc Mechanism
- 2 speaker zones
- 4 speaker outputs
- Electronic Bass, Treble, Balance and Fader Controls
- Front AUX A/V input (3.5mm)
- 1 Rear audio RCA input
- 1 Rear RCA output
- 1 RCA composite video output
- White LED backlight LCD panel with blue LED buttons
- Clock with alarm and sleep timer
- Remote control included
- 8.25"W x 4.4"H x 6"D
FM Tuner
- Frequency Coverage (USA): 87.5 to 107.9 MHz
- Frequency Coverage (Europe): 87.5 to 108 MHz
- Sensitivity: <4 V
- Stereo Separation@1 kHz: >25 dB
AM Tuner
- Frequency Range (USA): 530-1710 kHz
- Frequency Range (Europe): 522-1620 kHz
- Sensitivity (S/N=20dB): <63 V
Amplifier
- Output Power: 6W x 8
- Output Impedance: Compatible with 4-8 ohms speakers, 4 ohm load minimum
DVD
- Frequency Response: 20-20,000 Hz
- Channel Separation: 50 dB
- S/N Ratio: 65 dB
- Distortion: 0.5%

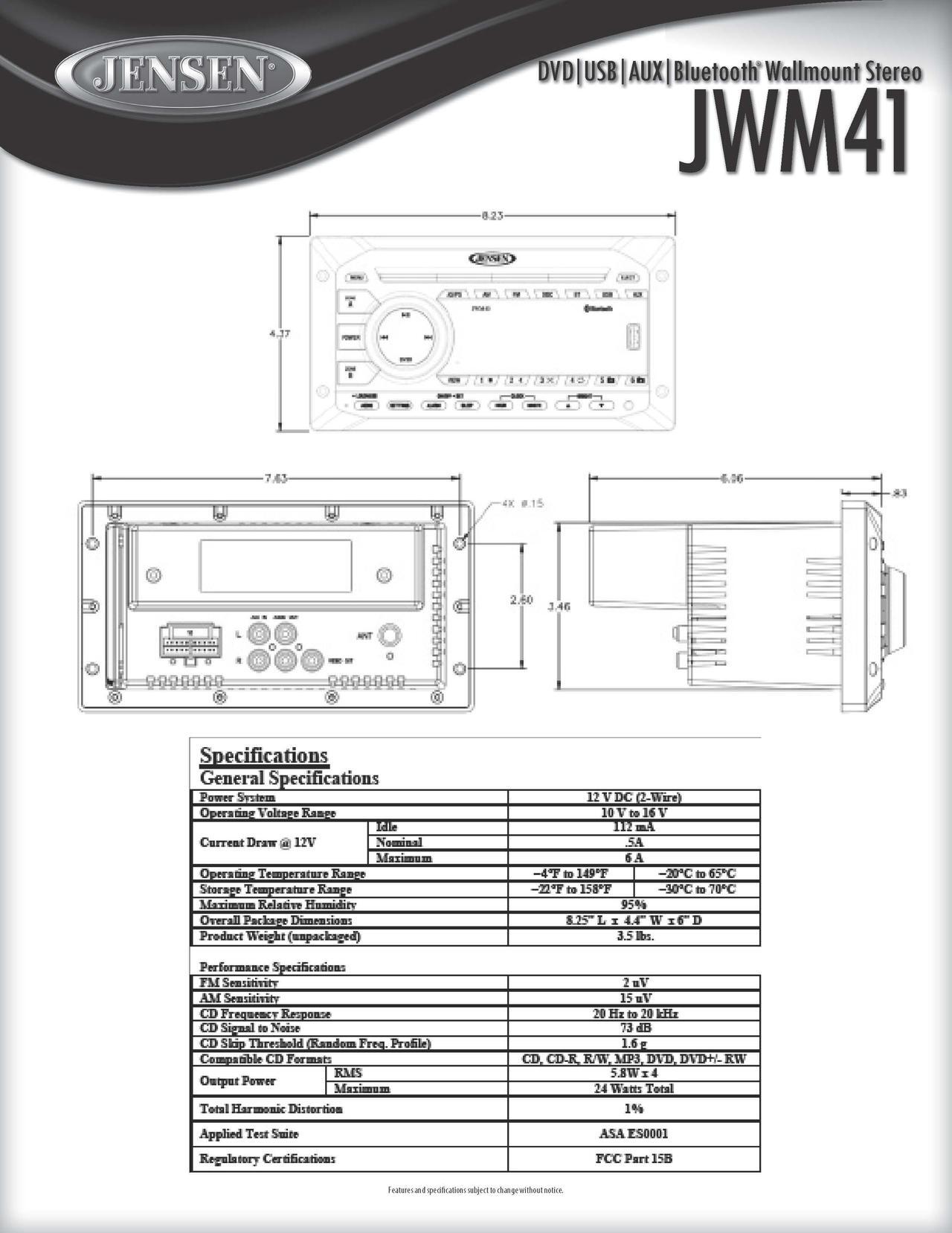

General
- Power Supply Requirements: DC 12 Volts, Negative Ground
- Operating Voltage: 10-16 VDC
- Overall Dimensions: 8.23 (W) x 6.56 (D) x4.37 (H)

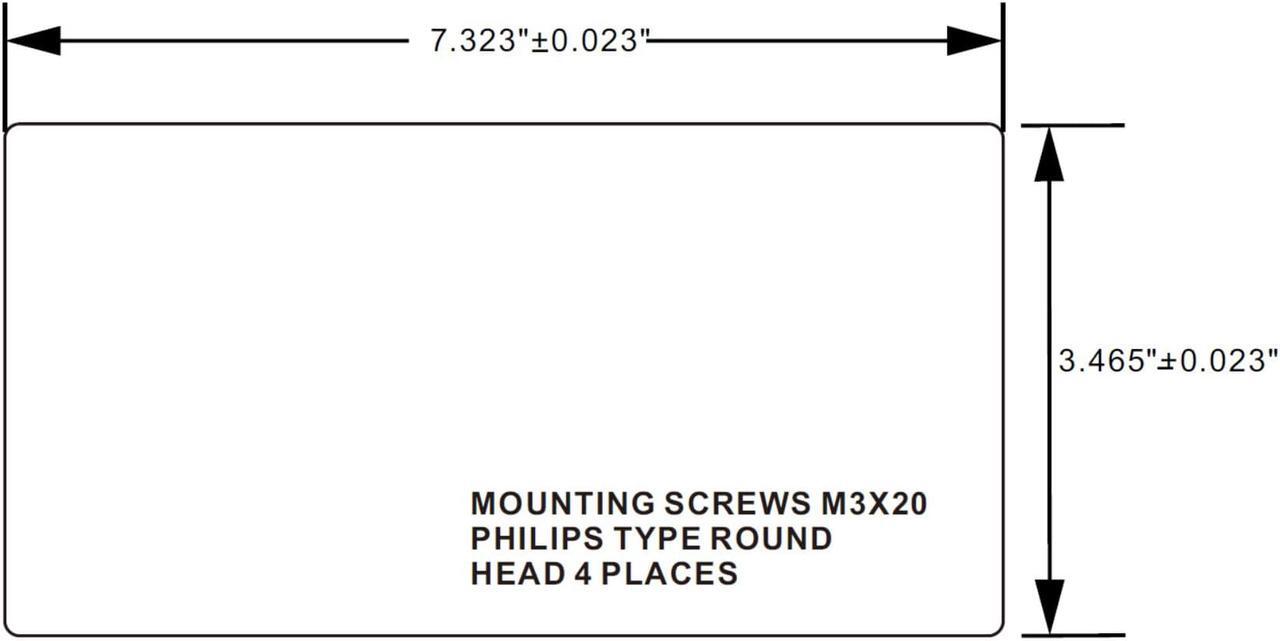

- Mounting Dimensions: 7.09 (W) x 5.24 (D) x 3.47 (H)
- Weight: 2.41 lbs
Package includes
- JWM41 RV Stereo Wall-Mount Receiver
- Wireless Remote Control
- 20-PIN Power & Speaker Wire Harness
- Quick Reference Guide
