IR Remote Control Extender/IR Repeater Kit:


The Cmple Hidden IR Repeater
allows you to use an existing infrared (IR) remote control to operate up to six (6) audio/video (A/V) components
located behind cabinet doors, in the rear of a room, in an entertainment cabinet, equipment closet or in a different room.


Easy Setup

You can link your Hidden IR Repeater system to your A/V equipment in minutes. Place the IR repeater
box in your equipment cabinet, affix one of the 2 included Infrared emitters to each A/V device's IR window,
and mount the IR receiver using the included tape in a location where it can receive your IR remote control's
transmitted signals. Place the IR receiver on a TV, shelf or on an exposed part of the cabinet.
It does need to be in a direct line of sight from your normal seating position when you'll be using
your remote. Use your A/V remote control as usual: the Hidden IR will transmit your command to the correct home
theater component, so you'll be able to use your entertainment devices as usual, even though they'll be hidden from view.


Specifications


IR Receive Freq: 34 kHz to 58 kHz

IR Transmit Freq: 38 kHz and 56 kHz

Range: 100ft @ 38 kHz and 20ft @ 56 kHz

Power Supply: 12 VDC, 200mA

Cord Length: 10ft (3m)

Connector Type: 3.5mm Stereo TRS Mini Plug

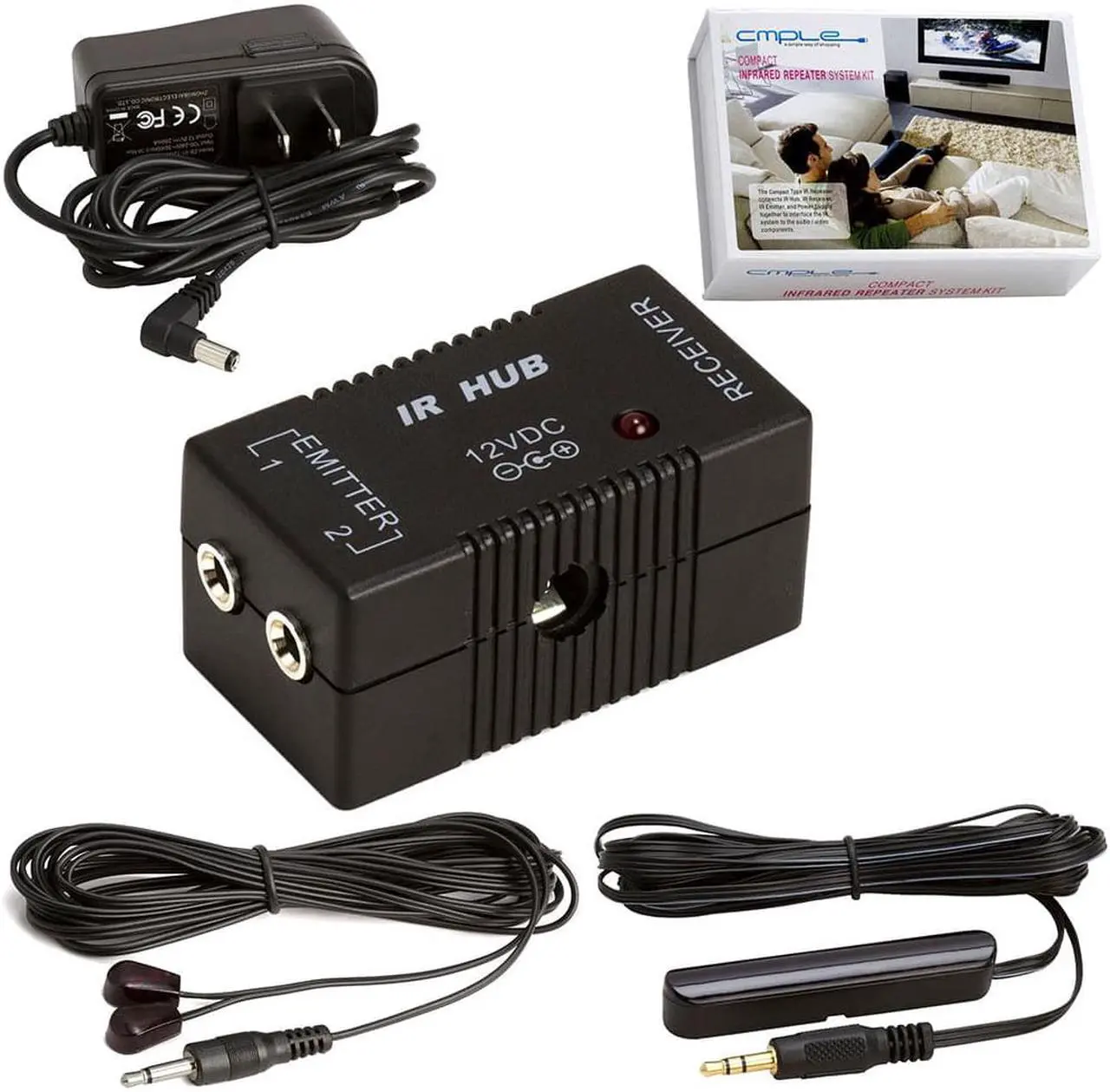

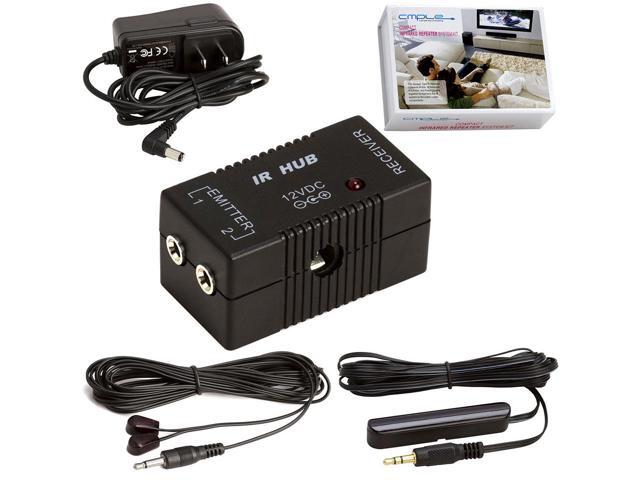

Package Contents:

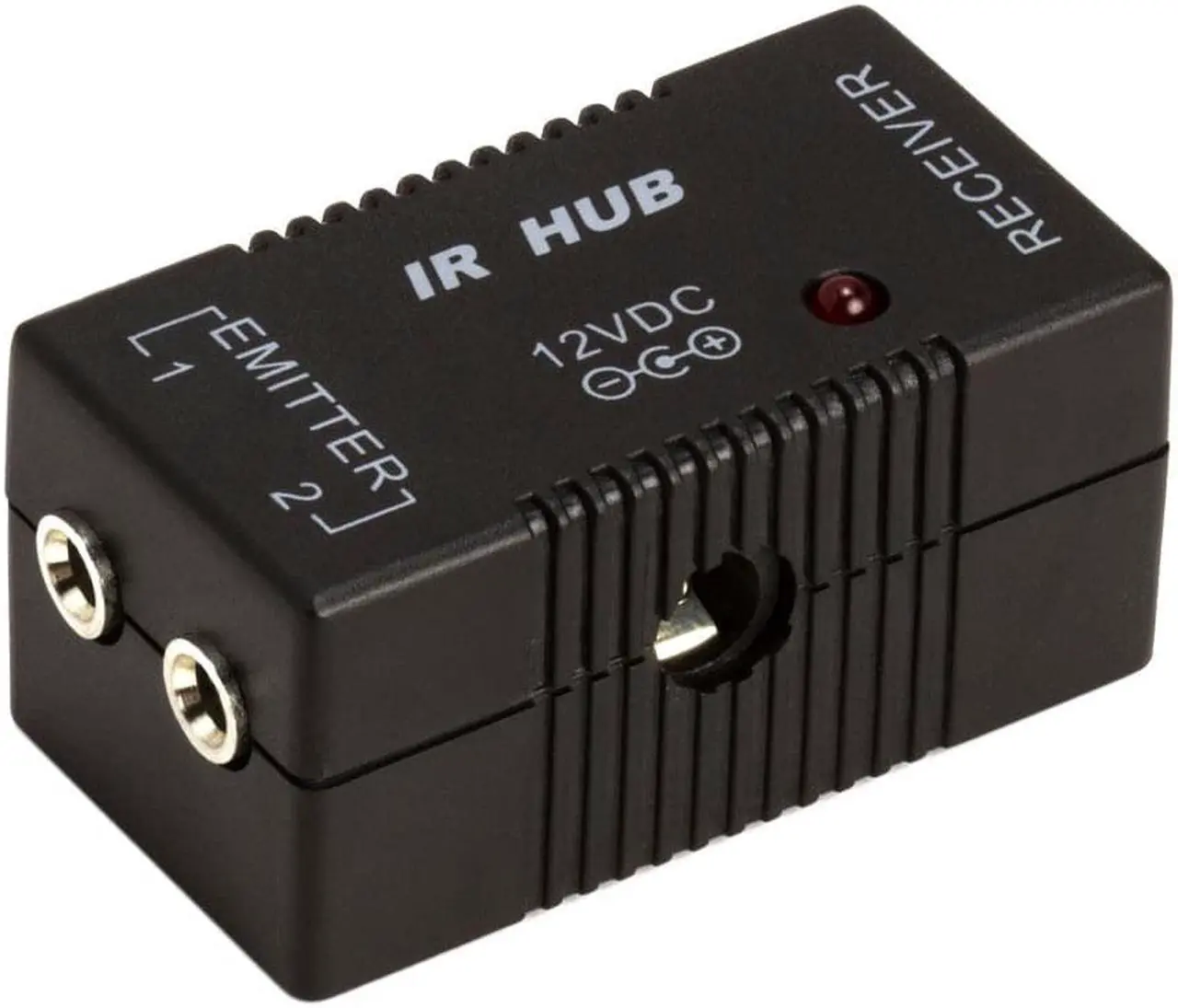

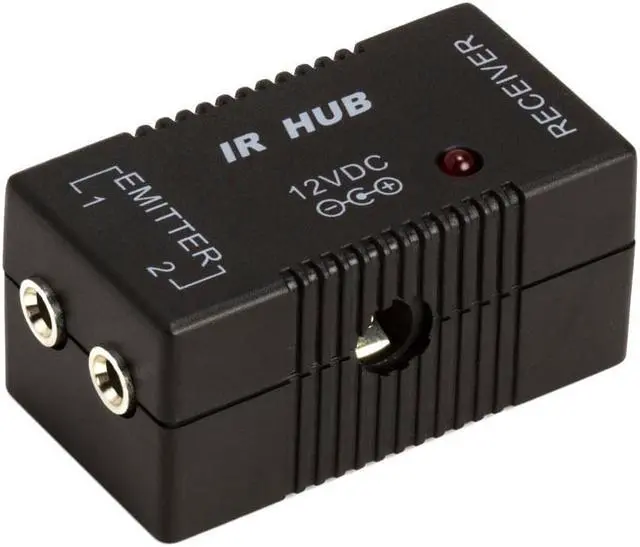

1 x IR Connecting Block

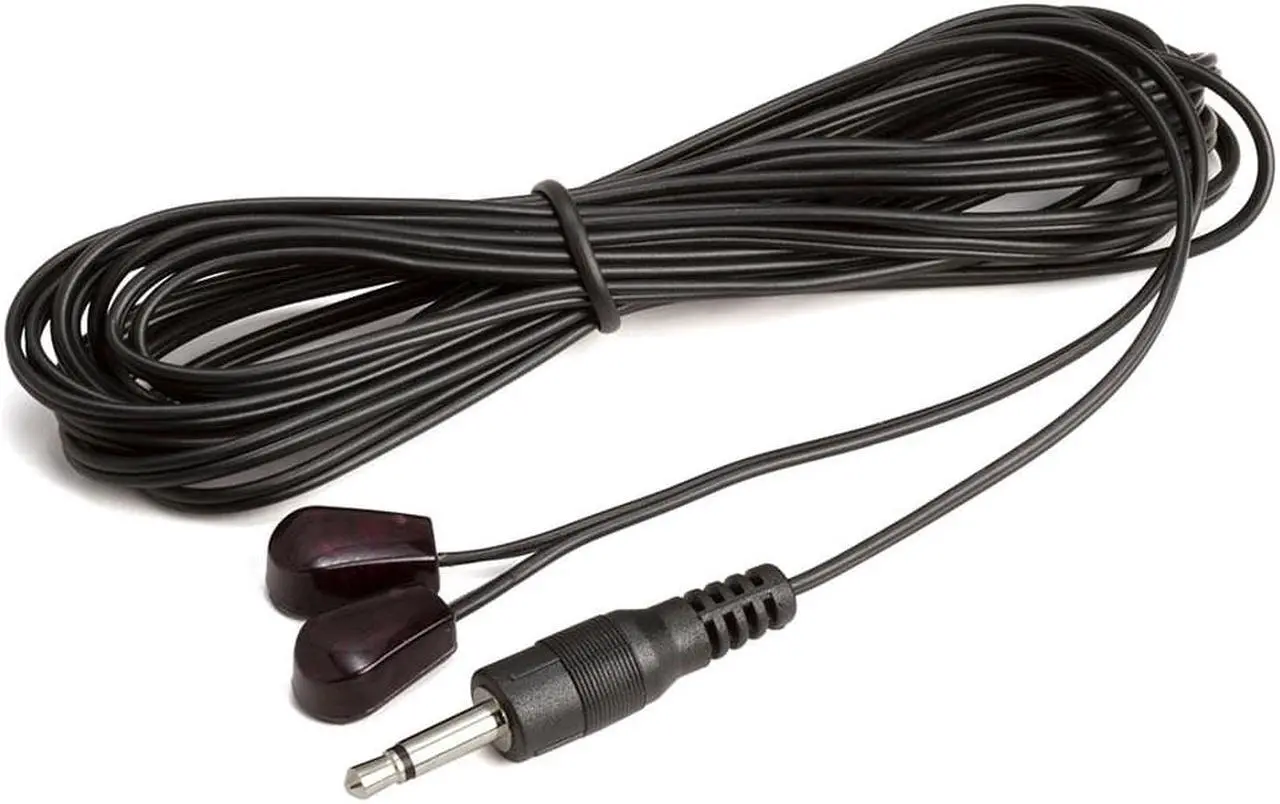

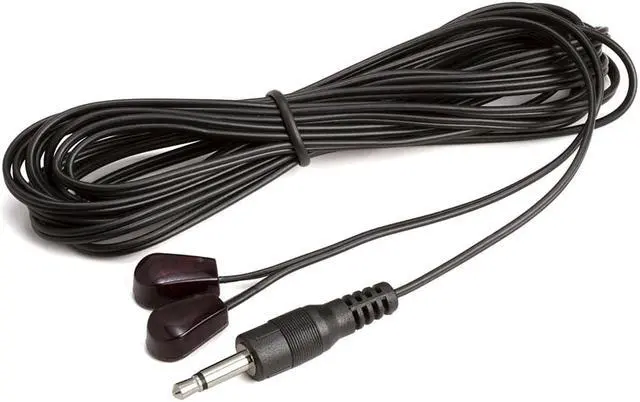

1 x Dual IR Emitters (control 2 devices)

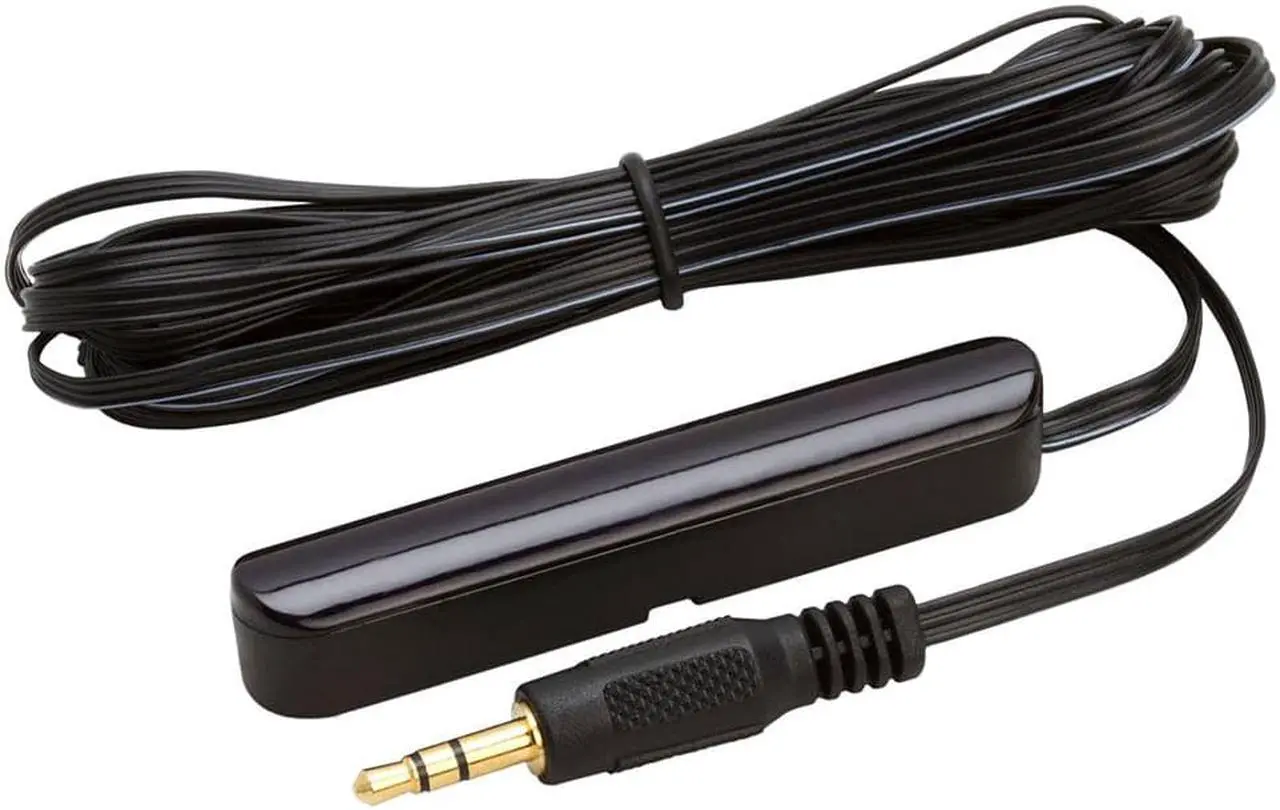

1 x Dual Band Mini IR Receiver

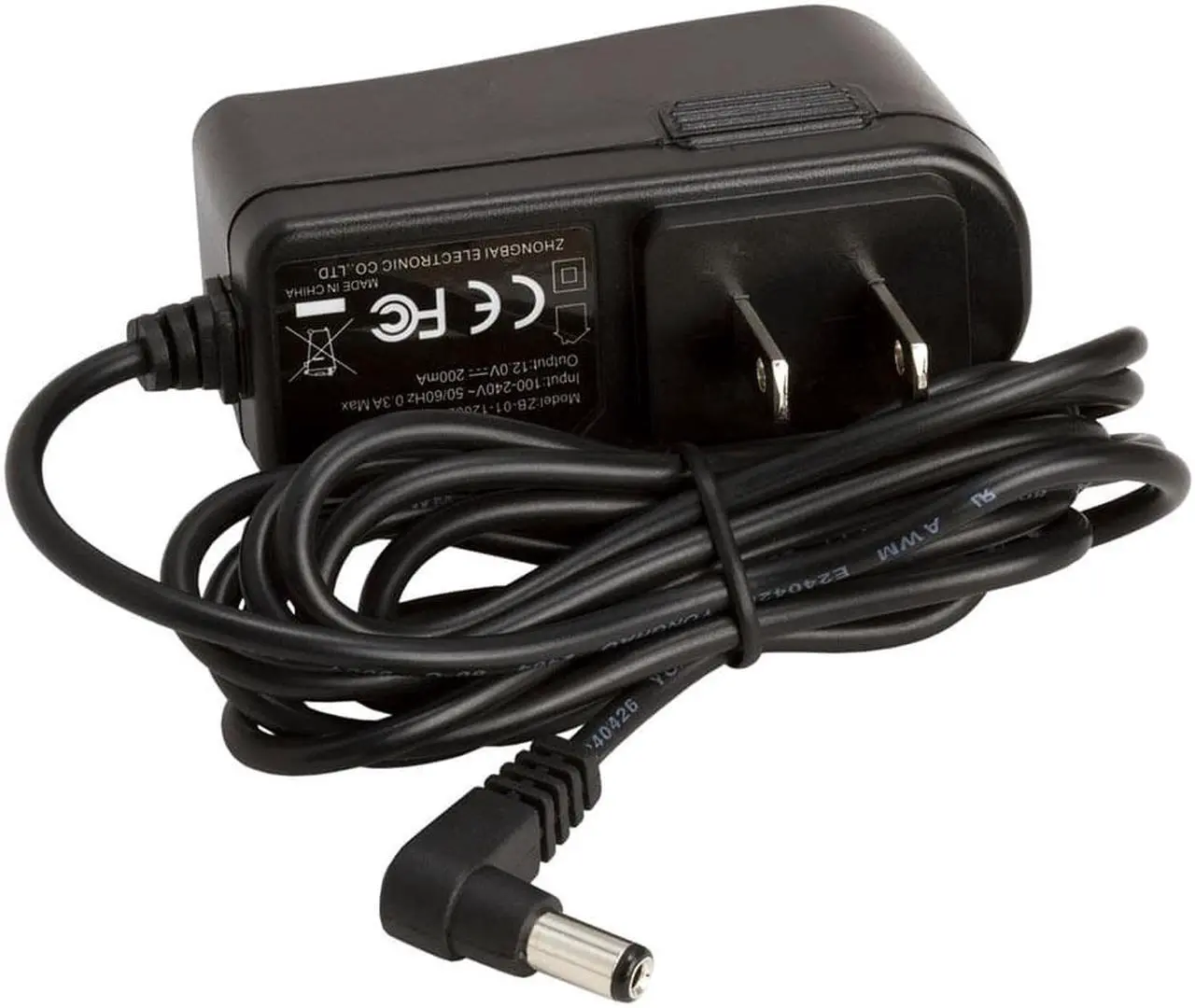

1 x Power Supply

1 x Manual




Note:
Some remotes and devices operate on higher frequencies than 58 KHz. If your system is not controllable with our system,
you will need to change the IR Receiver to Dual Frequency IR Receiver. No need to change the system. All components have been tested.
