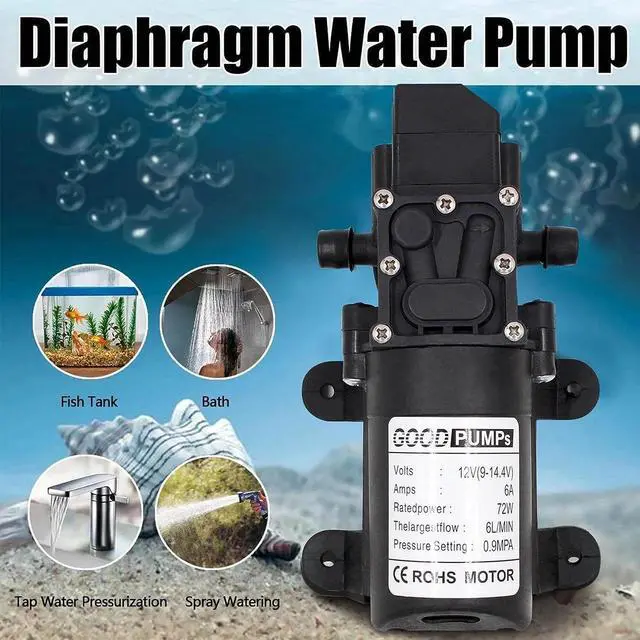

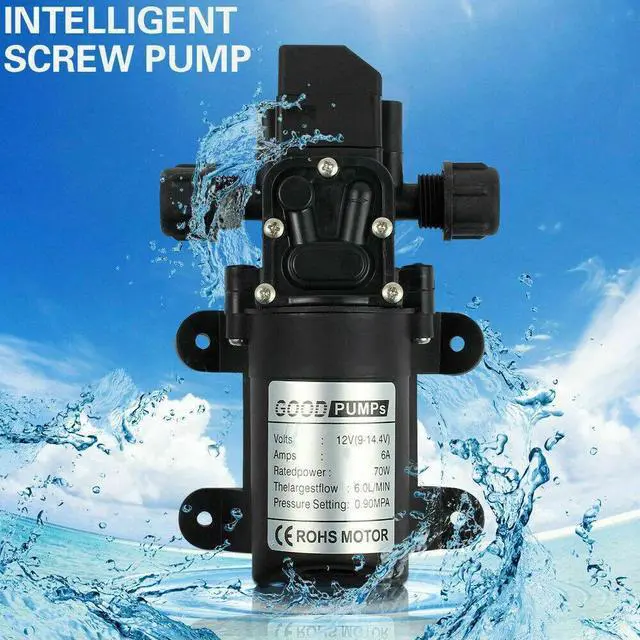

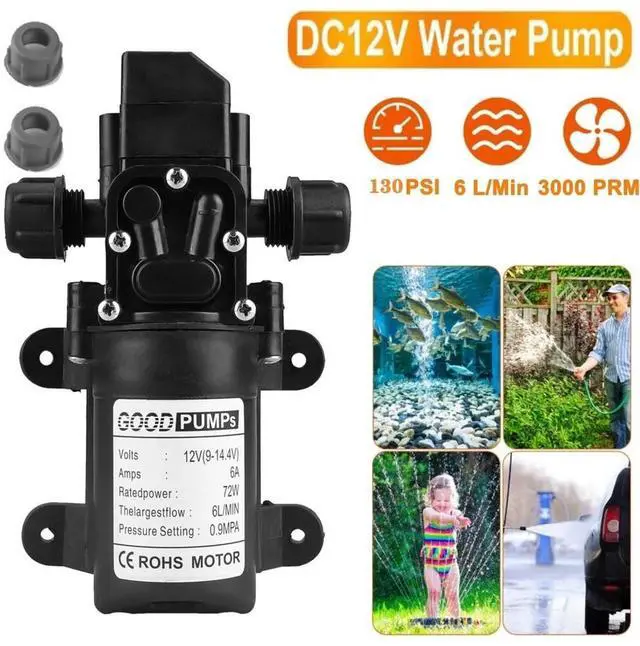

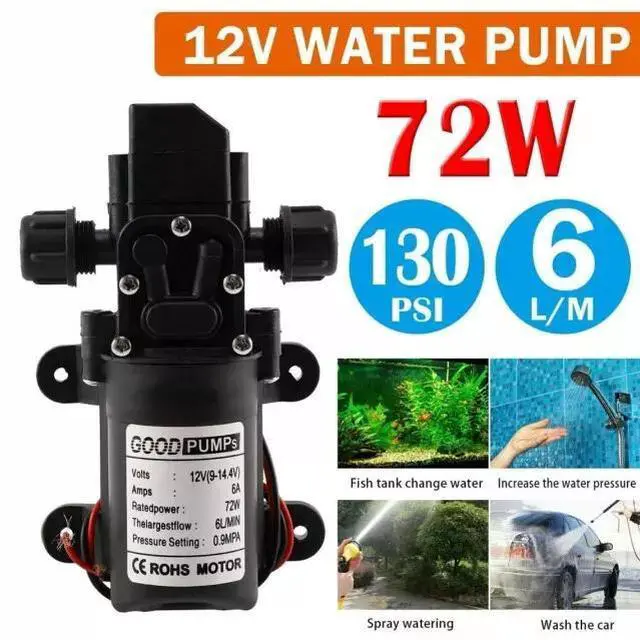

12V Water Pump 130PSI Self Priming Diaphragm High Pressure Automatic Switch

Features:

DC12V 6L/Min water high pressure diaphragm self-priming pump, widely used in farming (lawn and garden), tour vehicles

Diaphragm pump combines the advantages of self-priming pump and chemical pump

Using a variety of imported corrosion-resistant materials, self-priming, thermal protection, smooth operation, long-time continuous idling, long-time continuous load operation

Automatically on or off: When the water outlet is closed, it will automatically cut off power, the motor stops. After the water outlet is opened, it will automatically power on, the motor runs.

Rubber bracket can absorb vibration from the pump when working

Intermittent service: different working pressures leads to different continuous working times

Maximum flow of 6 L / min, flow rate can be adjusted from 0.1 to 6 liters / min depending on your needs

Maximum pressure is 130PSI ( 9.0 kg). Pressure can be adjusted from 75PSI (5 kg) -130PSI ( 9.0 Kg) according to different needs.

Installed in a dry, well-ventilated location and can't work in water

Water pump with a pressure switch will be automatically cut off when the pressure of water outlet is big enough

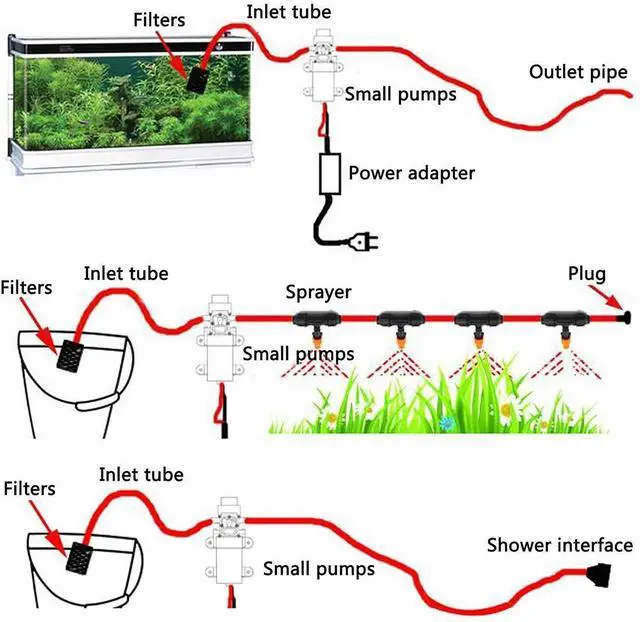

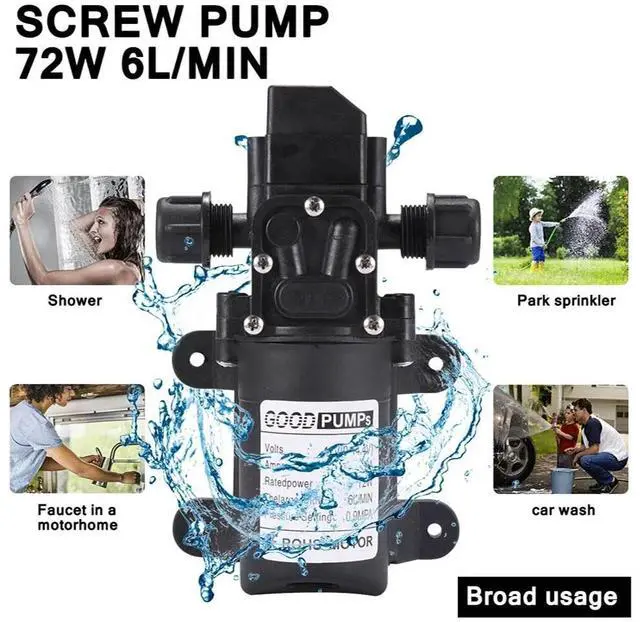

Widely used in farming (lawn and garden), tour vehicles, special vehicle, ship, beverage, vehicle cleaning, carpet cleaning, ground cleaning, water purification and water treatment equipment.
Specification:

Volts: DC12V
Power (max): 72W
Input water pressure: 0.2M pa
Max Output water pressure: 0.9M pa
Pressure setting: 130PSI (Max) (can be adjusted from 75PSI to 130PSI if needed)

Largest Flow: 6L/min
Protection Valve Type: intelligent valve (with Pressure switch)
The absorption process: 2.5 meters
Head: 90 meters (water diversion length of pipe)
Range: 9 meters
Material: ABS
Color: Black
Dimension: approx. 16.2 cm (L) x 10cm (W) x 6cm (H)
Drive Method: Electric
Pump shaft position: Horizontal
Impeller structure: Seal type
Impeller amount: Single
Impeller suction way: Single
Performance: High Pressure
Pumped Medium: Clean Water
Length of high-pressure tube: 2m
Range of application: Spraying, washing, raised pressure, spray insecticide etc.


Package include:
1 x Diaphragm Water Self Priming Pump
