Specifications:
Material: Flame-retardant ABS + PC + Metal
Power Source: 100-120V/AC
Power Frequency: 50/60Hz
Rated Load: <100W Max.
Mounting Type:Ceiling Mount
Compatible Devices: Lights,Lamps
Time-Delay: Min.10sec±5sec
Max. 5min±1min (adjustable)
Ambient Light: 2-2000LUX(adjustable)
Installation Height: 1.8m-2.5m
Working Temperature: -10?~ +40?
Detection Distance: 8M max (the detection distance will be 8m(max) only in the state with best installation angle and best ambient temperature, and it works well when the ambient temperature is 24?,The higher the temperature is or the lower the temperature is, the lower the sensing sensitivity will be)
Installation:
Simple plug the motion sensor outlet into the ceiling outlet,and plug your lights/lamps into this outlet.No tools or wiring needed.

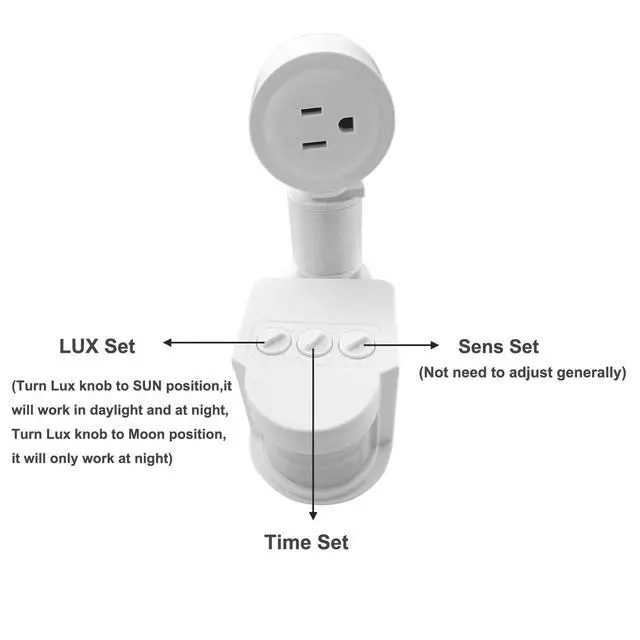

Time Button:
Time Button adjustment can adjust the delay time, your light will turn on automatically in the dark and dusk when detecting motion, and will turn off automatically after your setting time (10sec±5min)without any detecting motion. For example: if you adjust the time button to the position(“—”),it means that the delay time is only 10sec±5sec,so your light will turn off automatically after 10sec±5sec without any detecting motion,“—”means the minimum time,and “+”means maximum time, and the minimum time is 10sec±5sec,the maximum time is 5min±1min;
Sens Button:
Sens Button adjustment can set the sensitivity, and it doesn't need to adjust generally, but if your bulb would be always on because of the high sensitivity, you should adjust the Sens Button to the “—” position;
Lux Button:
Lux Button adjustment can adjust the light to work all day or only at night, Turn LUX knob to SUN position, it will work in daylight and at night, Turn LUX knob to Moon position,it will only work at night.
Warnings:
Designed for indoor use only.

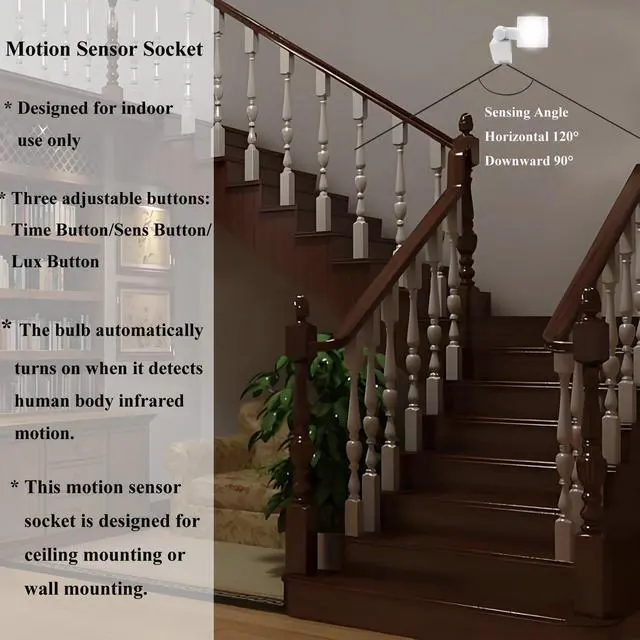

This motion sensor socket is designed for ceiling mounting or wall mounting.

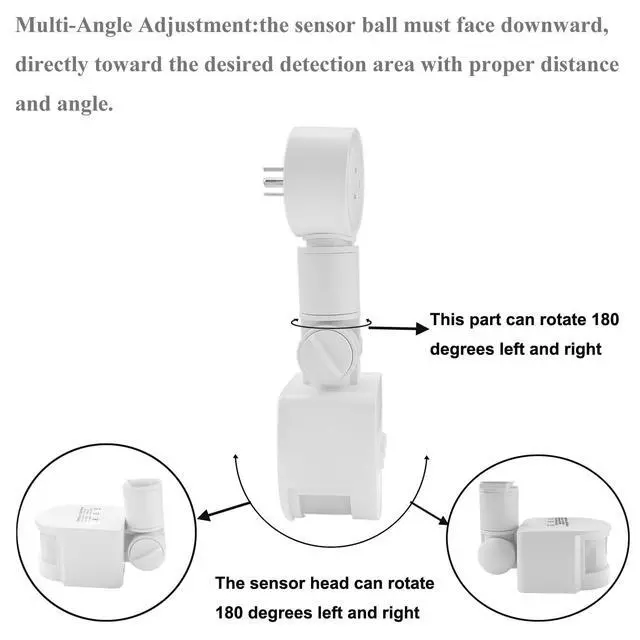

The sensor head must face downward, directly toward the desired detection area with proper distance and angle.
It is compatible exclusively with plug-in light fixtures and must not be used with other plug-in devices.Of course,you can also use the plug-to-E26/E27 adapter to install your E26/E27 bulbs.
