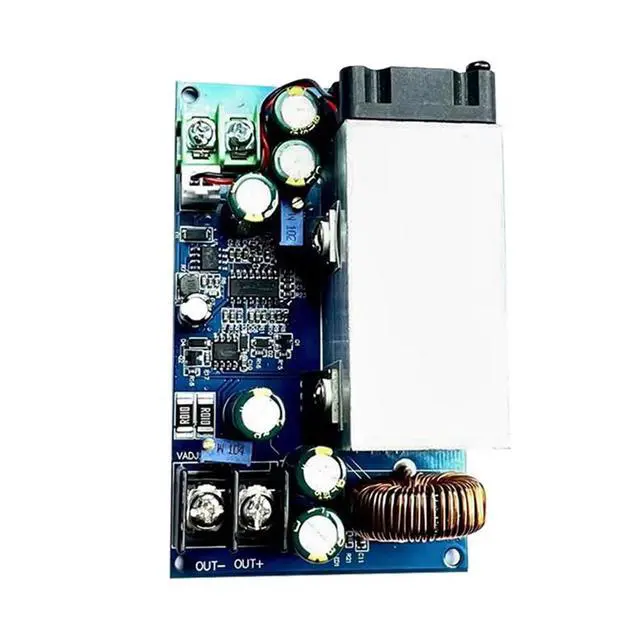

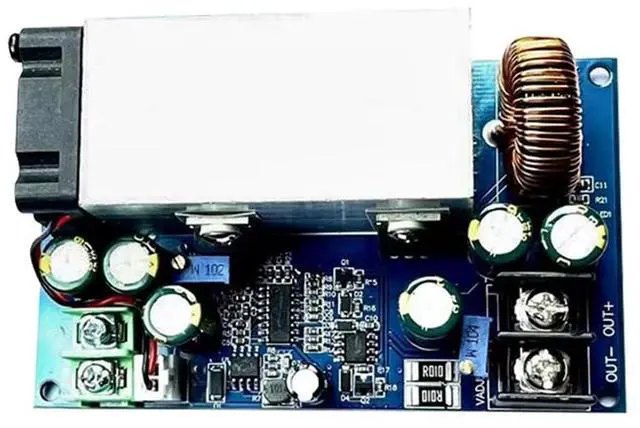

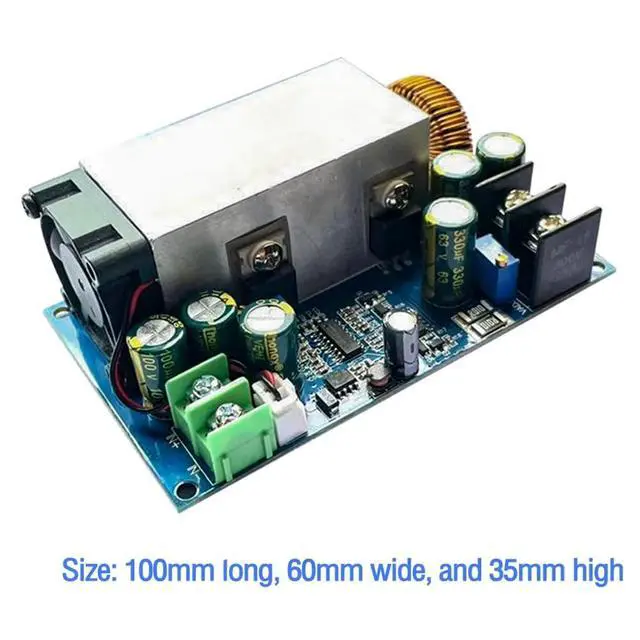

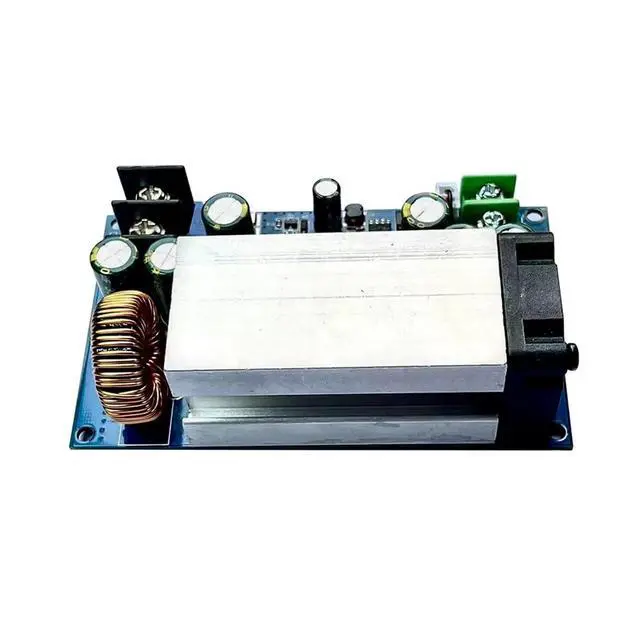

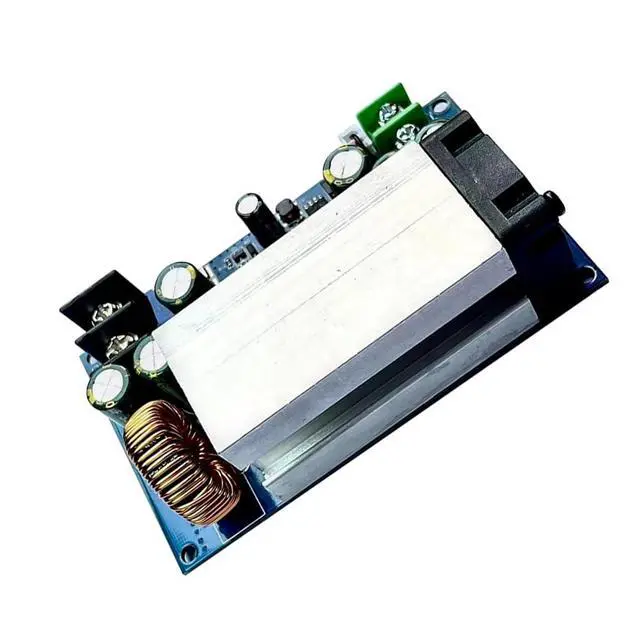

DC-DC Buck Converter 600W Buck Regulator Constant Voltage Constant Current DC 12-75V to 2.5-60V Adjustable Power Module
- Product Model: -8025CCCV; Module name: 600w buck constant voltage constant current adjustable power supply module; Module nature: non-isolated buck module (BUCK); The module adopts step rectification scheme with high efficiency, the highest efficiency is up to 95%.Continuously adjustable output voltage and current; Input voltage up to 75 volts, output voltage up to 60V (at input 75 volts) maximum current 25A.; Input voltage:12-75V; Output voltage range: 2.5-60V (must meet the buck condition, IN input multiplied by 0.8); Output minimum voltage: 2.5V
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Yaregelun Maximum output voltage: approximately equal to the input voltage * 0.8 (for example, the input is 40V, 40V * 0.8 = 32V maximum output voltage is 32V. )
Output constant current: 1-25A (continuously adjustable, )
Maximum output power: 600W (working environment must be well ventilated)
Continuous maximum working power: 500W (ventilated environment)
Continuous maximum working current: 25A (under ventilated environment)
Heat dissipation mode: air-cooled heat dissipation
Input undervoltage protection: No
Input over-voltage protection: None (over-voltage prohibited)
Operating temperature: -10~+65 degrees
Operating frequency: 80KHz
Conversion efficiency: up to 95% (efficiency is related to input and output voltage, current and differential pressure)
Short circuit protection: Yes (constant current protection)
Input reverse connection protection: no
Output anti-refill: no (to charge the battery, the output connected to inductive loads, such as connecting the motor must be added anti-refill diode)
Work indicator: Yes (output voltage blue
LED) Wiring method: comes with no welding terminals

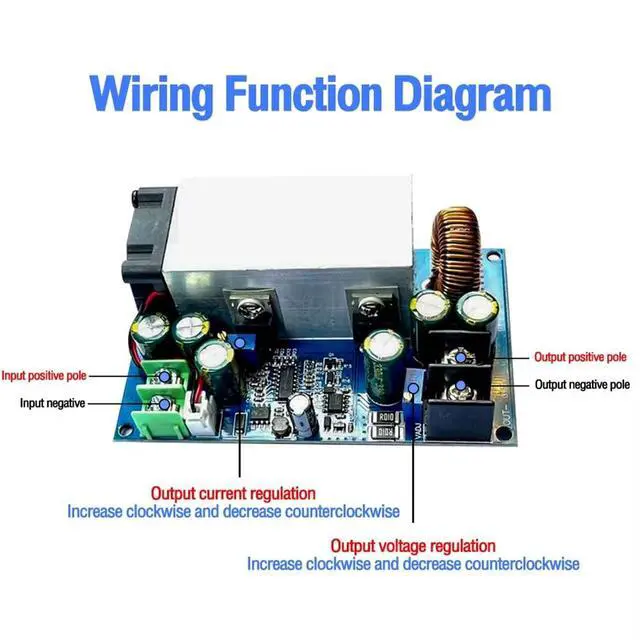

Wiring: "IN" for input, "OUT" for output
Colour: Photo
Color Material: Metal + Plastic The appearance of different production batches may be different but not affect the use
Package Contents: 1 x Voltage antihypertension module Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Output constant current: 1-25A (continuously adjustable, )
Maximum output power: 600W (working environment must be well ventilated)
Continuous maximum working power: 500W (ventilated environment)
Continuous maximum working current: 25A (under ventilated environment)
Heat dissipation mode: air-cooled heat dissipation
Input undervoltage protection: No
Input over-voltage protection: None (over-voltage prohibited)
Operating temperature: -10~+65 degrees
Operating frequency: 80KHz
Conversion efficiency: up to 95% (efficiency is related to input and output voltage, current and differential pressure)
Short circuit protection: Yes (constant current protection)
Input reverse connection protection: no
Output anti-refill: no (to charge the battery, the output connected to inductive loads, such as connecting the motor must be added anti-refill diode)
Work indicator: Yes (output voltage blue
LED) Wiring method: comes with no welding terminals
Wiring: "IN" for input, "OUT" for output
Colour: Photo
Color Material: Metal + Plastic The appearance of different production batches may be different but not affect the use
Package Contents: 1 x Voltage antihypertension module Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
