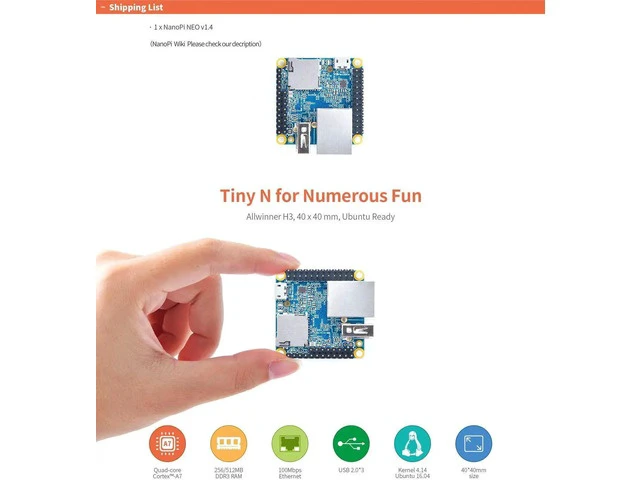

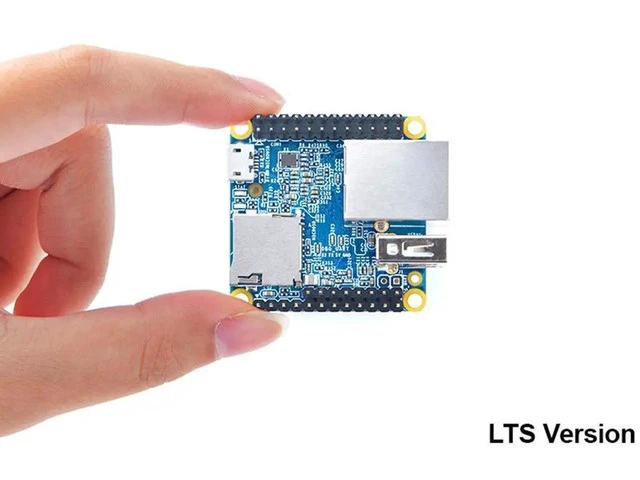

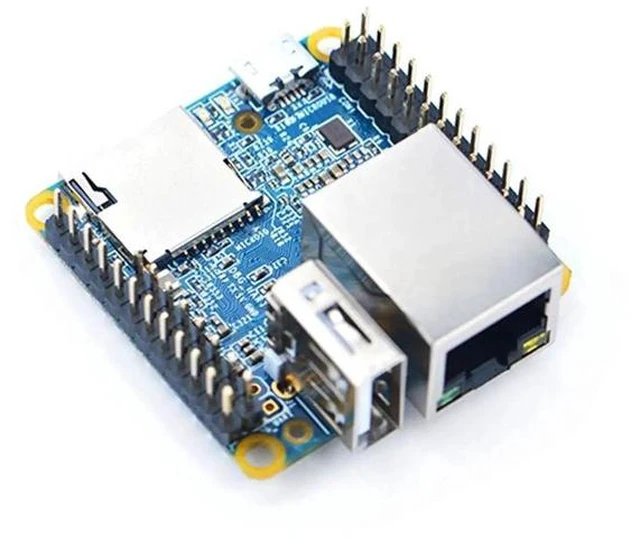

NanoPi NEO Open Source Allwinner H3 Development Board Super Raspberry Pie Quad-core Cortex-A7 DDR3 RAM 512MB Run Ubuntu Core
- NanoPi NEO Open Source Allwinner H3 Development Board Super Raspberry Pie Quad-core Cortex-A7 DDR3 RAM 512MB Run Ubuntu Core
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

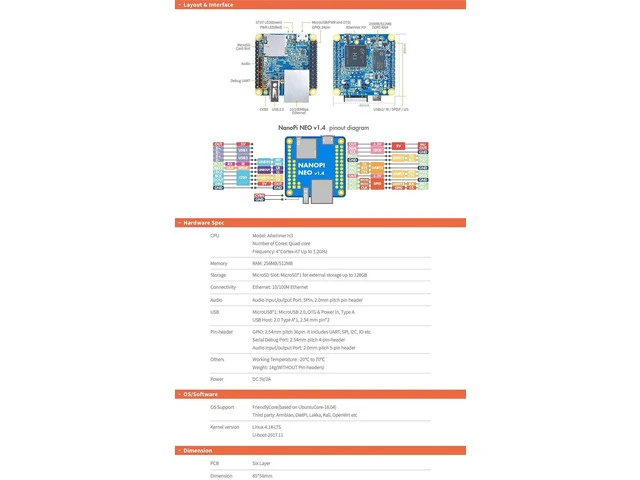

-Specification-
CPU Model: Allwinner H3 Number of
Cores: Quad-core
Frequency: 4*Cortex-A7 Up to 1.2GH z
Memory:
RAM: 256MB/512MB
Storage: MicroSD
Slot: MicroSD*1 for external storage up to 128GB
Connectivity:
Ethernet: 10/100M
Ethernet Audio: Audio input/output
Port: 5Pin, 2.0 mm pitch pin header
USB MicroUSB*1: MicroUSB 2.0, OTG & Power In, Type A
USB Host: 2.0 Type A*1, 2.54 mm pin*2
Pin-header GPIO: 2.54 mm pitch 36pin. It includes UART, SPI, I2C, IO etc

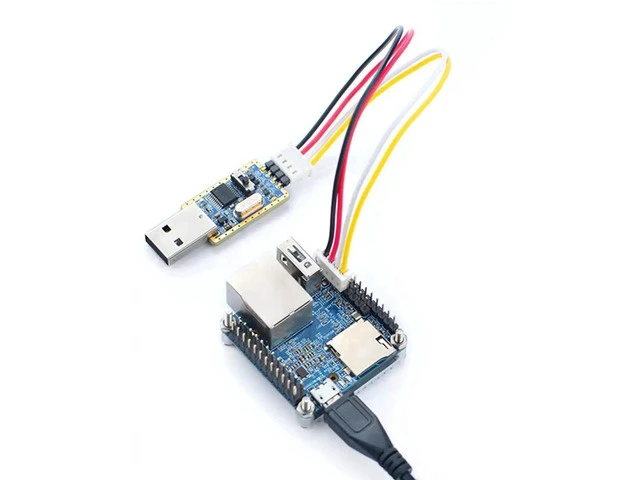

Serial Debug Port: 2.54 mm pitch 4-pin-header
Audio input/output Port: 2.0 mm pitch 5-pin header LED Power LED (Red) *1 System LED (Green) *1
Others: Working
Temperature: -20 to 70
Power: DC 5V/2A -OS Support- FriendlyCore 16.04 (based on UbuntuCore- 16.04 ) FriendlyCore Focal (Base on Ubuntu 20.04 ) FriendlyWrt 19.07. 1(32-bit) Armbian DietPi Lakka Kali -Kernel version- Linux- 4.14 -LTS U-boot- 2017.11 -Dimension-
PCB: 4
Layer Dimension: 40*40mm
Weight: 14g(WITHOUT Pin-headers) -In the Box- NanoPi NEO 512MB with Pin x1 -After Sales- monica @ smartfire.
cn Skype: monica_9122 -Technical Support- forum. youyeetoo. com/
CPU Model: Allwinner H3 Number of
Cores: Quad-core
Frequency: 4*Cortex-A7 Up to 1.2GH z
Memory:
RAM: 256MB/512MB
Storage: MicroSD
Slot: MicroSD*1 for external storage up to 128GB
Connectivity:
Ethernet: 10/100M
Ethernet Audio: Audio input/output
Port: 5Pin, 2.0 mm pitch pin header
USB MicroUSB*1: MicroUSB 2.0, OTG & Power In, Type A
USB Host: 2.0 Type A*1, 2.54 mm pin*2
Pin-header GPIO: 2.54 mm pitch 36pin. It includes UART, SPI, I2C, IO etc
Serial Debug Port: 2.54 mm pitch 4-pin-header
Audio input/output Port: 2.0 mm pitch 5-pin header LED Power LED (Red) *1 System LED (Green) *1
Others: Working
Temperature: -20 to 70
Power: DC 5V/2A -OS Support- FriendlyCore 16.04 (based on UbuntuCore- 16.04 ) FriendlyCore Focal (Base on Ubuntu 20.04 ) FriendlyWrt 19.07. 1(32-bit) Armbian DietPi Lakka Kali -Kernel version- Linux- 4.14 -LTS U-boot- 2017.11 -Dimension-
PCB: 4
Layer Dimension: 40*40mm
Weight: 14g(WITHOUT Pin-headers) -In the Box- NanoPi NEO 512MB with Pin x1 -After Sales- monica @ smartfire.
cn Skype: monica_9122 -Technical Support- forum. youyeetoo. com/
